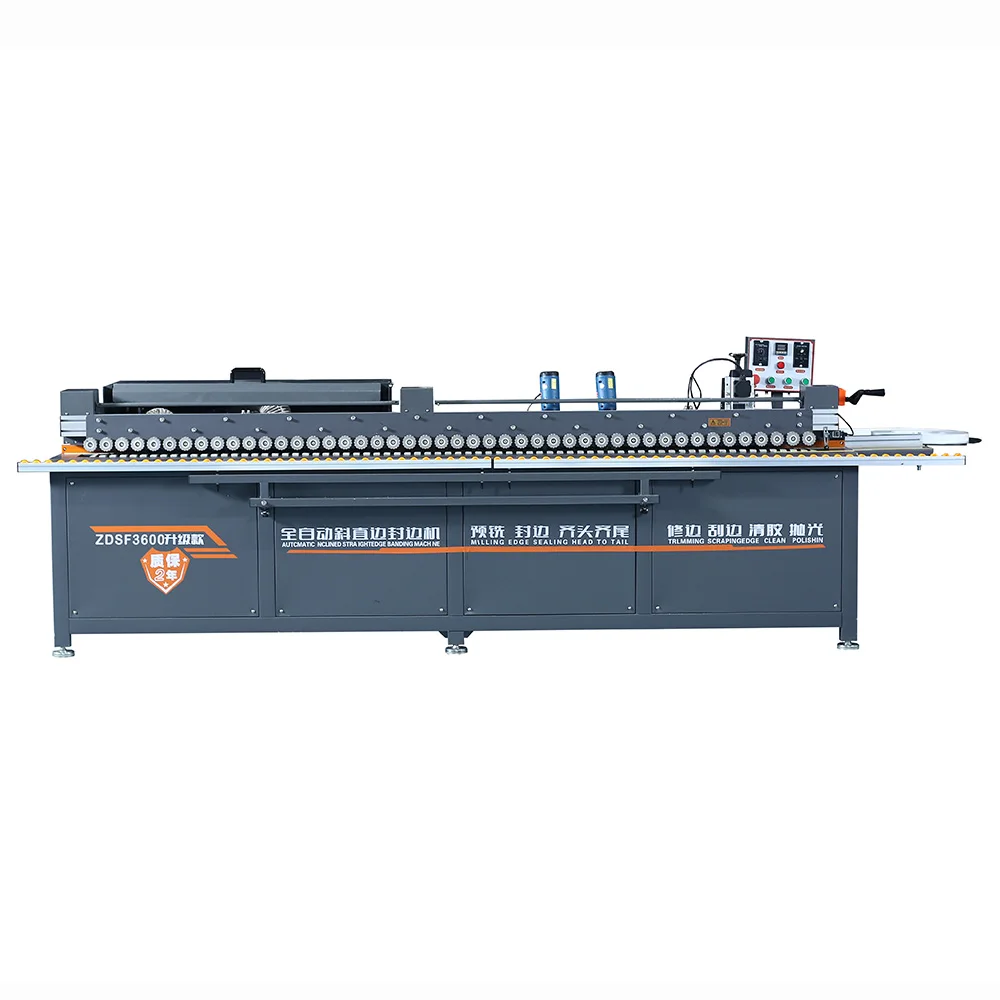

ZDS-3600 Full Auto Bevel-Straight Edge Banding Machine

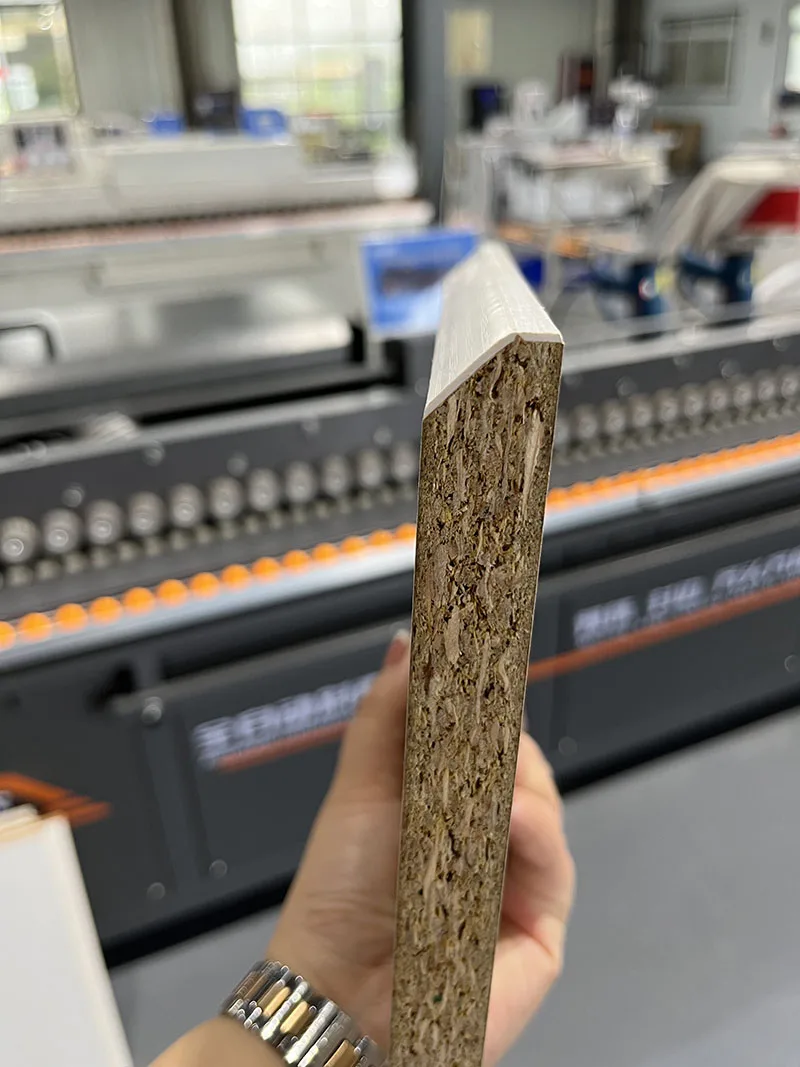

Use for Bevel-straight Edge.achieve perfect bevel-straight banding effect at one time.


Function:
Function:
*Milling Shape
*Edge strip slotting
*Hot air assisted. secondary heating
*Head and tail cutting
*Fine trimming
*Scraping
*Buffing
Product Parameters
Edge speed
0-12m/min
Edge banding sheet thickness
18-45mm
Voltage
380v
Power
8.9kw
Working pressure
0.5-0.7Mpa
Glue pot capacity
4000ml
Bevel Angle
30°-90°
Edge motor
0.12kw
Glue pot heating
2kw
Oven lamp heating
2kw*2
Slotting motor
65w
Trimming motor
2.2kw*2
Milling motor
2.2kw
Polishing Motor
0.37kw*2
Size
3320*650*1180mm
Weight
450kg
Function
Straight edge– Beveled straight edge– Pressing/gluing–Pre-milling–Preheating– edge trimming–edge scraping–clear glue–polishing
Product details
PLC control. panel operation. easy to learn.
One-piece aluminum alloy lift and pressure beam. stable and durable.
Pressure beam height adjustment device. digital display. suitable for plates of different thickness.
Beveled edge milling motor. powerful power. PLC control. easy tool change.
Large-capacity glue pot assembly reduces the number of glue additions.
The edge banding is pre-grooved for better results.
Chrome-plated pressure roller. easy to adjust the pressure. can achieve different angles of edge banding.
Two high-speed trimming motors. matched with 4-edged alloy cutter heads. form arc edges.
Spray glue removal device to remove excess glue spilled during glue application.
Large-diameter suction tube. better dust collection effect.
Dual motors polish up and down. and the finished product has better effect.
