Product Description

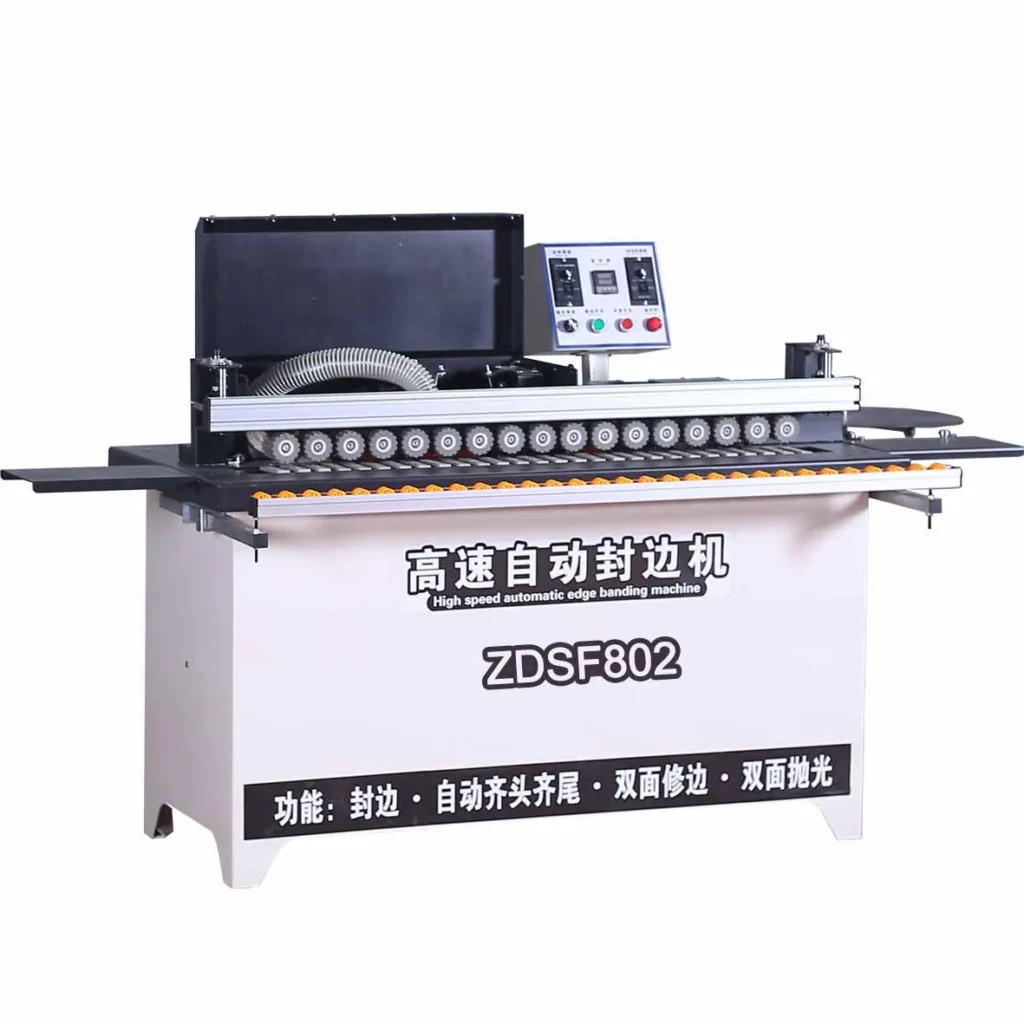

ZDSF802 Automatic Edge Banding Machine (Large Glue Pot)
ZDSF802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy.
The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid and not easy to scratch the board.
4L large-capacity glue pot does not need to add glue frequently. saves time and effort. can band multiple plates continuously. and is easy to operate.
Edge banding speed is about 2 times of that of others models.
Banding Effect
Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Big Capacity of Glue Pot
Specification
Model
ZDSF802 Automatic Edge Banding Machine
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220v
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Trimming power
800w*2
Polishing power
180w*2
Suction power
1200w
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Feed plate
0-10m/min
Conveyer belt
0-10m/min
Glue capacity
4000ml
Heating power
1000w (5-10min)
Overall size
130*65*75cm
Machine weight
150kg
Details Images

Control panel. digital display of glue pot temperature. independent switch. easy to operate.

Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.

4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.

Pneumatically controlled belt breaking method is precise and labor-saving.

Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors.
the polishing effect is better.
Edge banding tray
