Automatic Woodworking Small PVC Edge Banding Bander Machinery for 3mm Edge Banding Gluing Wood

This product is currently out of stock and unavailable. SKU: Automatic Woodworking Small PVC Edge Bandi-36310868 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply edge banding machine with auto gluing and trimming buffing and automatic end cutting The high-speed automatic edge banding machine has the function of automatic end cutting.with […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply

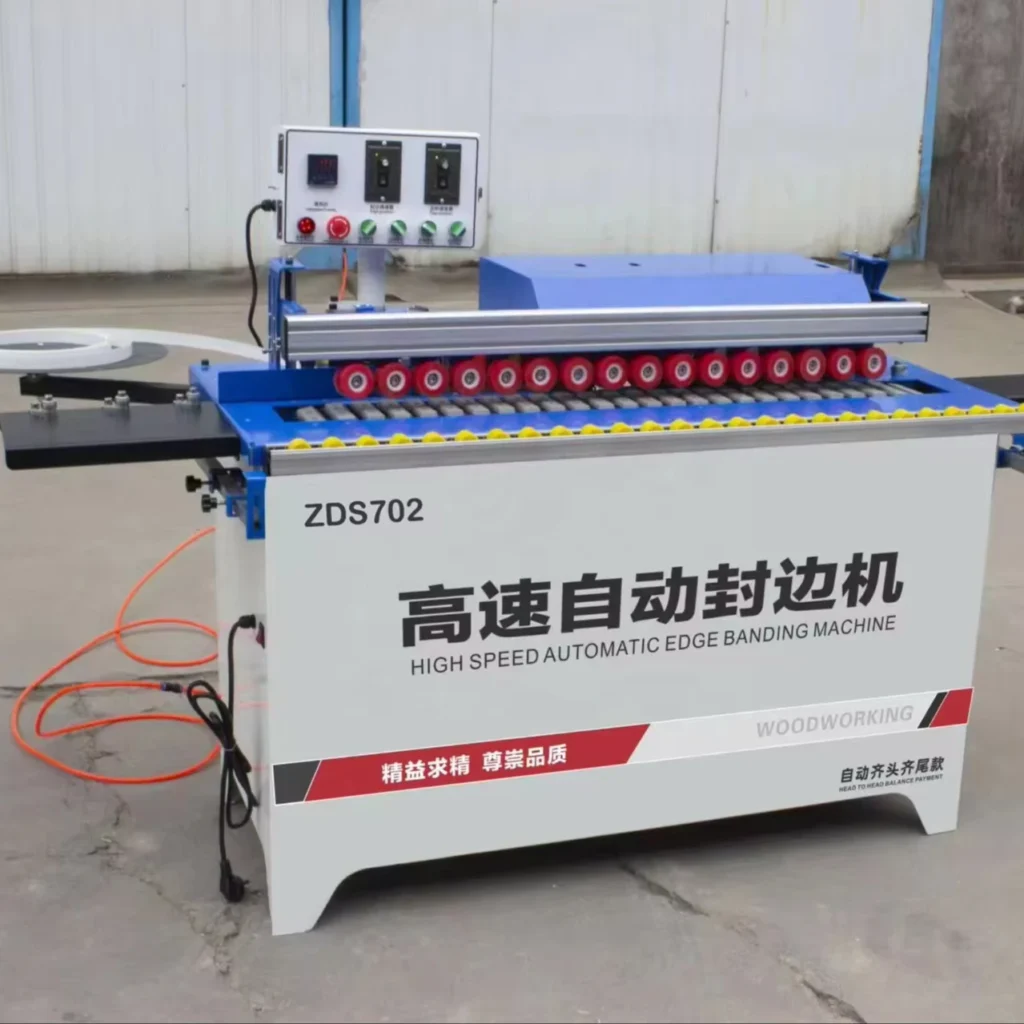

edge banding machine with auto gluing and trimming buffing and automatic end cutting The high-speed automatic edge banding machine has the function of automatic end cutting.with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to scratch.It can seal multiple plates continuously. with convenient operation and high efficiency.
Product Parameters
Model
ZDS702
802
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220V/380V/customization
Trimming height
5-50mm
Rated power
3.8kw
4kw
Rated air pressure
0.4-0.6mpa
0.4-0.6mpa
Feed plate
0-10m/min
0-10m/min
Edge banding thickness
0.3-3MM
Glue capacity
1000ml
4000ml
Heating power
1000w (5-10min)
1000w (5-10min)
Overall size
120*55*120cm
130*65*75cm
Machine weight
105kg
150kg
 our services
We can provide you with various custom services
Product details
Double row pressure rollerCan seal the upper and lower sides at the same timeEdge and trim at the same time to improve efficiency
Precision scale
Adjust the pressure scale precisely as neededImprove system efficiency
Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.
Hand crank wheel integrated pressure adjustmentConvenient
