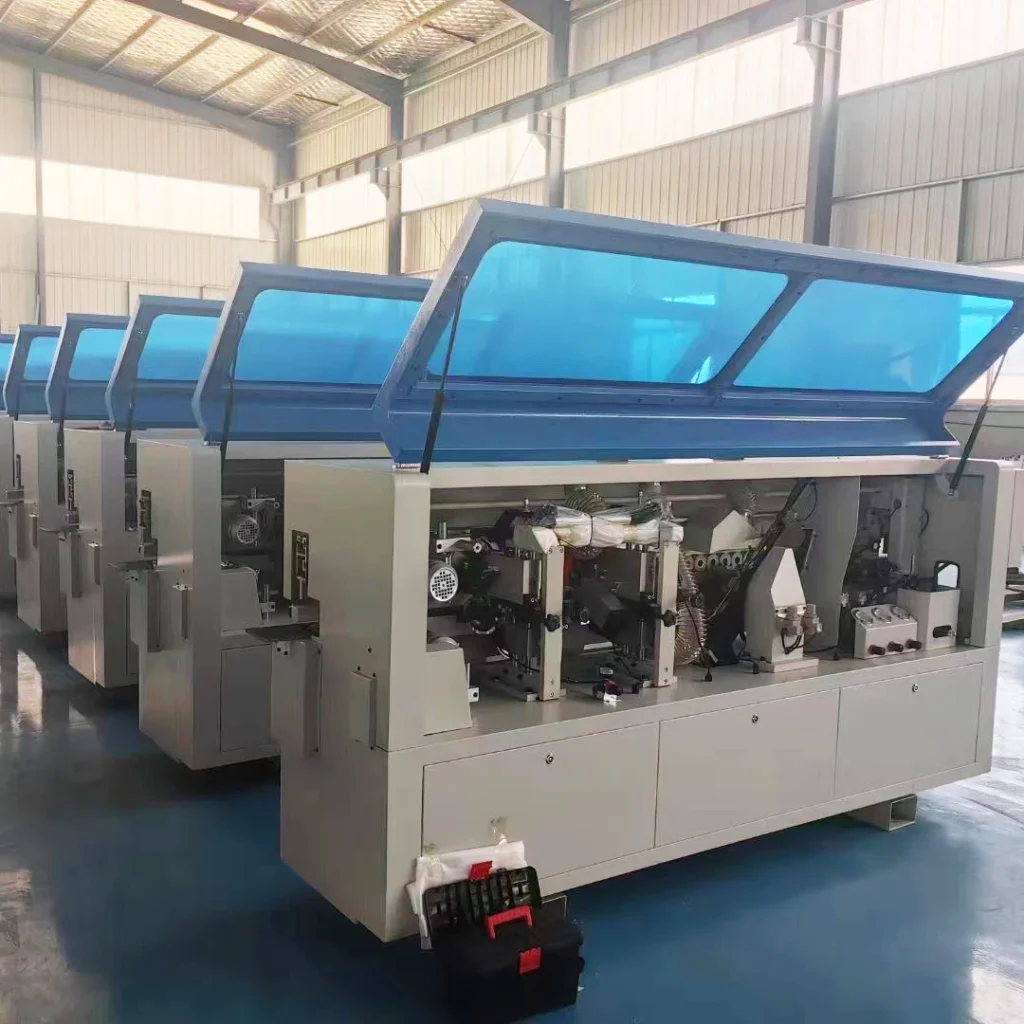

Automatic Straight Line Edge Bander Edge Bander Return Conveyor Pur Edge Banding Machine
CE Certified ISO 9001 OEM / ODM Support Ships Worldwide
Wood Based Panels Machinery Woodworking Machinery

Automatic Straight Line Edge Bander Edge Bander Return Conveyor Pur Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Automatic Straight Line Edge Bander Edge B-36310831 Categories: Woodworking Machinery, Wood Based Panels Machinery Description Additional information Table of ContentsDescriptionAdditional informationRelated productsAutomatic KDT Melamine Edge Banding Machine PVC Tape & Circular Table Sliding Veneer Edge Bander for Wood Based PanelsWoodworking Portable Panel Saws Wood Cutting […]

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)

Products Disply
1. The fuselage adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.
Product Parameters
Model
ZDS280B
ZDS280C
The main function
Gluing. End trimming. Fine trimming. Buffing
Gluing. End trimming. Fine trimming. Scraping. Buffing
Working pressure
0.6-0.8Mpa
Panel thickness
10-55mm
Edge thickness
0.4-3mm
Conveyor belt speed
15m/min
Min. panel width
45mm
Min. panel length
80mm
Voltage
380V-3HP
Power
7.5kw
Weight
650kg
800kg
Dimensions
2300*700*1250mm
2800*700*1250mm
Product details
Gluing and pressing device
Control Panel
End trimming
Fine trimming & Scraping
Type B has no scraping function
Circuit display
Buffing
