Description
Unified Product Family — the DW902 shares its engineering platform with every other Ruiqi edge bander, letting workshops scale without switching suppliers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW902 |
| Product Type | Automatic Edge Banding Machine |
| Function Stations | Gluing, Trimming, End Cutting, Scraping, Polishing |
| Voltage | 220V (configurable from 110V to 440V) |
| Total Power | 3300W |
| Board Thickness Range | 0–50mm |
| Strip Thickness Range | 0.5–3mm |
| Glue Pot Capacity | 4000ml |
| Pressure Beam | Integrated pressure beam with double rows of pressure wheels |
| Conveyor Belt | Silicone material |
| Trimming System | Pneumatically controlled edge strip cutting device |
| Polishing System | Up and down dual polishing motors |
| Trimming Motors | Double high-speed trimming motors |
| Feed Speed | (basis to be confirmed) |
| Overall Dimensions | 175×60×112cm |
| Net Weight | 240kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood with PVC or veneer banding |
| Panel sizing and edge treatment for joinery | Particleboard with melamine or ABS strips |
| Small-batch furniture component preparation | Solid wood panels up to 50mm thickness |
| Workshop transition from manual to automated banding | Mixed substrate batches across production runs |
Why Voltage Confirmation Must Happen Before the Proforma Invoice
An Automatic Edge Banding Machine manufacturer that skips voltage verification is handing you a machine you cannot plug in.
I once watched a German workshop stand around a newly delivered edge bander for three weeks because the unit arrived wired for 400V three-phase while the facility ran only 230V single-phase. The production halt cost far more than a transformer ever would. [NEED_CITE: voltage and frequency standards by export market] When sourcing woodworking machinery across borders, the electrical specification on paper must match the actual supply at the installation point — not just the country standard, but the specific panel board where the machine will be connected. The DW902 is quoted at 220V, yet many export markets require different configurations, and confirming this early avoids expensive post-delivery rework.
Where the DW902 Fits in the Full Catalogue
The Ruiqi catalogue spans entry-level machines for startup workshops through to full-function pre-milling models for high-volume factories. The DW902 occupies the full-function tier without pre-milling, offering a single-pass workflow that covers gluing, end cutting, trimming, scraping, and polishing. Buyers surveying the complete Automatic Edge Banding Machine manufacturer range can position this model as the point where a workshop gains multi-station finishing capability without stepping into the footprint and power draw of a pre-milling configuration.
How Catalogue Depth Protects Your Upgrade Path
When a joinery workshop starts with a compact edge bander and later needs higher throughput, switching suppliers introduces feed-height mismatches and incompatible conveyor speeds between machines in the same line. Ruiqi builds every tier on the same engineering platform, so a production manager can reference one set of tolerances and one spare-parts ecosystem across the entire catalogue. [NEED_CITE: CE machinery directive requirements for industrial equipment] This continuity matters when you are planning a phased investment rather than buying a single machine in isolation.
Reading the Specifications Against Your Panel Stock

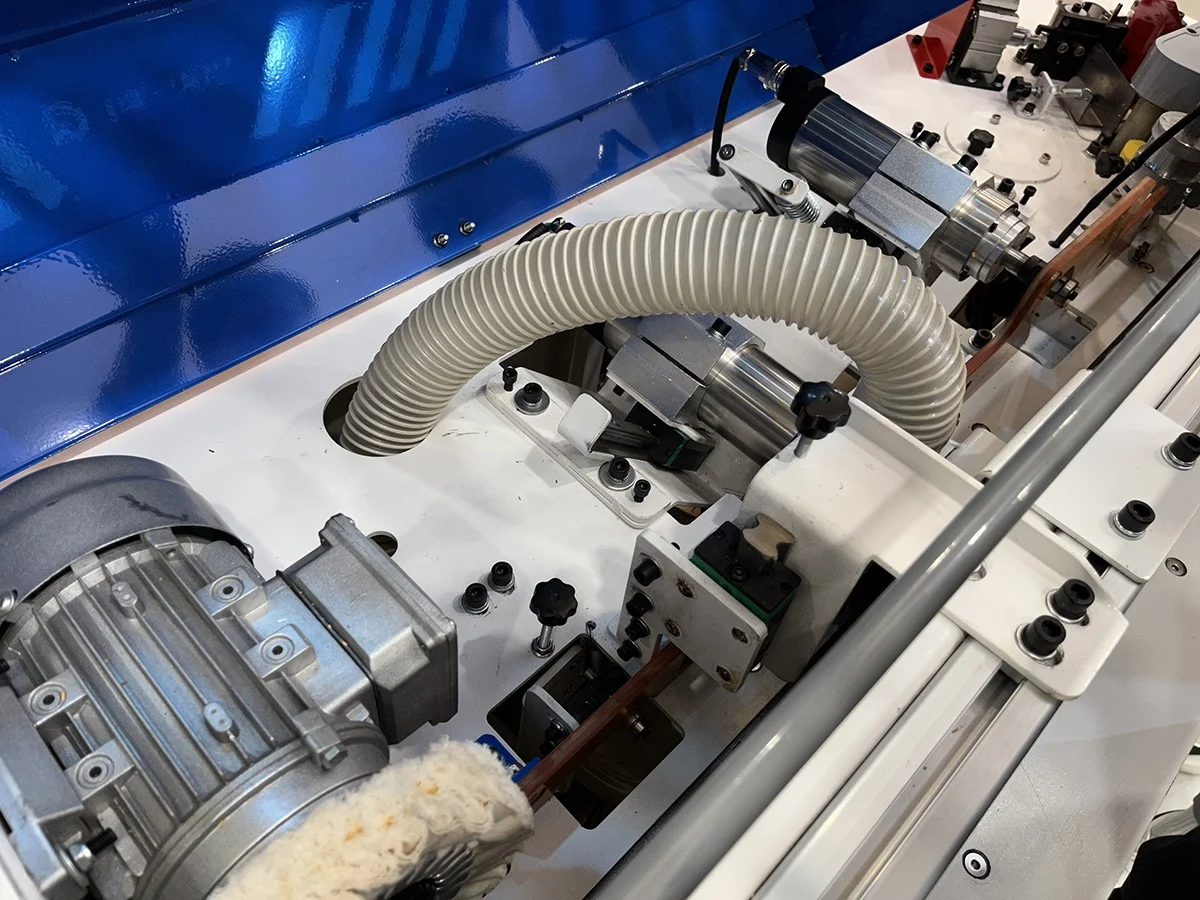

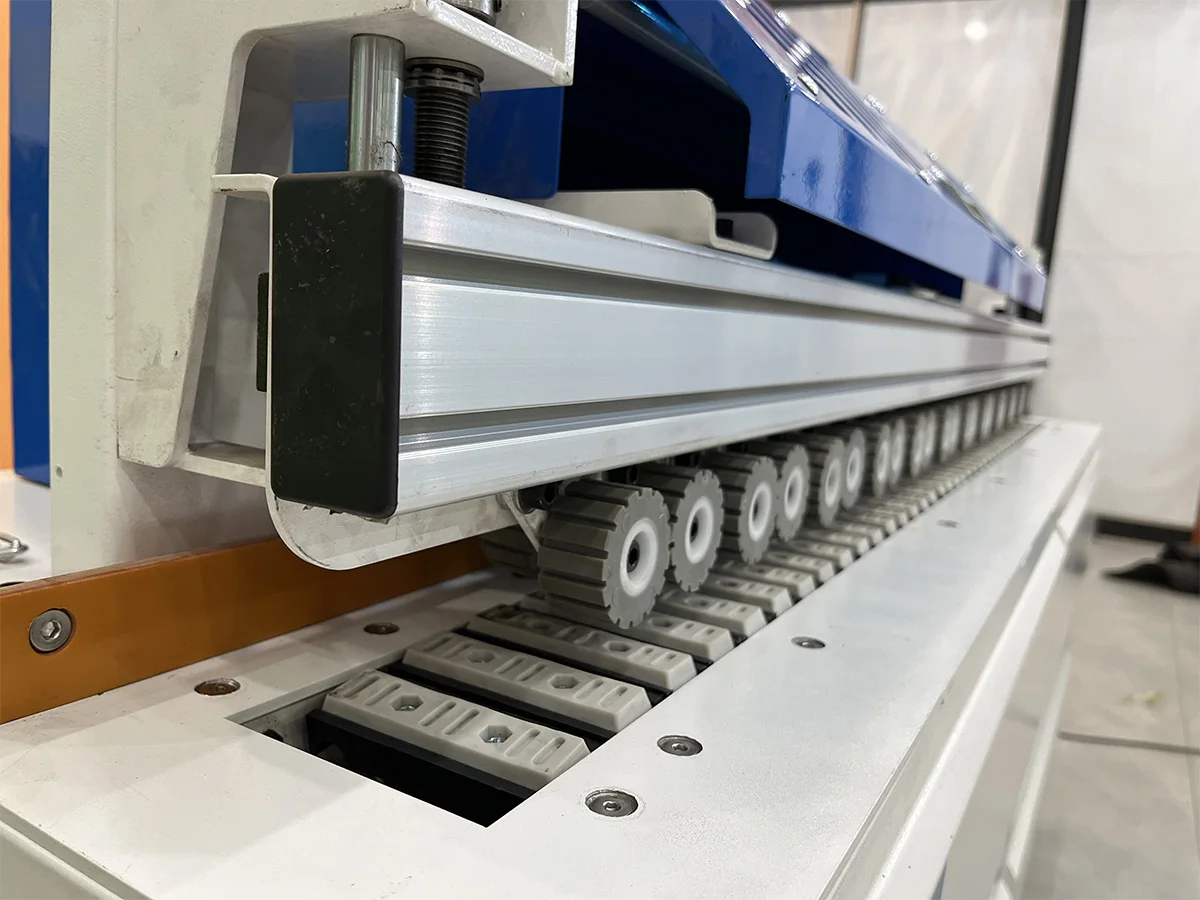

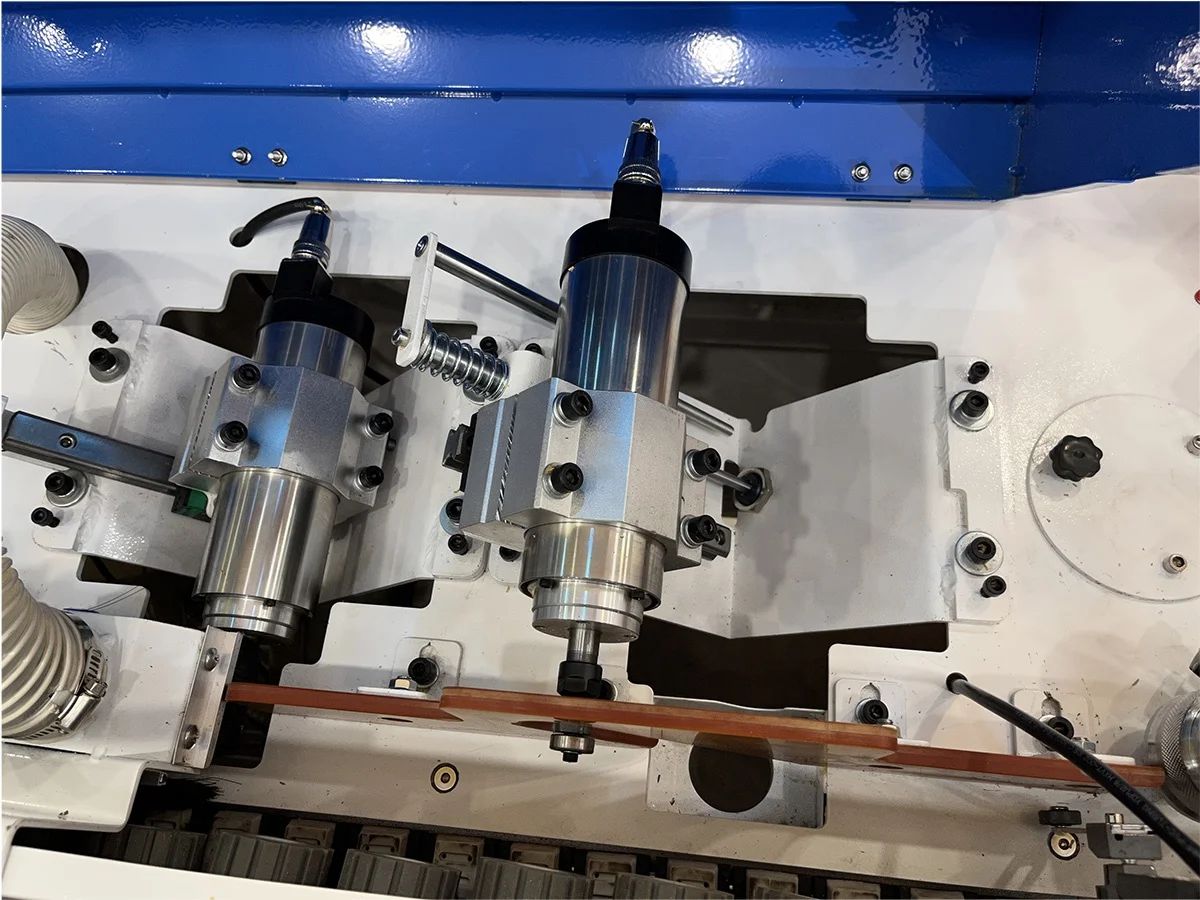

The 0–50mm board thickness range means the DW902 handles everything from thin 3mm MDF backing panels up to thick solid-wood shelving stock in a single setup. The 4000ml glue pot reduces refill interruptions during a full production shift, which matters when you are running batch sizes that keep the conveyor loaded for hours. The integrated pressure beam with double rows of pressure wheels holds panels flat against the silicone belt, preventing the slight tilt that causes uneven glue lines on wider boards. Trimming relies on a pneumatically controlled cutting device paired with double high-speed motors, meaning the strip is severed and trimmed in one motion rather than dragged. Dual polishing motors working top and bottom simultaneously remove residual adhesive bloom, leaving the edge ready for assembly without a secondary wipe-down step.
The Hidden Cost of Mismatched Feed Heights Across a Line
Buying machines piecemeal from different vendors often leads to a scenario where the panel saw discharges at a different height than the edge bander accepts, forcing operators to lift boards manually between stations. Over a full shift, this repetitive handling causes fatigue and increases the chance of panel surface damage before the edge is even applied. [NEED_CITE: occupational safety guidelines for repetitive manual handling in woodworking shops] Sourcing the saw, bander, and boring machine from one product family eliminates these mismatches from the start.
Why Buyers Choose the Ruiqi Product Range
In-house manufacturing with patented cutting mechanisms means tolerances are built into the machine rather than adjusted away at commissioning. Four-stage quality control — incoming material, in-process, finished product, and pre-shipment verification — catches deviations before the crate is sealed. Voltage, control-panel language, and specification adjustments are treated as standard configuration steps rather than special requests. An engineer-led proposal arrives within 24 hours of inquiry, matching machine tier to your actual throughput requirement rather than defaulting to the highest-priced model. Factory visits are welcomed so buyers can run their own substrate through the DW902 before committing.
Documentation & Verification
- Machine specification sheet detailing every station, motor rating, and pneumatic requirement for the DW902
- Electrical schematic confirming voltage and frequency matched to your local grid before production
- Factory test record showing edge quality on your specified panel thickness and strip material
- Operation and maintenance manual translated into the language your operators will use daily
- Spare parts list cross-referenced to DW902 components for local inventory planning
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated above the 3300W total power draw with appropriate breaker sizing
- Compressed air supply needed for the pneumatically controlled trimming device — confirm line pressure before delivery
- Overall footprint of 175×60×112cm demands clear access on the infeed and outfeed sides for panel handling
- First-run calibration covers glue pot temperature, pressure beam tension, and trimming motor alignment for your strip thickness
- Silicone conveyor belt inspection and pressure wheel adjustment scheduled at regular intervals to maintain transport stability
Preparing Your Inquiry
To receive a configuration proposal that matches your workshop, provide the panel materials and thickness range you process most frequently, the edge banding strip type and thickness you intend to use, and the voltage and frequency available at your installation point. If you already operate upstream saws or downstream boring machines, sharing their feed height and throughput helps the engineering team confirm line compatibility. Sample panel testing at the factory is available before order confirmation.
Frequently Asked Questions
Q: Where does the DW902 sit in the Ruiqi product range compared to entry-level and pre-milling models?
A: The DW902 is positioned in the full-function tier without pre-milling. It adds scraping and dual polishing beyond entry-level models while staying below the footprint and power requirement of pre-milling configurations. This makes it suitable for workshops that need complete single-pass finishing but do not yet require heavy material removal on the panel edge before banding.
Q: How do I verify the tolerance and edge quality this machine achieves before ordering?
A: You can send your own panel stock and edge banding material to the factory for a sample processing test. The resulting panels are measured and photographed, and the factory test record is included with your shipment documentation so you have a baseline reference for comparison during commissioning at your site.
Q: What voltage and frequency options are available for my market?
A: The DW902 is listed at 220V but is configurable from 110V to 440V to match your local electrical supply. Voltage and frequency must be confirmed before production begins so the motor windings, control panel, and heating elements are all matched correctly to your grid specification.
Q: Can I visit the factory to see the DW902 running a sample on my own panel material?
A: Factory visits are welcomed at any stage of the evaluation process. You can bring or ship your own substrate and banding material, watch the machine process it through all five stations, and inspect the finished edge quality alongside the engineering team before finalizing your order.
Q: What documentation comes with the machine — CE certificate, manuals, and spare parts list?
A: Every shipment includes the CE declaration of conformity, ISO 9001 certificate, full machine specification sheet, electrical schematic with your confirmed voltage, factory test record, operation manual in your agreed language, spare parts list, packing photographs, and customs documentation support for smooth import clearance.
