Description
Voltage-Ready Edge Banding — every DW902 leaves the factory with electrical schematics confirming the exact frequency and plug standard for your destination market, avoiding the costly stall of a machine that cannot power on.
Technical Specifications
| Parameter | Value |
|---|---|

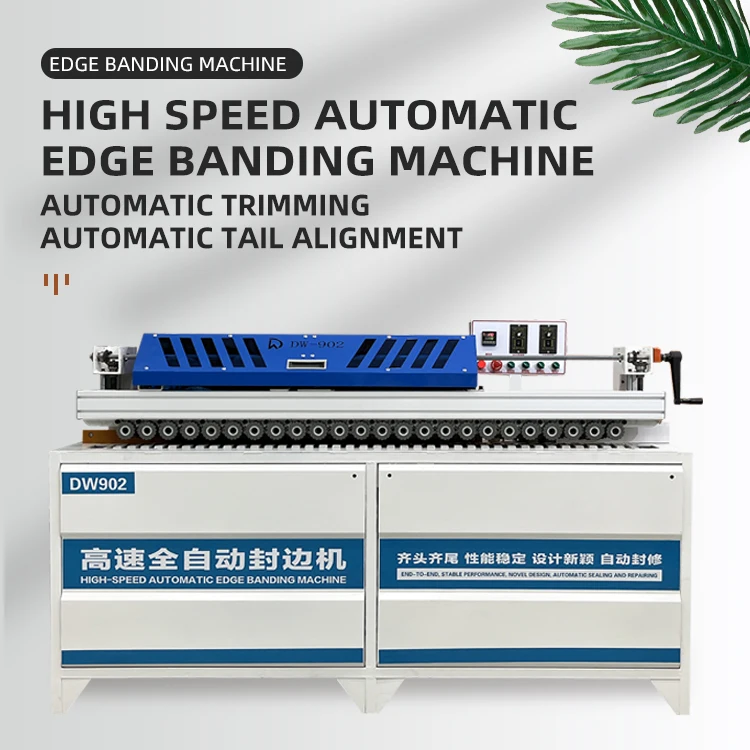

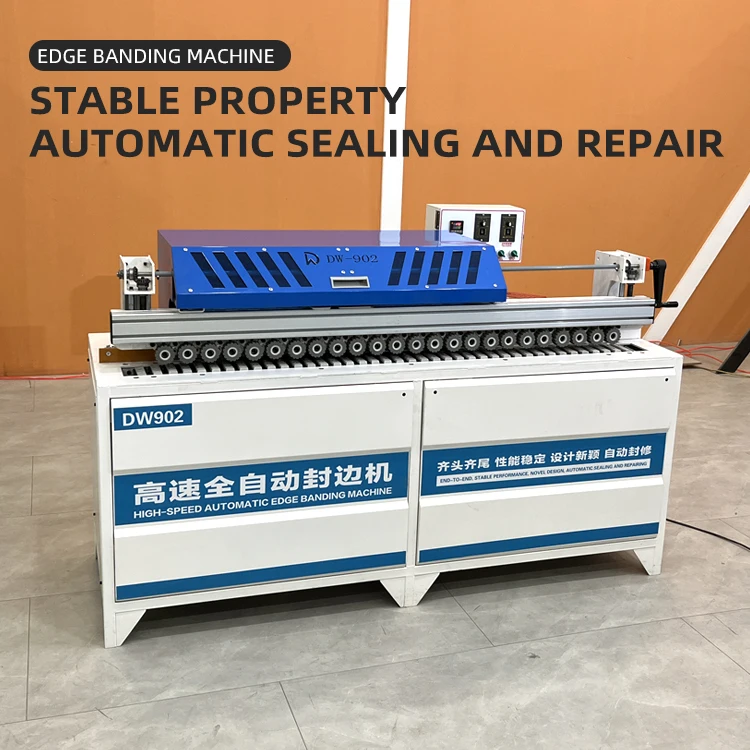

| Model | DW902 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4000W |
| Voltage & Frequency | 220V / 380V / customization available |
| Edge Banding Thickness Range | 0.3–3 mm |
| Edge Banding Height | 50 mm |
| Minimum Sheet Length | 250 mm |
| Minimum Sheet Width | 100 mm |
| Trimming Station | 800W × 2 motors, 24000 r/min |
| Polishing Station | 380W × 2 motors |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Vacuum Power | 550W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Machine Dimensions | 1750 × 870 × 1120 mm |
| Machine Weight | 240 kg |

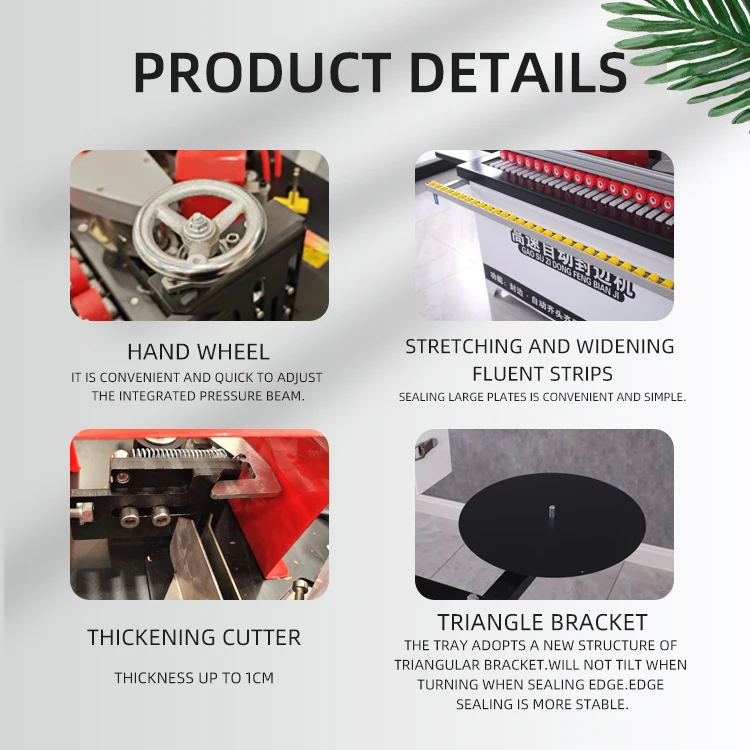

| Key Features | Oblique and straight dual-purpose banding, double hot air design, feeding auxiliary slide plate, 4 groups of oblique pressure wheels, double row pressing wheels, chamfering, scraping |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Wardrobe and shelving panel production | Plywood and ecological board with melamine banding |
| Home decoration millwork | Solid wood board with veneer edge banding |
| Furniture component batch runs | Panels from 250 mm to full sheet length, 0.3–3 mm banding thickness |
Why the Voltage Question Must Come Before the Quotation
Specifying local voltage and plug type at inquiry stage prevents a machine from sitting idle on your workshop floor for weeks.
I have traveled to furniture workshops across Latin America where a brand-new edge bander stood under tarps because the factory wired it for 380V three-phase while the site only had 220V single-phase available. The importer paid for shipping twice — once to deliver, once to return. That loss could have been avoided with a single line on the purchase order. An automatic edge banding machine for sale is only useful if it can actually run in your electrical environment [NEED_CITE: voltage and frequency standards by export market].
Mapping the DW902 Within the Full Ruiqi Range
The DW902 sits in the mid-tier of our edge banding machine manufacturer catalogue, bridging the gap between compact workshop models and full-function pre-milling lines. Buyers surveying the complete range can see exactly where this unit fits: it offers oblique and straight dual-purpose banding plus chamfering, yet stops short of the pre-milling and buffing stations found on higher-tier models. This clarity matters when you are planning phased investment across a furniture factory.
How Dual-Purpose Banding Reduces Machine Count
Workshops that produce both square-edge and bevel-edge panels often run two separate machines. The DW902 handles both configurations through its four groups of oblique pressure wheels and adjustable feed path, letting a single operator switch between 90-degree straight banding and angled edge work without reconfiguring the line. The double hot air design softens PVC and veneer banding before the pressing zone, which helps adhesive flow into the substrate pores for consistent bonding across MDF, particleboard, and plywood [NEED_CITE: adhesive activation temperature ranges for PVC and wood veneer edge banding].
Reading the Spec Sheet Against Your Panel Mix
The 0.3–3 mm edge banding thickness range covers most PVC and veneer tapes used in cabinet and furniture production. Thinner bands around 0.4 mm demand precise trimming to avoid cutting into the panel face, which is why the DW902 pairs 800W trimming motors at 24000 r/min with dedicated scraping and polishing stations downstream. The 4000 ml glue pot capacity allows extended runs without pausing for refill, relevant when you batch-process hundreds of carcass panels in a single shift. Minimum sheet dimensions of 250 × 100 mm mean small drawer fronts and narrow filler strips can pass through the feed chain without manual holding — a detail that matters for custom kitchens where panel sizes vary constantly.
The Hidden Cost of Ignoring Feed Height Alignment
I once watched a factory owner in Guadalajara discover that his new edge bander sat 15 mm higher than the roller conveyor feeding it from the panel saw. Panels jammed at the infeed every third cycle, chipping the leading edge and forcing an operator to stand at the station full-time. The line throughput dropped, and the owner blamed the machine rather than the layout. Checking infeed and outfeed heights against your existing sliding table saw and boring machine before ordering avoids this silent production killer [NEED_CITE: conveyor height alignment standards in panel furniture production lines].
Why Buyers Source the Full Range Here

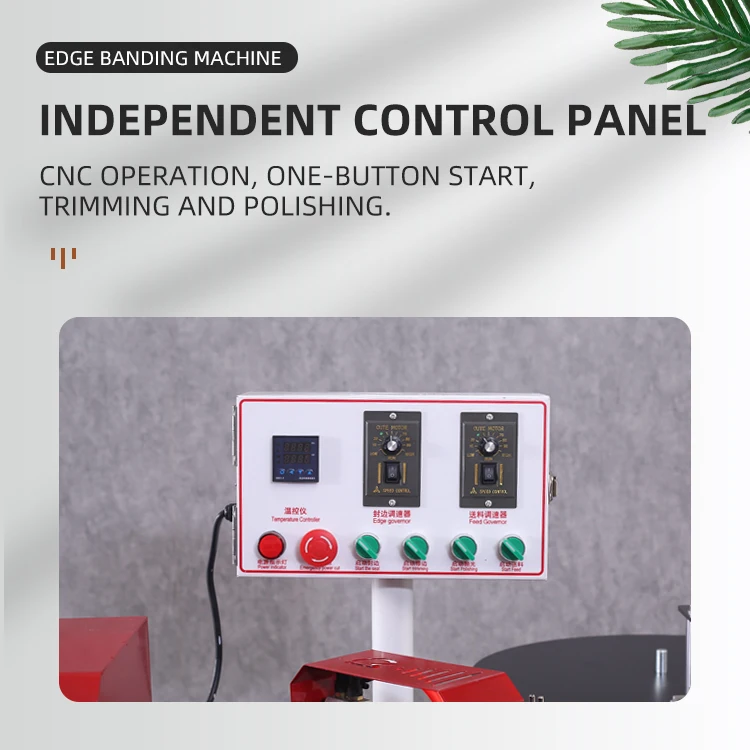

The DW902 shares its control architecture and spare parts catalogue with every other model in our edge banding family, so a distributor stocking this unit already holds inventory that fits higher-tier machines. Voltage and plug configurations — EU, USA, AU, UK or custom — are confirmed on the electrical schematic before production begins, not guessed at the packing stage. Multilingual control panels ship in Spanish, English, or other agreed languages, removing the commissioning delay that happens when operators cannot read the interface. Four-stage quality control runs from incoming material inspection through pre-shipment verification, and factory test records are photographed against your specified panel thickness before the crate closes.
Documentation & Verification
- CE declaration of conformity matched to the DW902 configuration you order
- Electrical schematic confirming your local voltage, frequency, and plug type
- Factory test record on your specified panel thickness and banding material
- Operation and maintenance manual written in your agreed language
- Spare parts list cross-referenced to trimming, polishing, and pressure wheel assemblies
- Packing photographs showing crate condition before container loading
Installation, Commissioning & Support
- The DW902 ships fully assembled; position it on a level floor within the 1750 × 870 mm footprint and connect to the confirmed voltage circuit
- Dedicated 4000W power circuit required; verify amperage matches the 220V or 380V configuration on your schematic
- Air supply line at 0.5–0.8 MPa must be dry and filtered to protect the glue pot and pneumatic cylinders
- First-run calibration covers trimming motor alignment at 24000 r/min and pressure wheel tracking for your chosen banding thickness
- Operator training addresses the dual-purpose oblique and straight switching procedure and glue pot refill intervals at 4000 ml capacity
Preparing Your Inquiry
Tell us the panel substrates you run most often, the edge banding materials and thickness range you need, and your local voltage and frequency so we configure the DW902 before quoting. If you operate upstream and downstream equipment, share the infeed and outfeed heights so we confirm alignment. Let us know whether you would like a sample processing test on your own material before committing to a production order.
Frequently Asked Questions
Q: Which model in the Ruiqi range fits my current workshop volume?
A: The DW902 covers mid-volume custom furniture and cabinet production with oblique and straight banding plus chamfering. If your line runs continuous high-volume panel batches, higher-tier models add pre-milling and buffing. We map your daily panel count and substrate mix against each model tier before recommending a position in the range.
Q: Can I customize voltage, plug type, and control panel language?
A: Yes. Voltage is configurable across 220V, 380V, or other standards, with plug options including EU, USA, AU, and UK types. The control panel language is set during production — Spanish, English, or other languages — and confirmed on the electrical schematic before the machine ships.
Q: What substrates and edge banding materials does the DW902 handle?
A: The machine processes MDF, particleboard, plywood, ecological board, and solid wood board with PVC or veneer edge banding from 0.3 to 3 mm thick. The double hot air system and four oblique pressure wheel groups maintain adhesion consistency across these different substrate densities.
Q: Is a factory visit or sample test available before ordering?
A: Factory visits are welcome, and we can run your specific panel material and edge banding tape through the DW902 to produce sample pieces for your evaluation. Test records including edge adhesion quality and trimming finish are documented and shared before you confirm the order.
