Description
Voltage-Configurable Edge Banding — every DW802 is built with confirmed local voltage and frequency before assembly, avoiding the on-site transformer failures that stall workshop commissioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Straight Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V / 380V / customization (50Hz/60Hz to be confirmed) |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000ml |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Air Source Pressure | 0.4–0.8 MPa |
| Product Size | 130 × 60 × 95 cm |
| Product Weight | 135 kg |
| Control Panel Language | Chinese and English (other languages customizable) |
| Plug Options | EU, USA, AU, UK |
| Feed Speed | basis to be confirmed |
| Panel Thickness Range | basis to be confirmed |
| Tolerance | basis to be confirmed |

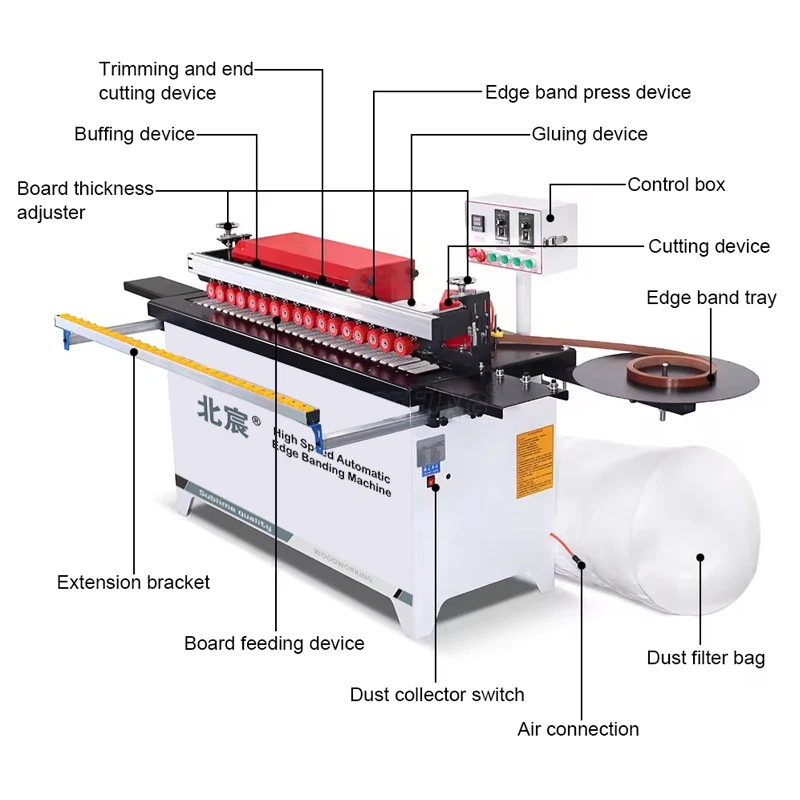

| Key Features | Edge banding, trimming, polishing, automatic head-and-tail cutting, vacuum system |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC or veneer banding |
| Home decoration panel finishing | Plywood and ecological board straight-edge panels |
| Small workshop furniture production | Solid wood board and MDF in moderate daily volumes |
| Distributed joinery operations | Straight-edge panels transitioning from manual to automated banding |
Why Voltage Confirmation Must Precede Every Edge Bander Order
The most expensive hour in any workshop is the hour spent diagnosing a machine that was never wired for the building it sits in.
I have watched automatic edge banding machine manufacturer shipments arrive in Latin American workshops only to sit idle for weeks while electricians rewired entire sections of the facility. In one case in Colombia, a workshop running 220V three-phase received equipment configured for 380V, and the transformer burned out on the first day of commissioning. The DW802 supports 220V and 380V configurations, but the correct setting must be locked in before the machine leaves the factory floor — not discovered when the plug does not fit the wall. [NEED_CITE: voltage and frequency standards by export market]
Locating the DW802 Within the Full Product Family
The DW802 occupies the compact, portable tier of a broader automatic edge banding machine manufacturer lineup that extends from entry-level units like this one through to full-function pre-milling models designed for high-throughput panel processing plants. Understanding where this model sits matters because workshops sometimes purchase an entry-level machine and then push it into production volumes it was never engineered to sustain. The value of staying within one product family is that when your throughput grows, you can move to a higher-tier model without changing supplier or retraining operators on a completely different control architecture.
What the Compact Footprint Actually Means for Your Floor

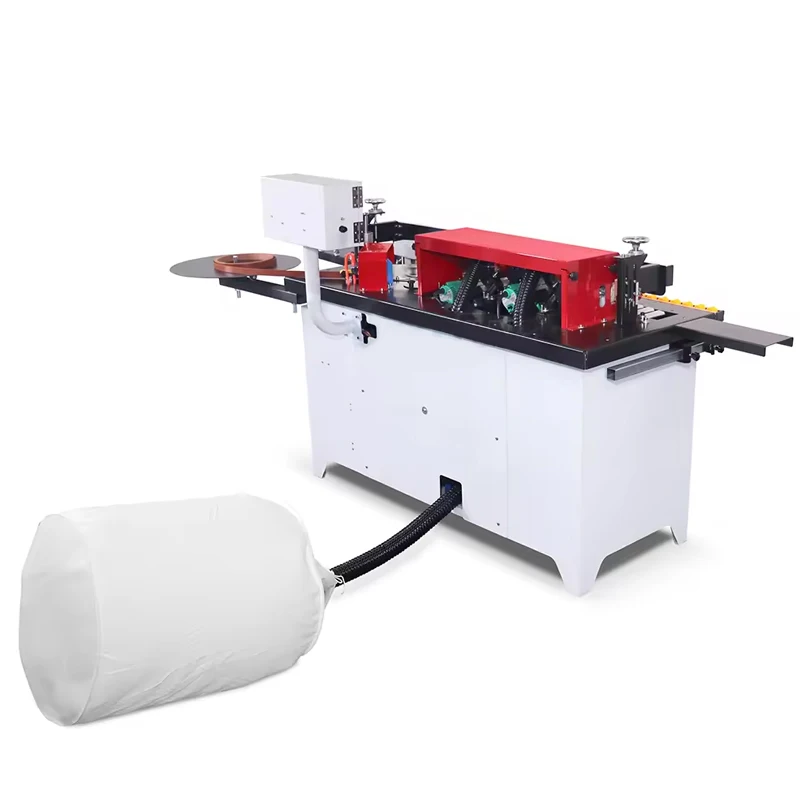

At 130 × 60 × 95 cm and 135 kg, the DW802 is designed for workshops where floor space is constrained and machine relocation may be necessary as the production layout evolves. The integrated vacuum system at 1200W handles dust extraction at the source, which matters in smaller rooms where airborne particle accumulation affects both operator health and edge adhesion quality. The silica gel conveyor belt with integrated pressure beam prevents surface scratching on finished panels — a detail that becomes critical when you are banding pre-laminated MDF for visible cabinet faces. [NEED_CITE: CE machinery directive requirements for woodworking equipment]
Reading the Specification Sheet Against Your Actual Production Needs
The 4000ml glue pot capacity supports continuous multi-panel runs without frequent refilling, which directly affects how many linear meters of edge you can seal in a single shift before interrupting production. The 0.3–3 mm edge banding thickness range covers standard PVC and thin veneer tapes commonly used in custom furniture, but if your workshop processes thicker solid wood banding, you need to verify whether a higher-tier model is more appropriate. The trimming station runs dual 800W motors, providing sufficient power for clean flush trimming on particleboard and MDF substrates. Panel thickness range and feed speed are not yet confirmed in available documentation and should be requested during the quotation stage to ensure the machine matches your specific board stock.
The Hidden Cost of Skipping Configuration Verification

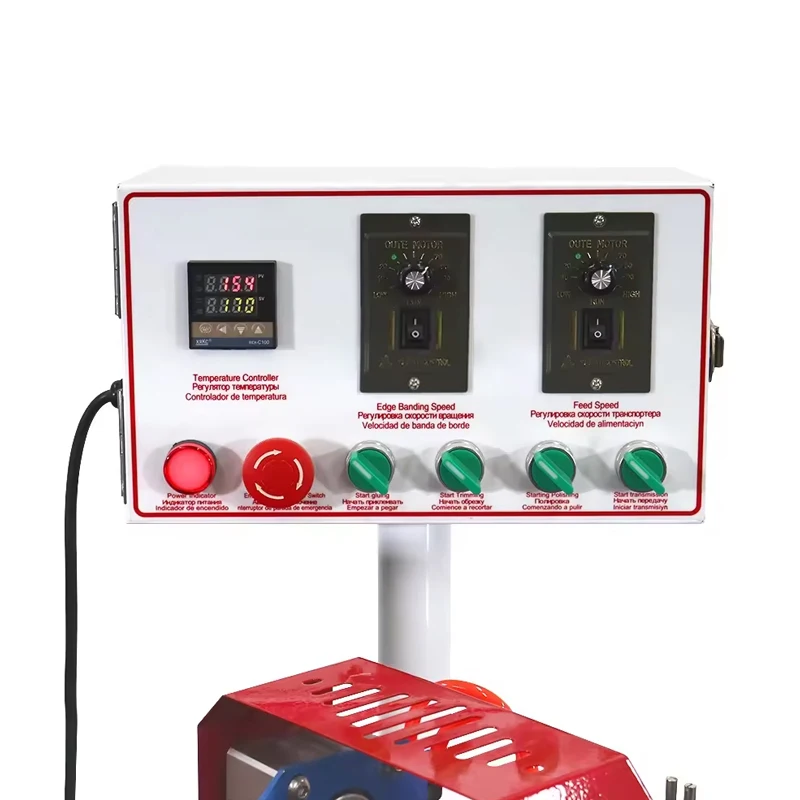

When an edge bander arrives with a control panel in a language the operator cannot read, commissioning stalls until someone can translate the interface or the supplier ships a replacement HMI. When the air source pressure requirement of 0.4–0.8 MPa is not matched to the workshop’s compressor capacity, the pneumatic actuators for trimming and polishing fail to cycle reliably. These are not catastrophic failures — they are configuration oversights that add days or weeks to the time between delivery and first production panel. [NEED_CITE: common commissioning delays in imported woodworking machinery]
What Manufacturing Depth Means at This Tier
The DW802 is produced in a facility with in-house precision grinding and a four-stage quality control process covering incoming material through pre-shipment verification, which matters even at the entry-level tier because tolerance problems discovered after installation are far more expensive to resolve than those caught at the factory. Voltage, plug type, and control panel language are configured as standard options before shipment rather than treated as afterthoughts. The machine family extends upward to pre-milling and full-function models, so the configuration recommendation process considers your future throughput needs, not just your current order. Engineer-led proposals with formal quotation are provided within 24 hours of receiving your factory scale and processing requirements.
Documentation & Verification
- Machine specification sheet listing confirmed voltage, frequency, and plug type for your facility
- Electrical schematic showing wiring configuration matching your local power supply
- Factory test record on your specific panel substrate and edge banding material before dispatch
- Operation and maintenance manual produced in your agreed operator language
- Spare parts list with part numbers for consumable and wear components
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V configuration and rated for the 4200W total power draw
- Compact 130 × 60 × 95 cm footprint fits standard workshop bays without specialized foundation work
- Arrives fully assembled as a portable unit, reducing on-site setup to power connection and pneumatic line hookup
- Compressor must deliver 0.4–0.8 MPa clean dry air to the pneumatic actuators for reliable trimming and polishing cycles
- 4000ml glue pot requires initial heating cycle and temperature calibration before first production run
- Installation guidance and after-sales support provided after delivery to support operator training
Before You Request a Quotation
Provide your workshop’s confirmed voltage and frequency, the panel substrates you process most frequently, and your typical daily edge banding volume so the engineer can verify whether the DW802 is the correct tier or whether a higher-capacity model in the same family better matches your throughput. If you are evaluating this as a distributor, specify the voltage standards and plug types required across your target territory so the product mix can be configured accordingly.
Frequently Asked Questions
Q: How do I determine whether the DW802 is the right tier for my workshop?
A: The DW802 is positioned for small to medium workshops handling moderate daily volumes of straight-edge panels in MDF, particleboard, and plywood. If your production volume is growing or you process thicker substrates requiring pre-milling, a higher-tier model within the same automatic edge banding machine manufacturer family may be more appropriate. Provide your daily panel count and material mix during the inquiry stage for a configuration recommendation.
Q: What is the process for confirming voltage and frequency before shipment?
A: During the quotation stage, you provide your facility’s exact voltage, phase configuration, and frequency. This information is documented on the electrical schematic and verified during the pre-shipment test. Plug type is matched to your local standard — EU, USA, AU, or UK — so the machine is electrically compatible upon arrival without adapters or transformer modifications.
Q: Can the control panel language be customized beyond Chinese and English?
A: Yes. The control panel language is configurable based on your operator requirements and is confirmed as part of the specification agreement before production begins. The operation and maintenance manual is also produced in the agreed language and included in the delivery documentation package along with the spare parts list.
Q: When should I consider upgrading from the DW802 to a pre-milling model?
A: If your panels show visible glue lines on certain substrates, or if you process materials where edge preparation quality directly affects downstream assembly fit, a pre-milling model provides additional edge conditioning before banding. The upgrade path stays within the same product family, so your existing supplier relationship and documentation standards carry forward without disruption.
