Description
Mid-Tier Production Readiness — the XZF-450 bridges single-function edge banders and full production lines with seven integrated stations, designed for furniture factories moving beyond entry-level throughput without committing to a continuous line.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Pre-milling Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Edge Power | 0.16 kW |
| Transmission Power | 180 W |

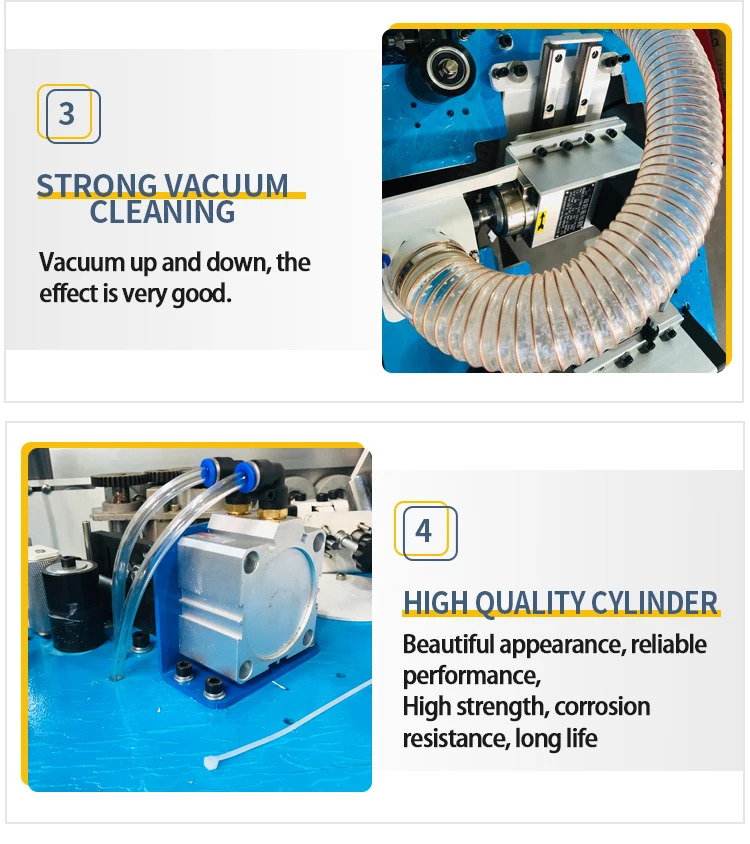

| Vacuum Power | 550 W |
| Voltage | 380V / 415V (frequency and phase basis to be confirmed) |
| Feed Speed | 0–12 m/min |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Product Size | 300 × 65 × 135 cm |
| Product Weight | 430 kg |

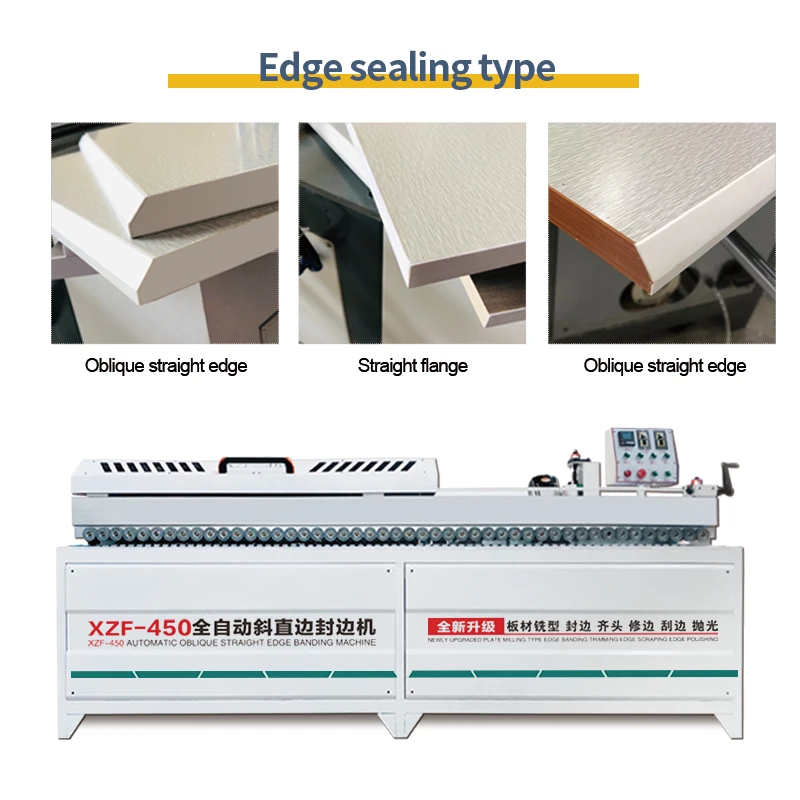

| Key Features | Pre-milling, 30°/45°/60° edge banding, trimming, scraping, polishing, high-power vacuuming |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and melamine-faced particleboard |
| Plywood carcass panel banding | Plywood with PVC or veneer edge strips |
| Angled-edge polymer door production | Polymer door blanks at 45° bevel |
| Solid wood furniture panel edging | Solid wood boards with 0.3–3 mm banding |
| Large-format blockboard finishing | Blockboard panels up to 50 mm edge height |
Why Voltage Confirmation Must Precede Every Quotation
A machine wired for the wrong frequency will burn its motors within the first production shift.
One order I configured last year went to a workshop in the Middle East. The buyer had confirmed the voltage but not the frequency. The XZF-450 arrived with motors rated for 50 Hz, while the local grid ran at 60 Hz. The feed motor overheated before the end of the first day. We replaced the drive assembly, but the downtime cost the factory an entire production week. That is why every quotation we issue now includes a written voltage and frequency confirmation — not a checkbox on a form, but an engineer-to-engineer verification against the buyer’s actual supply [NEED_CITE: voltage and frequency standards by export market].
Where the XZF-450 Sits Across the Edge Bander Range
Entry-level machines in this catalogue handle single-function trimming and basic gluing — adequate for a joinery shop running a few dozen panels per day. The XZF-450 occupies the next tier as a full-function automatic edge banding machine, adding pre-milling, rough and fine trimming, scraping, and polishing into a single-pass workflow. For workshops scaling from manual edge finishing to consistent machine output, this model removes the need to buy separate stations.
What Seven Stations Actually Solve on the Shop Floor

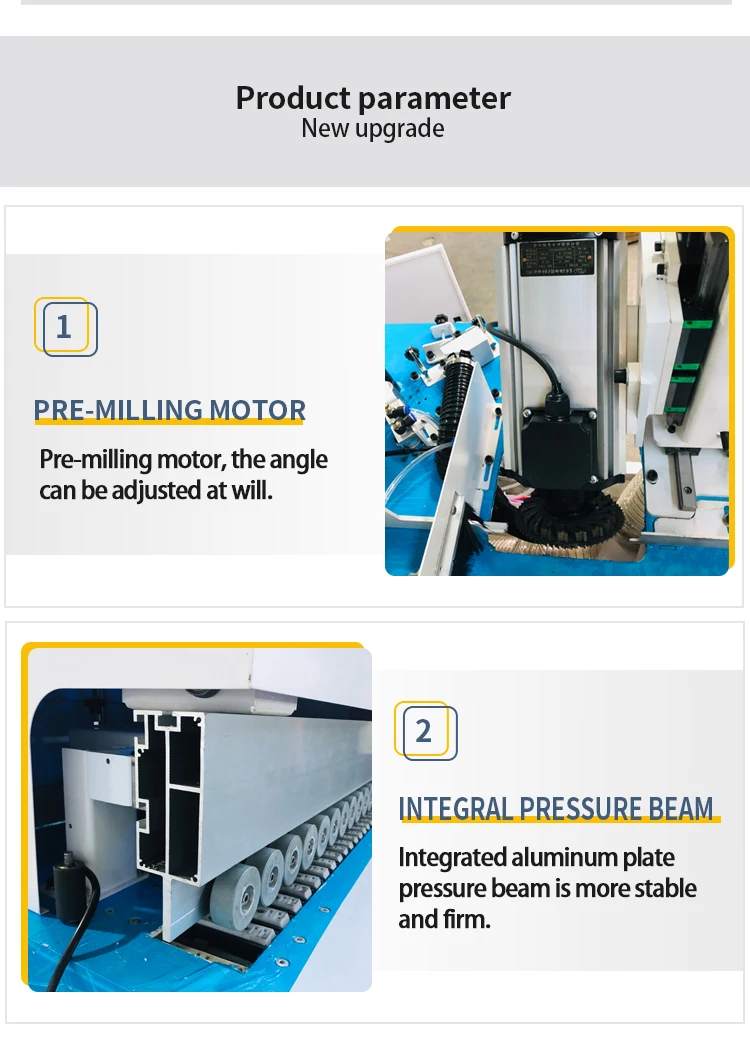

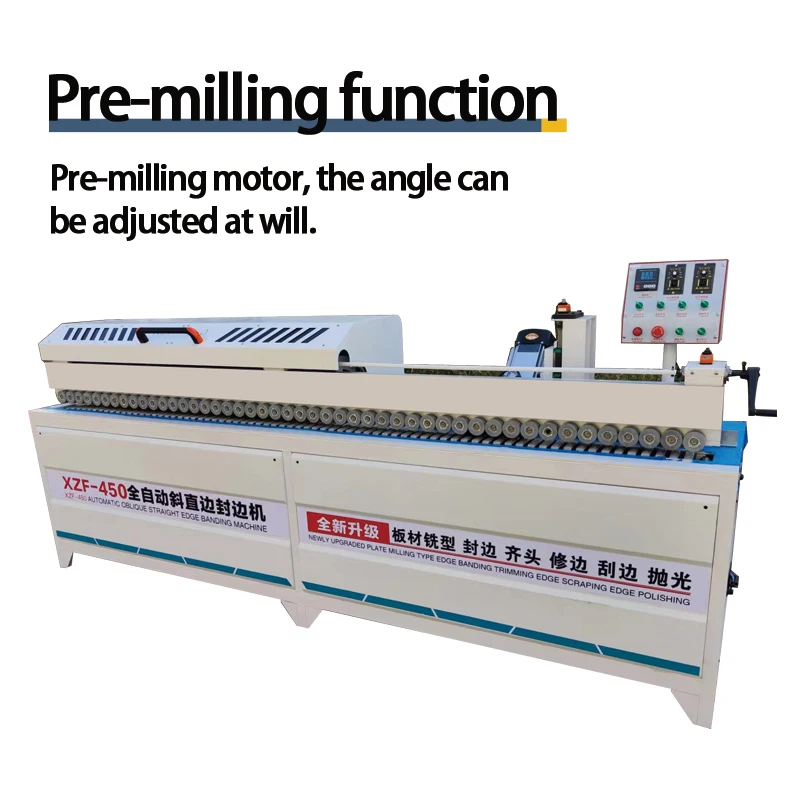

A single-function edge bander leaves visible glue lines on MDF and particleboard because the panel edge is never milled flat before adhesive application. The 4 kW pre-milling station on the XZF-450 removes up to a millimetre of material from the panel edge, creating a true reference surface. Downstream, the dual 2.2 kW trimming motors handle both end trimming and flush trimming in sequence, while the scraping and polishing stations clean residual adhesive and buff the edge to a finished state. This sequence matters because each station depends on the accuracy of the one before it [NEED_CITE: CE machinery directive requirements for industrial equipment].
How Feed Speed and Edge Thickness Interact in Practice
The 0–12 m/min feed speed range on the XZF-450 is variable, but the practical ceiling depends on the edge banding material and thickness being applied. Thinner PVC strips at 0.3 mm track cleanly at higher feed rates, while 3 mm solid wood veneer requires a slower pass to allow the adhesive to bond before the trimming stations engage. The 4000 ml glue pot capacity supports extended runs without interruption, though the actual pot temperature must be matched to the adhesive type — EVA hot melt behaves differently from PUR at the same setting. Operators who understand this relationship can adjust feed speed and temperature together to maintain edge quality across different panel materials.
The Cost of Underspecifying for Your Actual Production Volume
A workshop processing particleboard cabinet components eight hours a day will push an entry-level bander past its thermal limits. The glue pot runs dry mid-shift, the trimming motors overheat, and edge quality degrades panel by panel. By the time the owner recognises the machine was never rated for that throughput, the cost of scrapped panels and delayed orders exceeds what a mid-tier unit like the XZF-450 would have cost from the start [NEED_CITE: typical machine underspecification consequences in panel processing].
What You Are Buying Beyond the Machine Itself
Every XZF-450 leaves the factory after four-stage quality verification covering incoming material inspection, in-process assembly checks, finished-product testing, and pre-shipment run-off. The pre-milling mechanism uses a proprietary cutting design held to a ±0.02 mm tolerance on edge flatness. Voltage, plug type, and control panel language are configured before assembly — not relabelled after. If your workshop later adds a second edge bander or a CNC boring machine, the XZF-450 product family extends upward to higher-throughput models without requiring a change of supplier or spare parts inventory.
Documentation & Verification
- Electrical schematic confirming your local voltage, phase, and plug type before dispatch
- Factory test record showing edge banding results on your specified panel material and thickness
- Operation and maintenance manual in the language your operators actually read
- Spare parts list with part numbers matching the assemblies on your machine
- CE declaration of conformity and ISO 9001 certificate for import documentation
- Packing photographs verifying machine condition prior to container loading
Installation, Commissioning & Support
- Requires a level concrete floor with clearance for the 300 cm machine length and operator access on both sides
- Dedicated 380V or 415V circuit rated for the 9.5 kW total draw, with frequency confirmed before wiring
- Arrives as a single unit on a pallet; fork-lift unloading and positioning by your team with guidance provided
- First-run commissioning includes glue temperature calibration, feed speed setting, and trimming alignment on your panels
- Operator training covers station-by-station adjustment for different edge banding thicknesses from 0.3 mm to 3 mm
- Consumable spare parts list provided at shipment for scraper blades, polishing wheels, and trimming cutters
What We Need to Configure Your XZF-450 Correctly
Send us the panel materials you process most often — MDF, particleboard, plywood, or solid wood — along with the edge banding type and thickness range. Tell us your local voltage and frequency, the control panel language your operators require, and whether your existing panel saws and boring machines constrain the feed height or throughput we should target. If you have a sample panel and edge strip, we can run a test before you commit to the order.
Frequently Asked Questions
Q: How does the XZF-450 compare to entry-level and production-line edge banders?
A: Entry-level models in our range offer gluing and basic trimming for low-volume workshops. The XZF-450 adds pre-milling, dual trimming, scraping, and polishing as a seven-station automatic edge banding machine for medium-to-high output. Production-line models above it integrate conveyor-linked feeding and stacking for continuous operation across multiple shifts.
Q: How do I match the XZF-450 feed speed to my daily output?
A: The 0–12 m/min variable feed speed covers a wide range, but actual throughput depends on panel length, edge banding thickness, and whether you run single or double shifts. Share your average panel dimensions and target daily piece count, and we will map the feed rate to your production requirement with the appropriate safety margin.
Q: Will the XZF-450 work with my local power supply?
A: The machine supports 380V and 415V configurations with EU, USA, AU, or UK plug options. Before we build your unit, we confirm your local voltage, phase, and frequency in writing. The electrical schematic is then locked to those values so the machine arrives ready to connect without transformers or rewiring.
Q: What changes when upgrading from a single-function edge bander to the XZF-450?
A: A single-function bander applies glue and trims edges in one pass, leaving adhesive residue and uneven finishes that require manual cleanup. The XZF-450 adds pre-milling for edge flatness, fine trimming for precision, scraping for residue removal, and polishing for a finished surface — all in one pass, reducing post-processing labour and improving edge consistency.
Q: Which spare parts should I keep on hand for continuous operation?
A: The high-wear items on the XZF-450 are trimming cutters, scraper blades, polishing wheels, and glue pot seals. We include a spare parts list with part numbers at shipment. Keeping one set of each consumable on your shelf avoids unplanned downtime while waiting for replacements.
