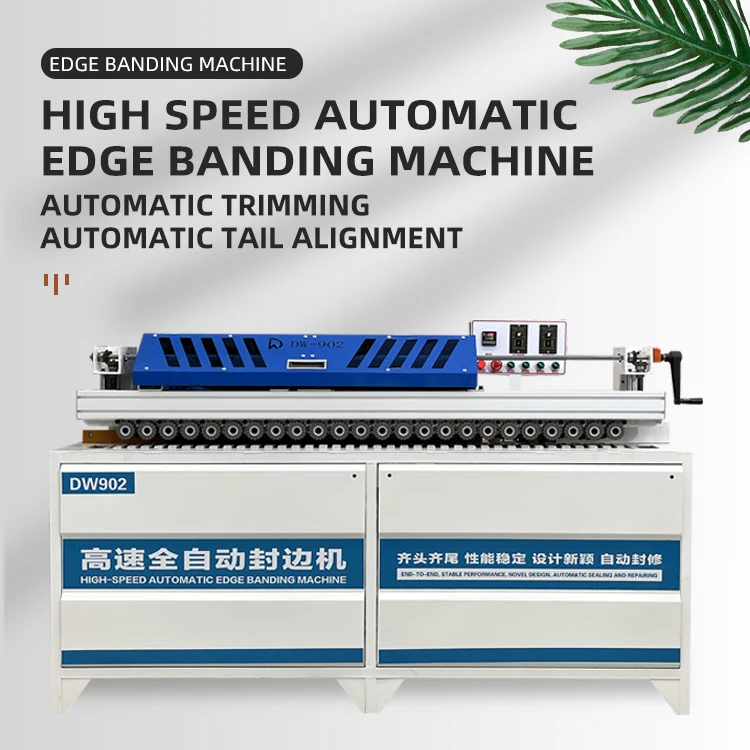

Description
Patented cutting precision — The DW902 integrates proprietary trimming mechanisms verified to ±0.02mm tolerance, ensuring each MDF and particleboard panel exits the machine ready for assembly without secondary rework.

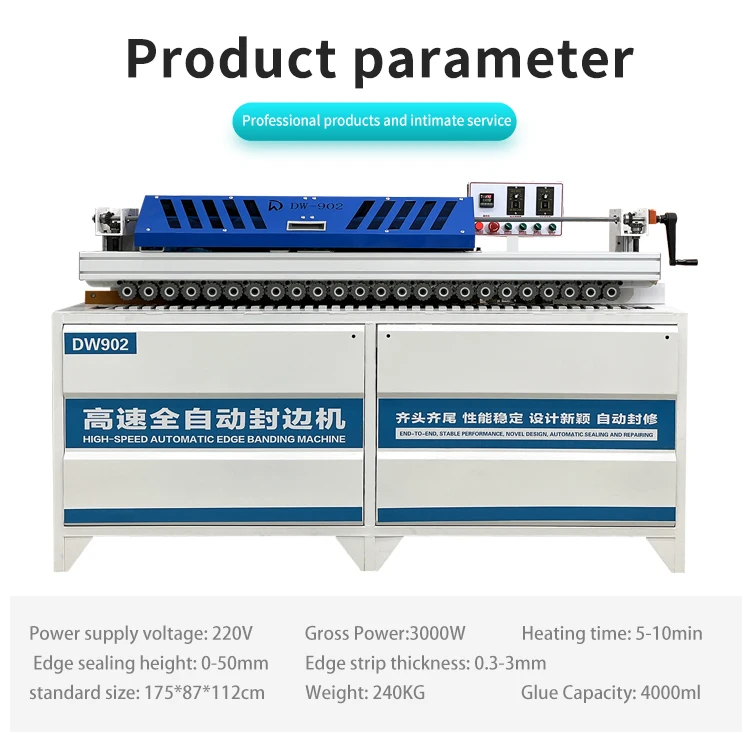

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW902 |
| Product Type | Automatic Wood Edge Banding Machine |
| Total Power | 4000W |
| Voltage & Frequency | 220V/380V/customization |
| Overall Dimensions (L×W×H) | 175×87×112 cm |
| Net Weight | 240 kg |
| Minimum Sheet Size | 25 cm (L) × 10 cm (W) |
| Edge Banding Height | Up to 5 cm |
| Edge Banding Thickness | 0.3–3 mm |
| Trimming Motor Power / Speed | 800W×2 / 24000 r/min |
| Polishing Motor Power | 380W×2 |
| Edge Feed Motor Power | 140W |
| Transmission Motor Power | 140W |
| Vacuum Power | 550W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Trimming Stations | Trimming, polishing, scraping |
| Language Options | Chinese/English standard; customizable |

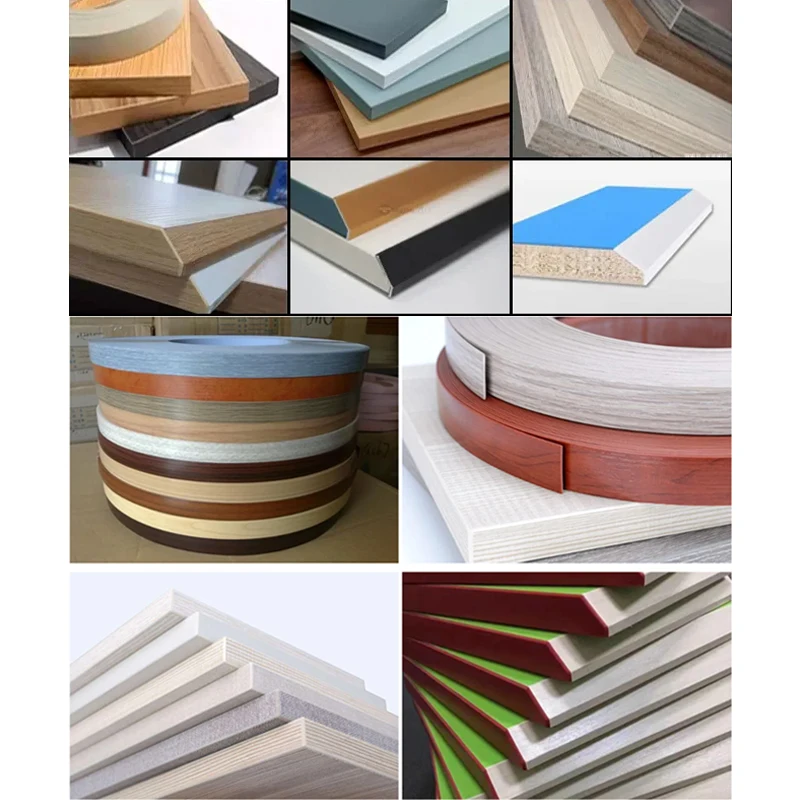

Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet Door Production | MDF and particleboard with PVC edge banding |
| Custom Furniture Panels | Plywood and ecological board with melamine strip |
| Joinery Workshop Output | Solid wood panels with veneer edge banding |
| Home Decoration Millwork | 90-degree edge finishing on board stock |
Why the Voltage Question Must Precede the Machine Order
Confirming local frequency and voltage prevents a three-week stall on the workshop floor.
I have personally seen an automatic edge bander of this class sit idle for weeks because the 380V configuration arrived at a facility wired for 220V. The DW902 is available with voltage customization, but that flexibility only matters if the manufacturer receives accurate electrical data before production begins. Many importers focus on feed speed and trimming stations while treating the electrical schematic as a detail to sort out later, and that oversight creates delays no amount of on-site troubleshooting can quickly resolve [NEED_CITE: voltage and frequency standards by export market].
Where the DW902 Sits in the Full Machine Range
The DW902 serves as a mid-tier automatic edge banding machine within a broader family that stretches from entry-level compact units to full-function pre-milling lines. This positioning matters for buyers who plan to scale: you can start with the DW902 and later add upstream or downstream stations from the same product family without retraining operators on a new control interface. The 4000W total power draw and 0.5–0.8 MPa air requirement align with standard workshop utilities, so integration into an existing compressed air network does not demand a separate compressor investment.
Dual-Purpose Feeding and Pressure Wheel Configuration
The oblique-and-straight dual-purpose feeding system uses four groups of oblique pressure wheels to press edge banding material against the panel substrate during glue curing. This design addresses a common defect visible in single-purpose feeders: uneven adhesion on the leading edge of MDF panels, which produces visible glue lines that reject downstream quality checks. The 4000 ml glue pot capacity supports extended production runs, reducing the frequency of mid-shift refills that interrupt throughput and introduce temperature fluctuation in the adhesive.
What 24,000 r/min Trimming Means for Edge Quality
The two trimming motors each deliver 800W at 24,000 r/min, a speed range that produces chip-free cuts on PVC, melamine, and veneer edge banding between 0.3 mm and 3 mm thickness. Below this speed, trimming leaves micro-chips on brittle melamine strips; above it, veneer can tear rather than shear cleanly. The integrated scraping station removes the residual radius left by trimming, and the twin 380W polishing motors then smooth the edge to a finish that requires no hand-sanding before assembly. Panel thickness up to 5 cm passes through the feed channel, which covers the vast majority of cabinet and furniture board stock without requiring a separate heavy-duty machine [NEED_CITE: trimming speed effect on edge banding material behaviour].
The Hidden Cost of Skipping Sample Tests
Ordering an automatic edge banding machine on specification sheets alone leaves tolerance claims unverified until the machine arrives and runs your actual panel stock. A buyer who skips the sample processing test may discover that the edge finish on their specific ecological board grade does not meet furniture-grade requirements, but only after the machine has been shipped, cleared customs, and been installed. At that point, the cost of reconfiguration or return freight dwarfs the time investment of sending sample panels for a factory test before placing the order [NEED_CITE: pre-shipment verification practices for woodworking machinery].
Why Buyers Source This Range From a Single Manufacturer
Every DW902 unit ships with a factory test record run on the buyer’s specified panel thickness range, not a generic test on standard MDF. Voltage and frequency are confirmed against the destination market’s electrical standard before the machine leaves the assembly bay, and the electrical schematic is reviewed line-by-line to match plug type and phase configuration. Control panel language is set to the operator’s working language as standard, eliminating the commissioning delays that arise when instructions appear only in the manufacturer’s native script. The four-stage quality control process covers incoming material, in-process assembly, finished product inspection, and pre-shipment verification, and the documentation package includes every certificate and schematic needed for customs clearance and on-site commissioning.
Documentation & Verification
- CE declaration of conformity covering the DW902 model as shipped
- ISO 9001 certificate applicable to the manufacturing facility
- Electrical schematic confirming voltage, frequency, and plug type for destination market
- Factory test record run on buyer-specified panel thickness and edge banding material
- Operation and maintenance manual in the agreed operator language
- Spare parts list with part numbers matching the as-built machine configuration
Installation, Commissioning & Support
- Overall footprint of 175×87×112 cm requires a level concrete floor with clearance for panel infeed and outfeed
- 4000W total power draw requires a dedicated circuit matching the confirmed voltage and phase configuration
- Machine ships fully assembled; only dust extraction ducting and air hose connection needed on arrival
- First-run commissioning includes trimming speed and glue temperature adjustment for the buyer’s specific edge banding material
- Operator training covers glue pot refill procedure, pressure wheel adjustment, and daily scraping station cleaning
- Spare parts list identifies wear items including trimming cutters, polishing wheels, and pressure wheel surfaces
What to Include in Your Initial Inquiry
To receive an accurate configuration proposal, provide the panel materials you process most frequently, the edge banding thickness range you require, and the local voltage and frequency standard at your facility. If you operate existing upstream cutting or downstream boring equipment, note their feed heights and throughput so the DW902 can be matched to your line without creating a bottleneck. Confirm the control panel language your operators need, and state whether you want to send sample panels for a factory processing test before shipment.
Frequently Asked Questions
Q: How can I verify edge banding tolerance before the machine ships?
A: Send sample panels in your standard MDF, particleboard, or plywood grades along with the edge banding material you plan to use. The factory runs a processing test on the DW902 and returns the finished samples with a test record documenting trimming quality and adhesion results, allowing you to evaluate edge finish before committing to shipment.
Q: Can the DW902 be configured for 220V single-phase supply?
A: Yes. The machine is available with voltage customization including 220V and 380V options. The manufacturer confirms frequency and plug type against your local electrical standard during the quotation stage, and the electrical schematic is reviewed before production to ensure the machine arrives ready to connect.
Q: What control panel languages are available?
A: Chinese and English are standard. Spanish and other languages can be configured upon request during the order confirmation stage, ensuring operators can read all machine parameters and fault codes without requiring translation during commissioning.
Q: Where does the DW902 fit if I need to scale production later?
A: The DW902 sits within a complete edge banding machine family ranging from entry-level to full-function pre-milling models. If your volume grows beyond what this model handles, you can move to a higher-throughput unit in the same range without changing supplier or retraining staff on a different control system.
Q: What spare parts support is available after installation?
A: The machine ships with a spare parts list matching the as-built configuration. Wear items such as trimming cutters, polishing wheels, and pressure wheel surfaces are identified with part numbers, and the manufacturer supplies replacements through direct order or through authorized distributors in your region.
