Description
Precision Assembly Verification — Every ZDS-3600 undergoes multi-stage inspection from component grinding through final pre-shipment electrical verification, reflecting two decades of woodworking machinery manufacturing discipline.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS-3600 |
| Product Type | Full Auto Bevel-Straight Edge Banding Machine |
| Edge Speed | 0–12 m/min |
| Panel Thickness Range | 18–45 mm |
| Bevel Angle Range | 30°–90° |
| Voltage | 380V (configurable from 110V to 440V) |
| Total Power | 8.9 kW |
| Working Pressure | 0.5–0.7 MPa |
| Glue Pot Capacity | 4000 ml |
| Glue Pot Heating | 2 kW |
| Oven Lamp Heating | 2 kW × 2 |
| Trimming Motor | 2.2 kW × 2 |
| Milling Motor | 2.2 kW |
| Polishing Motor | 0.37 kW × 2 |
| Edge Motor | 0.12 kW |
| Slotting Motor | 65 W |

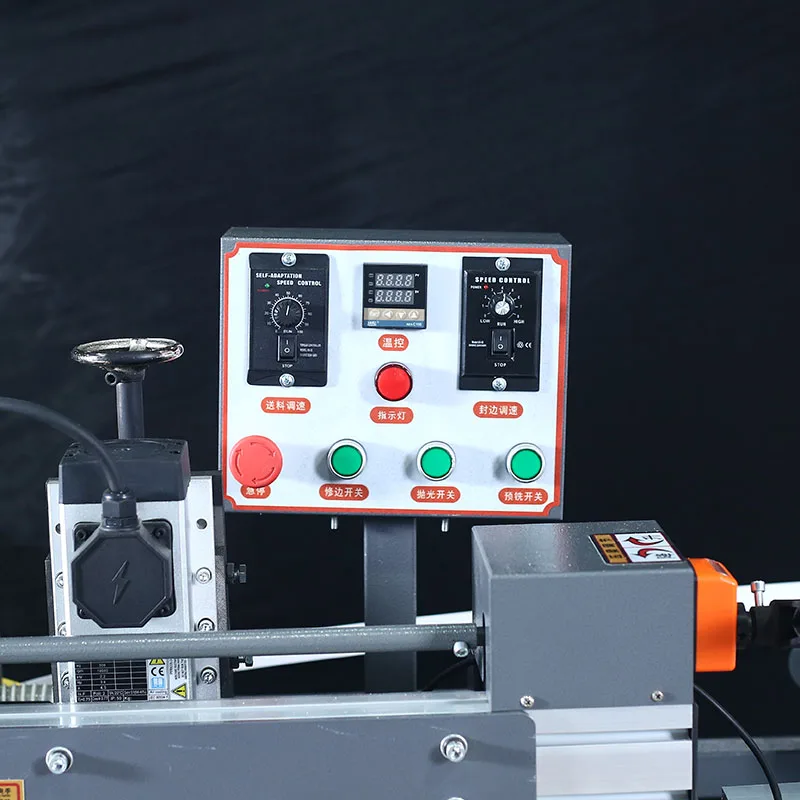

| Control System | PLC control with panel operation |
| Pressure Beam | One-piece aluminum alloy with digital display height adjustment |
| Pressure Roller | Chrome-plated, adjustable for different angles |
| Overall Dimensions (L×W×H) | 3320 × 650 × 1180 mm |
| Net Weight | 450 kg |
| Functions | Pre-milling, preheating, gluing/pressing, head/tail cutting, fine trimming, edge scraping, clear glue, milling shape, edge strip slotting, polishing, hot air secondary heating |
| Certifications | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard with PVC edge banding |
| Angled shelving and display furniture | Plywood panels with veneer edge banding at 30°–90° bevels |
| Wardrobe and storage unit panels | Solid wood panels requiring pre-milling before edge application |
| Small workshop joinery | Mixed substrate batches switching between straight and beveled edges |
| Office furniture components | Melamine-faced board with ABS edge banding |
Why Voltage Confirmation Must Happen Before the Machine Ships
A machine wired for the wrong frequency is not a production asset — it is 450 kg of stationary steel waiting for a transformer that may never arrive.
The Full Auto Bevel-Straight Edge Banding Machine manufacturer receives inquiries from regions running 220V/60Hz, 380V/50Hz, 415V/50Hz, and various other combinations. Yet many workshops only discover the mismatch when the electrician opens the control panel on delivery day. [NEED_CITE: voltage and frequency standards by export market]
I worked on a shipment to the Middle East years ago where an edge bander arrived wired for a frequency the local grid did not supply. The machine sat idle for three weeks while components were swapped. Now I treat every quotation as incomplete until voltage, frequency, and phase are confirmed in writing against the buyer’s actual site supply — not the country’s nominal standard.
How Bevel and Straight Edge Functions Operate on One Pass

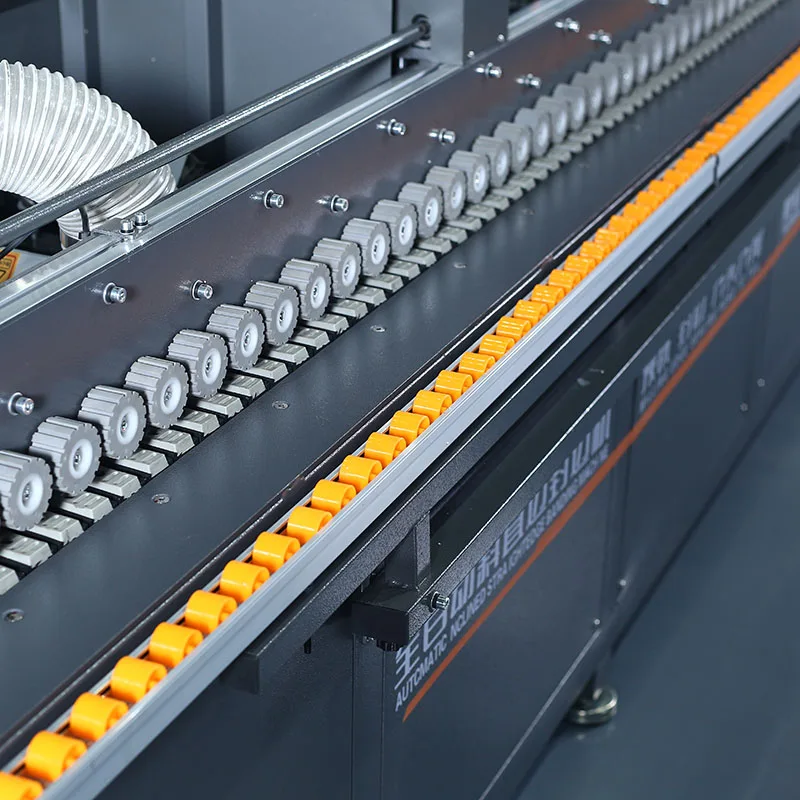

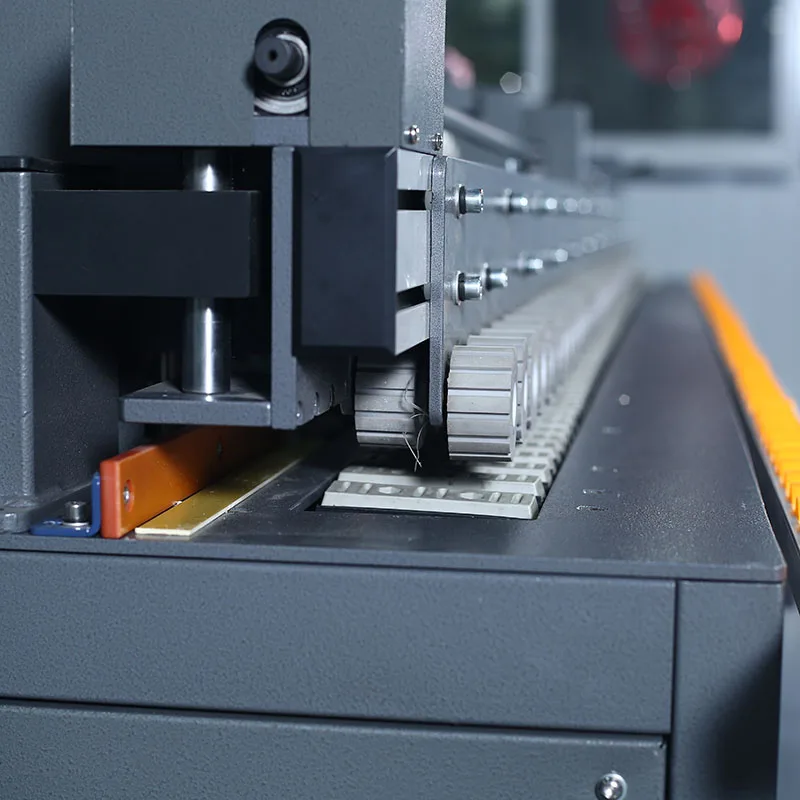

The ZDS-3600 handles both standard 90° straight edges and angled bevels down to 30° within a single feed sequence. The chrome-plated pressure roller adjusts to match the selected bevel angle, maintaining consistent contact pressure along the entire edge profile. This eliminates the need for a dedicated bevel machine alongside a standard edge bander.
For workshops producing angled-joint furniture — sloped cabinet facades, display shelving with tilted panels, or architectural millwork — having both capabilities on the Full Auto Bevel-Straight Edge Banding Machine reduces floor space requirements and removes the handling errors that come from feeding panels through two separate stations.
The Eight-Function Sequence and Why Station Order Matters
This machine sequences pre-milling, preheating, gluing, pressing, head and tail cutting, fine trimming, scraping, and polishing in one continuous pass. The pre-milling station removes saw marks and ensures the panel edge is square before adhesive application, which directly affects glue line visibility on porous substrates like particleboard. [NEED_CITE: edge banding adhesion requirements on different wood-based panel surfaces]

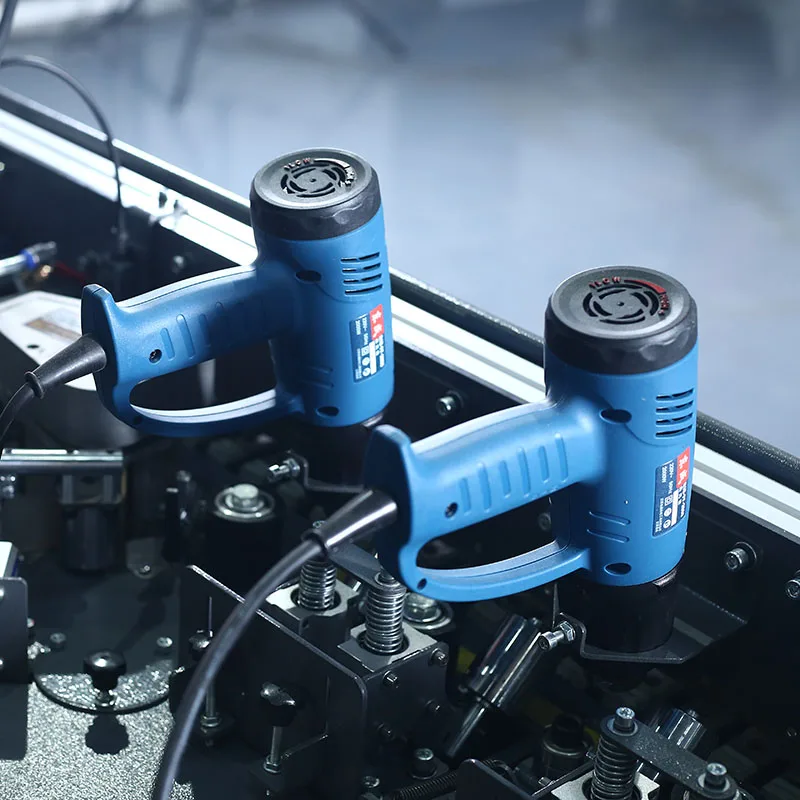

The hot air assisted secondary heating system reactivates the adhesive immediately before the pressure zone, addressing the common failure where glue skin forms between the pot and the pressing station — particularly relevant in colder workshop environments where ambient temperature drops below the adhesive’s open-time threshold.
Reading the Specification Sheet Against Your Production Requirements
The 0–12 m/min edge speed and 8.9 kW total power position this machine for small-to-medium workshop volumes rather than continuous high-throughput lines. The variable speed range allows operators to slow feed for delicate veneer banding or accelerate for standard PVC runs.

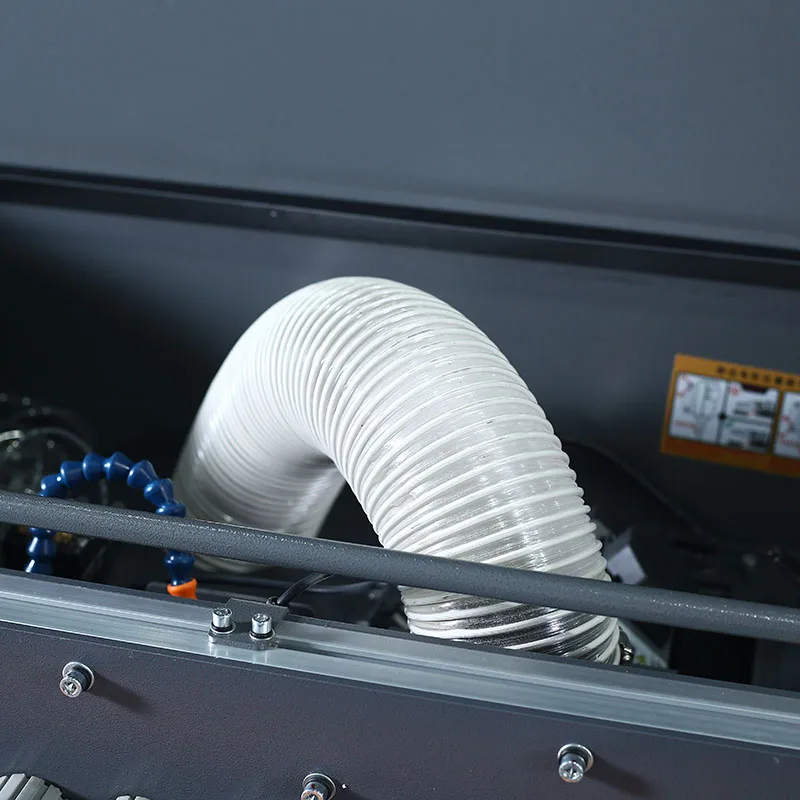

The 4000 ml glue pot capacity supports extended production runs without frequent refilling, while the dual 2 kW oven lamps maintain thermal stability across the adhesive zone. The one-piece aluminum alloy pressure beam with digital display height adjustment means panel thickness changes between 18 mm and 45 mm take seconds rather than requiring manual shimming. For dust extraction, the large-diameter suction tube connects to the workshop’s central system, keeping the trimming and scraping stations clear of debris that would otherwise compromise edge finish quality.
What Happens When Configuration Is Skipped
A buyer who selects a machine without confirming local electrical supply, operator language, or upstream panel saw feed height often discovers incompatibilities after delivery. The control panel arrives in a language the operator cannot read, stalling commissioning for days while translated overlays are sourced. [NEED_CITE: common commissioning delays in exported woodworking machinery]
Panel thickness range assumptions cause their own problems. A workshop running 16 mm stock on a machine set up for 18–45 mm panels will find the pressure beam cannot descend far enough for reliable edge adhesion. These are not manufacturing defects — they are configuration gaps that a thorough pre-order specification review would have prevented.
Why Workshops Choose This Source for Edge Banding Equipment
The ZDS-3600 is built with proprietary cutting mechanisms covered by in-house patents, achieving tolerance levels verified through four-stage quality control spanning incoming material inspection, in-process checks, finished product testing, and pre-shipment verification.
Voltage customization from 110V to 440V is treated as standard procedure rather than a special request. Multilingual control panels are specified during the quotation phase. The machine range covers entry-level through full-function models within one product family, allowing a workshop to scale capacity without switching suppliers. Engineer-led configuration recommendations arrive as formal quotations within 24 hours. Factory visits are welcomed so buyers can witness assembly standards and run sample panels before committing.
Documentation & Verification
- CE declaration of conformity covering the ZDS-3600 edge banding machine
- Factory test record with sample panels processed at your specified bevel angle
- Electrical schematic with confirmed voltage and frequency for your site supply
- Operation and maintenance manual in your agreed language covering PLC parameters
- Spare parts list with part numbers for trimmers, scrapers, and pressure rollers
- Packing photographs showing crated machine before container loading
Installation, Commissioning & Support
- Requires level concrete floor with anchor points matching the 3320 × 650 mm footprint
- Dedicated 380V circuit rated for 8.9 kW total draw with correct phase rotation
- Arrives fully assembled; requires dust extraction and compressed air connection only
- PLC parameter setup for bevel angle and feed speed completed during first commissioning
- Chrome-plated pressure roller adjustment demonstrated for 30° through 90° range
- Trimming and scraper blade replacement intervals documented in maintenance manual
What to Include with Your Inquiry
Provide your primary panel material types and thickness range so the pressure beam and glue system are configured correctly from the start. Confirm your workshop’s local voltage, frequency, and phase — a photo of your existing equipment’s data plate is often the fastest way to verify. Let us know if you need the PLC interface in a specific language, and whether you require sample panels processed at your target bevel angle before order confirmation.
Frequently Asked Questions
Q: What panel thickness range does the ZDS-3600 handle and how is pressure beam height set?
A: The machine accommodates panels from 18 mm to 45 mm thick. The one-piece aluminum alloy pressure beam adjusts via digital display, allowing operators to dial in the exact height for each batch. This eliminates manual shimming and reduces setup time between jobs of different panel stock.
Q: How is the bevel angle adjusted between 30° and 90°, and what tooling is required?
A: The chrome-plated pressure roller and guide assemblies are repositioned to match the selected angle within the 30°–90° range. Standard tooling supplied with the machine covers the full adjustment range. The PLC stores angle parameters so repeat jobs can be recalled without manual recalibration.
Q: Can voltage be customized from 380V to match local supply, and what frequency options exist?
A: Voltage is configurable from 110V to 440V, and both 50Hz and 60Hz configurations are available. Confirmation of your site’s exact supply must be completed before production begins. An electrical schematic reflecting your confirmed voltage ships with the machine documentation package.
Q: What edge banding materials are compatible with the 4000 ml glue pot system?
A: The system handles PVC, ABS, and veneer edge banding strips. The hot air assisted secondary heating supports reliable adhesion across these material types. Glue pot temperature settings are adjusted through the PLC to match the specific adhesive and banding material combination in use.
