Description
Voltage-confirmed before production — Every DW802 order is matched to your workshop’s verified electrical supply and plug standard before assembly begins, preventing the dead-on-arrival scenarios that stall commissioning for weeks.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W (basis not stated in source — rated or peak to be confirmed) |
| Voltage & Frequency | 220V / 380V / customization (frequency to be confirmed: 50Hz or 60Hz) |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Feed Motor Power | 140W |
| Transmission Motor Power | 140W |
| Trimming Power | 800W × 2 |

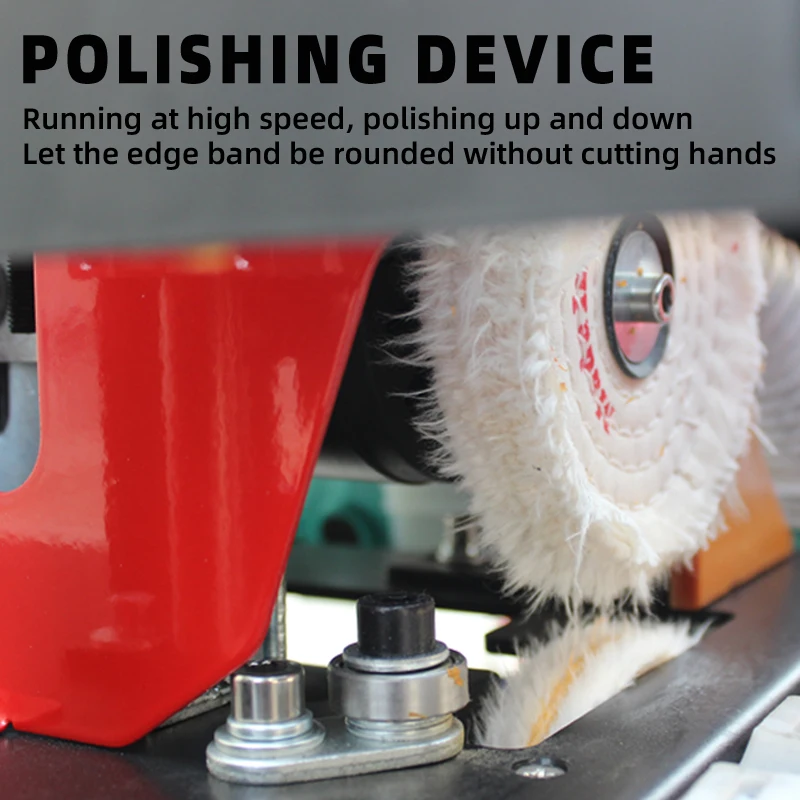

| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.4–0.8 MPa |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Control System | PLC (controller brand and model to be confirmed) |
| Language Options | Chinese and English standard; Spanish or other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Panel Materials | MDF, particleboard, solid wood board, ecological board, plywood |
| Edge Banding Materials | Hotmelt glue with PVC, wood, or veneer banding |

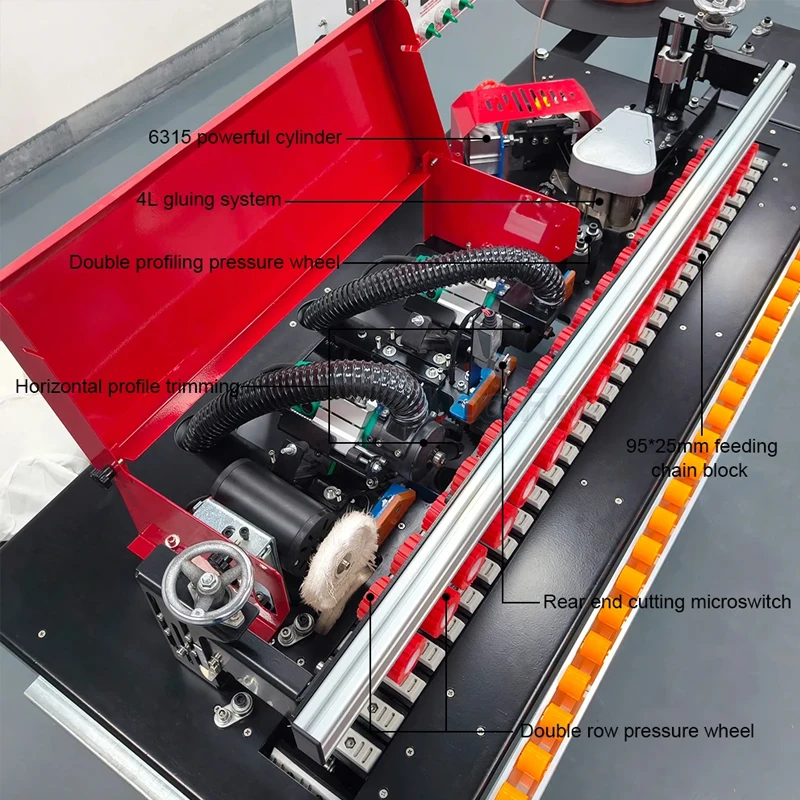

| Key Features | Integrated trimming, automatic head-and-tail cutting, polishing (buffing), vacuum hold-down |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC banding 0.3–3 mm |
| Wardrobe and shelving panel finishing | Plywood and ecological board with wood veneer banding |
| Small workshop straight-edge production | Solid wood board and melamine-faced panels |
| Home decoration panel edge treatment | MDF and particleboard for interior fit-out components |
| Phased furniture factory start-up | Mixed substrate runs on a single compact edge bander |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine Manufacturer Quote
Confirming your site voltage and frequency before the quotation is issued eliminates the most common cause of idle machines on arrival.
I once shipped an edge bander to a cabinet factory in Sri Lanka where the purchase order specified 220V single-phase. The machine landed, the electrician opened the panel, and the workshop ran 415V three-phase. The factory stood idle for three weeks waiting for a variable-frequency drive to be air-freighted in. That kind of delay is not a logistics problem — it is a specification problem that originates at the quoting stage [NEED_CITE: voltage and frequency standards by export market]. When an automatic edge banding machine manufacturer does not ask for a photo of your distribution board before issuing a drawing, the risk of a mismatch lands entirely on your production schedule.
Mapping the DW802 Across the Full Edge Bander Range

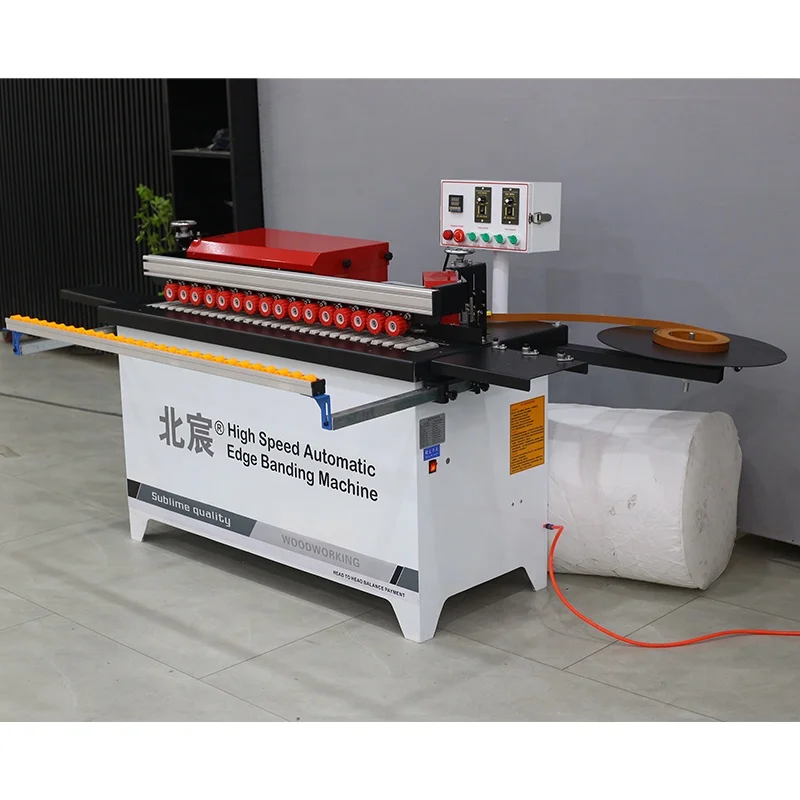

The DW802 occupies the mid-range position in a product family that extends from entry-level straight-edge units up to full-function pre-milling models with contour tracking. Workshops evaluating an automatic edge banding machine manufacturer for the first time often start here because the unit consolidates edge banding, trimming, head-and-tail auto-cutting, and polishing into a single compact frame measuring 130 cm in length. If your current volume involves straight-edge panels in MDF or particleboard with PVC or veneer banding up to 3 mm thick, the DW802 covers that scope without requiring auxiliary stations.
Knowing When to Step Up to Pre-Milling
Factories processing boards with noticeable surface irregularity or melamine chipping along the cut edge will eventually need a pre-milling station upstream of the glue pot. The DW802 does not include pre-milling, which is a deliberate configuration choice keeping the machine compact and the power draw at 4200W. If your panel supplier delivers boards with edge tear-out that exceeds what trimming alone can clean, the next tier in the range adds a twin-cutter pre-mill that squares the edge before banding [NEED_CITE: edge banding process stages and substrate preparation requirements]. Planning the step-up path now means you stay with one supplier as throughput grows.
How Core Parameters Translate to Workshop Output
The 0.3–3 mm banding thickness range covers the PVC and veneer materials most commonly stocked by furniture hardware distributors, so you are not forced to source specialty strips. Two 800W trimming motors working in sequence remove top and bottom overhang in a single pass, which matters when you are running particleboard that tends to chip if the cutter engagement is uneven. The 4000 ml glue pot holds enough hotmelt adhesive for sustained runs without frequent refills, reducing the temperature fluctuation that occurs each time a cold batch is added. Vacuum hold-down at 1200W keeps lighter MDF sheets stable against the fence, preventing the lateral drift that produces visible glue lines on narrow stock [NEED_CITE: vacuum hold-down principles in panel edge banding]. The 0.4–0.8 MPa air pressure range is compatible with standard workshop compressors, avoiding the need for a dedicated high-pressure line.
The Hidden Cost of Underspecifying a Compact Edge Bander
Purchasing a small-format edge bander without confirming the minimum sheet dimensions leads to frustration when operators discover that narrow off-cuts below 10 cm width cannot be fed safely through the pressure zone. Similarly, specifying a machine for a workshop that runs both 3 mm solid wood banding and 0.3 mm PVC without verifying the pressure roller adjustment range results in crushed veneer on one job and insufficient contact on the next. These mismatches do not appear on a quotation sheet — they surface only after the machine is bolted to the floor and production deadlines are already slipping [NEED_CITE: common edge banding defects related to machine setup and material mismatch].
Why Source the DW802 Through This Product Range
The DW802 is built on the same production line as the higher-tier pre-milling and contour models, so component sourcing, precision grinding standards, and QC checkpoints are shared across the family. Voltage is confirmed against your site supply before the electrical panel is wired — 220V, 380V, or a custom configuration with the correct plug standard for your market. The control panel is supplied in English as default, with Spanish and other languages available by configuration, so your operators read instructions in a language they work in daily. Every unit passes a four-stage quality check that includes a pre-shipment functional test on actual panel stock. Engineer-led configuration recommendations are provided within one working day of receiving your processing requirements, not weeks later.
Documentation & Verification
- CE declaration of conformity matched to the DW802 machine category
- ISO 9001 certificate covering the manufacturing scope of this edge bander range
- Electrical schematic confirming your specified voltage, frequency, and plug type
- Factory test record run on panel thickness and banding material matching your order
- Operation and maintenance manual supplied in the language confirmed at order stage
- Spare parts list identifying consumable cutters, polishing wheels, and glue pot elements
Installation, Commissioning & Support
- The 130 × 60 × 95 cm footprint fits standard workshop bays without special floor reinforcement
- A dedicated circuit matching the confirmed 220V or 380V supply with appropriate breaker rating is required
- The 135 kg net weight allows positioning by pallet truck on a level concrete surface
- First-run commissioning includes glue pot temperature calibration for your specified banding material

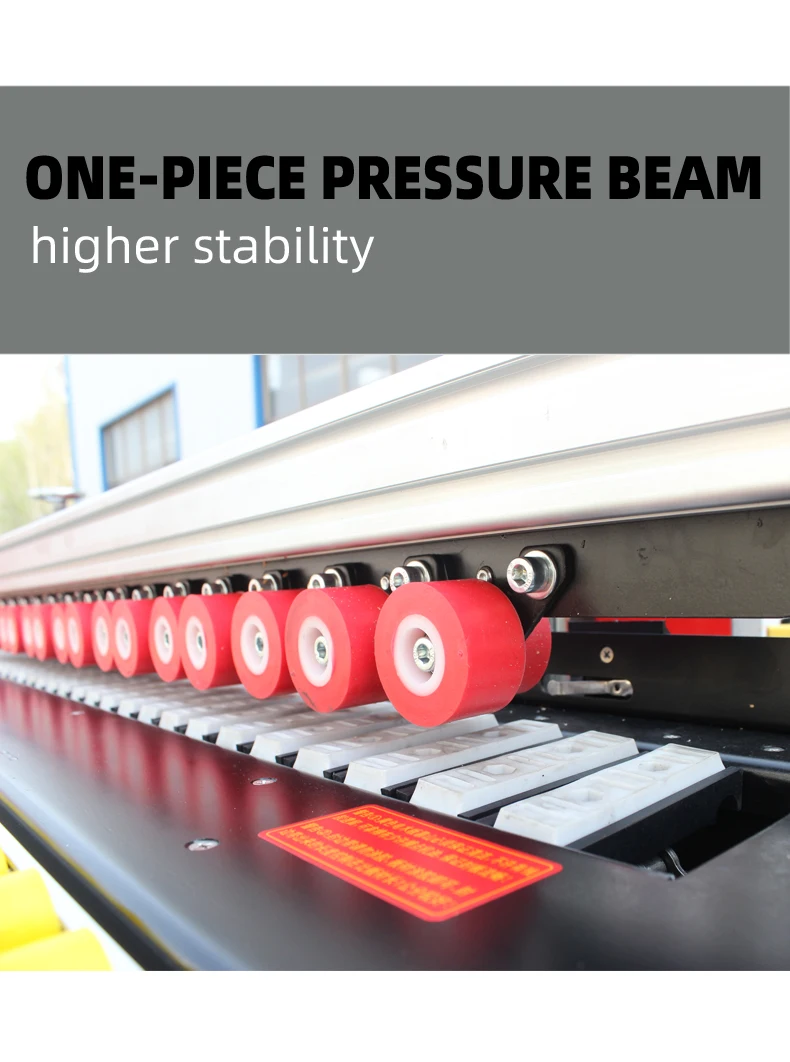

- Operator training covers pressure roller adjustment across the 0.3–3 mm banding thickness range
- Trimming and polishing consumables are listed with reorder intervals based on normal use
What to Include in Your Inquiry
To receive an accurate configuration proposal for the DW802, provide the panel substrates you process most frequently, the banding materials and thicknesses in your current product mix, and the voltage and frequency at your facility. If you are planning a phased line build-out, note which upstream and downstream machines are already installed so the feed height and throughput can be matched. Specify the control panel language your operators require and whether you want sample processing on your own panel stock before shipment.
Frequently Asked Questions
Q: Where does the DW802 sit in the edge bander range, and when should I consider a pre-milling model?
A: The DW802 is a mid-range straight-edge unit integrating banding, trimming, auto head-and-tail cutting, and polishing in one frame. It handles PVC, wood, and veneer banding from 0.3 to 3 mm on MDF, particleboard, and plywood. If your panels show edge tear-out or melamine chipping that trimming alone cannot resolve, the next tier adds a pre-milling station to square the edge before banding.
Q: How do I confirm the correct voltage and frequency before placing an order?
A: Provide a photo of your workshop distribution board or a utility bill showing supply voltage and frequency. The electrical schematic is then prepared to match — whether 220V single-phase, 380V three-phase, or a custom configuration — and confirmed with you before the machine enters assembly.
Q: Can the control panel be supplied in my operator’s language?

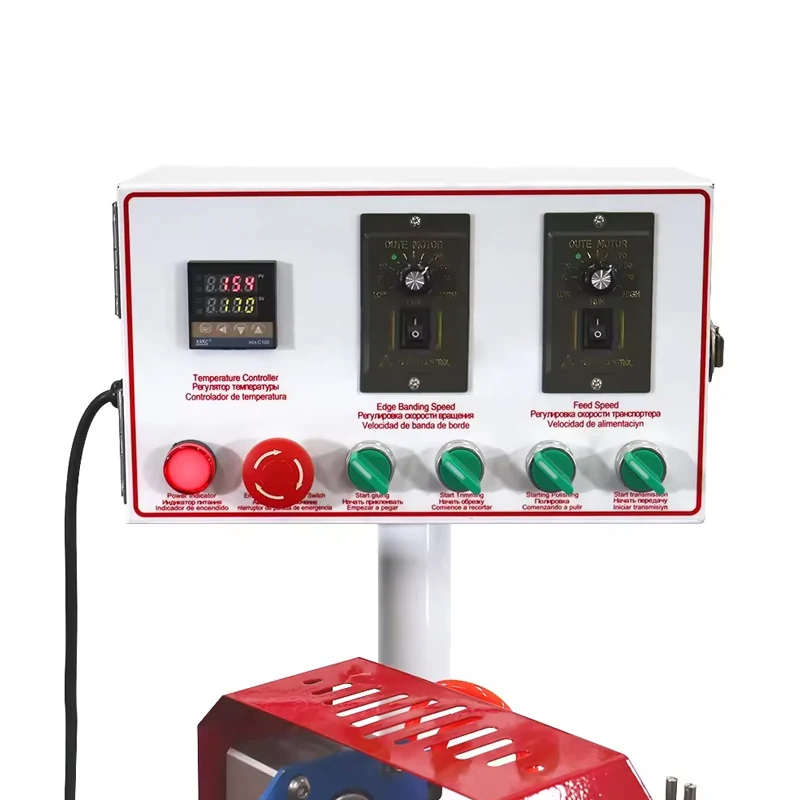

A: English and Chinese are standard on the PLC interface. Spanish and other languages are available by configuration specified at the order stage. Confirming the language requirement early ensures the HMI screen and printed manual both match what your team reads on the shop floor.
Q: What edge banding materials and thicknesses does the DW802 handle?
A: The machine processes hotmelt-applied PVC, wood, and veneer banding from 0.3 to 3 mm thick, with a banding height range of 0 to 50 mm. This covers the strip materials typically stocked by furniture hardware distributors for cabinet and wardrobe production on MDF, particleboard, and plywood substrates.
Q: Can I visit the factory or request sample processing on my own panels?
A: Factory visits are welcomed at the production facility in Shandong. You may also ship a small batch of your own panel stock for a processing test, allowing you to evaluate edge quality, glue line visibility, and trimming finish on your actual materials before committing to a purchase order.
