Description
Full Range Within One Supplier — the ZDS290 sits inside a complete family of edge banding machines from entry-level to full-function pre-milling, letting your workshop scale throughput without switching suppliers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS290 |
| Product Type | Automatic Edge Banding Machine |
| Rated Voltage | 220V (configurable 110V–440V) |
| Rated Power | 4165W |
| Feed Speed | 6 m/min |
| Panel Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Conveying Motor Power | 180W |
| Glue Pot Capacity | 1000 ml |
| Glue Pot Heating Power | 800W (5–10 min heat-up) |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuuming Power | 1200W |
| Rated Air Pressure | 0.6–0.8 MPa |
| Machine Size | 150 × 57 × 96 cm |
| Pressure Beam | Integrated thickened aluminum alloy |
| Pressure Wheel | Double-row inclined |
| Board Thickness Display | Digital display |
| Pressure Beam Adjustment | Hand-crank wheel |
| Glue Pot Type | Imitation glue pot with concave-convex gum wheel |
| Additional Functions | Secondary scraping and cleaning |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard with PVC edge banding |
| Small-batch furniture panel finishing | Plywood panels 10–50 mm thick |
| Straight-edge banding for shelving | Particleboard and MDF with 0.5–2.5 mm PVC strips |
| Workshop upgrade from manual banding | Board furniture components at moderate volume |
Why Voltage Confirmation Must Precede Every Edge Bander Order
A machine wired for the wrong frequency is a crate of expensive iron sitting on your factory floor.
I learned this the hard way. One shipment of an automatic edge banding machine for sale went out with 380V/50Hz wiring to a customer running 220V/60Hz locally. The machine sat idle for three weeks while a transformer was sourced and rewired on-site. Since then, every single unit I ship gets a voltage and frequency confirmation step before it leaves the floor. The ZDS290 is rated at 220V as standard, but the configuration can be adjusted across 110V to 440V. The cost of getting this wrong is not the transformer — it is the lost production time and the installer flying in twice [NEED_CITE: voltage and frequency standards by export market].
Where the ZDS290 Fits in the Machine Range
This automatic edge banding machine for sale occupies the compact tier of a broader catalogue. Workshops producing custom cabinets or small-batch furniture will find the 6 m/min feed speed and 10–50 mm panel range aligned with moderate daily volumes. The ZDS290 gives you a starting point within a product family that extends to pre-milling and full-function models, meaning you can move to a higher-tier machine from the same supplier when throughput demands increase, keeping your operator training and spare parts ecosystem consistent.

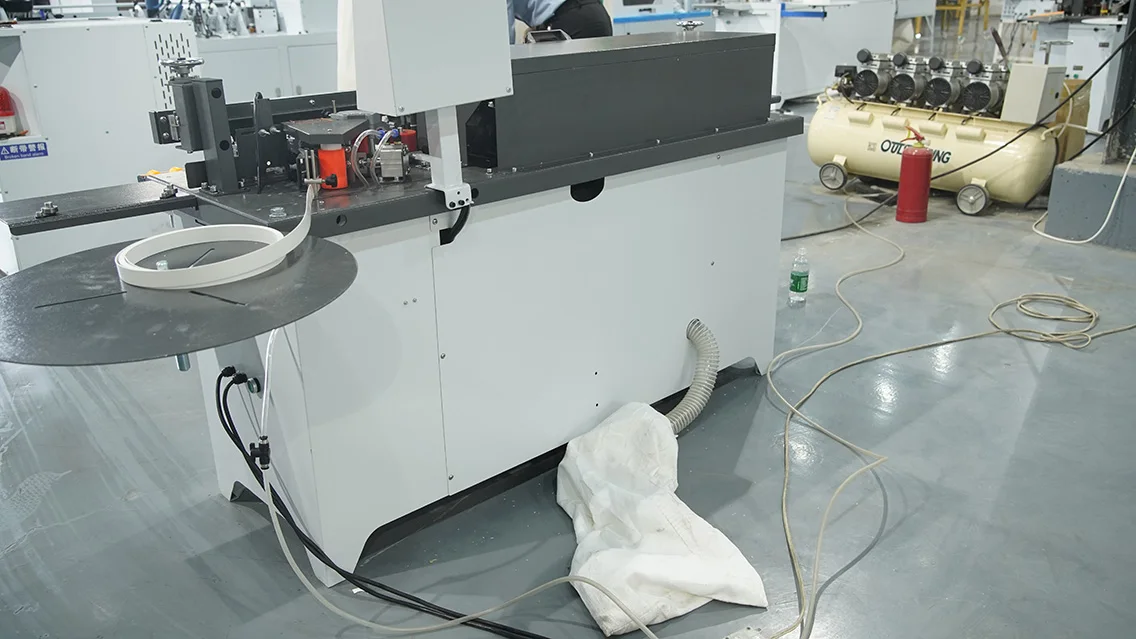

Compact Footprint Without Sacrificing Core Stations

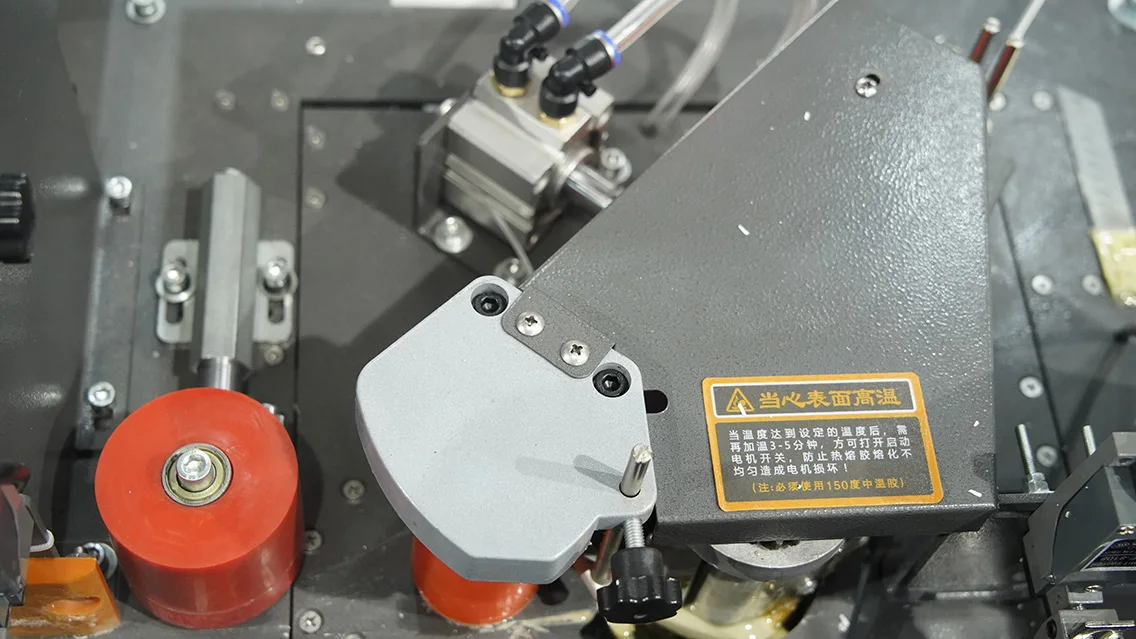

The 150 × 57 × 96 cm frame houses a complete sequence: gluing, trimming, polishing, and secondary scraping with cleaning. Many machines at this footprint skip the secondary scraping stage, leaving visible glue lines on substrates like MDF where surface absorption varies. The concave-convex gum wheel on the glue pot distributes adhesive more evenly across the strip contact face, reducing the chance of unglued spots on the panel edge [NEED_CITE: edge banding glue application methods for porous substrates]. The integrated thickened aluminum alloy pressure beam, adjusted by a hand-crank wheel and confirmed on the digital board thickness display, keeps panels stable through the feed path.
Reading the Specs That Matter in Production

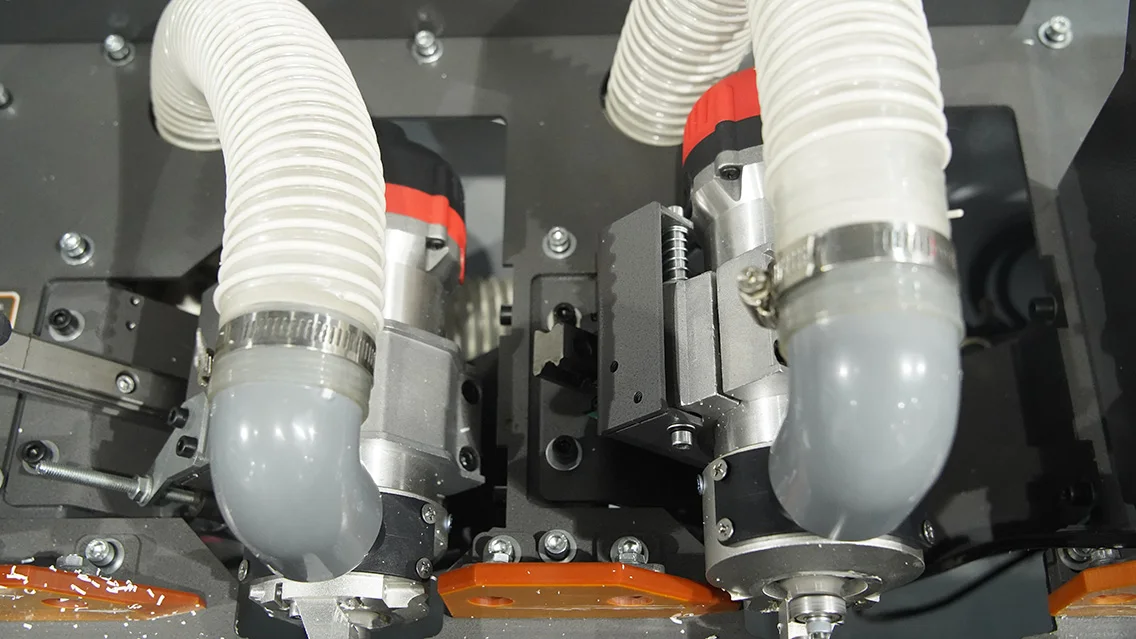

The double-row inclined pressure wheel system is worth examining if you run mixed panel thicknesses. Single-row wheels tend to tilt the panel slightly when transitioning between 10 mm and 50 mm stock, producing uneven trim lines. The inclined double-row arrangement counters that lateral drift. The trimming station runs two 800W motors — adequate for PVC strips in the 0.5–2.5 mm range, though thicker solid wood banding would require a more powerful trimming configuration found on larger models in this family. The 1200W vacuuming power handles PVC and MDF dust at this feed speed, but if your extraction ducting is shared across multiple machines, confirm the port diameter and static pressure requirement before connecting [NEED_CITE: dust extraction static pressure requirements for woodworking machinery].
The Cost of Undersizing Your Edge Bander
A machine rated for moderate volumes will wear prematurely when pushed into continuous two-shift production. Bearing life on the pressure wheels degrades, the glue pot cannot maintain stable temperature at high feed rates, and the trimming motors overheat. I have seen workshops buy a compact edge bander to save budget, then replace it eighteen months later when order volume grew. The money spent on the first machine is not recovered. Matching the automatic edge banding machine for sale to your actual and near-term throughput avoids that cycle [NEED_CITE: machinery sizing relative to production volume planning].
What You Get by Sourcing This Model Here
The ZDS290 ships with voltage and plug type configured to your confirmed local standard — not a default setting. An engineer reviews your panel material, strip type, and daily output before recommending this model or pointing you to a higher tier in the same product family. Pre-shipment testing runs your actual panel thickness range through the machine, and the factory test record travels with the crate. The four-stage quality control process covers incoming components through final dispatch verification, so the tolerance you see on the test sample is the tolerance you get on arrival. Custom control panel language is available so your operators are not deciphering instructions on day one.
Documentation & Verification
- Electrical schematic confirming your local voltage, frequency, and plug type before dispatch
- Factory test record using your specified panel thickness and PVC strip material
- Operation and maintenance manual written in the language your operators read
- Spare parts list with part numbers matching the ZDS290 assembly
- CE declaration of conformity included where required by your import market
- Packing photographs documenting the machine condition before crate closure
Installation, Commissioning & Support
- Floor space of approximately 150 × 57 cm required with clearance on both feed and exit sides
- Dedicated 220V circuit rated for the 4165W total draw; confirm breaker sizing locally
- Partial assembly on arrival with user manual and video guidance for remaining setup steps
- Glue pot heat-up time of 5–10 minutes before first panel run; temperature calibration verified during commissioning
- Air supply at 0.6–0.8 MPa required from a clean, dry compressor line
- Wear items including pressure wheels and trimming cutters covered in the spare parts list for reorder
Preparing Your Inquiry
To get an accurate configuration for your workshop, share the panel materials you run most often, your typical board thickness range, and your local voltage and frequency. If you are evaluating where the ZDS290 sits relative to higher-throughput models in this range, describe your current daily panel count and whether you anticipate volume growth in the near term. A sample processing test using your own stock material can be arranged before order confirmation.
Frequently Asked Questions
Q: How does the ZDS290 compare to higher-tier edge banders in the same catalogue?
A: The ZDS290 serves workshops at moderate production volumes with a 6 m/min feed speed and a complete station sequence including secondary scraping. Higher tiers in the same family add pre-milling, higher feed speeds, and additional finishing stations. An engineer can map your daily panel count to the appropriate model so you do not undersize or overspend.
Q: Is local voltage compatibility confirmed before the machine ships?
A: Yes. The standard rated voltage is 220V, but configuration from 110V to 440V is available. Before production, your local voltage, frequency, and plug type are confirmed in writing and reflected in the electrical schematic that ships with the machine. This step prevents the costly idle-time scenario of a machine arriving wired for the wrong supply.
Q: Can the control panel language match my operators?
A: Multilingual control panels are available as part of the standard customization options. Specify your required language during the inquiry stage so the interface, along with the operation manual, is prepared in a language your team reads before the machine arrives on-site.
Q: What panel and strip materials work with this machine?
A: The ZDS290 handles MDF, particleboard, and plywood panels from 10 to 50 mm thick, with PVC edge banding strips from 0.5 to 2.5 mm. For solid wood banding or thicker strip materials, a higher-tier model in the same product family would be recommended to maintain trim quality and feed stability.
