Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply

<p><strong>DW902 Automatic Edge Banding Machine, 220V/380V, 0.3–3mm Banding Thickness</strong> — positioned within Ruiqi's complete edge bander range for workshops scaling from manual to automated production.</p> <ul> <li>Dual-purpose oblique and straight banding with double hot air design ensures consistent edge quality across MDF, particleboard, and plywood</li> <li>Covers edge banding, trimming, chamfering, polishing, and scraping in one station</li> <li>Minimum sheet size 25×10cm, edge height up to 5cm</li> </ul> <p>Each unit ships with factory test records and a multilingual operation manual matched to your operators.</p>

High Precision
Multi-stage QC control
Configurable
Custom voltage & logo
Certified
ISO9001 & CE standard
After-Sales
Remote support & parts
Automatic Edge Banding Machine Double Hot Air DW902 Full Catalogue Range Hot Air PLC MDF Plywood Oblique And Straight Edge Banding
Request a Quote WhatsApp Us Email Inquiry
Quick Contact: Myra (EN) Phyllis (EN) Peter (ES)
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply - Image 2
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply - Image 3
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply - Image 4
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply - Image 5
Automatic Edge Bander with Hot Air PLC for MDF Plywood – Factory Supply - Image 6

DW902 Automatic Edge Banding Machine, 220V/380V, 0.3–3mm Banding Thickness — positioned within Ruiqi’s complete edge bander range for workshops scaling from manual to automated production.

  • Dual-purpose oblique and straight banding with double hot air design ensures consistent edge quality across MDF, particleboard, and plywood
  • Covers edge banding, trimming, chamfering, polishing, and scraping in one station
  • Minimum sheet size 25×10cm, edge height up to 5cm

Each unit ships with factory test records and a multilingual operation manual matched to your operators.

Categories: , Tags: , , , , , ,

Description

Technical Specifications

Parameter Value
Model DW902
Product Type Automatic Edge Banding Machine
Total Power 4000W
Voltage 220V / 380V / customization available
Edge Banding Thickness Range 0.3–3mm
Edge Banding Height up to 50mm
Minimum Sheet Length 250mm
Minimum Sheet Width 100mm
Trimming Power 800W × 2 at 24,000 r/min
Polishing Power 380W × 2
Edge Feed Power 140W
Transmission Power 140W
Vacuum Power 550W
Glue Pot Capacity 4000ml
Air Source Pressure 0.5–0.8 MPa
Machine Dimensions 175 × 87 × 112 cm
Machine Weight 240 kg

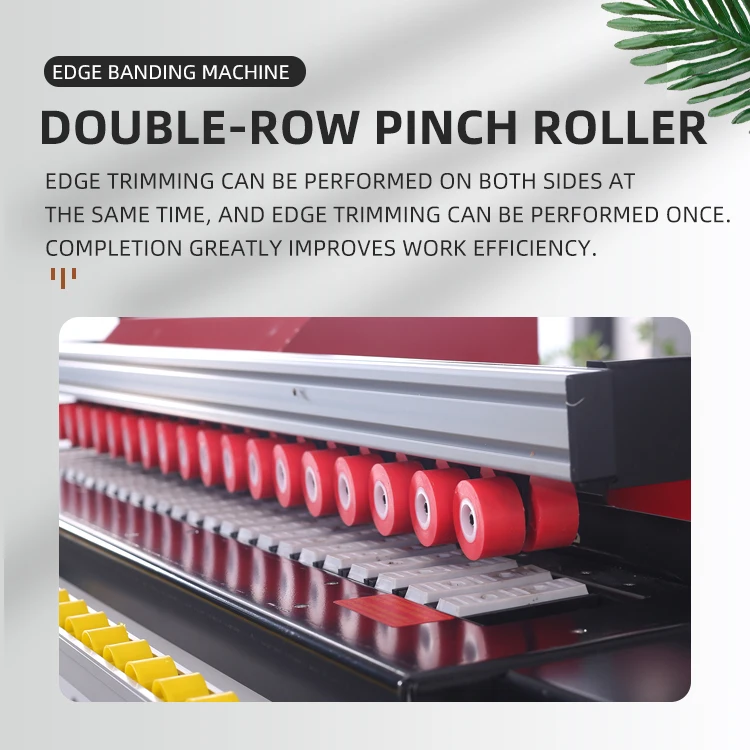

Key Features Oblique and straight dual-purpose banding, double hot air design, feeding auxiliary slide plate, 4 groups of oblique pressure wheels, double row pressing wheels, chamfering, integrated scraping and vacuuming
