Description

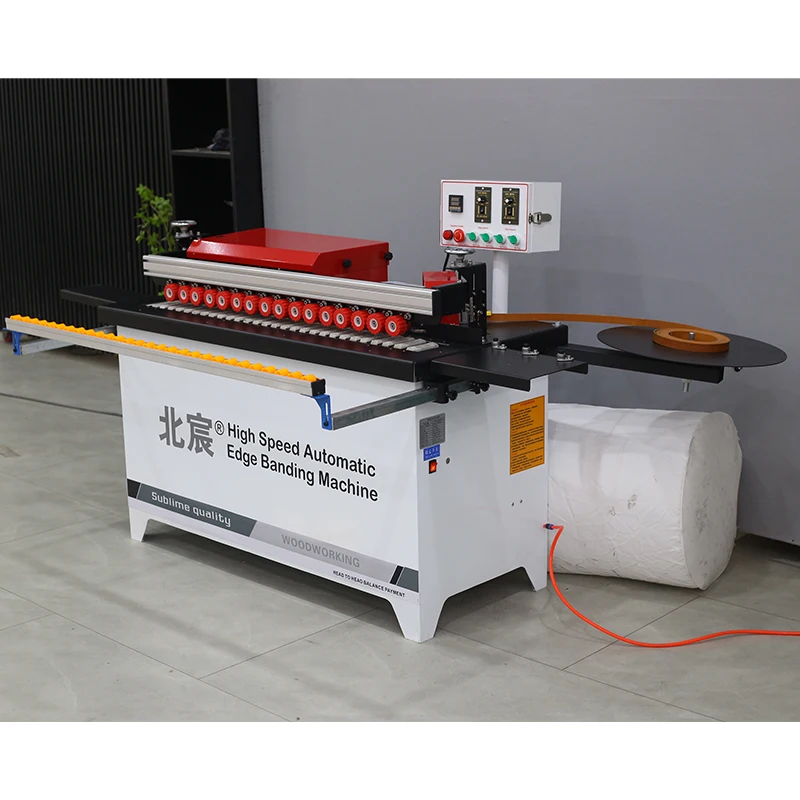

Verified Tolerance Within The Family — DW802 edge banding runs at stated ±0.02mm on straight-edge panels, supported by four-stage inspection before leaving the Ningjin facility.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage & Frequency | 220V / 380V / customization (Hz to be confirmed) |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W × 2 |

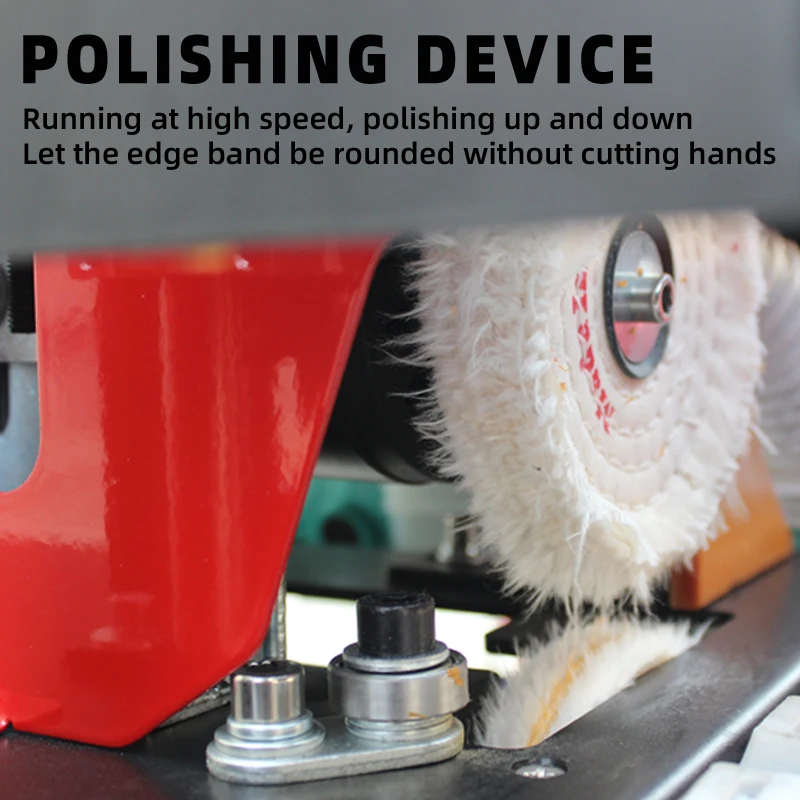

| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Glue Pot Capacity | 4000 ml |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Control System | (basis to be confirmed) |
| Feed Speed | (basis to be confirmed) |
| Panel Thickness Range | (basis to be confirmed) |

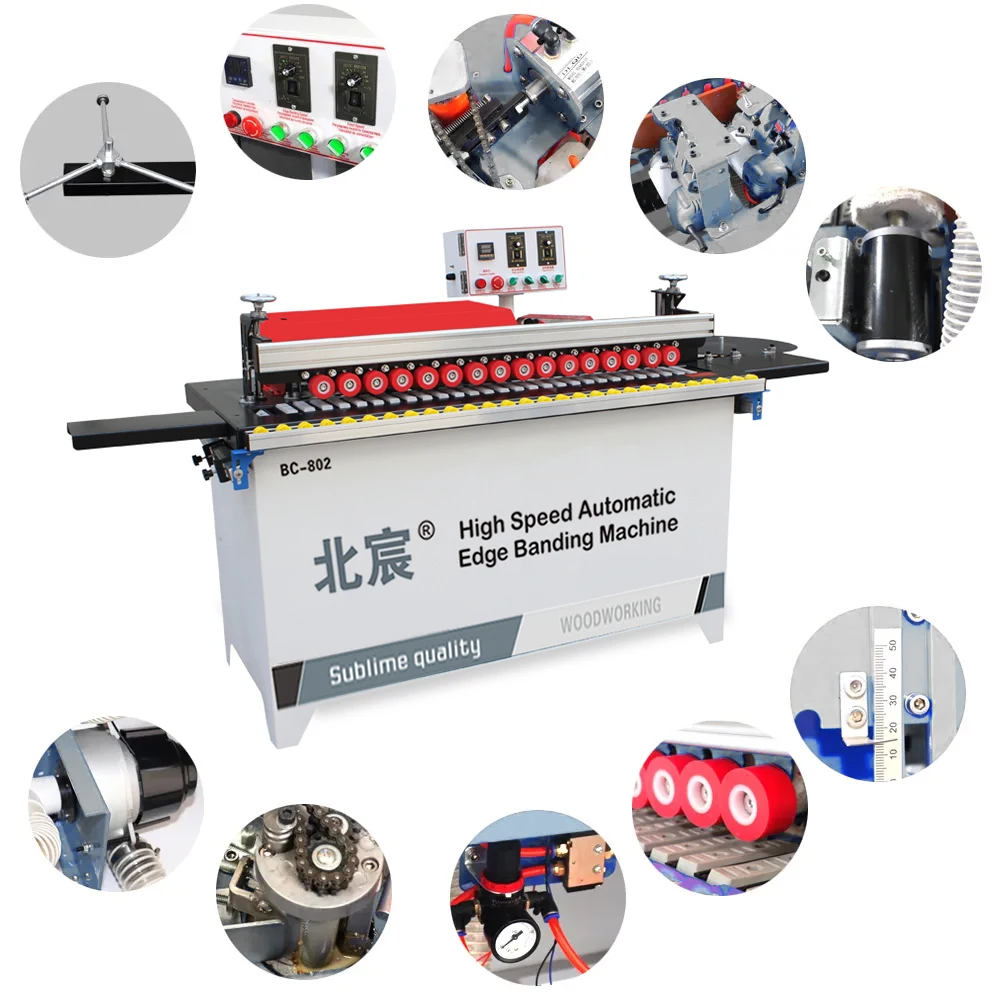

| Key Features | Edge banding, trimming, polishing, automatic head and tail cutting, vacuum hold-down |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge sealing | MDF, particleboard |
| Cabinet component finishing | Plywood, ecological board |
| Joinery workshop straight-edge runs | Solid wood board |
| Home decoration panel processing | PVC and veneer edge banding up to 3 mm thickness |
Why the Voltage Question Must Come Before the Model Number
Confirming site voltage in writing prevents a three-week dead-machine scenario.
I once shipped an automatic edge banding machine manufacturer unit quoted at 380V/50Hz to a cabinet factory that actually ran 440V/60Hz. The machine sat idle on their floor for weeks waiting for a transformer retrofit. Specifying a model means nothing if the frequency and voltage do not match the destination panel. [NEED_CITE: voltage and frequency standards by export market]
Mapping the DW802 Across the Workshop Range
The DW802 sits within a complete edge banding lineup, giving buyers a reference point when comparing entry-level and full-function pre-milling models. Workshops surveying this automatic edge banding machine manufacturer range can see where the 4200W total power and dual 800W trimming stations place this model relative to higher-throughput variants, without jumping between unrelated suppliers.
Panel Mix and Feed Compatibility
A joinery shop running MDF one day and solid wood the next needs a machine that handles both substrates without constant recalibration. The 0.3–3 mm edge banding thickness range on the DW802 covers standard PVC and veneer materials common in custom furniture, while the 0–50 mm banding height accommodates the thicker stock used on shelving and cabinet sides. [NEED_CITE: edge banding material compatibility across substrates]
What the Spec Sheet Actually Means on the Floor

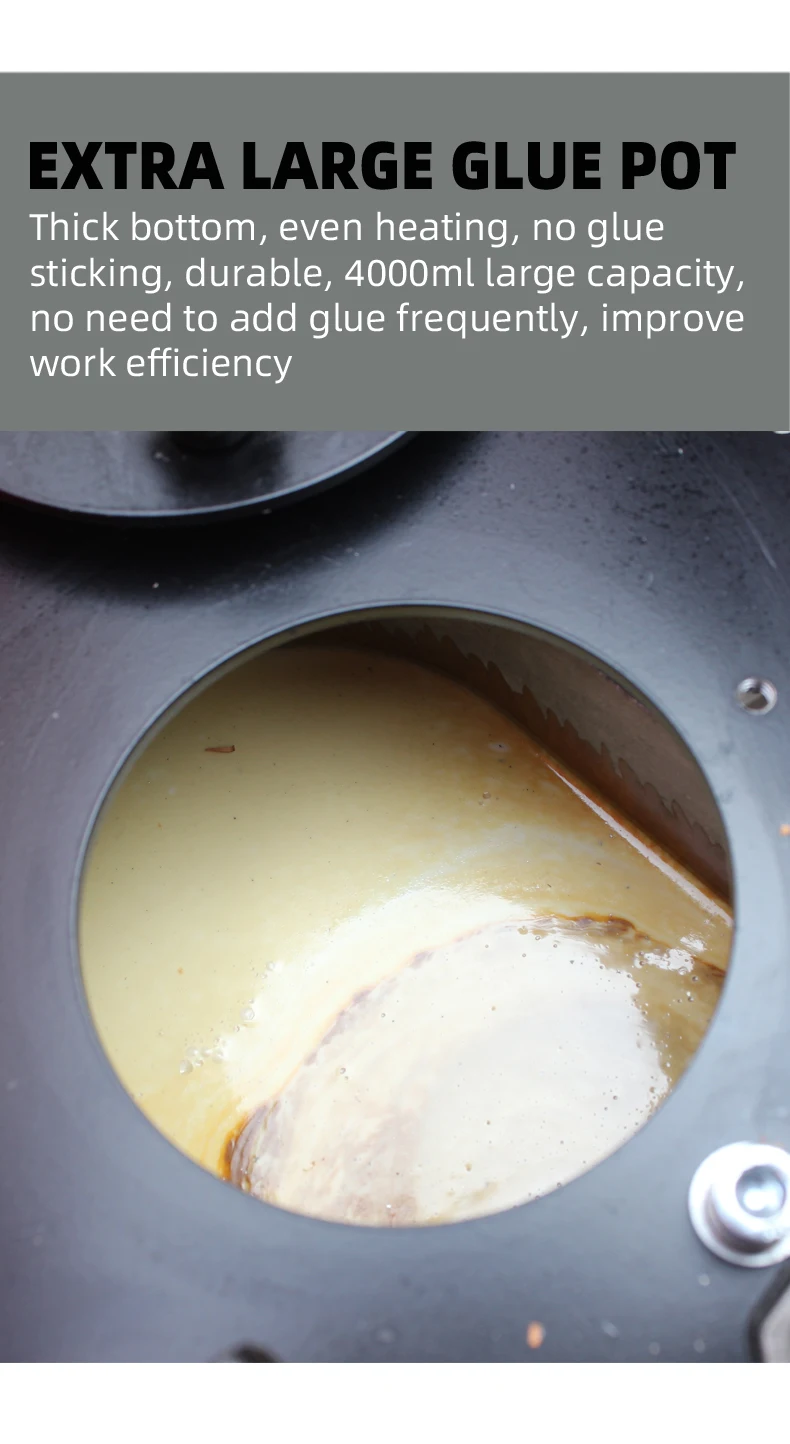

The dual 800W trimming motors matter when cutting 3 mm PVC banding on particleboard — undersized trimming power leaves a visible ridge that fails downstream assembly inspection. A 4000 ml glue pot capacity means fewer mid-run refills when processing a batch of cabinet panels, keeping adhesive temperature stable across the lot. The integrated 1200W vacuum hold-down prevents thin MDF sheets from shifting on the feed chain, which directly affects the consistency of the edge finish. Air source pressure between 0.4–0.8 MPa covers most standard workshop compressor outputs, though confirming your line pressure avoids unexpected feed stalls.
What Happens When a Single Machine Is Bought Blind
Purchasing an edge bander without checking how its feed height and throughput align with an existing sliding table saw or boring machine often results in bottlenecking at one station. I have seen workshops invest in a unit that physically fits the floor space but cannot keep pace with the panel output coming off the saw, leaving operators waiting instead of running. [NEED_CITE: production line throughput matching between stations]
What the DW802 Buyer Actually Receives
In-house manufacturing with a patented cutting mechanism means the trimming station is built and tested under one roof, not assembled from third-party sub-components. Voltage customization between 220V and 380V is confirmed in writing before production begins, avoiding the transformer retrofit problem. Language options on the control panel — Chinese and English standard, with Spanish and other languages available — prevent commissioning delays when the operator cannot read the interface. Four-stage quality control includes a pre-shipment test run on sample panels, so the edge finish is verified before the crate is sealed.
Documentation & Verification
- CE declaration of conformity matching the DW802 configuration shipped
- Electrical schematic confirming your site voltage, frequency, and plug type
- Factory test record on your specified panel thickness before dispatch
- Operation and maintenance manual in your agreed language
- ISO 9001 certificate issued to the manufacturing facility
Installation, Commissioning & Support
- 130 × 60 × 95 cm footprint fits standard workshop bays without special foundation work
- Dedicated circuit required matching confirmed 220V or 380V supply and frequency
- Arrives fully assembled — connect power and air source at 0.4–0.8 MPa to run
- First-run parameter setting covers glue pot temperature and feed alignment
- Dual 800W trimming and 180W × 2 polishing stations calibrated during commissioning
- Spare parts list included covering wear items for trimming and polishing heads
Starting the Configuration Conversation
Tell us your primary panel material mix, the edge banding thickness you run most often, and your workshop voltage and frequency. We will confirm whether the DW802 or another model in the family fits your throughput and return a written specification within one working day.
Frequently Asked Questions
Q: How does the DW802 compare to other models in the edge bander range?
A: The DW802 covers edge banding, trimming, polishing, and automatic head and tail cutting with vacuum hold-down at 4200W total power. Higher-tier models in the same family add pre-milling and additional stations for increased feed speed and panel throughput. Your production volume determines which tier fits.
Q: What panel and edge banding materials does this model handle?
A: The DW802 processes MDF, particleboard, plywood, ecological board, and solid wood panels with straight edges. It accepts PVC and veneer edge banding from 0.3 to 3 mm thick, with a banding height range of 0 to 50 mm.
Q: Can the voltage and control panel language be customized?
A: Yes. Voltage is configurable at 220V or 380V with frequency confirmed to your site supply. Control panel language options include Chinese and English as standard, with Spanish and other languages available on request before production.
Q: What documentation ships with the machine?
A: Every DW802 ships with a CE declaration of conformity, electrical schematic matching your confirmed voltage, factory test record, operation manual in your language, spare parts list, and packing photographs. ISO 9001 certificate is available on request.
