Description
Full-Function Edge Banding in a Compact Footprint — The ZDSF802 delivers gluing through polishing within a single station, backed by in-house manufacturing and a 24-hour engineer-led configuration quote.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF802 |
| Product Type | Automatic Edge Banding Machine |
| Function Sequence | Gluing, End cutting, Vacuuming, Trimming, Polishing |
| Edge Processing Type | Straight line |
| Rated Voltage | 220V (frequency to be confirmed; 110V–440V customization available) |
| Rated Power | 4 kW |
| Trimming Power | 800 W × 2 |

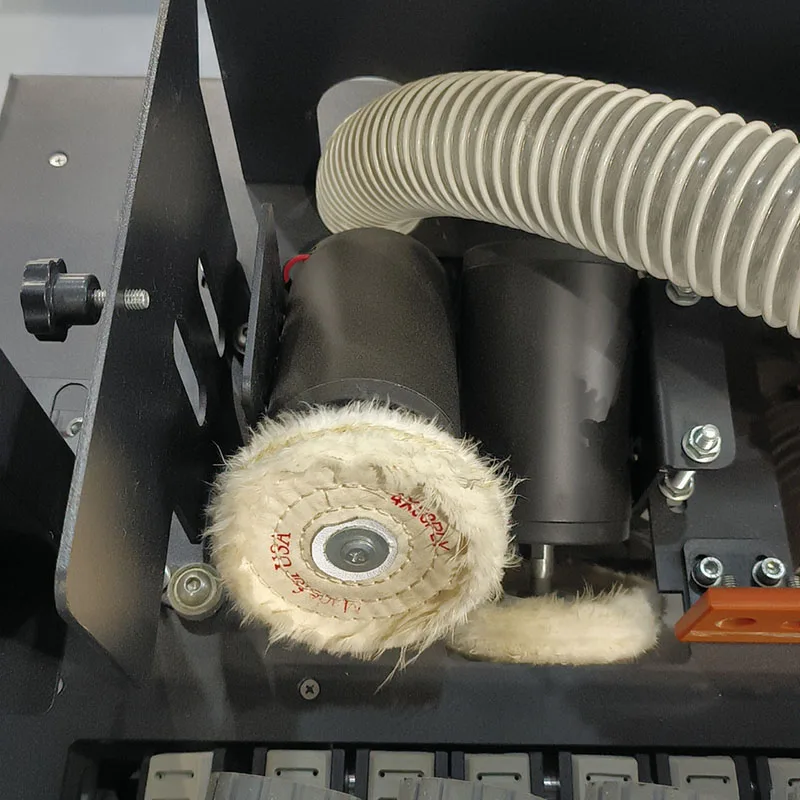

| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Heating Power | 1000 W (5–10 min heat-up) |
| Glue Pot Capacity | 4000 ml |
| Strip Thickness Range | 0.6–2.0 mm |
| Sheet Thickness Range | 10–50 mm |
| Feed Speed | 0–10 m/min |
| Rated Air Pressure | 0.4–0.6 MPa |
| Machine Weight | 150 kg |

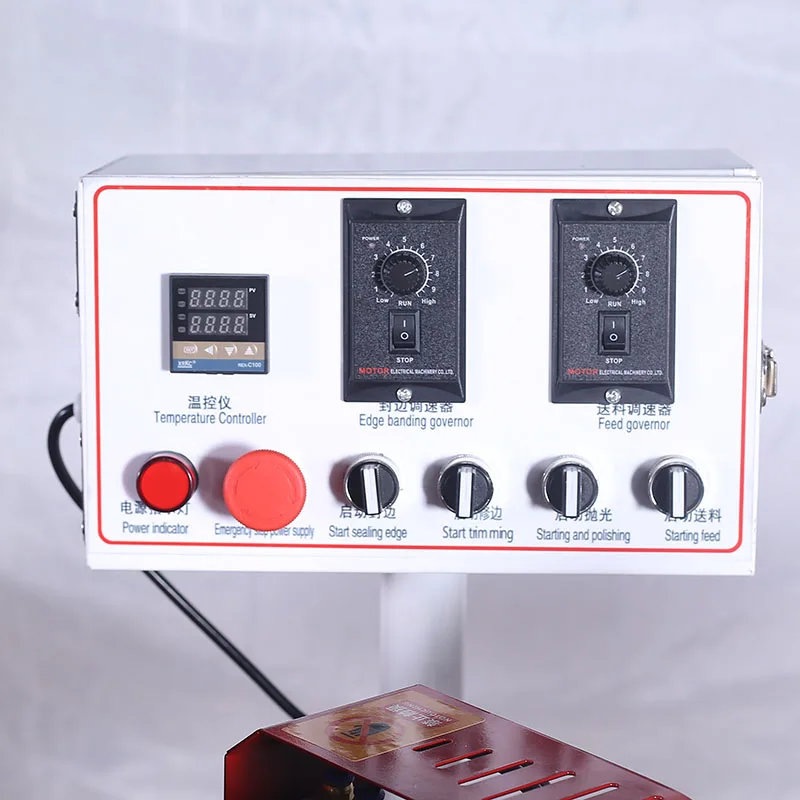

| Control Panel | Digital display of glue pot temperature, independent switch |

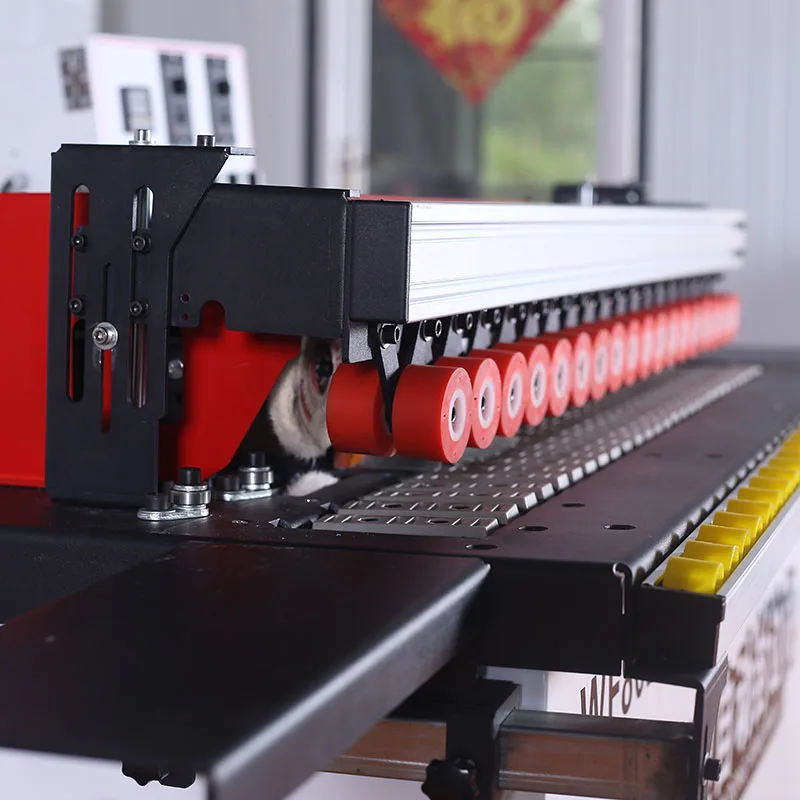

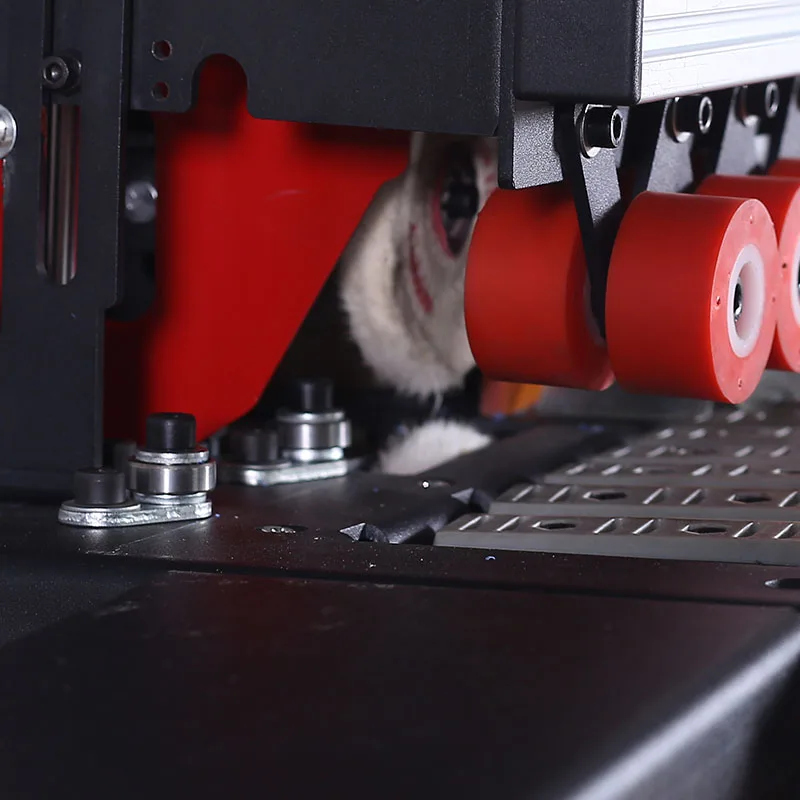

| Pressure Beam | One-piece, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Extendable Fluent Strips | Yes (for large plate support) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet production | Melamine-faced particleboard with PVC edge banding |
| Small furniture workshop finishing | MDF and plywood panels with 0.6–2.0 mm strips |
| Panel processing plant upgrade path | Transition from manual to semi-automatic straight-line edge finishing |
| Joinery startup scaling operations | Single-station gluing through polishing without secondary equipment |
Why the Voltage Question Should Come Before the Price
Confirming local voltage and frequency before the purchase order is signed prevents weeks of idle inventory on the workshop floor.
I spent years troubleshooting installations across West Africa and South Asia, and the pattern is painfully consistent. A workshop orders an automatic edge banding machine based on throughput and price, it arrives on site, and then the electrician discovers the local grid runs 415V three-phase while the machine was built for 380V. The transformer retrofit stalls commissioning while raw panels pile up in the warehouse, unpaid and unusable [NEED_CITE: voltage and frequency standards by export market]. Every order I now handle starts with a signed voltage confirmation sheet before production scheduling begins.
Positioning Within the Full Machine Range
The ZDSF802 sits at a specific tier within a broader automatic edge banding machine family. A workshop starting with modest daily output can run this model and later move to higher-throughput units in the same product line without changing supplier or retraining operators on a different control interface.
Upgrade Path Without Supplier Switching
The function set — gluing, end cutting, vacuuming, trimming, polishing — covers the complete straight-line workflow. When production volume grows, the next model up in the range adds feed speed and station capacity while preserving the same operational logic [NEED_CITE: CE machinery directive requirements for industrial equipment]. This matters for workshops planning phased investment rather than a single large capital outlay.
How the Specifications Shape Daily Output
The 10–50 mm sheet thickness range covers standard MDF, particleboard, and plywood panels used in cabinet and furniture construction. The 4000 ml glue pot capacity reduces refill interruptions during continuous runs, which matters when a batch of melamine-faced boards must be edged before the glue cools. The 0–10 m/min variable feed speed allows the operator to slow down for thicker PVC strips where trimming pressure needs adjustment, and speed up for thinner melamine edges. The double high-speed trimming motors work up and down simultaneously, producing a clean edge on both faces in a single pass rather than requiring a second station. Pneumatically controlled belt breaking cuts the strip cleanly without operator hand intervention, keeping the cycle continuous.
The Hidden Cost of Undersized Edge Banding Equipment
A workshop that buys a machine designed for light duty but runs it at full production volume discovers the problem only after repeated breakdowns. Glue pots overheat, trimming motors lose alignment, and the pressure beam develops play that shows up as visible glue lines on finished panels [NEED_CITE: tolerance verification on edge banding machines]. Repair costs accumulate, but the real expense is the delivery schedule slipping while the only edge bander in the shop sits disassembled.
Why Procurement Starts Here
The ZDSF802 is built in-house with a patented cutting mechanism and verified ±0.02 mm tolerance, not assembled from third-party sub-kits. Voltage and control panel language are configured to the destination market before production begins, eliminating on-site surprises. The four-stage QC process includes a pre-shipment test run on the buyer’s actual panel material, so edge quality is confirmed before the crate closes. Engineers provide a formal configuration quotation within 24 hours of receiving the factory layout and processing requirements. Factory visits are available for buyers who want to witness the machine running their own substrate before committing.
Documentation & Verification
- Factory test record on your specific panel thickness and edge strip material before dispatch
- Electrical schematic confirming voltage and frequency as built for your local power supply
- Operation and maintenance manual written in the operator’s language
- CE declaration of conformity and ISO 9001 certificate included with shipment
- Spare parts list with part numbers matching the as-built configuration
- Packing photographs and customs documentation support for smooth port clearance
Installation, Commissioning & Support
- Requires a level floor with adequate clearance around the 150 kg unit for panel feed and exit
- Dedicated circuit matching the confirmed voltage and 4 kW rated power draw
- Arrives fully assembled; connect power, air supply at 0.4–0.6 MPa, and begin calibration
- First-run parameter setting covers glue pot temperature, feed speed, and trimming depth
- Silicone conveyor belt and pressure wheel inspection included in the initial commissioning checklist
- Spare trimming blades and polishing pads provided for early production wear
Request a Configuration Proposal
To receive a specification sheet matched to your operation, share your panel materials and thickness range, the edge strip types you run, your local voltage and frequency, and your preferred control panel language. If you are planning a line rather than a single station, include your current equipment layout so the engineer can advise on feed height compatibility and material flow.
Frequently Asked Questions
Q: Where does the ZDSF802 fit in the broader edge banding range, and what is the upgrade path?
A: It covers full straight-line functions in a compact frame for small-to-medium workshops. As production volume grows, higher-tier models in the same family add feed speed and station capacity while keeping the same control logic, so operators transfer without retraining and the supplier relationship stays intact.
Q: What voltage options are available, and is compatibility confirmed before shipment?
A: The machine supports configuration from 110V to 440V. Voltage and frequency are confirmed on a signed sheet before production begins, and the electrical schematic in the shipment documentation reflects the as-built specification for your local grid.
Q: Which panel and edge banding materials work with this model?
A: The ZDSF802 handles MDF, particleboard, plywood, and melamine-faced boards from 10 to 50 mm thick. Compatible edge strips include PVC and melamine from 0.6 to 2.0 mm. A factory test on your specific material combination can be arranged before order confirmation.
Q: What documentation arrives with the machine?
A: You receive the CE declaration, ISO 9001 certificate, operation manual in your chosen language, electrical schematic matching the confirmed voltage, factory test record, spare parts list, and customs documentation support for import clearance.
Q: Can I visit the factory or arrange a sample test before ordering?
A: Factory visits are welcome, and sample processing tests can be run on your own panel material. This lets you verify edge quality, glue line consistency, and trimming finish before the purchase order is finalized.
