Description
Engineer-Verified Tolerance — Every DW400 unit runs a full material test with buyer-supplied panels and edge banding stock before dispatch sign-off, confirming ±0.02 mm accuracy on your actual substrate.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW400 |

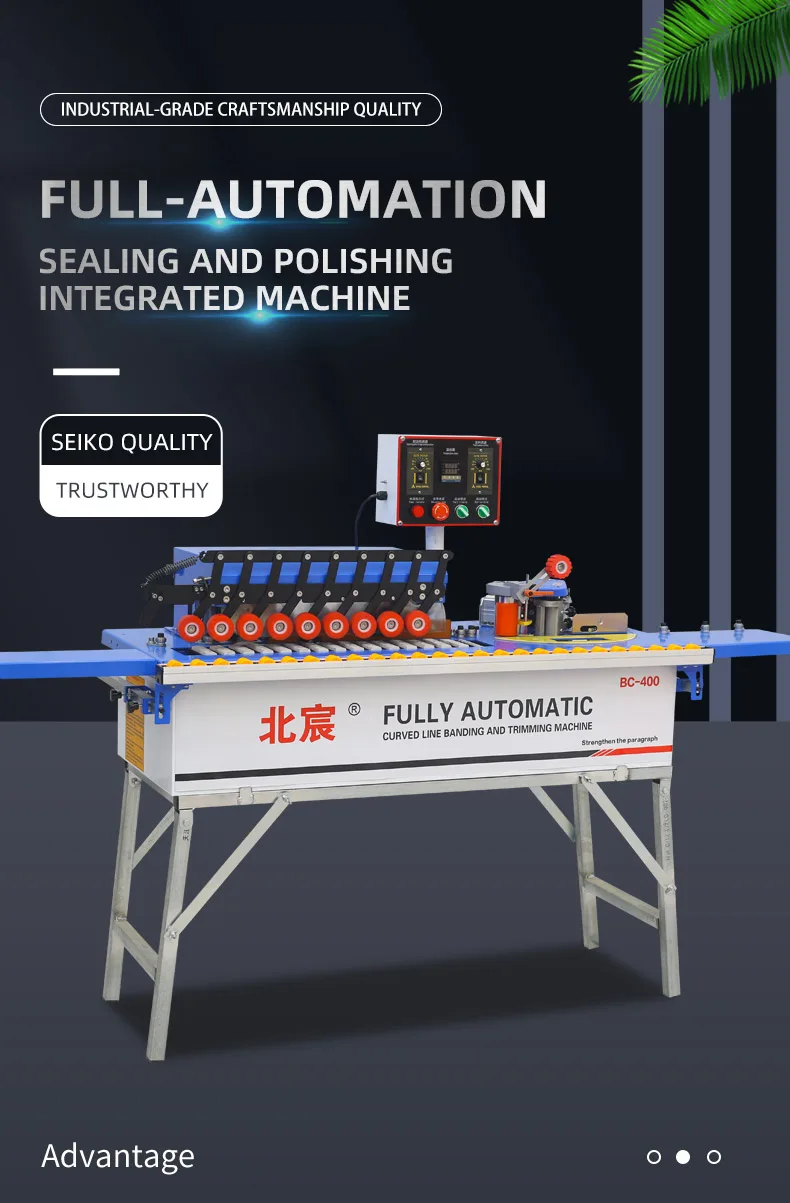

| Product Type | Automatic Straight Edge Banding Machine |
| Total Power | 3800 W |
| Voltage | 220 V / 380 V / custom configuration |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Glue Pot Capacity | 1000 ml |
| Trimming Power | 650 W × 2 |
| Polishing Power | 180 W × 2 |
| Vacuum Power | 1200 W |
| Edge Feed Power | 20 W |
| Transmission Power | 60 W |
| Air Source Pressure | 0.5–0.8 MPa |
| Machine Dimensions | 116 × 47 × 69 cm |
| Machine Weight | 70 kg |

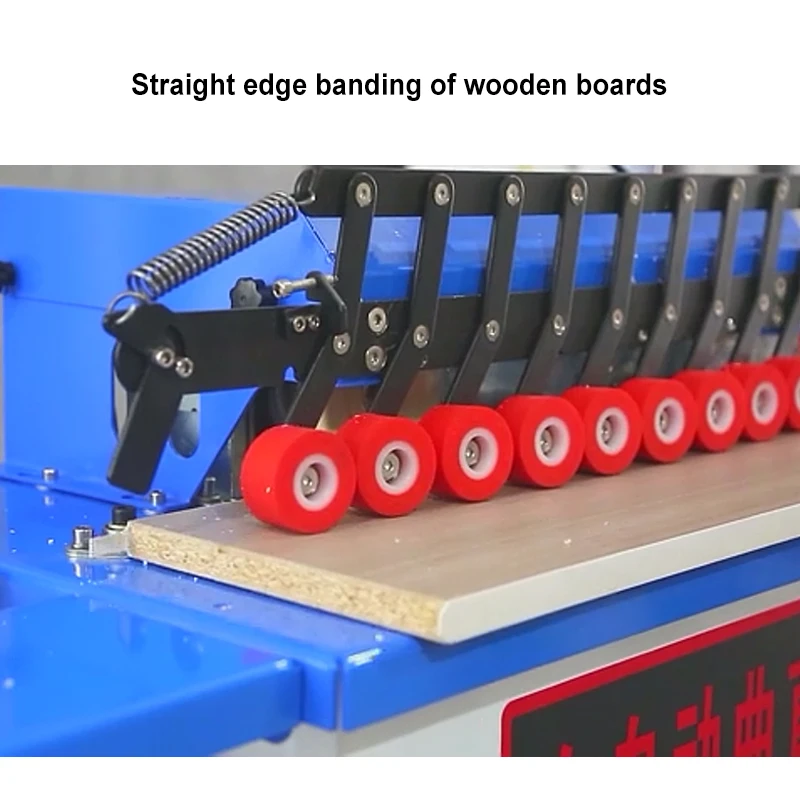

| Key Features | Straight edge banding, dual trimming stations, dual polishing stations |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass panel edging | MDF, particleboard, plywood |
| Shelving and drawer front finishing | Melamine-faced chipboard, PVC edge banding |
| Polymer door frame profiling | Polymer composite panels |
| Workshop prototype and short-run production | Solid wood panels, veneer banding |
| Medium-volume furniture assembly lines | Blockboard, medium density fiberboard |
Why Feed Height Mismatches Happen Before the First Panel Runs
Matching the DW400 to your existing line prevents throughput bottlenecks that no spec sheet warns about.
I once watched a cabinet factory take delivery of an edge bander that fit the budget perfectly but could not accept the panel thickness their sliding table saw was producing downstream. The feed opening was too narrow for their 22 mm particleboard runs, and the entire batch sat on the floor while they negotiated a return. That Automatic Straight Edge Banding Machine manufacturer conversation turned into a three-week delay. The DW400 covers a 0–50 mm banding height range, which positions it for standard furniture board thicknesses, but verifying your actual panel stack-up against this envelope before ordering avoids the incompatibility trap [NEED_CITE: panel thickness compatibility across woodworking line stations].
Where the DW400 Sits in the Broader Edge Bander Lineup
The Ruiqi range spans from compact single-function units up through full-function pre-milling edge banders with six or more processing stations. The DW400 occupies the mid-tier with straight banding, dual trimming, and dual polishing as standard — covering the core operations that most cabinet and furniture workflows require daily. This Automatic Straight Edge Banding Machine manufacturer catalogue approach means a workshop can start here and move to a higher-tier model later without switching supplier ecosystems.
Planning the Next Stage Without Starting Over
When a joinery shop scales from batch-of-one custom work toward repeated production runs, the edge banding station often becomes the constraint first. The DW400 handles 0.3–3 mm banding thickness across PVC, veneer, and melamine materials, giving operators room to experiment with finish options as customer demand evolves. Because the voltage is configurable and the pneumatic requirement sits at a standard 0.5–0.8 MPa, integrating this unit into an existing compressed air network typically requires no additional infrastructure [NEED_CITE: compressed air requirements for small to mid-size woodworking shops].
Reading the Numbers That Actually Affect Panel Output

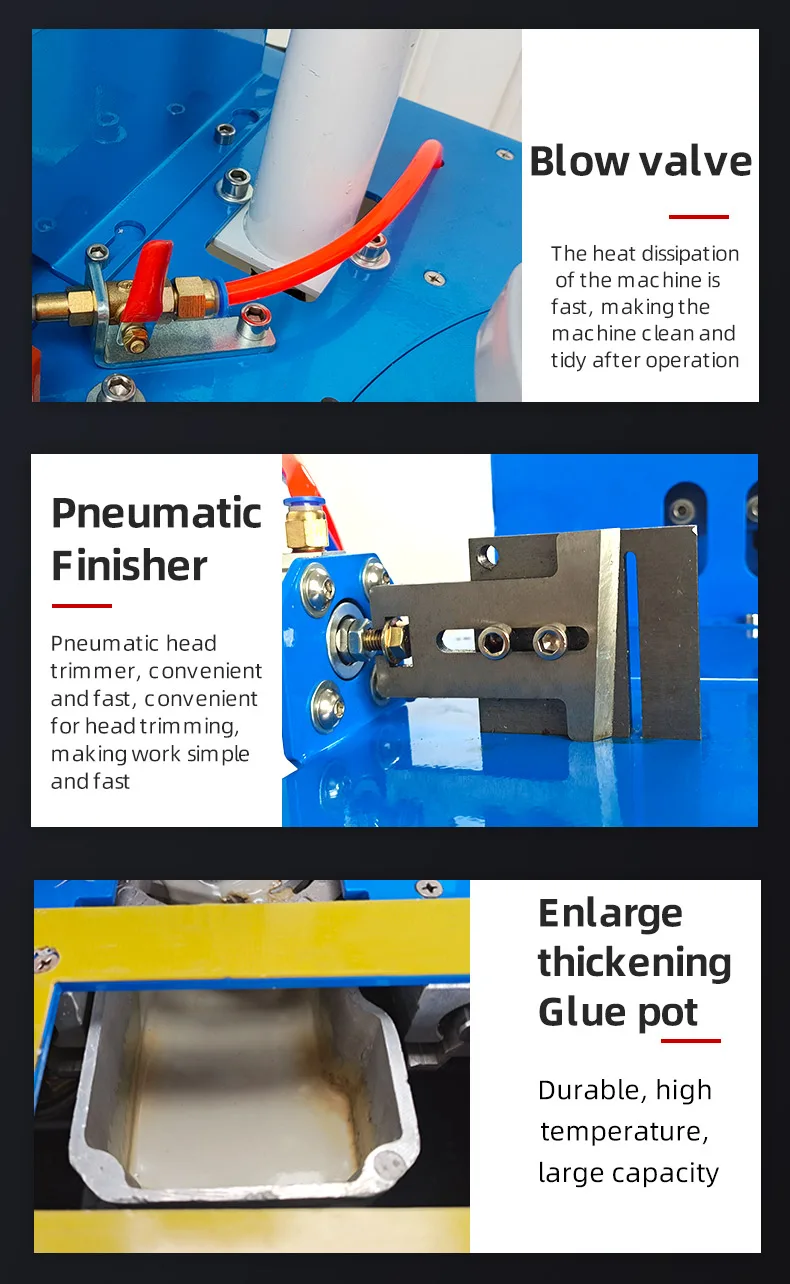

The 650 W × 2 trimming motors provide independent rough and fine trimming passes, which directly influences edge cleanliness on particleboard where tear-out is a constant risk. A 1000 ml glue pot means operators refill less frequently during extended runs, reducing thermal cycling that can degrade EVA adhesive consistency over a shift. The 116 × 47 × 69 cm footprint places the DW400 in the compact category, so workshops with limited floor space can position it adjacent to a panel saw without restructuring material flow. Air pressure stability at 0.5–0.8 MPa is critical — fluctuations below threshold cause the pressure rollers to lose grip, leaving visible glue lines on porous substrates like MDF.
The Cost of Skipping the Voltage Conversation
Machines quoted without confirming local voltage and frequency arrive unusable — a problem that surfaces only after the crate is open and the electrician is already on site. The DW400 supports 220 V, 380 V, and custom configurations, but that flexibility only helps if the buyer specifies their local supply before production begins. A 50 Hz motor rewired for a 60 Hz market runs at different RPM, altering feed speed and trimming behavior in ways that edge quality immediately reveals [NEED_CITE: voltage and frequency standards by export market].
Why Source This Model Through Ruiqi
In-house manufacturing with proprietary cutting mechanisms means the DW400 tolerance claims are verifiable on your own panels, not borrowed from a component supplier’s datasheet. The four-stage QC process — incoming material, in-process, finished product, and pre-shipment verification — catches assembly drift before the machine leaves the floor. Voltage and control panel language customization is standard practice, not a special request, so operators read instructions in their working language from day one. Engineer-led configuration recommendations ensure the DW400 is matched to your actual panel mix and daily volume rather than oversold into a tier it was not designed for.
Documentation & Verification
- CE declaration of conformity referencing the DW400 by model designation
- ISO 9001 certificate covering manufacturing process for this machine class
- Electrical schematic confirming your specified voltage and frequency before build
- Factory test record run on your panel material and edge banding stock
- Operation and maintenance manual in the operator’s agreed language
- Spare parts list with OEM part numbers for trimming blades and polishing wheels
Installation, Commissioning & Support
- Floor space of approximately 116 × 47 cm plus operator clearance on feed and exit sides
- Dedicated electrical circuit matching the confirmed 220 V or 380 V configuration
- Machine ships partially assembled; trimming and polishing stations require on-site alignment
- First-run calibration of glue pot temperature matched to your specific EVA or PUR adhesive
- Pressure roller adjustment training for the 0–50 mm banding height range
- Trimming blade and polishing wheel replacement intervals documented per shift volume
Before You Request a Quotation
Share the panel materials you process most frequently, the edge banding thickness range you currently run, and your local voltage and frequency so the configuration is locked before production starts. If you operate existing upstream or downstream equipment, note the feed height and conveyor speed so throughput compatibility can be confirmed at the proposal stage.
Frequently Asked Questions
Q: How does the DW400 compare to other edge banding models in the Ruiqi range?
A: The DW400 provides straight banding with dual trimming and polishing, positioned between entry-level single-function units and full-function pre-milling models. It covers standard furniture panel thicknesses and banding materials. Workshops anticipating higher volumes or curved panel work can move to upper-tier models within the same supplier family without retraining on a different control ecosystem.
Q: What voltage and frequency configurations are available for my country?
A: The DW400 supports 220 V, 380 V, and custom electrical configurations. Voltage and frequency must be confirmed before production so motors and control components match your local grid. Providing your country’s electrical standard at the inquiry stage ensures the machine arrives ready for immediate connection without transformer additions.
Q: Which panel materials and edge banding thicknesses does this model handle?
A: The DW400 processes MDF, particleboard, plywood, blockboard, and polymer doors with edge banding thickness from 0.3 mm to 3 mm. Compatible banding materials include PVC, veneer, and melamine. The 0–50 mm banding height accommodates standard furniture board thicknesses used in cabinet and shelving production.
Q: Can I upgrade to a higher-function model later within the same product family?
A: Yes. The Ruiqi range includes pre-milling and multi-station edge banders above the DW400 tier. Moving to a higher model later keeps operator training, spare parts sourcing, and technical support within one relationship. Configuration recommendations account for your projected growth trajectory at the initial consultation stage.
Q: What documentation is included with shipment, and in what language?
A: Every DW400 ships with a CE declaration, ISO 9001 certificate reference, electrical schematic matching your confirmed voltage, factory test record, spare parts list, and an operation manual in the agreed language. Control panel labeling and error messages are also configured to the operator’s language before dispatch.
