Description

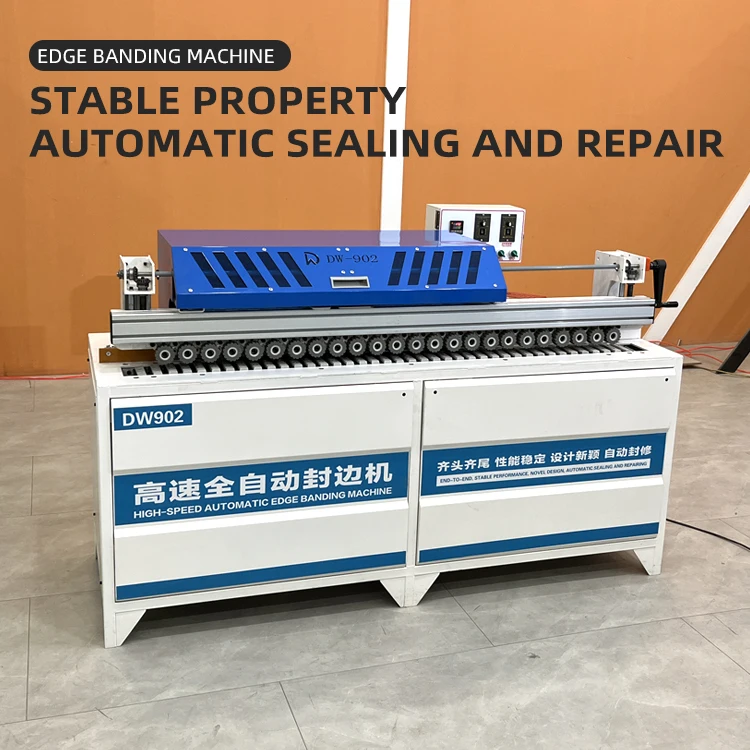

Dual-Purpose Bevel & Straight Capability — the DW902 integrates 45° oblique and straight edge banding within one chassis, eliminating the need for two separate machines when a workshop handles both angled and square panel profiles.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW902 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4000W |
| Voltage & Frequency | 220V / 380V / Customizable (frequency to be confirmed) |
| Edge Banding Height | 5 cm |
| Edge Banding Thickness | 0.3 – 3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Trimming Motor | 800W × 2, 24,000 r/min |
| Polishing Motor | 380W × 2 |
| Edge Feed Motor | 140W |
| Transmission Motor | 140W |
| Vacuum Motor | 550W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5 – 0.8 MPa |
| Overall Dimensions (L×W×H) | 175 × 87 × 112 cm |
| Net Weight | 240 kg |
| Key Features | Edge banding, trimming, polishing, scraping, vacuuming, dual-purpose 45° oblique and straight operation, double hot air system, 4-group oblique pressure wheels, auxiliary slide plate feeding |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge finishing | MDF, particleboard, ecological board |
| Cabinet door and carcass production | Plywood, polymer sheets |
| Home decoration built-in joinery | Solid wood board with PVC or veneer edge banding |
| Angled panel components for bespoke casework | 45° bevel cuts on MDF and plywood substrates |
Why Voltage Must Be Settled Before the Machine Leaves the Factory
A machine wired for the wrong supply will not commission on arrival — it will sit idle while you wait for a transformer or a rewind.
Over years of visiting furniture workshops across the Middle East, I have seen automatic edge banding machine units arrive at a facility only to discover the local three-phase supply runs at a frequency or voltage the machine was never configured for. The operator plugs it in, the glue pot never reaches temperature, and the trimming motors stall under load. This is not a defect — it is a specification gap that could have been closed before production. [NEED_CITE: voltage and frequency standards by export market]
Where the DW902 Fits in the Catalogue
The DW902 occupies the dual-purpose tier of the Ruiqi automatic edge banding machine range. Workshops that handle both standard square-edge panels and angled components for decorative joinery find this model eliminates a second machine purchase. It sits above entry-level straight-only banders and below full-function pre-milling models that add scoring and profiling stations for high-volume lines.
How the Double Hot Air System Addresses Substrate Variation
Different panel substrates absorb heat at different rates. MDF dissipates thermal energy quickly, meaning the glue can cool below its activation window before the pressure wheels engage. Particleboard, by contrast, holds heat longer but varies in density across the sheet. The DW902 uses a double hot air design that pre-heats both the panel edge and the banding material before the glue contact zone, extending the effective open time of the adhesive. [NEED_CITE: thermal activation requirements for EVA hot-melt adhesives on engineered wood substrates] This matters when a workshop switches between plywood one morning and solid wood panels the next — the operator adjusts the air temperature rather than reconfiguring the entire glue path.
Reading the Spec Sheet Against Your Actual Panel Mix
The trimming station runs at 24,000 r/min with dual 800W motors, which provides the peripheral speed needed for clean cuts on PVC and melamine edge banding up to 3 mm thick. Below that threshold, the cut quality depends more on blade condition and feed rate than on motor power alone. The 5 cm banding height and 0.3–3 mm thickness range cover the majority of decorative edging used in cabinet and furniture production, but workshops running solid wood lipping beyond 3 mm should verify compatibility before ordering. The glue pot holds 4000 ml, which is sufficient for continuous shifts without frequent refills but will require scheduled purging if the machine sits idle between batches. Panel dimensions as small as 25 cm long by 10 cm wide can be processed, making the DW902 practical for short-run offcuts and drawer components that larger machines cannot grip.
The Cost of Skipping Configuration Verification
When an edge bander arrives without confirmed voltage, the immediate cost is downtime — the machine sits while an electrician sources a step-up or step-down transformer. But the secondary cost is less visible. Glue pot temperature instability from under-voltage causes inconsistent adhesion, which surfaces as delamination weeks after delivery. Operators blame the adhesive supplier. The real cause was never electrical certification against the workshop’s actual supply. [NEED_CITE: CE machinery directive requirements for industrial equipment] Language is another silent blocker. A control panel in a language the operator cannot read delays commissioning and invites incorrect parameter settings that degrade edge quality from the first shift.
What Ruiqi Manufacturing Depth Means for This Model
In-house production of the cutting and trimming mechanisms means replacement parts for the DW902 are not dependent on third-party supply chains. The four-stage quality control process — incoming material, in-process, finished product, and pre-shipment verification — applies to every unit before it leaves Ningjin. Voltage customization from 220V to 380V with EU, USA, AU, or UK plug configurations is handled on the production line rather than as a field modification. Multilingual control panels are configured before shipment, not after. The DW902 is available as a single unit through to large production runs, with OEM logo and private-label options for distributors who specify it within a broader catalogue offering.
Documentation & Verification
- Machine specification sheet with confirmed feed speed and tolerance for DW902
- Electrical schematic and voltage confirmation matching your facility supply
- Factory test record on your specified panel thickness range before dispatch
- CE declaration of conformity and ISO 9001 coverage documentation
- Operation and maintenance manual in your agreed operator language
- Spare parts list with part numbers for trimming blades and pressure wheels
Installation, Commissioning & Support
- Allocate floor space for the 175 × 87 cm footprint with rear access clearance for the vacuum motor
- Confirm a dedicated circuit matching the 4000W total draw and your selected 220V or 380V configuration
- Machine ships fully assembled — position and level on site without structural reassembly

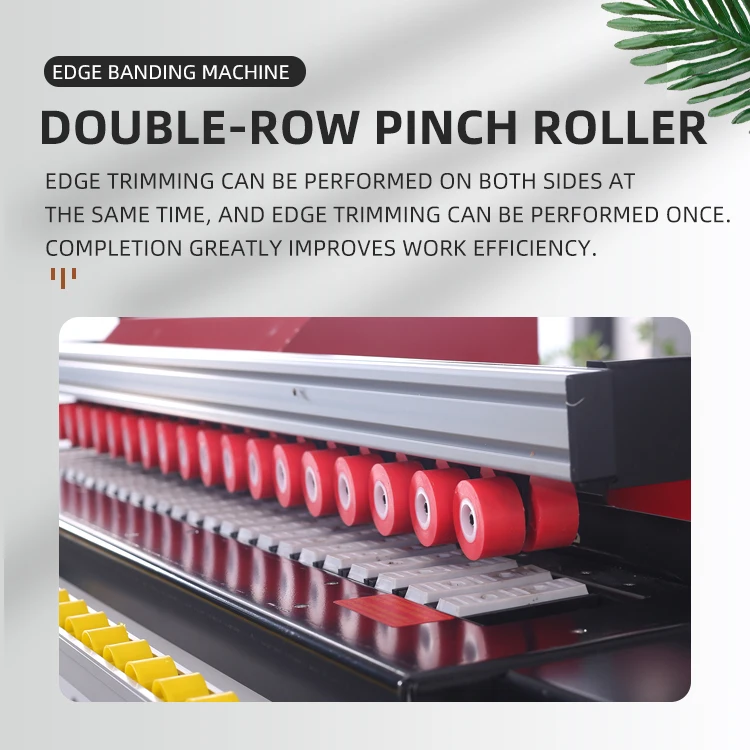

- First-run calibration of the 4-group oblique pressure wheels against your specific banding material
- Operator training on the multilingual control panel covering temperature and feed parameter adjustment
- Spare trimming blades and pressure wheel sets recommended for the first production cycle
Before You Send the Inquiry
To receive an accurate configuration proposal for the DW902, share the panel substrates you process most frequently, the edge banding materials and thicknesses in your current range, and your facility voltage and frequency. If your workshop handles both 45° bevel and straight components, confirm the approximate ratio so the engineer can validate whether this dual-purpose model matches your throughput mix or whether a dedicated unit per operation would serve you better. Request a sample processing test using your own offcuts before finalizing the order.
Frequently Asked Questions
Q: How does the DW902 compare to other edge bander models in the Ruiqi catalogue?
A: The DW902 is the dual-purpose tier, combining 45° bevel and straight banding in one unit. Entry-level models handle straight edges only, while full-function pre-milling machines add scoring and profiling stations for high-volume continuous production. The right choice depends on whether your workshop regularly processes angled panel components.
Q: What voltage and frequency configurations are available for my market?
A: The DW902 supports 220V and 380V with customization available. Plug options include EU, USA, AU, and UK standards. Frequency must be confirmed during the specification stage to ensure motors and heating elements match your local grid. Provide your facility supply details with your inquiry.
Q: Which panel materials and edge banding types does this model support?
A: The DW902 processes MDF, particleboard, plywood, solid wood board, ecological board, and polymer sheets. It handles PVC and veneer edge banding from 0.3 to 3 mm thick up to 5 cm in height. For solid wood lipping beyond 3 mm, confirm compatibility during the sample test phase.
Q: Can the control panel language be customized for my operators?
A: Chinese and English are standard. The control panel can be configured to Spanish, French, or other languages before shipment. Specify the required language during the quotation stage so it is set before the machine leaves the factory rather than requiring a field update.
Q: How do I arrange a sample processing test or factory visit before ordering?
A: Submit your inquiry with the panel materials and edge banding types you want tested. The engineering team will run a sample on the DW902 and share the results. Factory visits to the Ningjin facility are also welcomed to observe the machine under production conditions.
