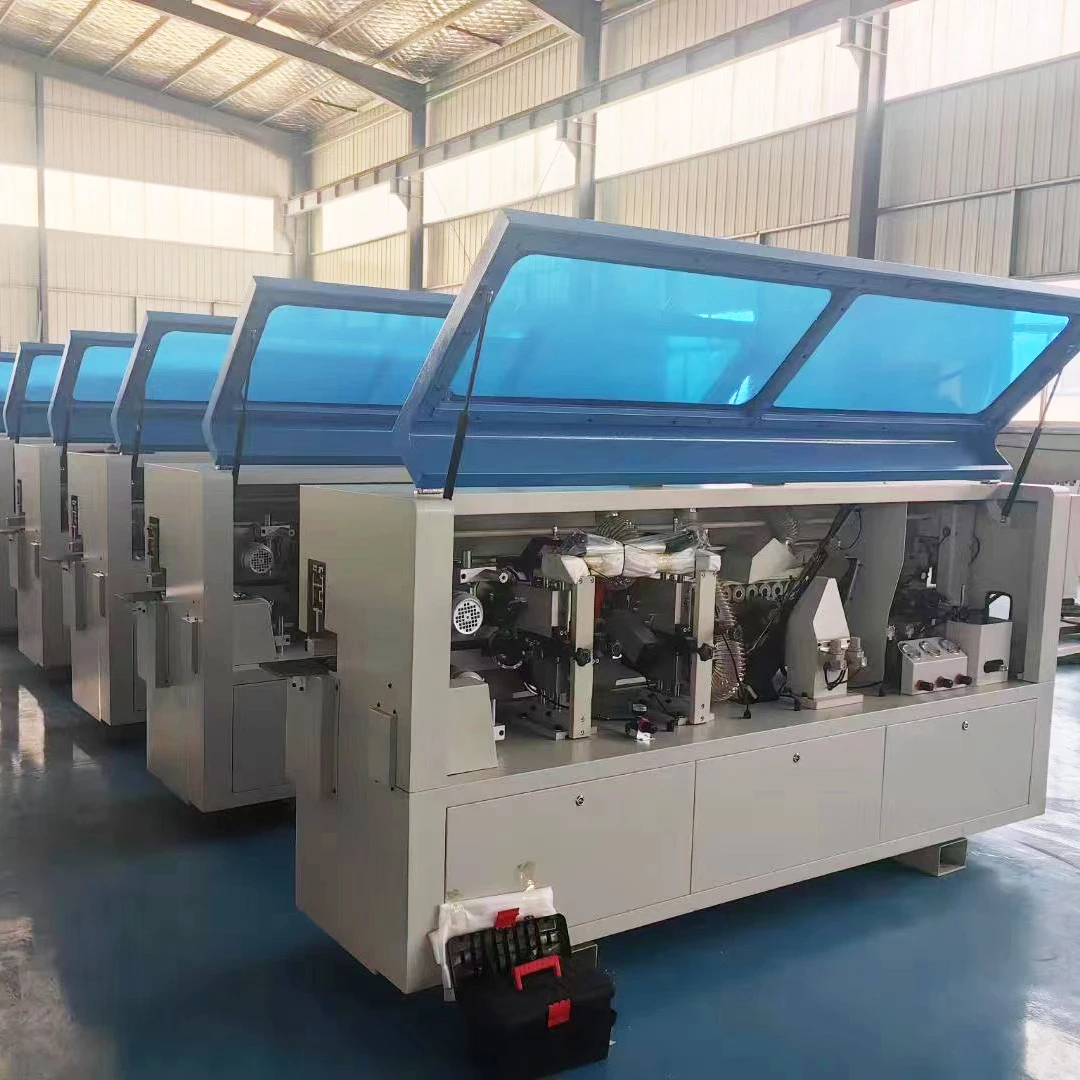

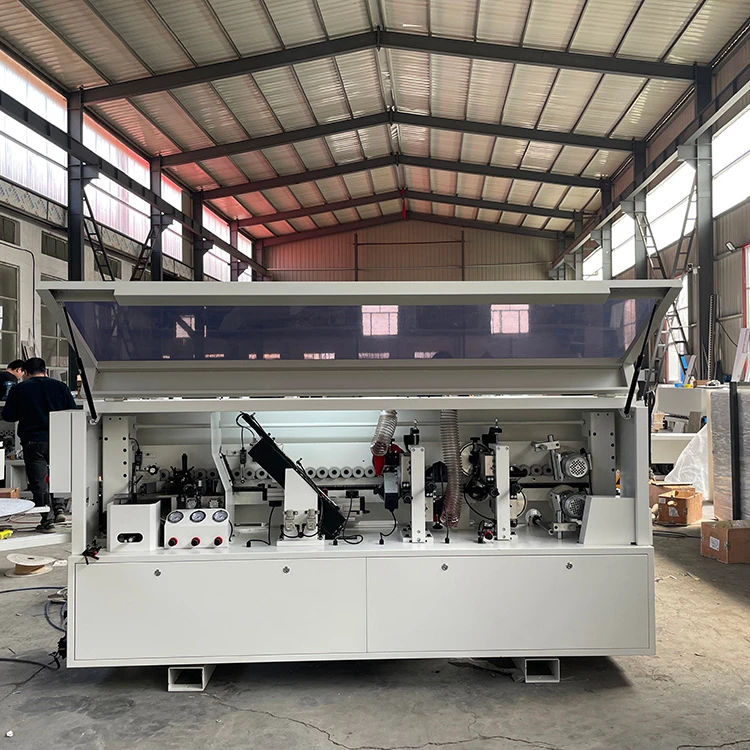

Complete Model Lineage — From 4-station ZDS280B to 5-station ZDS280C, each tier maps to a specific production stage so workshops scale without switching suppliers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS280B / ZDS280C |
| Product Type | Automatic Straight Line Edge Bander |
| Main Functions (ZDS280B) | Gluing, End Trimming, Fine Trimming, Buffing |
| Main Functions (ZDS280C) | Gluing, End Trimming, Fine Trimming, Scraping, Buffing |
| Working Pressure | 0.6–0.8 MPa |
| Panel Thickness Range | 10–55 mm |
| Edge Thickness Range | 0.4–3 mm |
| Conveyor Belt Speed | 15 m/min |
| Min. Panel Width | 45 mm |
| Min. Panel Length | 80 mm |
| Voltage | 380V, 3-Phase |
| Rated Power | 7.5 kW |
| Weight (ZDS280B) | 650 kg |
| Weight (ZDS280C) | 800 kg |
| Overall Dimensions (ZDS280B) | 2300 × 700 × 1250 mm |
| Overall Dimensions (ZDS280C) | 2800 × 700 × 1250 mm |
| Fuselage Material | 14 mm high-strength steel plate, frame-type structure, high-temperature quenching treated |
| Conveyor Guide Rail Material | HT260 |
| Conveying Motor | Taiwan brand, with thermal protection |
| Head Guide Rail | Taiwan brand |
| Pneumatic System | German Festo or Taiwan AirTAC cylinders and safety valves; AirTAC magnetic switches |
| Electrical Components | Delixi/Chint air switches and contactors; Japanese Omron travel switches |
| Key Features | Control panel included (confirm available languages); language options not stated in source |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture edge banding | MDF and particleboard panels with PVC edge banding (0.4–3 mm) |
| Cabinet door production | Plywood panels with wood veneer edge banding |
| Shelving and worktop edging | Thick panels from 10 mm up to 55 mm in a single pass |
| Small-batch joinery operations | Straight-line components for workshop-scale furniture assembly |
Why Voltage Confirmation Must Happen Before the Quotation Is Signed
An automatic edge banding machine manufacturer that skips the voltage check is building you a future downtime problem, not a production asset.
Years ago I configured a PUR edge bander for a Middle East client, confirmed every mechanical parameter, and missed the fact that the workshop ran on 440V while our standard output was 380V. The machine sat on the floor for over three weeks waiting for a step-down transformer to arrive. The operator could not even power on the control panel. That kind of mismatch is entirely avoidable if the electrical specification is locked before the purchase order. Voltage and frequency vary significantly across export markets [NEED_CITE: voltage and frequency standards by export market], and a 7.5 kW motor rewound after arrival costs more than a ten-minute conversation during inquiry.
Mapping the 4-Station and 5-Station Tiers to Your Workshop

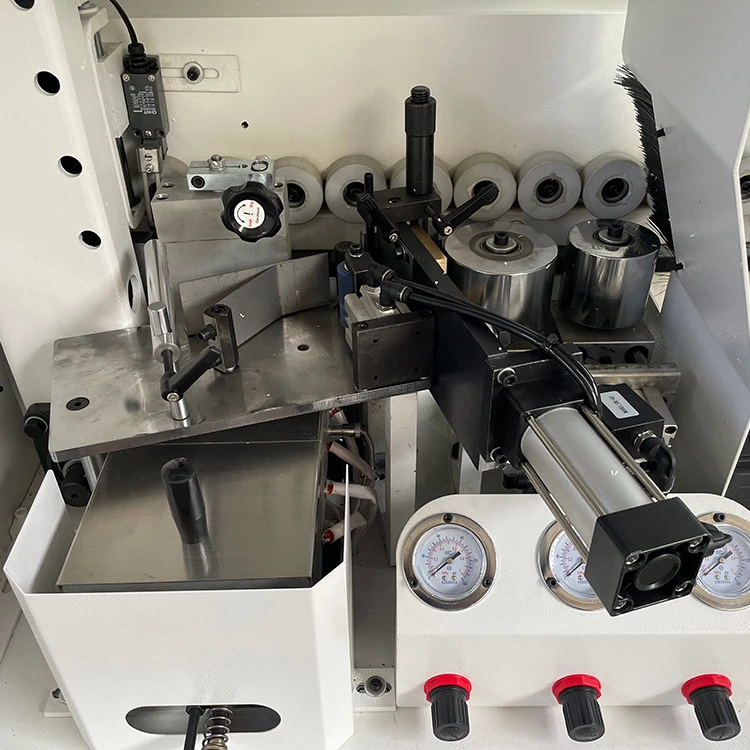

The ZDS280B carries four stations — gluing, end trimming, fine trimming, and buffing — covering the core operations that most entry-level furniture workshops require. If your panels are primarily MDF or particleboard with standard PVC banding, and your finish tolerance allows a slight edge witness line, this configuration keeps the footprint and power draw manageable.

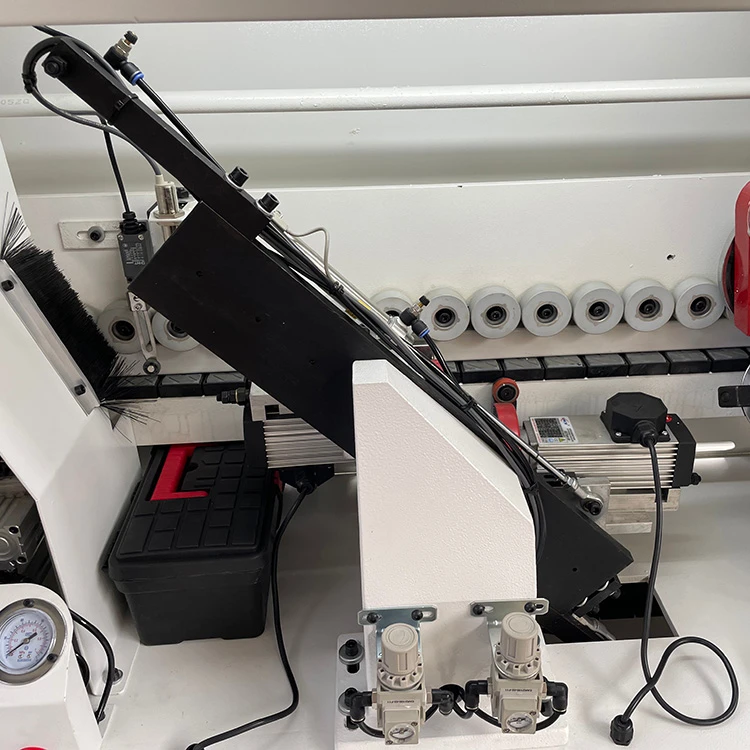

The ZDS280C adds a scraping station between fine trimming and buffing. Scraping removes the micro-ridges left by the trimming cutter, producing a visibly cleaner transition between edge band and panel face. For workshops moving toward higher finish standards or processing wood veneer banding, that fifth station eliminates a manual hand-finishing step downstream. Choosing between the two tiers comes down to the edge quality your end customers expect and the materials you run most often.
How Model Breadth Reduces Supplier Fragmentation
When a workshop starts with one edge bander, the temptation is to source each additional machine from a different vendor based on the lowest quote at that moment. The problem surfaces later: spare parts are incompatible, conveyor heights do not align with adjacent saws or borers, and control panel logic differs between operators. Keeping both the ZDS280B and ZDS280C within one automatic edge banding machine manufacturer product family means identical pneumatic component sourcing, matching conveyor guide rail profiles, and control panels that share the same menu structure.
Scaling from a single machine to a multi-cell production floor becomes an exercise in adding capacity rather than relearning equipment. Maintenance teams stock one set of wear parts, and operators move between stations without retraining [NEED_CITE: CE machinery directive requirements for industrial equipment]. This is the practical advantage of surveying the full catalogue before committing to a single tier.
Reading the Specs That Actually Affect Daily Output
The 10–55 mm panel thickness range matters because it determines whether the same machine can handle 18 mm cabinet sides and 40 mm worktop slabs without re-rigging the feed height. Switching between thin and thick panels on a narrow-range bander means physical adjustment of the top pressure beam and recalibration of the trimming cutters each time — lost minutes that compound across a shift.
The 14 mm high-strength steel fuselage with high-temperature quenching treatment addresses frame distortion. A lighter frame gradually warps under the continuous load of 15 m/min conveyor pull, and that warp transfers into edge misalignment visible only after the buffing station. HT260 conveyor guide rails paired with a thermal-protected Taiwan motor maintain belt tracking through long production runs where ambient temperature rises and lubricant viscosity shifts.
Edge thickness coverage from 0.4 mm to 3 mm means you can run thin melamine banding for cabinet interiors and thick PVC or wood veneer for exposed faces on the same machine, changing only the coil and adjusting the pressure roller gap.
The Cost of Buying Below Your Actual Production Tier
A workshop running five hundred panels a day on a machine designed for two hundred will see premature wear on the trimming cutter bearings and inconsistent glue application from the pot struggling to maintain temperature between rapid feed cycles. The failure does not appear in the first month — it accumulates [NEED_CITE: common edge bander failure modes in high-volume workshops]. Operators begin compensating with slower feed speeds, which defeats the reason for buying automatic equipment in the first place.
Choosing the ZDS280C when scraping is genuinely needed, rather than assigning a person to hand-scrape every panel after the ZDS280B, keeps the per-panel cost predictable and removes a bottleneck that no amount of overtime resolves.
Why Buyers Evaluate This Range Before Placing Orders
In-house manufacturing with patented cutting mechanisms means tolerance claims can be verified against actual machined components, not just catalogue declarations. The full range from entry-level to full-function within one product family allows a workshop to scale without renegotiating terms with a new supplier each time capacity expands.
Voltage customization from 110V to 440V and multilingual control panel options are offered as standard configuration choices, reducing the post-arrival adaptation period. Four-stage QC with pre-shipment verification catches electrical mismatches before the crate is sealed. Engineer-led configuration recommendations with formal quotations within twenty-four hours mean the specification discussion happens before commitment, not after [NEED_CITE: ISO 9001 quality management requirements for machinery manufacturers].
Documentation & Verification
- CE declaration of conformity matched to the specific ZDS280 variant ordered
- Electrical schematic confirming motor voltage and control circuit before shipment
- Factory test record using buyer’s own panel material and edge banding stock
- ISO 9001 certificate covering manufacturing process of the edge bander line
- Operation and maintenance manual in the agreed operator language
- Spare parts list with OEM part numbers for pneumatic and electrical components
Installation, Commissioning & Support
- 7.5 kW rated power requires dedicated 3-phase circuit with correct breaker sizing
- ZDS280B footprint at 2300 mm length needs minimum 500 mm clearance on each side for panel handling
- Working pressure 0.6–0.8 MPa demands clean dry compressed air supply with inline filtration
- HT260 conveyor guide rails require initial alignment check after transport and settling
- First-run calibration covers glue pot temperature, trimming depth, and buffing wheel pressure
- Thermal-protected conveying motor includes overload reset procedure in operator training
What to Prepare Before Requesting a Quotation
Share the panel materials you process most frequently, the edge banding type and thickness range, and your daily panel count so the correct tier can be recommended. Confirm your workshop voltage and frequency — this determines motor winding and control transformer specification before production begins. If you are planning a phased line expansion, note your existing saw and boring machine feed heights so conveyor alignment can be matched from the start.
Frequently Asked Questions
Q: How do I decide between the ZDS280B and ZDS280C for my workshop?
A: The decision rests on your edge finish requirement. If your panels use standard PVC banding and slight edge witness lines are acceptable, the 4-station ZDS280B covers gluing through buffing. If you process wood veneer or require a scraped finish that eliminates trimming marks, the 5-station ZDS280C adds that capability in one pass without manual hand-finishing downstream.
Q: What voltage options are available for different export markets?
A: The standard configuration is 380V 3-phase, but voltage can be customized from 110V to 440V to match local supply. Frequency must also be confirmed as 50 Hz or 60 Hz depending on the destination country. Specify both values during inquiry so the motor and control transformer are wound correctly before the machine leaves the factory.
Q: How can I verify edge banding quality before the machine ships?
A: Request a factory test run using your own panel material and edge banding stock, or samples identical to your production inputs. The test record should document trimming accuracy, buffing finish, and scraping quality if applicable. Pre-shipment verification covers both mechanical performance and electrical configuration matching your confirmed specification.
Q: What panel and edge thickness range does each model support?
A: Both the ZDS280B and ZDS280C handle panel thickness from 10 mm to 55 mm and edge banding from 0.4 mm to 3 mm. Minimum panel width is 45 mm and minimum panel length is 80 mm. The working range is identical across both tiers — the difference lies in the number of processing stations and the resulting edge finish quality.
