Description
Voltage Customization As Standard — The DW802 arrives configured to your local electrical supply with confirmed schematics, preventing the arrival-of-unusable-machine scenario that stalls commissioning before the first panel is edged.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage Options | 220V / 380V / Custom Configuration |
| Edge Banding Thickness Range | 0.3-3mm |
| Edge Banding Height | 0-50mm |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 100mm |
| Glue Pot Capacity | 4000ml |
| Trimming Power | 800W × 2 |

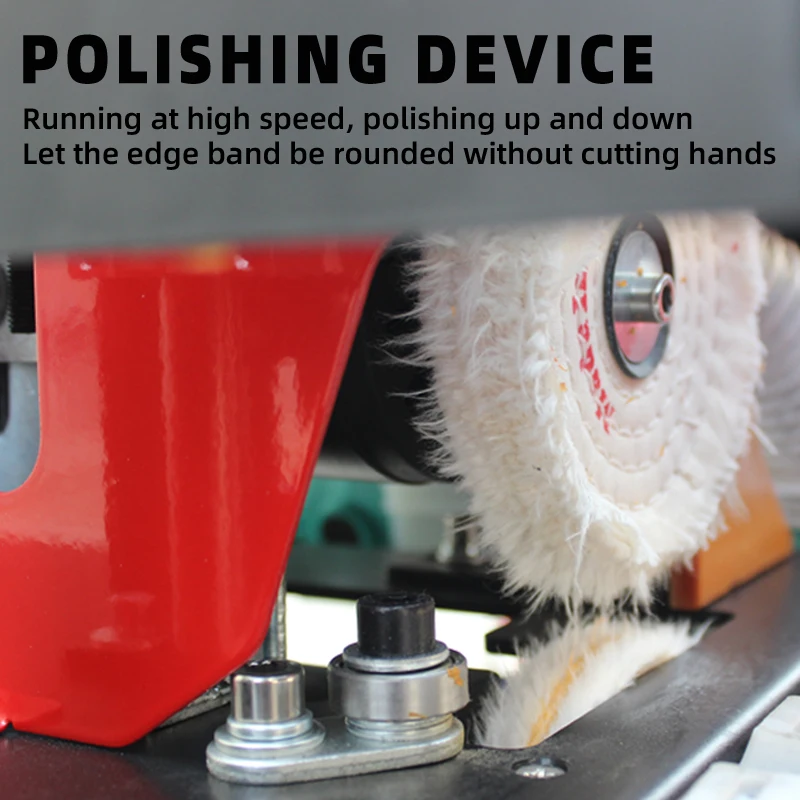

| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Air Source Pressure | 0.4-0.8 MPa |
| Machine Dimensions | 1300 × 600 × 950mm |
| Machine Weight | 135kg |
| Control Panel Languages | Chinese, English, Spanish, or custom |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF and particleboard with PVC or melamine banding |
| Plywood cabinet component finishing | Plywood panels with veneer or PVC edge bands |
| Home decoration board processing | Ecological board and solid wood panels |
| Small-batch joinery production | Mixed substrate runs across furniture and fitment components |
Why the Voltage Question Must Come Before the Quotation
Every DW802 Automatic Edge Banding Machine ships only after electrical schematics are confirmed against the buyer’s local supply.
I worked my way up from the assembly floor in Shandong before moving into technical sales. One year we shipped a fully automatic edge bander to a Middle East customer without locking down their site voltage. The machine was wired for 380V; the workshop fed it 440V. The mainboard burned out on first power-up, and the customer sat idle for three weeks waiting for replacement electronics [NEED_CITE: voltage and frequency standards by export market]. That incident changed how I approach every contract — the electrical drawing gets checked line by line before production starts.
Scaling From Hand Edging to a Reliable First Machine

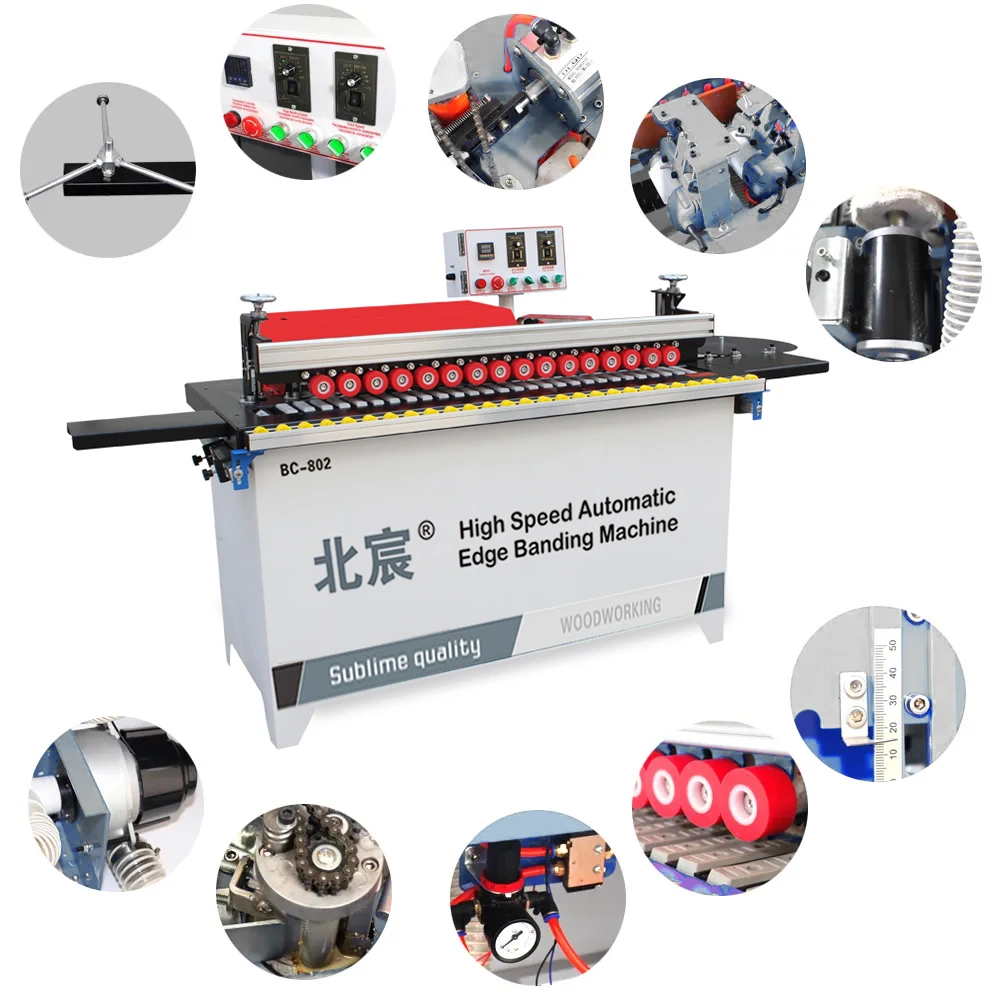

Joinery workshops that have outgrown manual edge banding often hesitate before committing to automation. The DW802 addresses that transition by keeping the footprint compact while covering the full banding workflow: gluing, trimming, and polishing in one pass. For a small Automatic Edge Banding Machine manufacturer, fitting all those stations into a 1300mm chassis means the machine can slot into an existing bench area without demanding a dedicated production cell.
What the 0.3-3mm Banding Range Actually Covers
Banding thickness determines which materials you can run without changing tooling or pressure settings. The 0.3-3mm range on the DW802 handles thin PVC for high-gloss cabinet fronts, standard melamine for carcass panels, and thicker veneer strips for visible furniture edges. This breadth matters when a custom furniture shop switches between wardrobe panels and kitchen cabinet doors across the same shift [NEED_CITE: PVC and veneer edge banding material specifications].
How Core Parameters Shape Daily Output

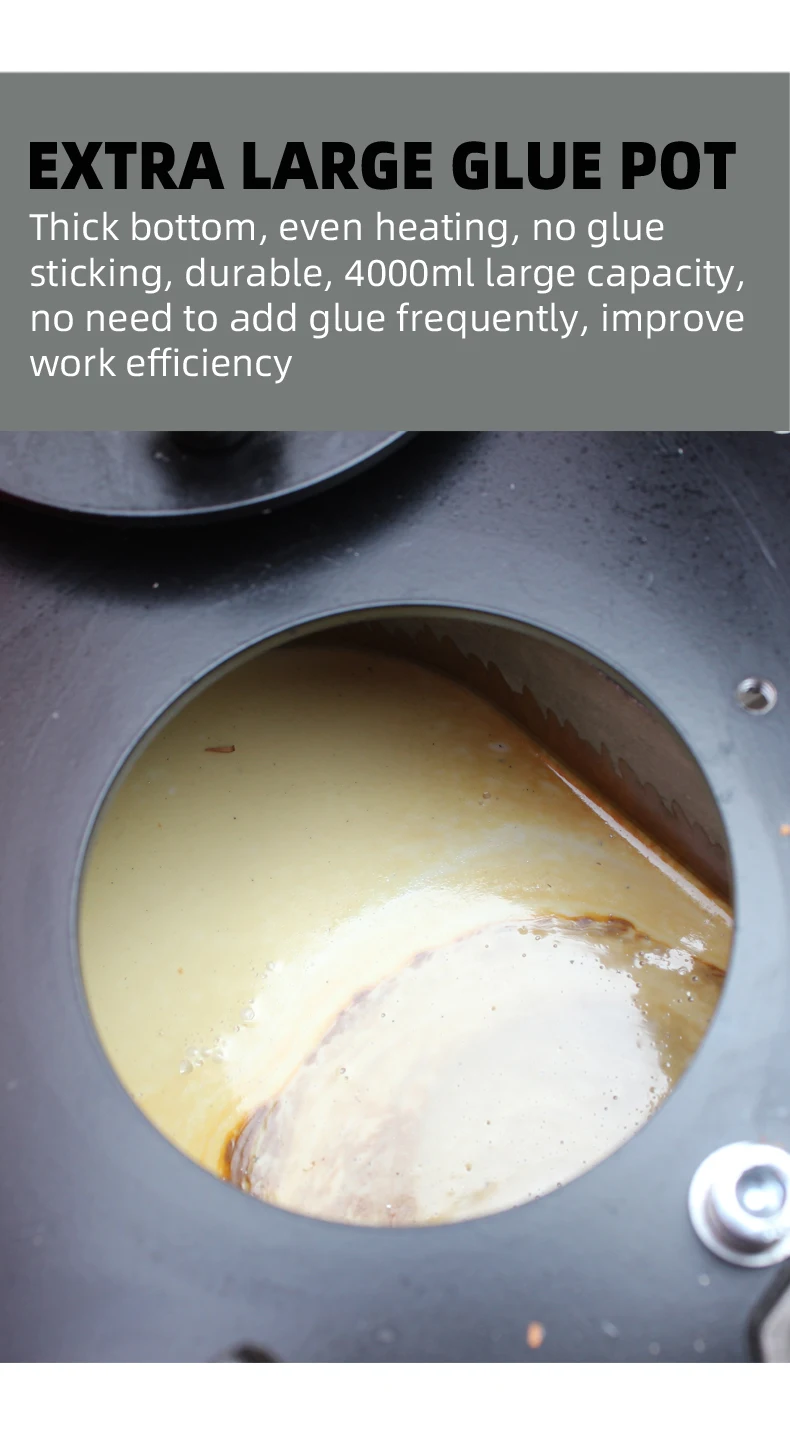

The 4000ml glue pot allows extended runs across multiple boards before a refill pause becomes necessary, which matters when you are processing a batch of cabinet sides in sequence. Trimming at 800W per motor provides sufficient torque to clean-cut PVC and melamine banding without leaving residue that requires secondary scraping. The integrated 1200W vacuum system holds panels flat against the fence during feeding — a feature often absent at this machine class — reducing the misalignment that causes rework downstream. Air pressure between 0.4 and 0.8 MPa drives the pneumatic actuators for head and tail cutting, and maintaining that range at the compressor end is essential for consistent cut timing.
The Hidden Cost of Specifying Below Your Actual Volume
Buyers sometimes select an entry-level machine based on price, then push it through production volumes it was never engineered to sustain. When glue pot capacity cannot keep up with panel throughput, operators stop to refill mid-batch, introducing temperature inconsistency that weakens adhesion on later panels. Trimming motors running beyond their thermal design point lose speed under load, leaving burrs that fail assembly inspection. I have seen edge banders of this class fail in humid workshops when the buyer skipped confirming environmental conditions during ordering [NEED_CITE: CE machinery directive requirements for industrial equipment].
Why Sourcing This Machine Here Makes Sense
Voltage customization is treated as a standard option, not an afterthought — the DW802 can be configured from 220V single-phase up to site-specific three-phase requirements with confirmed schematics before production. Multilingual control panels in English, Spanish, or other languages are specified at order, so operators can read the interface on day one. A four-stage quality check covers incoming material, in-process assembly, finished product, and pre-shipment verification with a test record generated on your actual panel stock. The 4200W total power draw is documented on the electrical schematic so your electrician can size the dedicated circuit before the crate arrives.
Documentation & Verification
- CE declaration of conformity covering the DW802 mechanical and electrical safety requirements
- Electrical schematic with confirmed voltage and plug type matching your site supply
- Factory test record run on your specified panel thickness and banding material before dispatch
- Operation and maintenance manual delivered in your agreed language at shipment
- Spare parts list identifying consumable trimming cutters and polishing wheels
Installation, Commissioning & Support
- Dedicated circuit sized for 4200W total draw with correct breaker rating for your confirmed voltage
- Compressor supplying 0.4-0.8 MPa clean dry air to the pneumatic inlet on the machine frame
- Floor space of approximately 1300 × 600mm with rear clearance for glue pot access and maintenance
- First-run calibration of trimming depth and polishing pressure using your actual panel stock
- Operator training on glue pot refill procedure and 4000ml capacity management for batch scheduling
What to Prepare Before Requesting a Quotation
To configure the DW802 correctly for your workshop, we need your local voltage and frequency, the primary panel materials and thicknesses you process, and your preferred control panel language. If you are integrating this machine into an existing line, share the feed height of your upstream saw and downstream boring station so we can confirm throughput compatibility.
Frequently Asked Questions
Q: How do I confirm the DW802 voltage matches my workshop supply before ordering?
A: We require your site voltage, phase configuration, and frequency in writing before production begins. An electrical schematic showing the confirmed motor wiring, breaker sizing, and plug type is sent for your approval. No machine enters final assembly until that document is signed off, eliminating the burned-mainboard scenario that occurs when voltage is assumed rather than verified.
Q: Which edge banding materials can the DW802 process within the 0.3-3mm range?
A: The machine handles PVC, melamine, and veneer banding within the stated thickness range. Thin PVC at 0.3mm suits high-gloss cabinet fronts, while 3mm veneer covers visible furniture edges. Glue pot temperature and feed speed are adjusted during commissioning to match the specific banding material and adhesive type you plan to run.
Q: How many panels can I edge before the 4000ml glue pot needs refilling?
A: Capacity depends on panel edge length, banding width, and glue application rate. For standard cabinet panels with 0.8mm PVC banding, the pot supports extended batch runs before a refill pause. We recommend scheduling refills between batches rather than mid-run to maintain consistent glue temperature and adhesion quality.
Q: What consumable spare parts should I stock locally for the DW802?
A: Trimming cutters and polishing wheels are the primary wear items. The spare parts list provided at shipment identifies exact part numbers and recommended reorder quantities based on your production volume. We supply these consumables directly and can include an initial spare set with your order to cover the first months of operation.
