Description
In-House Precision Engineering — Patented cutting mechanisms on the ZDSF190 deliver verified ±0.02mm edge banding tolerance across MDF, plywood, and particleboard, so workshops select the right tier from a single product family and scale without changing suppliers.
Technical Specifications
| Parameter | Value |
|---|---|

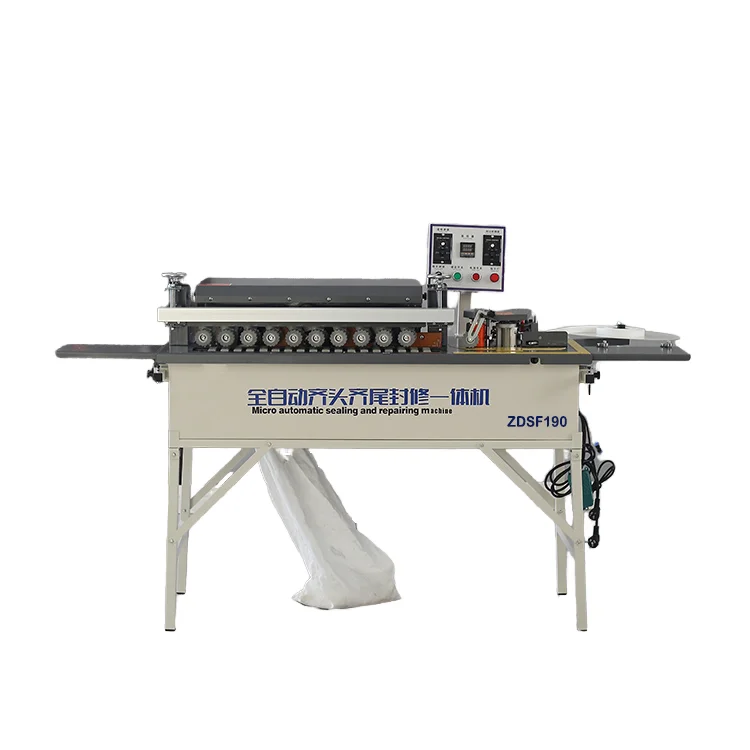

| Model | ZDSF190 |
| Product Type | Automatic Edge Banding Machine |
| Function | Automatic plate feeding, belt breaking, double-sided gluing, upper/lower trimming, polishing, curved & straight edge banding |
| Edge Type | Curved and straight lines |
| Voltage & Frequency | 220V 50Hz (configurable 110V–440V) |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |

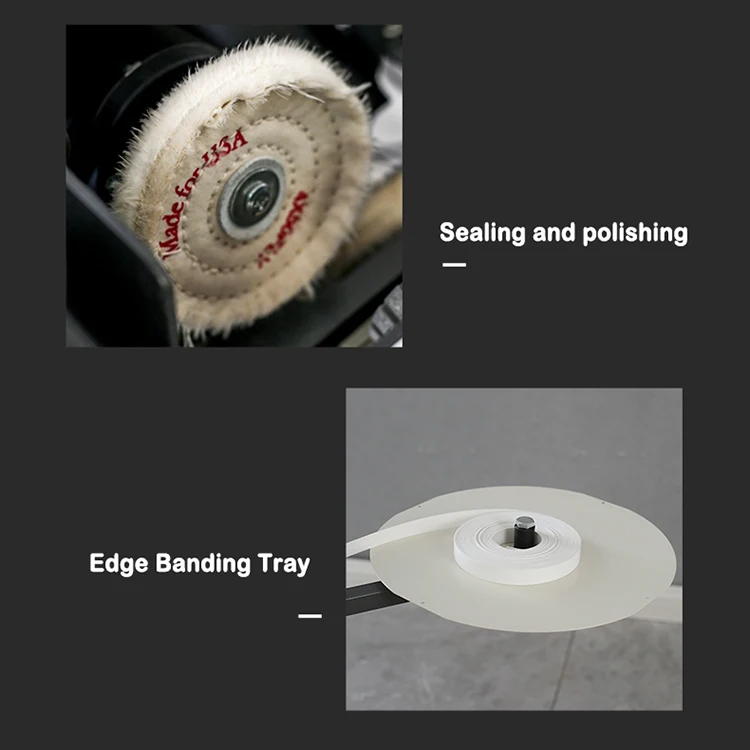

| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Transmission Power | 120 W |
| Conveyor Belt Speed | 0–14 m/min |
| Panel Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Cutter | 4-edge arc-shaped alloy cutter head |
| Pressure Beam | Aluminum alloy, adjustable |
| Feed Mechanism | Double-row rubber pressure wheels |

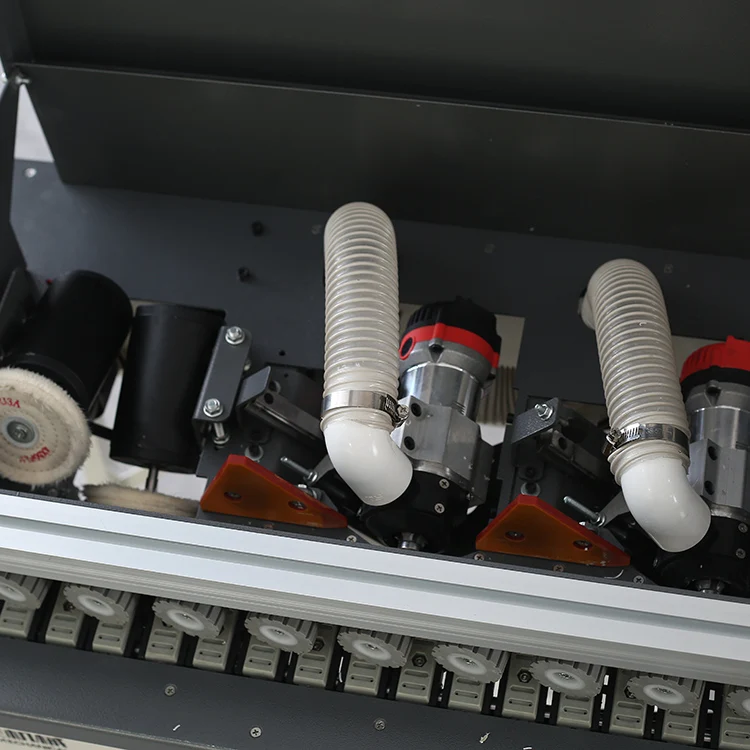

| Dust Collection | Large diameter surrounding vacuum |

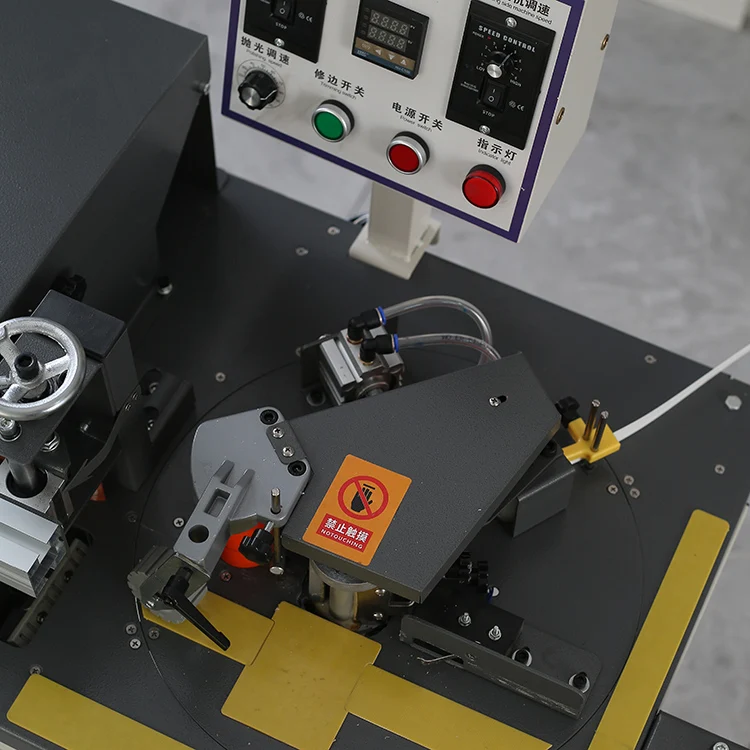

| Control Panel | Multi-function button operation |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |
| Certifications | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC or melamine strips |
| Curved-profile furniture components | Plywood and shaped MDF with ABS or veneer banding |
| Small-batch joinery production | Solid wood panels with 0.5–2.5 mm edge strips |
| Workshop transition from manual to automated | Mixed panel substrates up to 50 mm thickness |
Why "Sample-Approved" Doesn’t Survive the Factory Floor
The machine must be tested on your actual panel stock, not just the supplier’s showroom board.
An automatic edge banding machine manufacturer ships units that perform perfectly on standard E1-grade MDF during factory trials. Then the machine arrives at a workshop using recycled-content board with inconsistent density, and glue adhesion drops sharply — edge strips lift, trim quality degrades, and entire batches need rework. Panel substrate composition changes glue temperature requirements and feed pressure settings in ways that spec sheets alone cannot predict. [NEED_CITE: MDF density variation and hot-melt adhesion behaviour]
Where the ZDSF190 Sits in the Full Machine Range
The ZDSF190 occupies the compact, dual-purpose tier within a broader family of edge banding machines spanning entry-level manual feed models through to full-function pre-milling lines. Workshops producing both flat panel and curved-profile furniture components benefit from the 180° rotating head that switches between straight and curved modes without a second machine. This positioning makes the ZDSF190 a practical starting point for joinery shops moving from hand-held edge banders to automated processing while retaining a clear upgrade path to higher-throughput models within the same product family.
Scaling From Single Machine to Production Line
As order volumes grow, the same product family extends into multi-station configurations with pre-milling, corner rounding, and buffing modules that maintain compatibility with the ZDSF190’s feed height and conveyor speed parameters. Buyers evaluating an automatic edge banding machine manufacturer for long-term supply benefit from this continuity — control panel layouts, glue pot specifications, and spare parts inventories remain consistent across tiers. A workshop can add capacity by moving to a higher-tier model rather than integrating an unfamiliar machine from a different supplier. [NEED_CITE: production line integration standards for woodworking machinery]
Reading the Specs That Actually Shape Output Quality

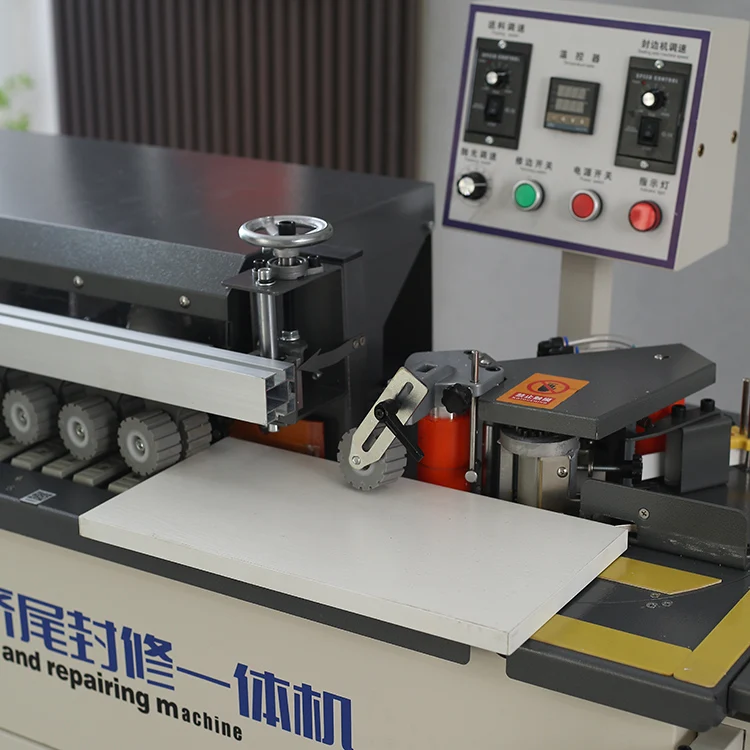

The 10–50 mm panel thickness range paired with the 0–14 m/min variable feed speed means operators can slow the conveyor for thick particleboard without sacrificing edge adhesion on thinner MDF stock. The 4-edge arc-shaped alloy cutter head handles curved profiles that standard straight trimmers cannot, producing a consistent radius on shaped cabinet doors and rounded shelving. Double-sided gluing with adjustable roller volume ensures adhesive coverage on both the panel edge and the strip back, which matters when bonding veneer to porous substrates. The aluminum alloy adjustable pressure beam with double-row rubber pressure wheels holds panels flat against the fence, preventing the slight tilt that causes uneven trim lines on boards over 30 mm thick.
What Happens When the Configuration Doesn’t Match the Workload
Machines specified for light-duty use pushed into daily production volumes develop premature wear on feed wheels and trimming bearings, producing edge drift that only surfaces during final assembly. Voltage mismatches discovered after delivery stall commissioning for weeks while transformers are sourced locally. Control panels in an unreadable language force operators to rely on memory rather than real-time adjustment, increasing scrap during shift changes. [NEED_CITE: equipment misconfiguration consequences in small furniture workshops]
Why Source This Automatic Edge Banding Machine Manufacturer
In-house manufacturing with patented cutting mechanisms means the ZDSF190’s trimming tolerance is verified on the assembly floor, not outsourced and assumed. Voltage, control panel language, and specification customization are handled as standard configuration steps rather than special requests. Every unit passes a four-stage QC process covering incoming material inspection, in-process assembly checks, finished-product functional testing, and pre-shipment verification on the buyer’s specified panel stock. The complete product family — from entry-level to full-function pre-milling — lets a workshop scale capacity without switching suppliers or retraining operators on a different control system. Engineer-led configuration recommendations arrive within 24 hours of an inquiry, including formal quotation and panel compatibility assessment.
Documentation & Verification
- CE declaration of conformity matched to ZDSF190 export configuration
- Machine specification sheet confirming voltage, frequency, and panel thickness range
- Factory test record on buyer’s actual panel material and edge strip type
- Electrical schematic with confirmed voltage and circuit protection values
- Operation manual in agreed language with multi-function button reference guide
Installation, Commissioning & Support
- 1900 × 560 mm footprint fits standard single-phase workshop layouts
- 4 kW rated power requires a dedicated 220V circuit with appropriate breaker sizing
- 120 kg net weight allows manual positioning; adjustable leveling feet for alignment
- Glue pot heat-up and first-run parameter setting included in commissioning guidance
- Spare parts list covering trimming cutters, feed wheels, and glue rollers provided at shipment
What to Include With Your Inquiry
Share the panel materials you process most often — MDF, particleboard, plywood, or solid wood — along with typical board thickness and the edge strip types you use. Confirm your workshop’s local voltage and frequency so the ZDSF190 is configured before production. Let us know whether your output includes curved profiles, straight edges, or both, so the dual-purpose head is set up and tested accordingly.
Frequently Asked Questions
Q: How does the ZDSF190 position within the full edge banding machine range?
A: It sits at the compact dual-purpose tier, offering curved and straight capability in a single unit. Workshops starting with mixed-profile work can later move to higher-tier models with pre-milling and corner rounding within the same product family, keeping spare parts and operator training consistent.
Q: What voltage configurations are available and how is compatibility confirmed?
A: The ZDSF190 is configurable from 110V to 440V. Before production, the buyer confirms local voltage and frequency in writing. An electrical schematic reflecting the confirmed configuration is included in the documentation package shipped with the machine.
Q: Which panel materials and edge strips does this model support?
A: The machine handles MDF, plywood, particleboard, and solid wood panels from 10 to 50 mm thick. Compatible edge strips include PVC, ABS, melamine, and veneer in the 0.5–2.5 mm thickness range, with double-sided gluing adjusted per material.
Q: How is curved versus straight edge banding configured on the ZDSF190?
A: The head rotates 180° to switch between curved and straight modes. Changeover involves repositioning the pressure beam and adjusting the trimming cutter path. Factory test records cover both modes before shipment.
Q: What documentation ships with the machine?
A: Buyers receive a CE declaration, ISO 9001 certificate, specification sheet, electrical schematic, factory test record, operation manual in the agreed language, spare parts list, and packing photographs for customs clearance support.
