Description
Proven Tolerance Control — In-house manufacturing with patented cutting mechanisms delivers verifiable ±0.02mm precision on the ZDSF802 edge bander.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF802 |
| Product Type | Automatic Edge Banding Machine |
| Edge Type | Straight line |
| Rated Voltage | 220V (frequency and phase to be confirmed) |
| Rated Power | 4 kW |
| Heating Power | 1000 W |
| Trimming Power | 800 W × 2 |

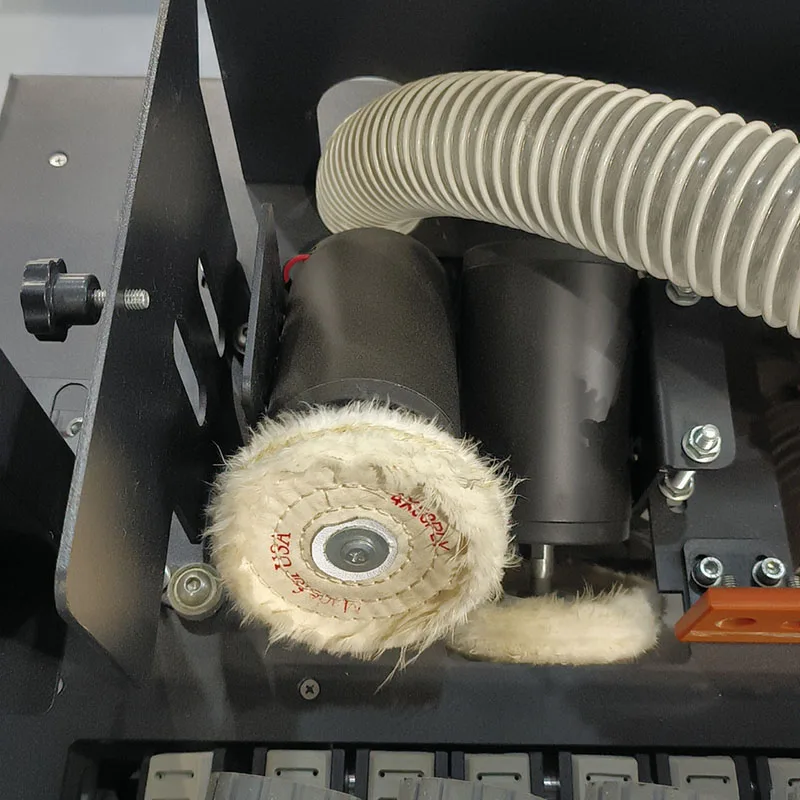

| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Glue Pot Capacity | 4000 ml |
| Glue Application | Double-sided gluing |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Rated Air Pressure | 0.4–0.6 MPa |
| Pressure System | Integrated pressure beam, double-row pressure wheels, silicone conveyor belt |
| Belt Breaking Method | Pneumatically controlled |

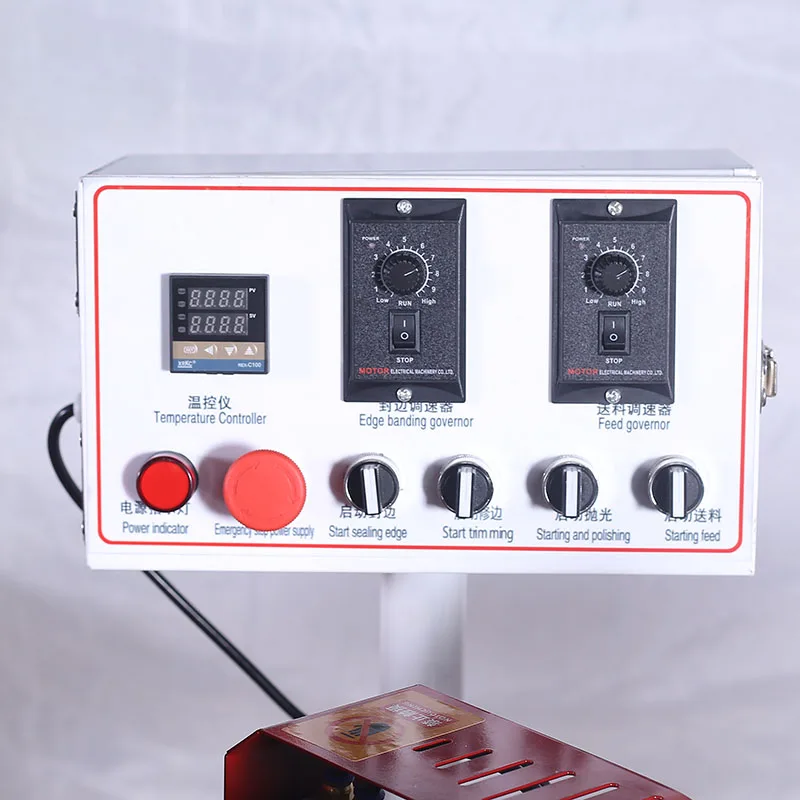

| Control Panel | Digital display for glue pot temperature, independent switches |
| Auxiliary Support | Extendable fluent strips for large panels |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC edge banding |
| Wardrobe panel processing | Plywood and melamine-faced boards with veneer strips |
| Small-batch furniture runs | Solid wood panels with 0.5–2.5 mm straight-line banding |
| Workshop-scale production | Panel edging transitioning from manual to automated feed |
Why the Voltage Question Should Come Before the Price
Confirming your local supply voltage and frequency before selecting an automatic edge banding machine manufacturer prevents costly commissioning failures on site.
When machines are quoted without verifying the buyer’s local electrical standards, they often arrive at the factory floor unusable. A three-phase motor wired for a different frequency will overheat or stall under load, and control panels designed for one voltage standard may trip local breakers immediately on startup [NEED_CITE: voltage and frequency standards by export market]. The ZDSF802 is configurable across a broad voltage range, but the correct specification must be locked in before production begins — not after the crate is opened.
Scaling Within One Product Family
The ZDSF802 occupies a defined position within a broader edge banding range that spans from compact entry-level units to full-function pre-milling models. Workshops evaluating an automatic edge banding machine manufacturer need to see where a given model fits on the throughput spectrum. This machine targets facilities moving beyond manual edge application but not yet requiring the feed speeds of a high-volume panel line.
Matching Feed Speed to Downstream Stations
A feed speed range of 0–10 m/min places the ZDSF802 in a tier compatible with single-operator panel saw output and standard multi-boring cycles. When edge banding throughput exceeds what upstream cutting can supply, panels queue and adhesive cools past its open time. When it falls behind, downstream boring stations idle. The configurable conveyor speed on this unit allows production managers to balance the line without adding buffer conveyors [NEED_CITE: panel line throughput balancing principles].
How Core Parameters Shape Edge Quality

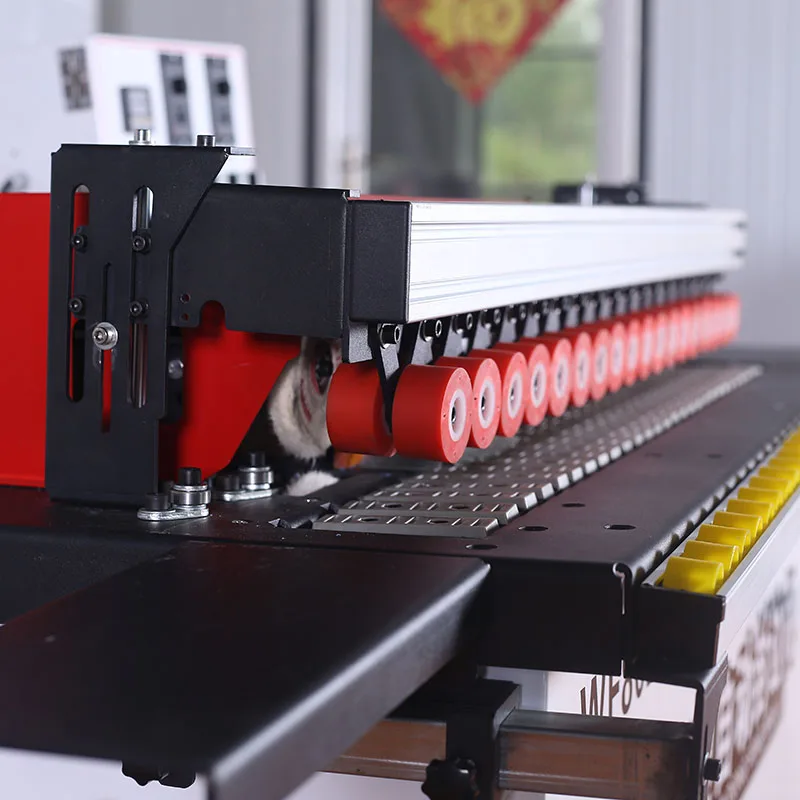

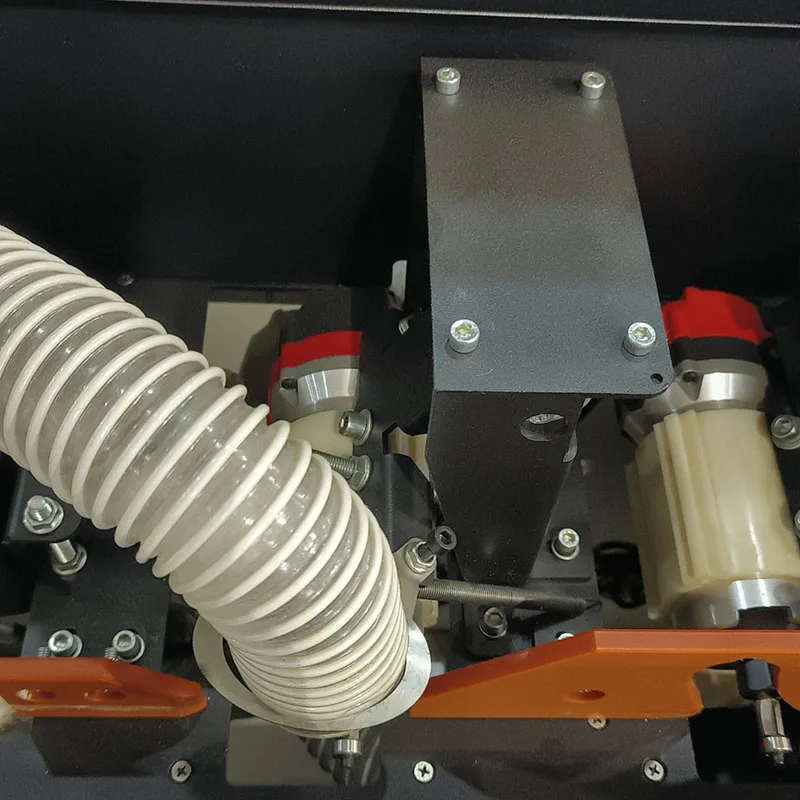

The 4000 ml glue pot capacity supports sustained production runs on standard panel widths without requiring mid-batch refills, which can cause temperature fluctuation and inconsistent adhesive viscosity. Double-sided gluing applies adhesive to both the panel edge and the strip simultaneously, improving bond strength on substrates like particleboard where edge porosity would otherwise absorb single-applied glue unevenly. The integrated pressure beam and double-row pressure wheels maintain uniform contact along the full panel length — critical when processing warped MDF or slightly cupped plywood. Trimming power of 800 W per motor provides sufficient torque for clean end cuts on PVC and veneer strips up to 2.5 mm thick without leaving burrs that require secondary hand-trimming.
The Hidden Cost of Undersized Edge Banding Equipment
When a small workshop purchases an entry-level machine that lacks the glue pot capacity or pressure system for its actual daily volume, visible glue lines begin appearing on substrates within weeks. Operators compensate by slowing feed rates or making double passes, which introduces adhesive cooling inconsistencies. Panels that pass initial visual inspection later fail during assembly when the bonded strip peels under clamping pressure [NEED_CITE: edge band adhesion failure causes in furniture assembly]. The ZDSF802 addresses these failure modes through its pressure beam design and double-row wheel configuration rather than relying on operator workaround.
Manufacturing Depth Behind This Machine Range
The facility producing the ZDSF802 holds ISO 9001 and CE certification, with a four-stage quality control process covering incoming material inspection through pre-shipment verification. Patented cutting mechanisms are manufactured and assembled on site rather than sourced as third-party components. Voltage configuration from 110V to 440V is handled as a standard option during order processing, not as a post-sale modification. Each unit ships with a factory test record documenting performance on the buyer’s specified panel thickness and banding material. Multilingual control panels are configured before dispatch based on the operator’s working language.
Documentation & Verification
- CE declaration of conformity referencing the ZDSF802 automatic edge banding machine
- Factory test record showing edge quality on your specified panel thickness and strip material
- Electrical schematic confirming your local voltage, frequency, and phase configuration
- Operation and maintenance manual provided in your operator’s working language
- Spare parts list identifying consumable wear items with part numbers for reordering
Installation, Commissioning & Support
- Requires a dedicated 4 kW circuit with confirmed voltage and frequency match before uncrating
- Extendable fluent strips must be leveled to the 75 cm working height to prevent panel drag
- Pneumatic system connection requires stable 0.4–0.6 MPa air supply with moisture filtration
- Glue pot initial heat-up takes 5–10 minutes at 1000 W before first banding pass
- Digital temperature display should be calibrated against actual adhesive open-time on your substrate
- Silicone conveyor belt inspection and tension check recommended after the first week of operation
Before Requesting a Quotation
Provide your primary panel material type and thickness range, the edge banding strip material and width you intend to run, and your local electrical supply voltage, phase, and frequency. Confirm the working language required for the control panel and operation manual. If you are integrating the ZDSF802 into an existing line, share the feed height and output rate of your upstream panel saw and downstream boring equipment so throughput compatibility can be verified before the order is placed.
Frequently Asked Questions
Q: Where does the ZDSF802 sit in the full edge bander range, and when should a workshop move to a higher-tier model?
A: The ZDSF802 is a mid-range straight-line unit suited for workshops producing custom furniture at moderate daily volumes. Facilities running high-density board continuously across multiple shifts, or those requiring pre-milling to correct panel edge imperfections, should evaluate higher-tier models within the same product family to match their throughput and finish requirements.
Q: What voltage options are available, and how is local supply confirmed before the machine ships?
A: The ZDSF802 supports voltage configuration from 110V to 440V, with frequency and phase specified during the quotation stage. Buyers provide their local supply details in writing, and the electrical schematic is reviewed and confirmed before production begins. This prevents commissioning delays caused by mismatched electrical standards at the destination site.
Q: Which substrates and banding materials are compatible with the double-sided gluing system?
A: The double-sided gluing system handles MDF, particleboard, plywood, and solid wood panels with PVC or veneer edge banding from 0.5 to 2.5 mm thick. Particleboard benefits particularly from double-sided application because the porous edge absorbs adhesive unevenly. A factory test on your specific substrate and strip combination is recommended before final order confirmation.
Q: What documentation ships with the machine, and is it available in languages other than English?
A: Each ZDSF802 ships with a CE declaration, electrical schematic, factory test record, operation manual, and spare parts list. The operation manual and control panel interface can be configured in the buyer’s required working language, specified at the quotation stage. This ensures operators can complete commissioning and daily adjustments without translation delays.
