Description
In-House Manufacturing With Patented Mechanisms — the ZDSF515 manual edge bander is built on Ruiqi’s own production line, with every critical component precision-ground and verified through four-stage QC before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|

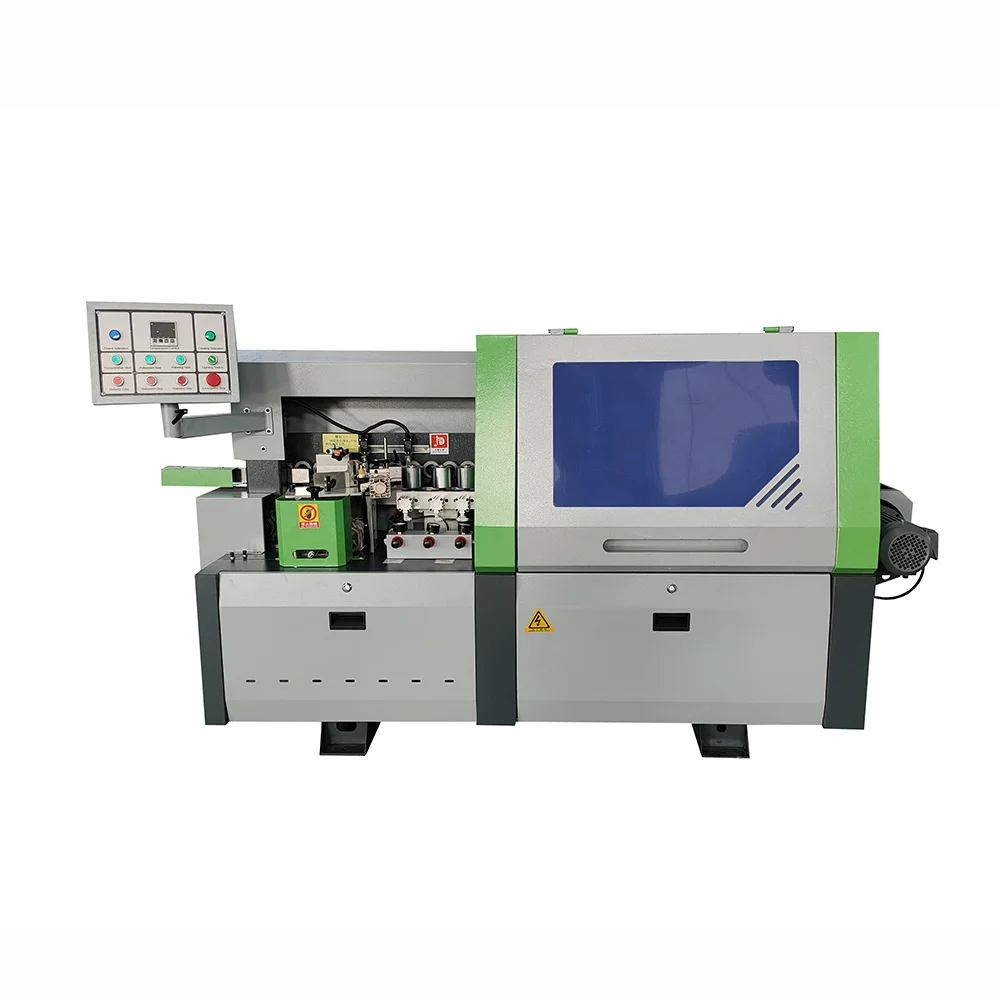

| Model | ZDSF515 |
| Product Type | Manual Edge Bander |
| Main Function | Gluing, Fine trimming, Scraping, Buffing |
| Voltage & Power | 380V / 4kW (3HP) |
| Working Pressure | 0.65 MPa |
| Conveyor Belt Speed | 0-16 m/min |
| Min. Panel Width | 60 mm |
| Min. Panel Length | 150 mm |
| Panel Thickness Range | 10-60 mm |
| Edge Thickness Range | 0.4-3 mm |
| Overall Dimensions (L×W×H) | 2480×700×1400 mm |
| Net Weight | 600 kg |
| Warranty | 1 year (source value — verify against manufacturer catalog) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door finishing | MDF and plywood panels with PVC or veneer banding |
| Small joinery workshop production | Particleboard components for built-in furniture |
| Secondary backup for automatic lines | Solid wood panels requiring curved edge finishing |
| Prototype and sample runs | Mixed substrate batches in custom furniture factories |
Why the Voltage Question Must Come Before the Machine Order
Confirming local grid parameters is the single most important step before any edge bander leaves the factory floor. I learned this the hard way early in my career when a machine shipped to West Africa was wired for 380V but the site ran 415V — the motor burned out on first contact, leaving the customer’s workshop idle for weeks while waiting for a rewind. Every ZDSF515 Manual Edge Bander for sale now goes through a voltage confirmation protocol where the destination market’s exact frequency and phase configuration are locked in before production begins. Skipping this conversation saves time during the quote stage but creates a costly failure at commissioning [NEED_CITE: voltage and frequency standards by export market]. The electrical schematic and voltage confirmation document are issued with every shipment so there is no ambiguity when your electrician connects the supply.
Where This Model Sits in the Complete Edge Bander Range
The ZDSF515 occupies the entry tier of the Ruiqi catalogue, designed for workshops that need a complete four-station finishing cycle without the footprint or power draw of a full automatic line. It gives operators gluing, fine trimming, scraping, and buffing in one pass — covering the same edge quality sequence that larger models perform, just at a pace suited to lower-volume or mixed-batch production. Choosing this Manual Edge Bander for sale means you are buying into a product family, not a standalone machine with no growth path.
Planning the Step Up to Higher-Throughput Models
Workshops often start with a compact unit like this and add an automatic pre-milling edge bander once panel volumes justify the investment. Because the ZDSF515 shares the same edge thickness acceptance and substrate compatibility as the higher-tier models, your operators build skills on the same finishing principles they will use on more advanced equipment. The transition is a matter of throughput and automation level, not a change in edge quality philosophy [NEED_CITE: CE machinery directive requirements for industrial equipment].
How Panel Thickness and Feed Speed Interact in Practice
The 10-60 mm panel thickness range covers everything from thin MDF drawer bottoms to thick solid-wood shelving, but the practical implication goes deeper than the numbers. Thicker panels carry more mass through the glue station, requiring a slower conveyor speed to ensure adequate adhesive transfer and open time before the trimming station engages. The 0-16 m/min variable speed lets operators dial in the right feed rate for each substrate — particleboard at the lower end to prevent chip-out during trimming, plywood at moderate speeds where the cross-grain structure holds the edge well, and solid wood panels adjusted according to grain direction and edge profile. The 0.65 MPa working pressure ensures consistent pneumatic actuation across all four stations regardless of feed speed.
The Hidden Cost of Buying Outside the Product Family
Piecemeal machine purchases from different suppliers frequently result in mismatched feed heights, incompatible dust extraction ports, and control panels in languages the operator cannot read. When a workshop buys a Manual Edge Bander for sale from one source and an automatic model from another, the learning curve resets entirely and spare parts inventory doubles. These incompatibilities do not appear in the quotation — they surface weeks after installation when the production manager realizes the two machines cannot share tooling, edge banding stock, or maintenance schedules [NEED_CITE: typical import machinery compatibility issues in small workshops].
What In-House Manufacturing Actually Means for Your Order

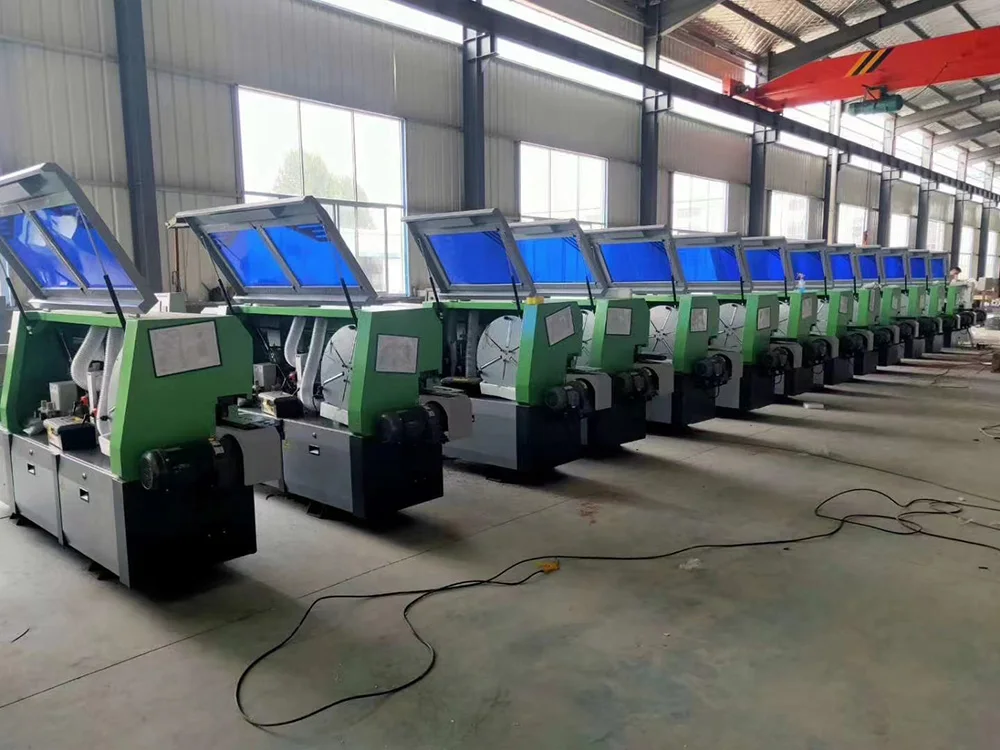

Ruiqi’s facility in Ningjin runs its own precision grinding for critical components rather than sourcing finished sub-assemblies, which means tolerance control starts at the raw material stage. The ZDSF515 goes through four-stage QC — incoming material inspection, in-process checks during assembly, finished product testing, and pre-shipment verification with your specific panel samples. Voltage is configured from 110V to 440V as standard, and the control panel is supplied in the operator’s language. The OEM capability also means distributors can apply their own branding without altering the underlying machine specification.
Documentation & Verification
- Machine specification sheet matched to the ZDSF515 configuration you confirmed
- Electrical schematic with voltage and frequency locked to your destination grid
- Factory test record on your panel thickness range before dispatch
- Operation and maintenance manual supplied in the agreed operator language
- Spare parts list with wear-part part numbers for local procurement
- CE declaration of conformity and ISO 9001 certificate included in shipment pack
Installation, Commissioning & Support
- Requires a level concrete floor with 2480 mm length clearance plus operator access space
- Dedicated 380V three-phase circuit with appropriate breaker rating for the 4kW load

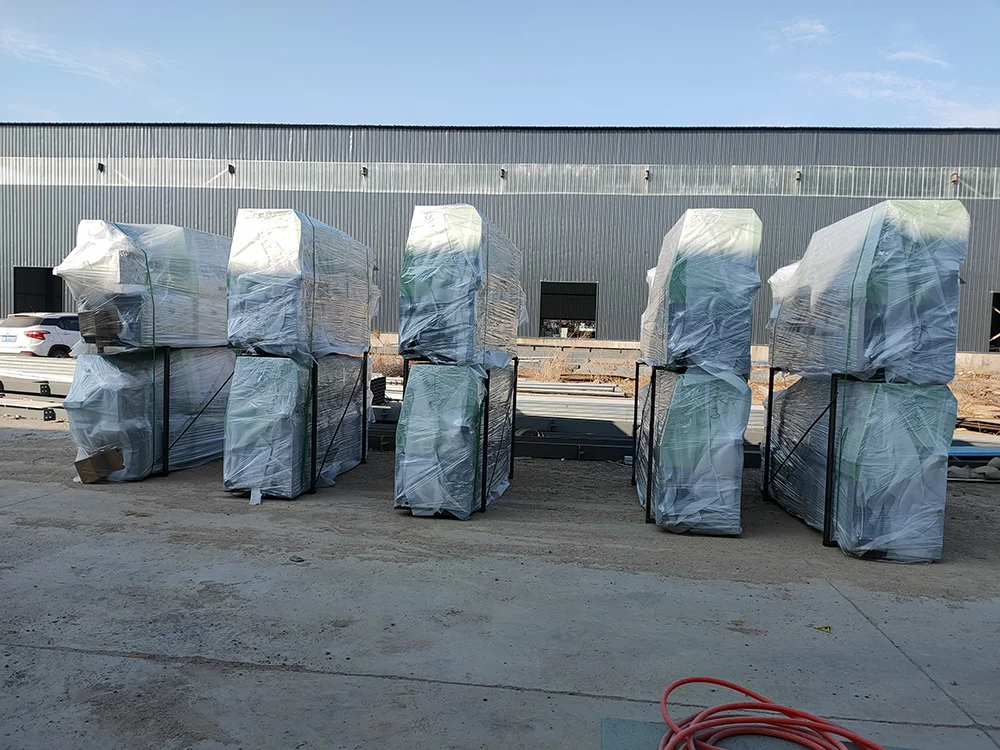

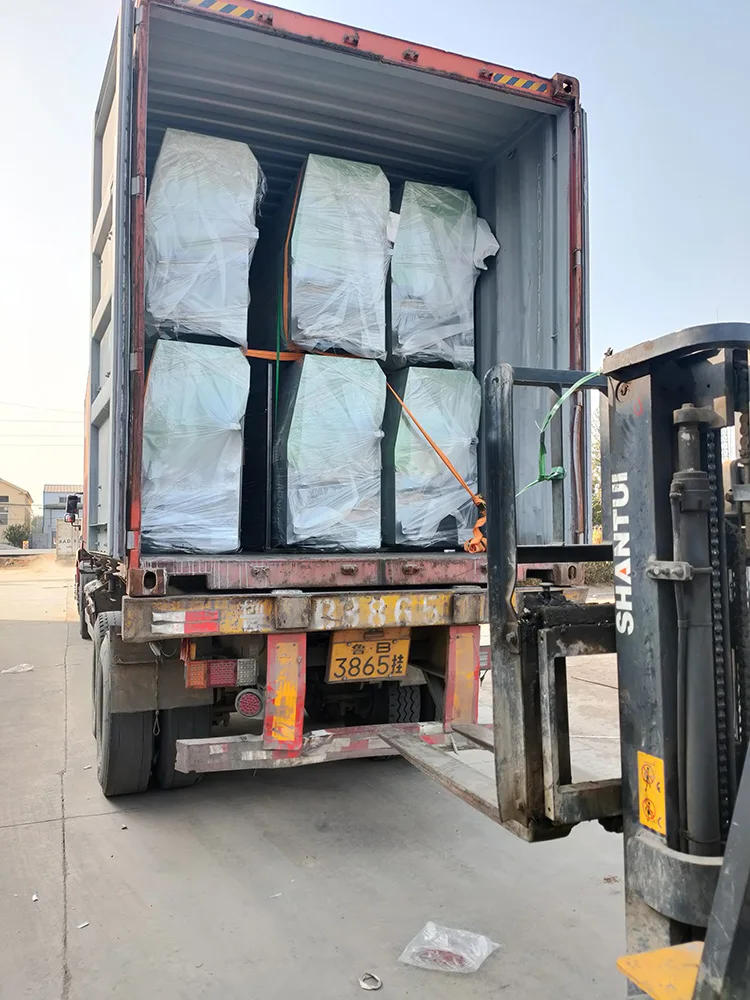

- Arrives as a single 600 kg unit requiring pallet jack or forklift for positioning

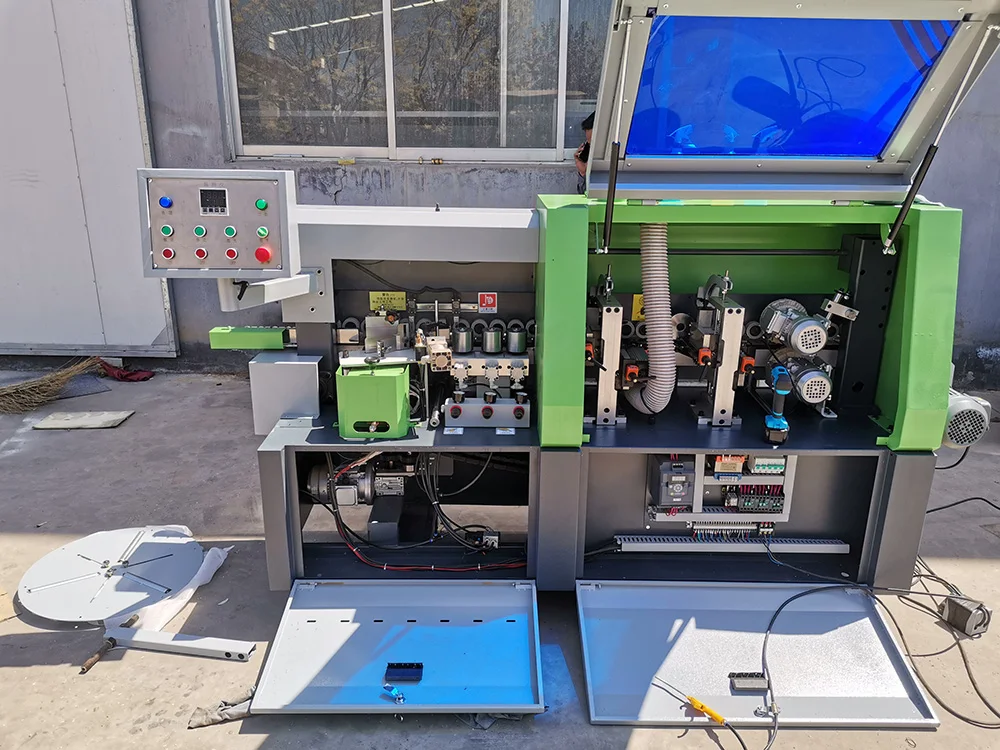

- First-run commissioning includes conveyor speed calibration and trimming station alignment
- Pneumatic supply must deliver clean dry air at 0.65 MPa to all four stations
- Glue pot and scraper blades covered in the included spare parts list for routine replacement
What to Include With Your Inquiry
To receive an accurate configuration proposal, share your primary panel materials and their typical thickness range, the edge banding types you run most often, and your local voltage and frequency specifications. If your workshop is planning a future expansion to higher-volume automatic equipment, mention this so the engineer can position the ZDSF515 within a broader line layout. Sample panels can be processed at the factory before you commit to an order.
Frequently Asked Questions
Q: Where does the ZDSF515 sit in the full Ruiqi edge bander range and when should a workshop step up?
A: The ZDSF515 is the entry-level model offering a complete four-station cycle in a compact footprint. It suits workshops processing low-to-medium panel volumes with mixed straight and curved edges. When daily throughput consistently exceeds what a manual feed pace can sustain, stepping up to an automatic pre-milling model within the same product family is the logical next move.
Q: How do I confirm voltage and frequency compatibility before ordering?
A: Provide your workshop’s exact supply voltage, phase configuration, and frequency during the inquiry stage. Ruiqi’s engineering team cross-references these against the destination market grid standards and issues an electrical schematic with confirmed voltage before production begins, preventing motor damage at commissioning.
Q: What panel materials and edge banding types does the ZDSF515 support?
A: The 10-60 mm panel thickness range covers MDF, plywood, particleboard, and solid wood panels. The 0.4-3 mm edge thickness acceptance handles both PVC and veneer banding. Operators adjust the variable conveyor speed to match substrate density and edge material for optimal glue transfer and trim quality.
Q: What documentation and spare parts support ships with the machine?
A: Every unit ships with a machine specification sheet, electrical schematic with voltage confirmation, factory test record, operation manual in your chosen language, spare parts list with wear-part numbers, and packing photographs. CE declaration and ISO 9001 certificate are included for customs and compliance purposes.
