Description
[Complete Machine Range] — Ruiqi’s edge banding machine family spans from entry-level configurations to the XZF-450 full-function pre-milling model, letting you scale within one supplier ecosystem without changing tooling or control systems.

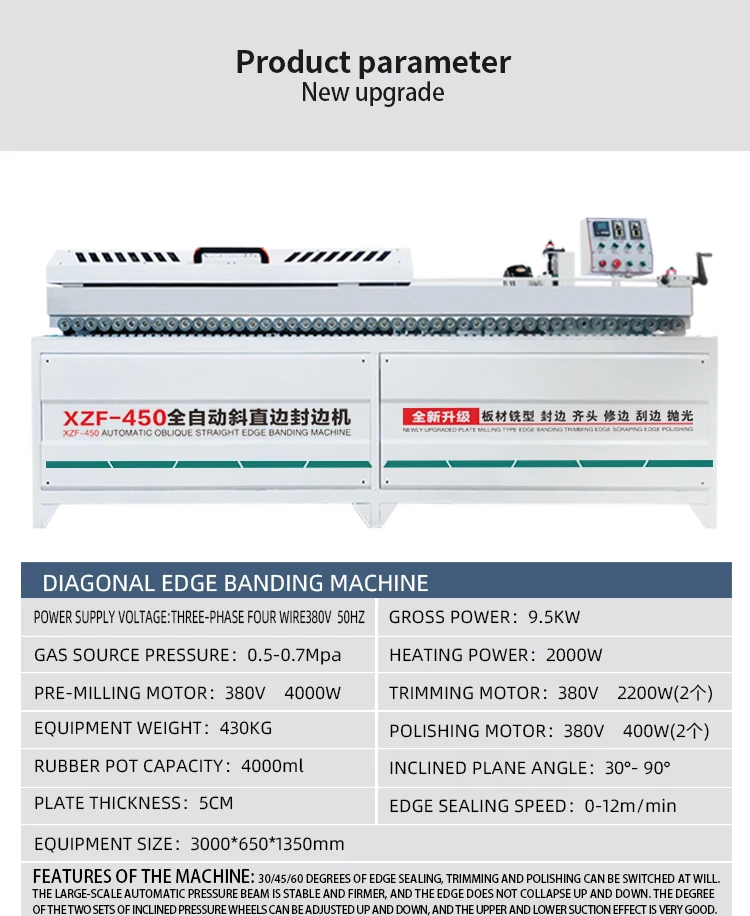

Technical Specifications
| Parameter | Value |
|---|---|

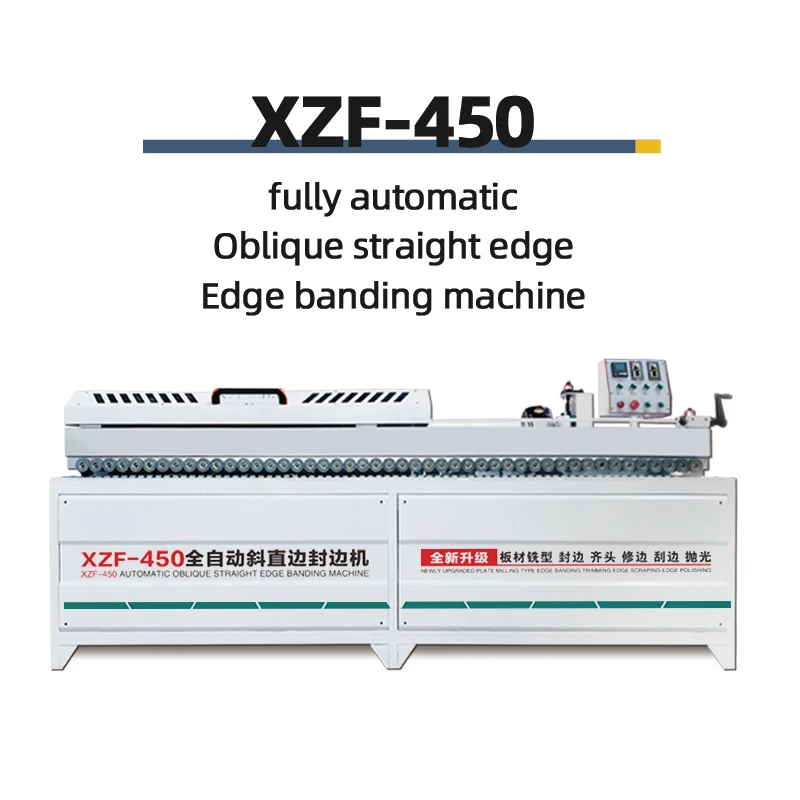

| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage & Frequency | 380V/415V (frequency to be confirmed for local grid) |
| Pre-milling Motor | 4 kW |
| Feed Speed | 0–12 m/min |
| Feed Motor Power | 0.16 kW |
| Transmission Motor Power | 180 W |
| Trimming Motor Power | 2.2 kW × 2 |
| Polishing Motor Power | 0.4 kW × 2 |
| Dust Extraction Motor Power | 550 W |
| Edge Banding Height (Panel Thickness) | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Panel Length | 30 cm |
| Minimum Panel Width | 15 cm |
| Glue Pot Capacity | 4000 ml |
| Air Supply Pressure | 0.5–0.7 MPa |
| Overall Dimensions (L×W×H) | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Control System | Confirm PLC or button panel configuration |
| Language Options | Chinese and English standard; Spanish, French customizable |

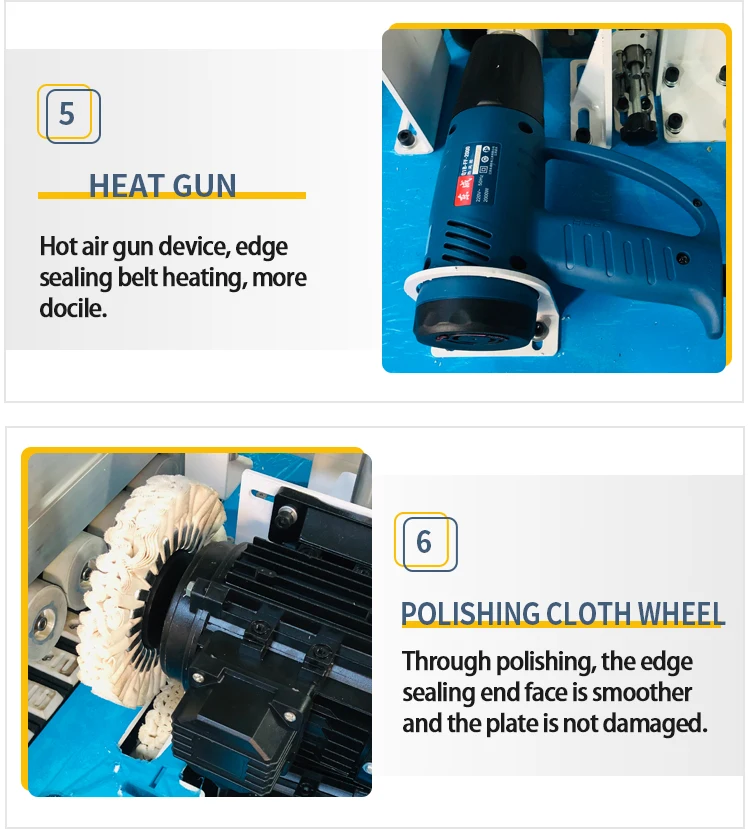

| Key Features | Pre-milling, 30°/45°/60° angle banding, end trimming, rough trimming, finish trimming, scraping, polishing, high-power dust extraction |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and drawer front edge banding | MDF and melamine-faced particleboard |
| Custom wardrobe panel processing | Plywood and blockboard with PVC or veneer banding |
| Office furniture straight-edge production | Melamine board, 90° straight edge banding |
| Angled decorative furniture components | Solid wood panels, 30°/45°/60° bevel edge banding |
| Medium-to-large furniture factory panel lines | Mixed substrate runs requiring quick material changeover |
Why the Voltage Question Must Precede the Order
Confirming local grid frequency and fluctuation tolerance before production begins prevents a machine from sitting dead on the factory floor.
I once shipped a PUR edge bander to a panel furniture factory overseas. Voltage and frequency were confirmed on paper, but local grid fluctuation fried the inverter within two days. The machine sat idle for weeks while we arranged a replacement. That single oversight cost the buyer lost production time and eroded trust before the first panel was even edged. When sourcing an edge banding machine manufacturer, the power quality conversation should happen before the specification sheet is finalized, not after the container is loaded. [NEED_CITE: voltage and frequency standards by export market]
How the XZF-450 Fits Within the Catalogue Hierarchy
The XZF-450 occupies the full-function pre-milling tier in our edge bander range. Workshops starting with entry-level machines often outgrow them once panel volume increases and edge quality demands tighten from furniture retailers. This model absorbs that growth without requiring a supplier change, because the control logic, spare parts inventory, and trimming station architecture remain consistent across the product family. Buyers evaluating the complete edge banding machine range can see exactly where this model sits relative to simpler configurations.

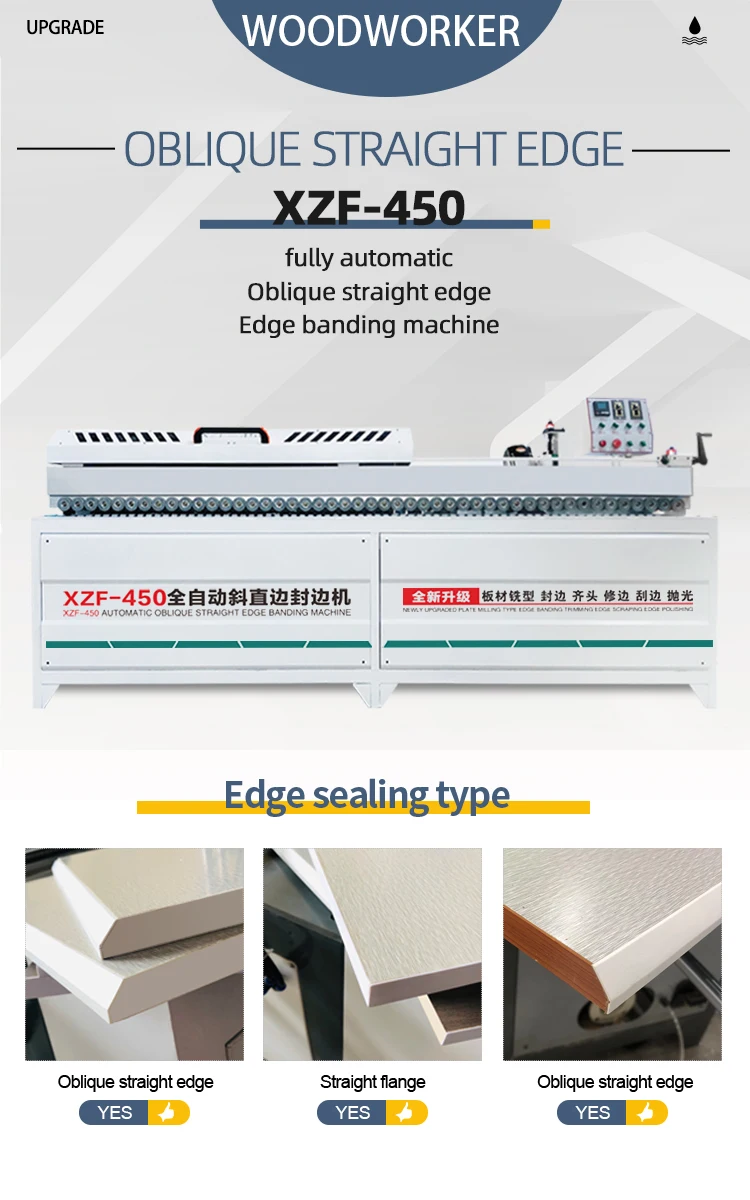

Multi-Angle Banding Beyond Standard 90-Degree Edges
Most edge banders in this class handle only straight 90-degree edges. The XZF-450 adds 30°, 45°, and 60° bevel banding capability within the same pass sequence, which matters when a furniture line includes angled decorative fronts or chamfered cabinet components. Switching between straight and angled banding requires adjustment at the gluing and trimming stations rather than a full machine reconfiguration. This flexibility lets a single machine serve multiple product lines without dedicated secondary equipment. [NEED_CITE: bevel edge banding applications in custom furniture manufacturing]
Reading the Specs That Actually Determine Output Quality

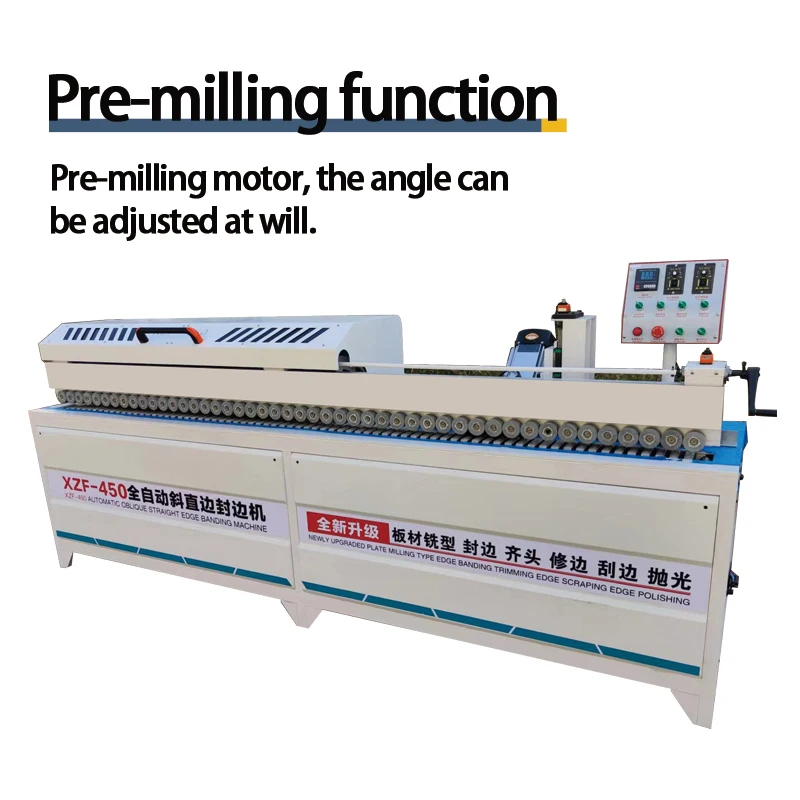

The 4 kW pre-milling motor is the most consequential number on this sheet. Pre-milling removes the saw blade tear-out from the panel edge before glue application, and insufficient motor power on this station shows up as visible glue lines on melamine and MDF substrates. The 0–12 m/min feed speed range allows operators to slow the feed for thick PVC banding on plywood, where higher speeds cause the trimming cutters to chatter against the denser substrate. The dual 2.2 kW trimming motors handle rough and finish trimming in sequence, which is the difference between a visible step at the panel edge and a flush finish that passes close visual inspection. Panel thickness range of 0–50 mm covers standard 18 mm furniture board as well as thicker blockboard used in shelving and worktop applications. The 4000 ml glue pot capacity supports sustained runs without frequent refill interruptions.
The Cost of Underspecifying at the Purchase Stage
Buying a machine rated for lower daily volumes than your actual throughput creates a cascade of problems. Premature bearing wear on the feed chain, inconsistent glue temperature across shifts, and trimming cutters that degrade faster than the maintenance schedule anticipates — these all trace back to a capacity mismatch at the point of purchase. The downtime cost compounds when spare parts must be sourced internationally. Selecting the correct tier from a full range edge bander catalogue at the outset avoids this entirely. [NEED_CITE: machinery lifespan reduction from sustained over-capacity operation]
Why Sourcing This Range Matters
In-house manufacturing with patented cutting mechanisms means the pre-milling station on the XZF-450 uses verified tolerance components, not third-party assemblies of uncertain origin. The four-stage QC process covers incoming material inspection through pre-shipment verification, so the machine you receive matches the specification sheet you approved. Voltage, control panel language, and configuration adjustments are handled as standard customization rather than special requests. Engineer-led configuration recommendations ensure the model you select matches your actual panel materials and production volume, not just the highest-margin option in the catalogue. Factory visits are welcomed so you can verify build quality before committing to an order.
Documentation & Verification
- CE declaration of conformity specific to edge banding machinery category
- Machine specification sheet listing all station motor ratings and feed parameters
- Electrical schematic with voltage and frequency matched to your local grid supply
- Factory test record on your specified panel thickness and banding material before dispatch
- Operation and maintenance manual in your operator’s language with illustrated spare parts diagrams
Installation, Commissioning & Support
- Requires 300 cm length clearance plus operator access space on both feed and discharge sides
- Dedicated 380V/415V circuit with confirmed frequency matching the inverter specification
- Arrives fully assembled as a single-unit machine; no on-site structural assembly required
- First-run commissioning includes glue temperature calibration for your specific banding material thickness
- Operator training covers feed speed adjustment across MDF, plywood, and particleboard substrates
- Spare parts list identifies all consumable trimming cutters and scraper blades with reorder references
What to Include in Your Inquiry
Provide your primary panel materials, typical panel dimensions, and current or projected daily panel count so we can confirm this tier matches your volume requirement. Specify your local voltage, frequency, and any known grid fluctuation issues. Note your preferred control panel language and whether you need straight-edge only or multi-angle banding capability.
Frequently Asked Questions
Q: How do I determine which edge bander tier matches my workshop volume?
A: Share your daily panel count, primary substrate types, and whether you run single shifts or extended hours. We cross-reference this against each model’s feed speed range and station duty cycle to recommend the correct tier. Undersizing causes premature wear; oversizing wastes capital on unused capacity.
Q: What distinguishes a full-function pre-milling model from an entry-level edge bander?
A: Entry-level models typically omit the pre-milling station and offer fewer trimming stages. The XZF-450 includes a dedicated 4 kW pre-milling motor and seven integrated functions in one pass, producing cleaner edges on MDF and melamine board that entry-level configurations cannot consistently achieve.
Q: Can one machine handle both 90-degree straight and 45-degree angled edge banding?
A: Yes. The XZF-450 supports 30°, 45°, and 60° bevel banding alongside standard 90° straight edges. Adjustment between angles happens at the gluing and trimming stations without requiring separate tooling or a second dedicated machine.
Q: What voltage and language options are available for my market?
A: Voltage is configurable from 110V to 440V with frequency confirmation for your local grid. Control panels are available in Chinese and English as standard, with Spanish, French, and other languages customizable based on your operator requirements.
