Description
Proven Tolerance Verification — Every ZDSF190 unit ships with a factory test record confirming ±0.02mm edge trimming accuracy on your specified panel material before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine |
| Function | Automatic plate feeding, belt breaking, double-sided gluing, upper/lower trimming and polishing |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Feed Speed | 0–14 m/min |
| Panel Thickness Range | 10–50 mm |

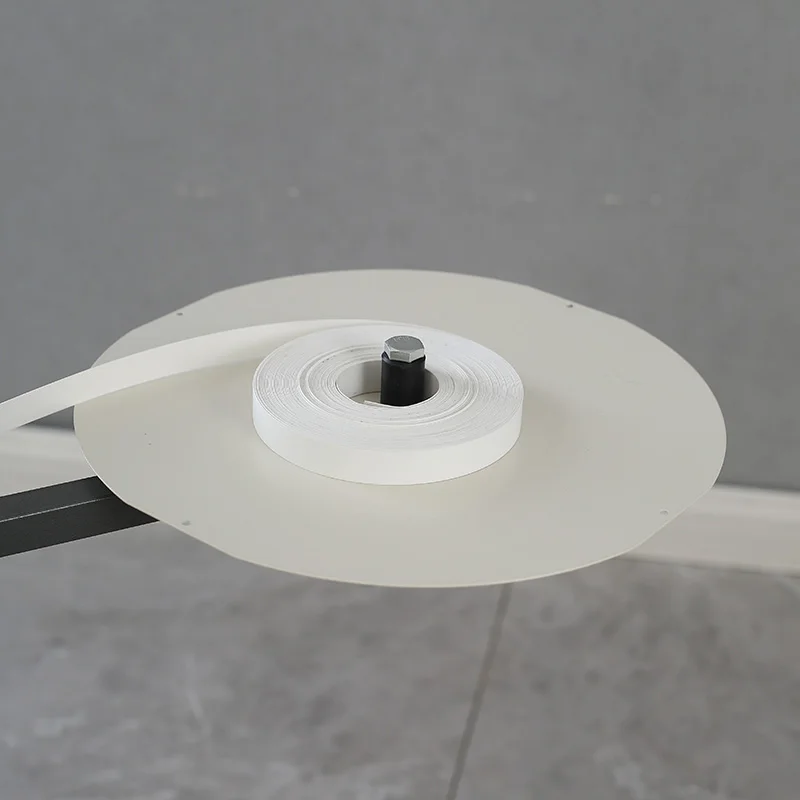

| Edge Strip Thickness Range | 0.5–2.5 mm |
| Glue Capacity | 1000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Trimming Cutter | 4-blade alloy arc knife |
| Transmission | Crawler transmission with steel rod slide rails |
| Dust Collection | Dual large-diameter dust collectors |
| Overall Dimensions | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |

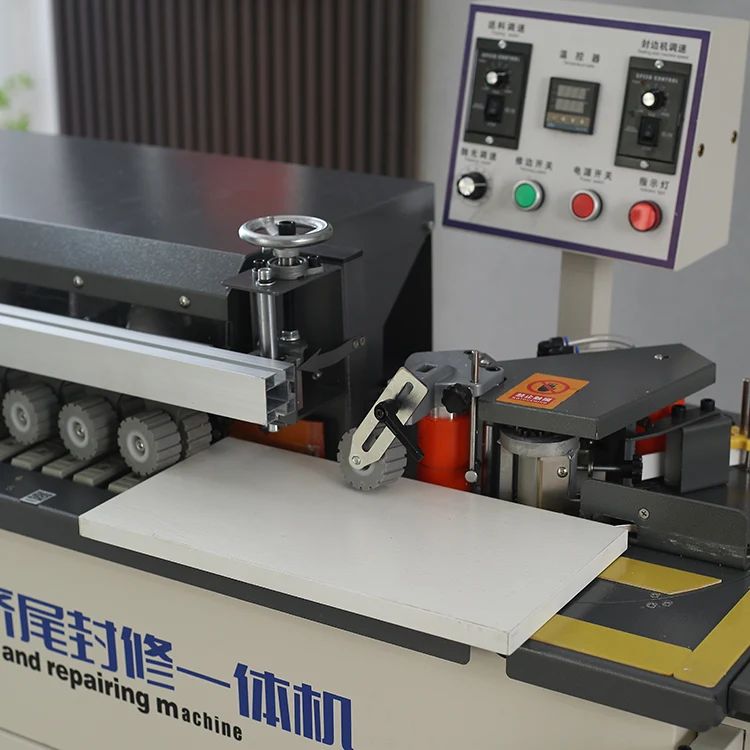

| Control System | Multi-function button operation panel |
| Assembly State | Partially assembled (KD packing for some parts) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge banding | MDF and plywood panels with PVC edge strips |
| Curved furniture component finishing | Shaped solid wood and particleboard profiles |
| Small-batch joinery production | Veneer and PVC banding on panels 10–50 mm thick |
| On-site installation workshops | Portable curved and straight edge processing for fitted furniture |
| Prototype and sample making | Mixed edge profiles in low-volume custom furniture runs |
What Happens When Entry-Level Meets High-Volume Demand
Matching machine tier to actual throughput prevents premature wear and visible glue lines.
I once watched a small cabinet shop push a compact edge bander well beyond its intended duty cycle. The glue pot could not recover temperature between panels, and the trimming stations started leaving chatter marks on PVC. The operator blamed the material, but the real issue was a mismatch between the machine class and the daily panel count. When workshops select an Edge Banding Machine manufacturer based on price alone and then run production volumes the unit was never designed for, edge quality degrades within weeks [NEED_CITE: typical failure modes when undersized edge banders run continuous shifts]. The ZDSF190 sits at the entry point of a broader product family, and knowing exactly where it fits prevents costly misapplication.
Where the ZDSF190 Fits in the Complete Range
This model occupies the compact dual-purpose tier, designed for workshops that need both curved and straight edge capability in a single footprint. For shops processing fewer panels per day with mixed profile shapes, it delivers the essential functions — double-sided gluing, trimming, and polishing — without the floor space and power draw of a full-function line. As an Edge Banding Machine manufacturer offering a complete catalogue, Ruiqi positions this unit as the starting point for shops moving off manual edge work.
Scaling Without Switching Suppliers
The advantage of sourcing from a full-range Edge Banding Machine manufacturer is the upgrade path. When a joinery shop’s volume grows or panel specifications change — thicker substrates, high-gloss acrylic strips, or pre-milling requirements — the next tier up in the same product family shares control logic and maintenance philosophy. Operators already trained on the ZDSF190 button panel transition to higher-tier models with familiar workflow patterns [NEED_CITE: benefits of single-supplier equipment scaling in woodworking shops]. This continuity reduces the commissioning friction that typically accompanies a brand switch.
Reading the Specs That Actually Matter
The 10–50 mm panel thickness range defines what this machine can physically pass through the feed zone. Workshops cutting 18 mm MDF cabinet sides sit comfortably within that envelope, but shops running 60 mm solid wood worktops need a higher-tier model. The 0–14 m/min feed speed is variable, which matters when switching between PVC and veneer strips — veneer typically requires slower feed to prevent chipping at the trim station. The 800 W heating element maintains glue temperature at moderate throughput, but continuous high-speed runs on thick panels will cause thermal lag, which is why the 1000 ml glue capacity pairs with the stated feed range rather than exceeding it. The 4-blade alloy arc trimming cutter handles both curved and straight profiles without a tooling changeover, a practical advantage for shops running mixed batches. Dual dust collectors rated at 1200 W suction keep the trimming zone clear, which directly affects edge finish consistency on melamine-faced particleboard where dust buildup causes visible scoring.
The Cost of Ignoring Machine Tier Boundaries

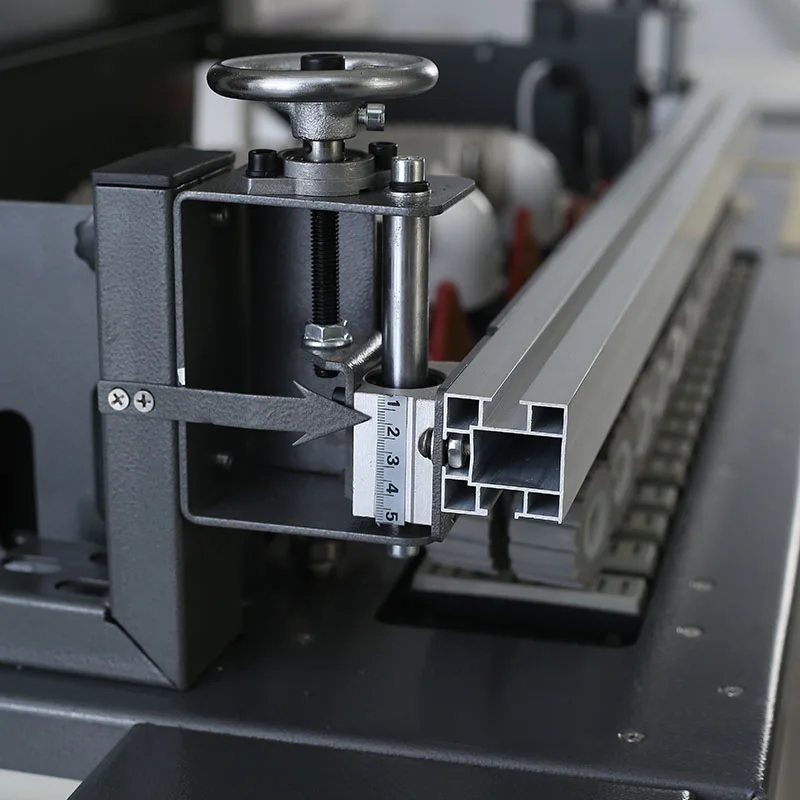

When a workshop buys a compact dual-purpose bander and immediately assigns it to eight-hour straight-line production runs, the crawler transmission and steel rod slide rails experience wear patterns they were not engineered to sustain. Glue roller degradation accelerates, and the adjustable aluminum alloy pressure beam loses parallelism — faults that show up as uneven banding adhesion on the next batch of cabinet doors. I have seen this exact scenario force an unplanned machine replacement within months [NEED_CITE: premature wear patterns in edge banders used beyond rated duty cycle]. The financial damage is not just the second purchase; it is the returned furniture batches and the reputation cost with end clients.
Why Source This Model Through the Full Catalogue
Every ZDSF190 inquiry receives an engineer-led configuration review that compares your actual panel mix and daily volume against the full model range — not just this unit. Voltage confirmation happens before production, so a 220V 50Hz machine does not arrive in a 60Hz market unusable. The factory test record documents trimming accuracy on your specific panel thickness and edge strip material before the crate closes. Control panel language matches your operator team, eliminating the commissioning stall that happens when instructions are unreadable. The product family structure means your next machine — if volume demands it — comes from the same engineering lineage with compatible spare parts and service protocols.
Documentation & Verification
- CE declaration of conformity applicable to the ZDSF190 edge banding unit
- Factory test record showing trim accuracy on your panel thickness before shipment
- Electrical schematic confirming 220V 50Hz wiring matches your workshop supply
- Operation manual translated into your operator’s working language
- Spare parts list covering trimming cutters, glue rollers, and crawler components
Installation, Commissioning & Support
- 1900 × 560 mm footprint requires a level floor with clearance for the extended feed plate
- 4 kW rated power demands a dedicated 220V circuit with appropriate breaker rating
- Partially assembled KD packing means on-site assembly guided by manual and video
- Pneumatic connections require a stable 0.4–0.6 MPa air supply at the machine inlet
- First-run parameter setting covers glue temperature, feed speed, and trimming depth for your material

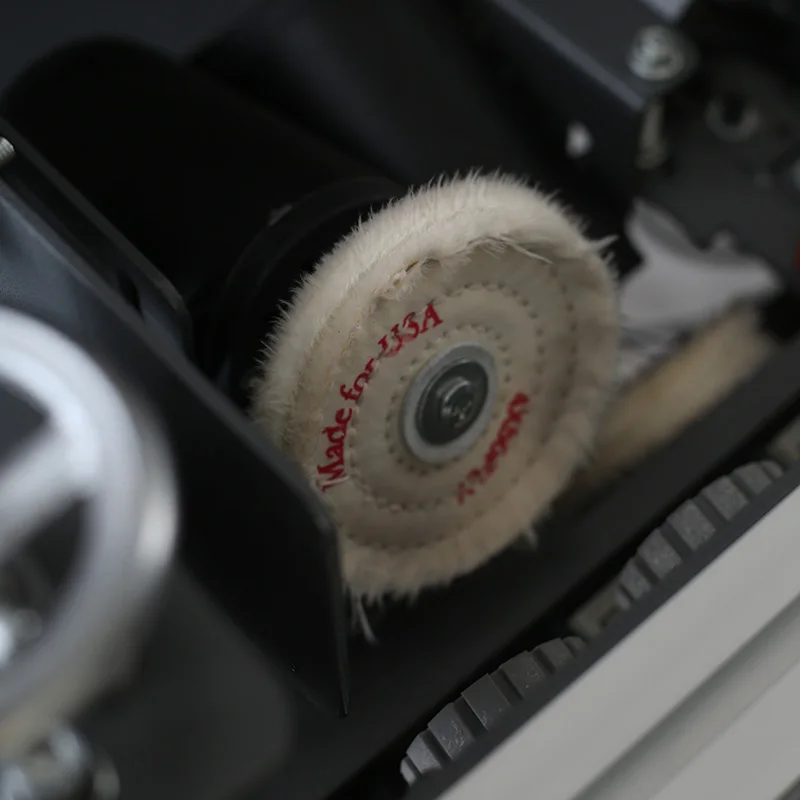

- 4-blade alloy arc knives and polishing wheels stocked as standard consumable spares
Before You Request a Quote
Tell us your primary panel material, typical thickness range, and whether your edge profiles are predominantly curved, straight, or mixed. Specify your local voltage and frequency so the electrical configuration is confirmed at the quotation stage. If you are comparing this model against a higher-tier unit in the range, share your estimated daily panel count so the recommendation reflects actual duty requirements rather than catalogue assumptions.
Frequently Asked Questions
Q: How does the ZDSF190 compare to higher-tier models in the Ruiqi range?
A: The ZDSF190 handles both curved and straight edges in a compact footprint with essential trimming and polishing functions. Higher-tier models add pre-milling, additional finishing stations, and higher feed speeds designed for continuous production volumes. Your engineer configuration review will map your daily throughput and panel specifications to the correct tier, ensuring you do not overpay for capacity you will not use or under-specify for your actual workload.
Q: What voltage and frequency options are available for my market?
A: Voltage is configurable from 110V to 440V to match local supply standards. The ZDSF190 baseline is 220V 50Hz, but your quotation will include a voltage confirmation document specifying the exact electrical configuration built for your workshop. This step happens before production starts, preventing the situation where a machine arrives and cannot be powered on.
Q: Can the control panel language be customized for my operators?
A: Yes, the multi-function button operation panel can be labeled and documented in your operator’s working language. This is confirmed during the specification stage alongside voltage and panel thickness requirements. The goal is to eliminate the commissioning delays that occur when an operator cannot read the control interface or the maintenance manual.
Q: What panel materials and edge strip types does this model handle?
A: The ZDSF190 processes MDF, plywood, particleboard, and solid wood panels from 10 to 50 mm thick, with PVC or veneer edge strips between 0.5 and 2.5 mm. If your production involves high-gloss acrylic or ABS strips outside this range, the configuration review will identify whether a higher-tier model with a larger glue pot and different trimming tooling is required.
Q: How do I know if my volume requires upgrading to a full-function model?
A: Share your estimated daily panel count, shift pattern, and edge profile mix during the inquiry. The engineer configuration review compares these figures against the ZDSF190 duty envelope and the next tier up. If your volume sits near the boundary, a sample processing test at the factory can confirm whether this model sustains your required output quality over a full production run.
