Description
Voltage Customization as Standard — Every ST-30 portable edge bander leaves the factory configured to your local 220V or 380V supply with the correct plug and frequency verified before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Portable Edge Banding Machine |
| Total Power | 1000W |
| Voltage & Frequency | 220V / 380V / Customization |
| Edge Banding Thickness | 0.3–3mm |
| Edge Banding Height | 0–50mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 3cm |
| Glue Pot Capacity | 1000ml |
| Edge Power | 20W |
| Air Source Pressure | 0.5–0.8MPa |
| Product Size | 38 × 35 × 35cm |
| Net Weight | 12kg |
| Suitable Edge Banding Tape | ABS, PVC, Melamine, Veneer |
| Edge Type | Straight and curve edge |
| Assembly State | Portable, semi-automatic |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese, English standard; customization available |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site interior decoration | MDF and plywood panels with PVC or melamine edges on curved and straight profiles |
| Small joinery workshop production | Particleboard cabinet components with ABS or veneer banding up to 3mm thickness |
| Supplementary rework on automatic lines | Solid wood panels requiring edge touch-up on curved sections after primary machining |
| Custom furniture prototyping | Mixed substrate test pieces with melamine or PVC banding before committing to full production runs |
Why Voltage Must Be Confirmed Before You Compare Portable Edge Banding Machine for sale Options
A portable unit rated for 220V/50Hz will not reach correct glue temperature on a 220V/60Hz supply, causing adhesion failure that looks like a machine defect.
I have watched a compact edge bander sit idle for weeks because the buyer assumed voltage was universal. The glue pot never reached working temperature, the feed motor ran faster than the control expected, and every panel came off with half-bonded banding. The distributor blamed the machine; the electrician blamed the distributor. In reality, nobody confirmed the frequency at the quoting stage [NEED_CITE: voltage and frequency standards by export market]. When sourcing a Portable Edge Banding Machine for sale, the electrical question has to come before any discussion of throughput or price.
Where the ST-30 Sits in a Complete Edge Bander Range
This Portable Edge Banding Machine for sale fills the gap between hand-applied iron-on banding and a full-size automatic line with pre-milling, trimming, and buffing stations. Workshops running low volumes or handling predominantly curved profiles find the ST-30 adequate on its own. Production facilities often deploy it as a rework station alongside a primary automatic edge bander, catching panels that need a second pass on shaped edges.
Scaling From Portable to Full-Function Without Changing Supplier
The ST-30 product family sits at the entry tier of a broader edge banding range that extends through pre-milling and multi-station automatic models. When panel volumes grow or tolerance requirements tighten beyond what a semi-automatic unit can hold, the next step in the catalogue shares the same control language, spare parts philosophy, and technical support channel [NEED_CITE: CE machinery directive requirements for industrial equipment]. Buyers who start with a portable unit and later invest in a full automatic line avoid the learning curve of switching to an entirely different manufacturer’s ecosystem.
Glue Pot Capacity, Banding Thickness, and What They Mean on the Shop Floor

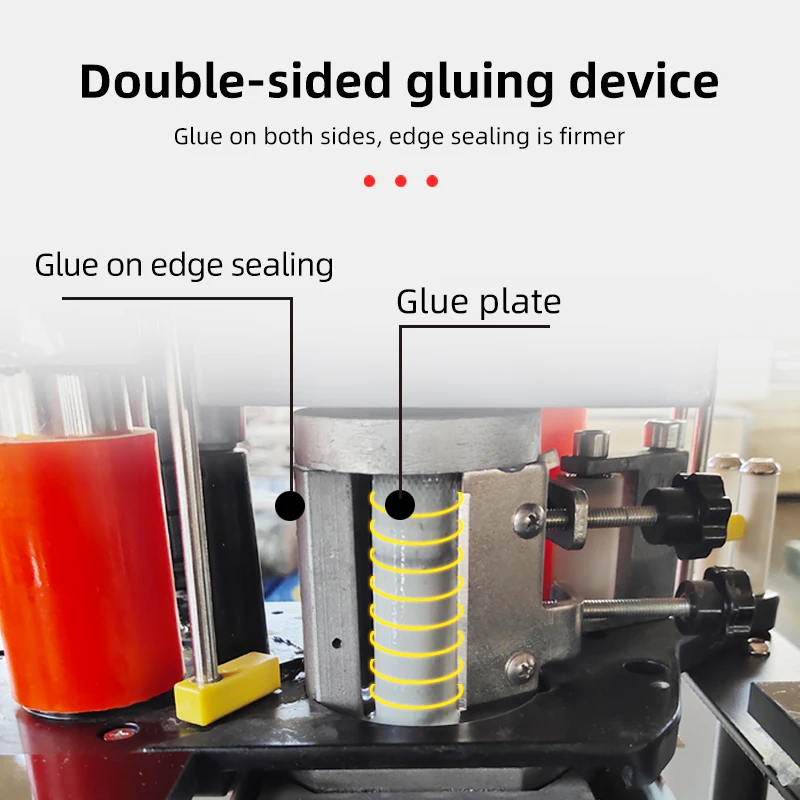

The 1000ml glue pot gives extended run time between refills, which matters when the machine is moved around a job site or a large workshop rather than sitting at a fixed station. Banding thickness coverage from 0.3mm melamine up to 3mm solid PVC or veneer means one machine handles the majority of common cabinet and furniture edge treatments. The 0–50mm height range accommodates standard 16mm and 18mm panel stock as well as thicker shelving and worktop substrates. Air pressure between 0.5 and 0.8MPa drives the pressure roller; below 0.5MPa the bond line opens on thicker PVC, while above 0.8MPa you risk crushing thin melamine strips before the adhesive sets.
The Cost of Buying a Portable Unit Into a Volume It Was Never Designed For
A semi-automatic portable edge bander is built for intermittent operation, not continuous eight-hour production shifts. Running it at automatic-line volumes accelerates wear on the feed mechanism and glue pot heating element far beyond the design envelope [NEED_CITE: typical duty cycle expectations for semi-automatic woodworking machinery]. Panels start showing inconsistent bond lines, and the operator ends up manually trimming edges that a full-function machine would finish automatically. The real cost is not the machine itself but the rejected panels, the overtime spent on rework, and the delay to customer deliveries.
Why Procurement Teams Source This Portable Edge Banding Machine for sale Here
In-house manufacturing means the cutting and feed mechanisms carry proprietary patents, and tolerance claims can be verified on your specific panel stock before you commit. The four-stage quality control process — incoming material, in-process assembly, finished product, and pre-shipment verification — runs on every unit regardless of its position in the range. Voltage, plug type, and control panel language are configured at order stage as standard, not treated as special requests that add lead time. Engineer-led configuration recommendations arrive within 24 hours of receiving your panel dimensions and production volume, so you know whether the ST-30 or a larger model is the correct fit. Factory visits are welcomed, and sample processing tests using your own edge banding material and substrate are available before order confirmation.
Documentation & Verification
- Machine specification sheet listing your confirmed voltage, frequency, and plug type
- CE declaration of conformity and ISO 9001 certificate included in shipping documentation
- Electrical schematic with voltage confirmation matching your facility supply
- Factory test record run on your specified panel thickness and edge banding material
- Operation and maintenance manual in the language agreed at order stage
- Packing photographs provided before container loading
Installation, Commissioning & Support

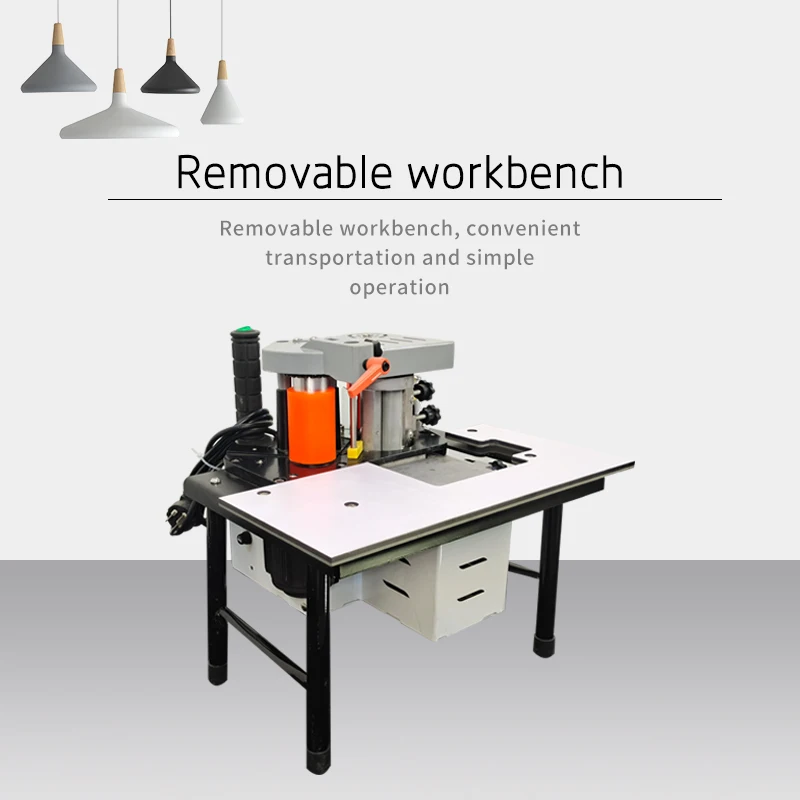

- Requires a stable workbench surface; the 38 × 35 × 35cm footprint fits standard portable tables
- Dedicated 220V or 380V circuit as confirmed; avoid shared lines with heavy motors
- Arrives fully assembled; connect air supply at 0.5–0.8MPa and power on for commissioning
- Glue pot temperature calibration performed against your specific ABS, PVC, or veneer stock
- Multilingual control panel available; operator training covers glue refill and banding feed adjustment
- Spare parts list provided covering heating element, pressure roller, and feed belt
What to Include in Your Inquiry
Send your typical panel material (MDF, particleboard, plywood, or solid wood), the edge banding types and thicknesses you run most often, and your daily panel count so we can confirm whether the ST-30 volume envelope fits your workflow. Specify your local voltage and frequency, and let us know if the control panel needs to be in a language other than Chinese or English.
Frequently Asked Questions
Q: Where does the portable ST-30 sit within the full edge bander range, and when should I step up?
A: The ST-30 is the entry point, designed for low-volume, on-site, or curved-edge work. If your daily panel count requires continuous automated feed, or you need pre-milling and automatic trimming stations, the next tier in the range adds those functions while keeping the same support and spare parts structure.
Q: How is voltage and plug configuration confirmed before shipment?
A: At the quotation stage we request your facility voltage, frequency, and plug standard. The electrical schematic is confirmed with you before production, and a pre-shipment test verifies the glue pot reaches correct temperature on the specified supply.
Q: What edge banding materials and thicknesses are compatible?
A: The ST-30 handles ABS, PVC, melamine, and veneer tapes from 0.3mm to 3mm thickness on both straight and curved edges. For veneer or unfamiliar materials, a sample processing test is recommended to confirm glue temperature and pressure settings.
Q: How do I match this machine to my production volume and panel sizes?
A: The minimum sheet is 25cm long by 3cm wide, and banding height covers 0–50mm. Share your typical panel dimensions and daily quantity; the engineering team will confirm whether the portable unit or a larger automatic model matches your throughput.
