Description
Voltage Confirmed Before Dispatch — every DW602 ships with an electrical schematic matching your local grid, preventing the silent failure of a machine that powers on but cannot run at rated load.
Technical Specifications
| Parameter | Value |
|---|---|

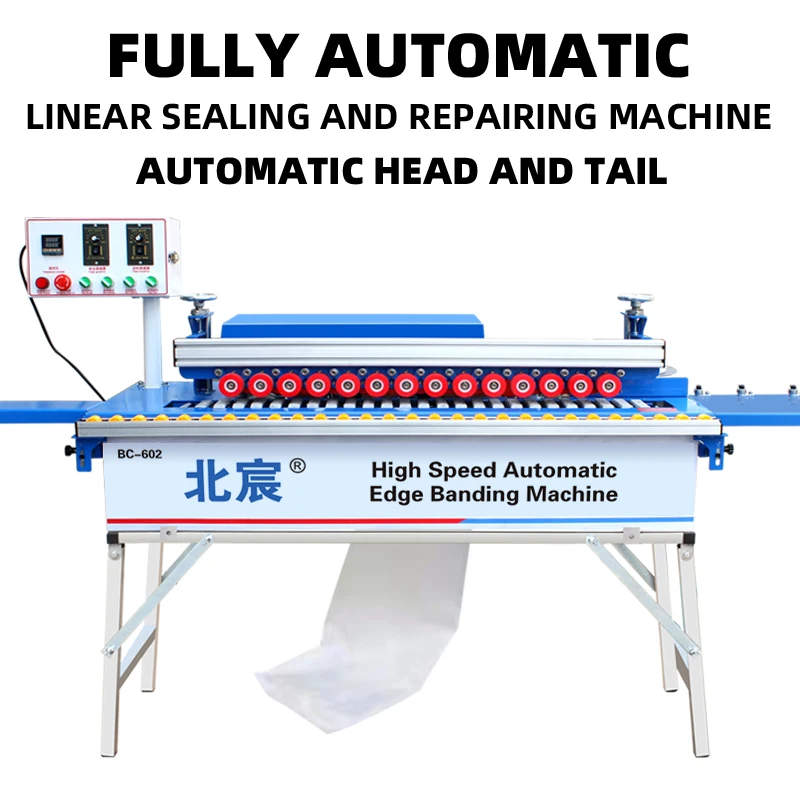

| Model | DW602 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage | 220V/380V/customization |
| Edge Banding Height | 0-50MM |
| Edge Banding Thickness | 0.3-3MM |
| Minimum Sheet Length | 25CM |
| Minimum Sheet Width | 5CM |
| Glue Pot Capacity | 1000ml |
| Trimming Power | 650W×2 |
| Polishing Power | 180W×2 |
| Vacuum Power | 1200W |
| Edge Power | 20W |
| Transmission Power | 60W |
| Air Source Pressure | 0.5-0.8Mpa |
| Product Size | 128×47×69CM |
| Product Weight | 90KG |
| Assembly State | Fully assembled |
| Standard Features | Edge banding, trimming, polishing, automatic head and tail, with vacuum |
| Language Options | Chinese, English, Spanish, French, others customizable |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard with PVC or melamine banding |
| Plywood panel edge sealing | Plywood sheets with veneer or PVC edge strips |
| Custom furniture component banding | Blockboard and wood panels up to 50mm edge height |
| Polymer door profile edging | Polymer substrates with compatible adhesive banding |
| Small-batch workshop production | Mixed substrate runs across MDF, plywood, and particleboard |
Why the Voltage Question Should Come Before the Price
A machine that cannot match your local frequency is not a bargain — it is a 90KG paperweight sitting on your factory floor.
I have stood in a workshop in Southeast Asia watching an operator flip the breaker on a brand-new edge bander, only to hear the glue pot motor hum at the wrong pitch. The voltage was close enough to light the indicator, but the 50Hz supply could not drive a motor wound for 60Hz. The factory had quoted the machine without asking a single electrical question. That edge banding machine for sale sat idle for three weeks while a replacement motor was shipped overseas. [NEED_CITE: voltage and frequency standards by export market]
Matching the DW602 to Your Current Production Stage
The DW602 occupies a specific position in the edge banding machine manufacturer range: it is designed for workshops that have outgrown manual edge trimming but are not yet running continuous shifts. The 0.3-3MM banding thickness range covers the PVC and melamine strips most cabinet shops use daily, while the 0-50MM edge height handles standard panel thicknesses without requiring tooling changes between jobs.
Where This Model Fits in a Growing Workshop

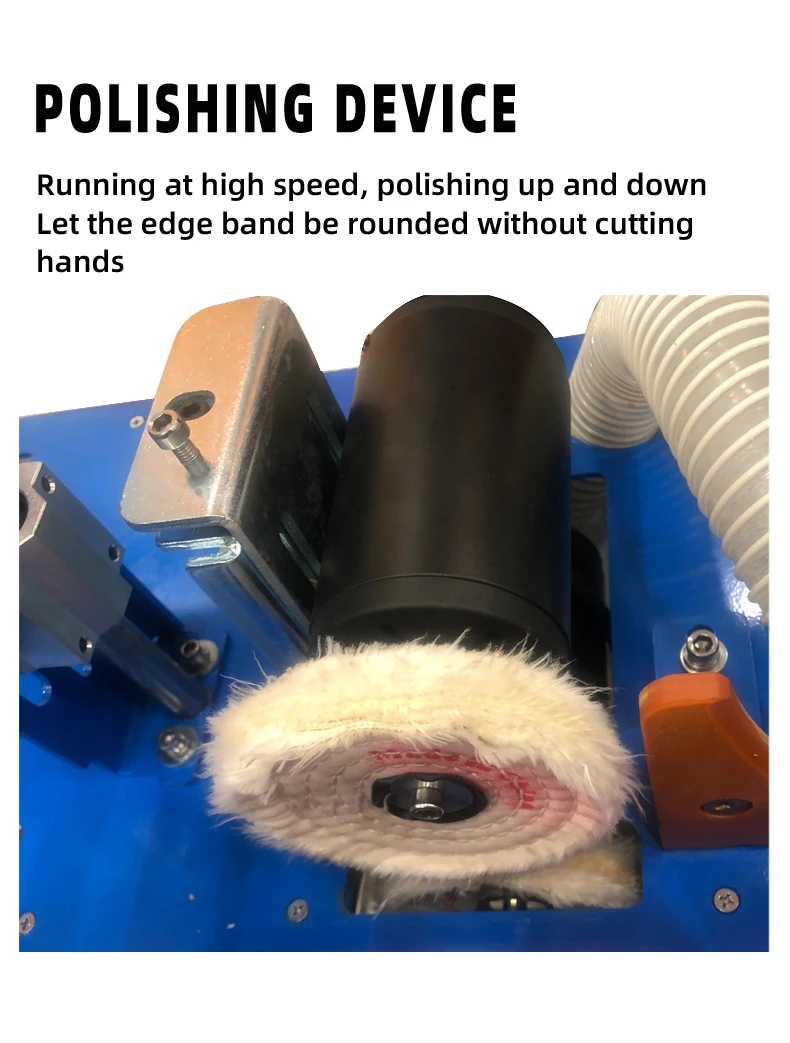

Shops that process a mix of MDF shelving one morning and plywood cabinet sides the next afternoon need a machine that transitions without extensive recalibration. The 1000ml glue pot provides enough adhesive capacity for sustained short runs, and the integrated vacuum system pulls trim waste away from the polishing wheels. When production volume eventually exceeds what a single-operator station can handle, the same edge banding machine manufacturer offers higher-tier models with pre-milling and additional trimming stations, so your operator training and maintenance routines carry forward. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Reading the Specs That Actually Matter on the Floor

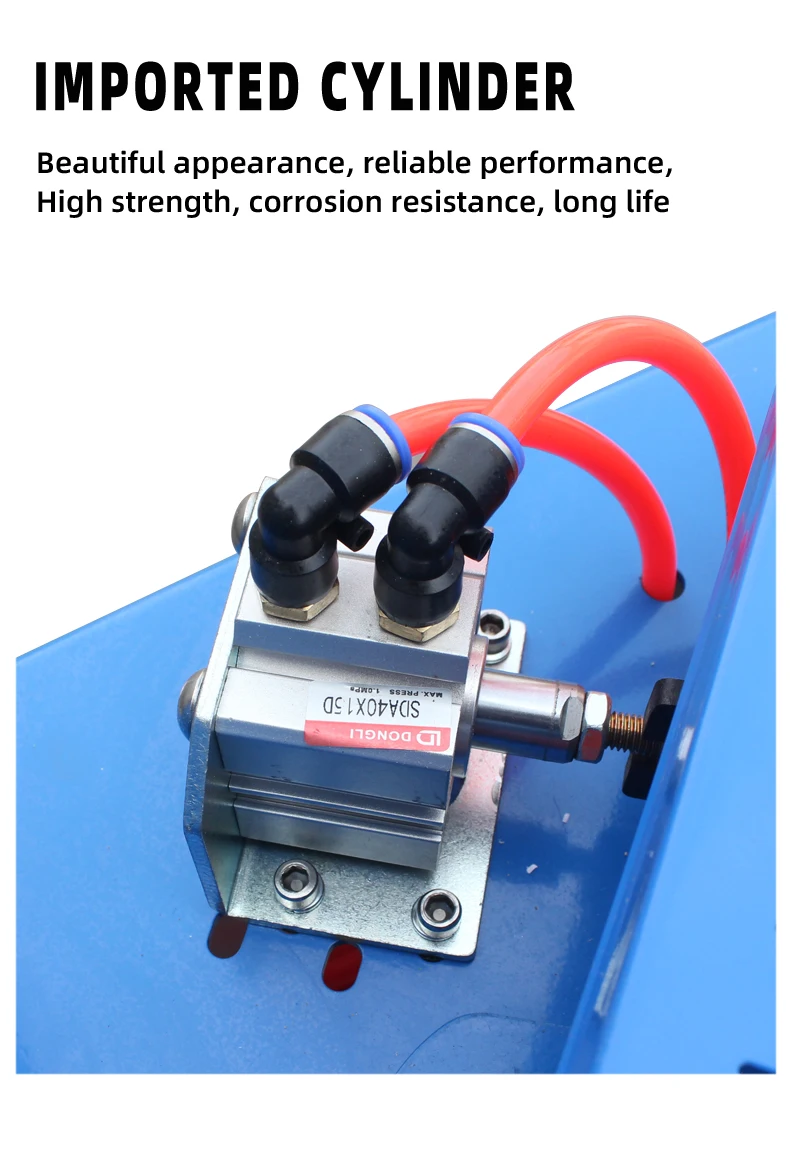

The dual 650W trimming motors deserve attention because trimming power directly affects edge finish on harder substrates. When you run 3MM PVC on particleboard, underpowered trimmers leave a slight ridge at the cut point that shows up as a shadow line under fluorescent lighting. The DW602 trimming motors provide enough torque to cut cleanly through the thicker banding materials in its rated range. Air source pressure at 0.5-0.8Mpa governs how firmly the pneumatic rollers press the banding against the panel edge — too low and you get hollow spots in the glue line, too high and thin veneer strips can crease before the adhesive sets. The 0.5-0.8Mpa range is standard for shop-floor compressors, meaning most workshops will not need a dedicated air line. The 25CM minimum sheet length is worth noting because it determines the smallest offcut you can run through the machine, which matters when you are banding drawer sides or narrow shelving strips that other machines would reject.
The Cost of Skipping Configuration Verification

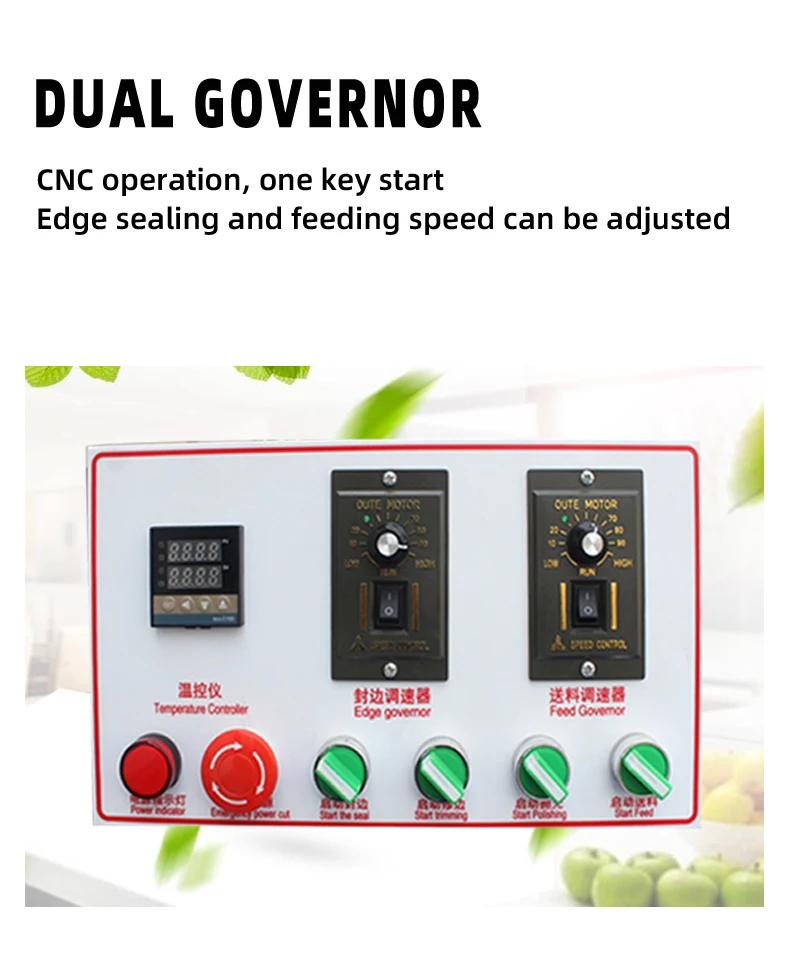

When an edge bander arrives with a control panel in a language the operator cannot read, commissioning stalls before it begins. I have seen a workshop lose two full days because the glue temperature labels were in a script the team could not follow, and guessing wrong on PVC versus veneer settings meant the first batch of panels had to be stripped and re-banded. The same problem appears when feed height on a single machine does not match the panel thickness your existing table saw produces, creating a mismatch that no amount of operator skill can correct. [NEED_CITE: common commissioning delays in exported woodworking machinery]
What Backs This Machine Beyond the Brochure
The DW602 is built in a facility where the cutting mechanism holds a proprietary patent targeting ±0.02mm tolerance, and that tolerance is verified on a test panel before the machine leaves the assembly area. Voltage is confirmed against your supplied electrical specification — not assumed from the destination country — so the motor winding and transformer match your actual grid. The complete edge banding machine manufacturer range runs from this compact model through full-function pre-milling lines, which means a workshop can add capacity later without learning a new supplier’s parts catalog. Every unit goes through four-stage QC that includes a pre-shipment run on actual panel material. Engineer-led configuration means you receive a formal quotation within 24 hours that names the exact voltage, plug type, and control language, not a generic price list.
Documentation & Verification
- CE declaration of conformity covering the DW602 mechanical and electrical safety requirements
- ISO 9001 certificate for the manufacturing quality management system
- Machine specification sheet listing confirmed voltage, plug type, and banding thickness range
- Electrical schematic with transformer and motor winding details matching your local supply
- Factory test record showing edge banding results on your specified panel material
- Operation and maintenance manual in the control panel language you selected
Installation, Commissioning & Support
- The 128×47×69CM footprint fits a standard single-operator station with room for panel staging on both sides
- 3800W total power requires a dedicated circuit matching the confirmed 220V or 380V supply
- DW602 ships fully assembled, so installation is limited to power connection, air line hookup at 0.5-0.8Mpa, and leveling
- First-run calibration covers glue pot temperature for your specific PVC or veneer banding thickness
- Operator training addresses the 25CM minimum sheet length and correct feed technique for narrow stock
- Spare parts list covers trimming blades, polishing wheels, and glue pot seals for routine replacement
What We Need to Configure Your DW602
Provide the panel materials you run most often — MDF, plywood, particleboard, or a mix — along with the edge banding type and thickness you source locally. Confirm your workshop voltage and frequency, the plug standard in use, and the language your operators read on a control screen. If you are replacing a manual process, tell us your current daily panel count so we can verify this model sits in the right production tier for your volume.
Frequently Asked Questions
Q: What panel thickness range does the DW602 handle, and how does it compare to higher-tier models?
A: The DW602 covers an edge banding height of 0-50MM and a banding thickness of 0.3-3MM, which suits standard cabinet and furniture panels in MDF, plywood, and particleboard. Higher-tier models in the range add pre-milling stations and wider feed openings for thicker solid-wood stock. If your production stays within common sheet goods, the DW602 provides the relevant functions without unused capacity.
Q: How is voltage and frequency confirmed before shipment to match local electrical standards?
A: During the quotation stage, you supply your local voltage and frequency. The engineering team then specifies the correct motor winding, transformer, and plug type on the formal quotation document. Before dispatch, the electrical schematic is reviewed against your confirmed grid specification, and the factory test run is performed at that voltage to verify performance under your actual operating conditions.
Q: What edge banding materials are compatible with this model?
A: The DW602 handles PVC, melamine, and veneer edge banding within the 0.3-3MM thickness range. Glue pot temperature and feed speed settings differ between PVC and natural veneer, so the operator manual covers the adjustment procedure for each material type. Confirming your most common banding material at the inquiry stage allows the factory to set baseline parameters before the machine ships.
Q: Can I visit the factory to see the complete machine range before selecting my configuration?
A: Factory visits are welcomed and can be arranged before you finalize your order. During the visit you can see the DW602 alongside higher-tier models with pre-milling and additional trimming stations, run test panels on your own material, and discuss the upgrade path with the engineering team directly. This helps confirm which model in the range matches your current volume and future growth plans.
Q: What is the upgrade path if my production volume exceeds this model’s throughput capacity?
A: The manufacturer produces a complete family of edge banding machines from entry-level to full-function pre-milling configurations. When your volume outgrows the DW602, you can move to a higher-tier model that shares similar control logic and maintenance routines, reducing the learning curve for your operators. The engineering team can advise on the transition point based on your actual daily panel count and shift pattern.
