Description
Precision-Matched Configuration — verified tolerance and line throughput alignment confirmed through pre-shipment sample runs on your actual substrate.
Technical Specifications
| Parameter | Value |
|---|---|

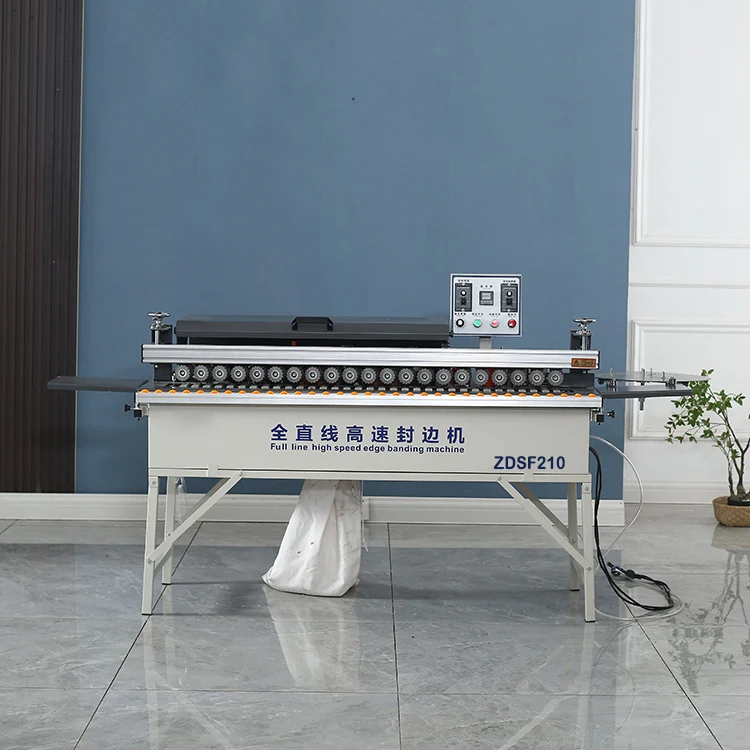

| Model | ZDSF210 |
| Product Type | Full Line High Speed Edge Banding Machine |
| Edge Banding Speed | 6m/min |
| Belt Feed Motor | 25W |
| Board Feed Motor | 120W |
| Trimming Motor | 800W*2 |
| Heating Motor | 800W |
| Vacuum Fan | 1200W |

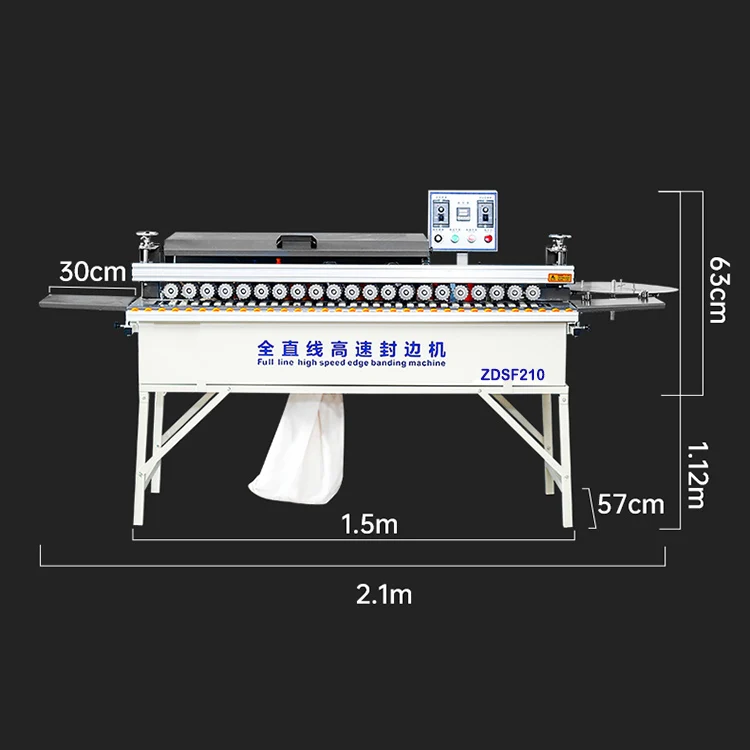

| Overall Dimensions (L×W×H) | 1500570630mm |
| Net Weight | 155kg |
| Glue Capacity | 1000ml |
| Guide Rail Type | Steel rod guide rail |
| Trimming Stations | Up/down, left/right profiling trimming |

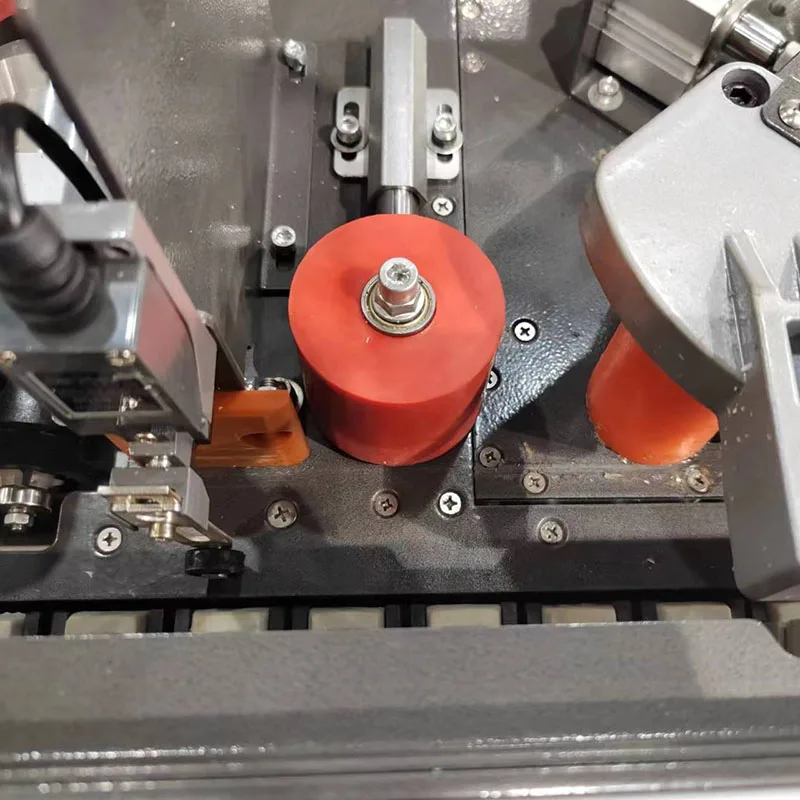

| Pressing System | Elastic device secondary pressing |

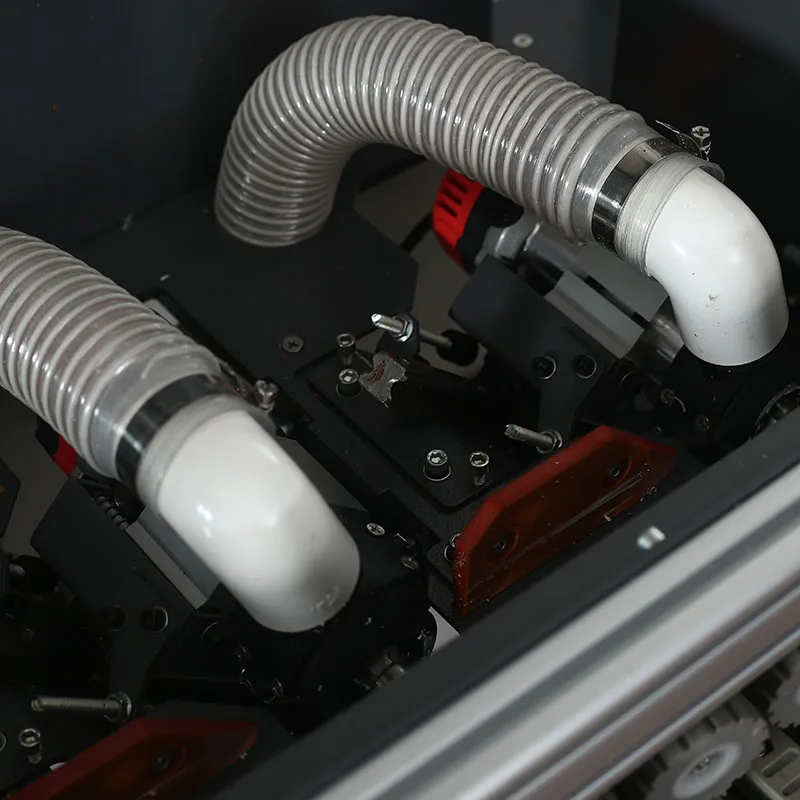

| Dust Extraction | Airtight dust collection and cleaning function |
| Polishing | Cross polishing |
| Scraping | Flexible edge scraping and glue line cleaning |
| Motor Base | Frame type motor base |
| Warranty | 1 Year |
| Core Components Warranty | 1 Year |
| Core Components | Motor, Engine |
| Assembly State | New |
| Video Outgoing-Inspection | Provided |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge finishing | MDF, particleboard, plywood |
| Cabinet door and carcass banding | PVC and veneer edge banding |
| Small to mid-scale workshop production | Straight edge panels for assembly |
| Joinery shop upgrade from manual banding | Solid wood panels and composite boards |
Why the Voltage Question Should Come Before the Price
Confirming local voltage and frequency avoids arriving with an unusable machine on the shop floor.
I have seen Full Line High Speed Edge Banding Machine units arrive at overseas workshops only to sit idle because the three-phase supply on site did not match the motor winding configuration. The heating element and trimming motors draw substantial current, and a mismatch means either the machine trips the breaker repeatedly or the glue pot never reaches working temperature [NEED_CITE: voltage and frequency standards by export market]. This is not a theoretical risk — it happens regularly when quotation stages skip electrical confirmation.
Matching the ZDSF210 to Your Production Stage
This Full Line High Speed Edge Banding Machine sits in the middle-to-upper tier of a complete product family designed so a workshop can scale without changing supplier. The ZDSF210 brings profiling trimming, cross polishing, and flexible scraping into a single pass, meaning panels leave the machine ready for assembly rather than requiring a secondary hand-finishing station.
How the Complete Product Family Reduces Integration Risk
Workshops that buy entry-level machines from one vendor and add capacity from another often discover feed height mismatches or incompatible conveyor speeds between stations. Sourcing the ZDSF210 within the same product family as the rest of the line keeps throughput consistent across cutting, banding, and boring stations. The engineer-led configuration process maps each machine to its neighbors before an order is placed [NEED_CITE: production line integration standards for panel furniture].
What the Specifications Actually Mean for Your Panels
The steel rod guide rail combined with elastic device secondary pressing keeps the panel firmly registered throughout the banding sequence. This matters because even slight lateral drift at the trimming station produces visible step marks on PVC edges. The 800W*2 trimming motors handle profiling cuts on both axes, allowing the machine to follow contoured panel edges rather than only straight runs. With a 1000ml glue pot, the heating motor maintains stable temperature across a batch, which prevents the cold-glue streaks that show up as bubbles under thin veneer. The airtight dust collection system keeps trimmed PVC chips away from the polishing wheel, so the final surface stays clean without manual wiping between boards.
The Cost of Skipping the Substrate Test
Buyers who confirm specifications on paper but never run their actual PVC thickness and board density through the machine often discover problems only after installation. A banding strip that is fractionally thicker than the sample used during quotation requires higher glue temperature and longer pressing time — conditions the machine may not be set for upon arrival. Flexible scraping then removes excess glue unevenly, leaving visible lines that operators spend hours correcting by hand. These downstream rework hours accumulate across every panel in every batch [NEED_CITE: edge banding defect causes in panel furniture manufacturing].
Why Sourcing the ZDSF210 From This Facility Makes Sense
In-house manufacturing with patented cutting mechanisms means the tolerance claimed in the spec sheet is verifiable through factory test records, not just a brochure number. The four-stage QC process — incoming material, in-process, finished product, and pre-shipment verification — catches assembly drift before the machine leaves the floor. Voltage customization from 110V to 440V is treated as a standard configuration step, not a special request. Operation manuals are produced in the language your operators actually read, which eliminates the commissioning stalls caused by mistranslated control panels. Engineer-led configuration recommendations come with a formal quotation within 24 hours, and factory visits are welcomed for buyers who want to see their substrate run through the ZDSF210 before committing.
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 trimming and heating circuits
- Machine specification sheet with confirmed voltage and frequency for your facility
- Factory test record using your panel thickness and PVC banding material before dispatch
- Electrical schematic matching the as-built wiring configuration of your unit
- Operation and maintenance manual in the language agreed during order confirmation
Installation, Commissioning & Support
- Power supply must match the confirmed voltage configuration for the 800W trimming motors and 1200W vacuum fan
- The 1500570630mm footprint requires level floor mounting with clearance for panel infeed and outfeed
- Machine ships assembled with pre-shipment test verification; on-site commissioning focuses on parameter tuning
- First-run calibration includes glue temperature profiling against your specific PVC and veneer stock
- Spare parts list covers wear items for trimming cutters, scraping blades, and polishing wheels with supply lead times
What to Include in Your Inquiry
Provide the exact board materials, thickness range, and PVC or veneer banding dimensions you plan to run. Specify your local voltage and frequency so the motor winding and heating element are configured before production begins. If you have existing cutting or boring equipment upstream, share the model and feed height so throughput alignment can be confirmed during the configuration stage.
Frequently Asked Questions
Q: Where does the ZDSF210 sit within the full product family, and how does it differ from entry-level models?
A: The ZDSF210 is the full-function configuration offering profiling trimming, cross polishing, and flexible scraping in one pass. Entry-level models in the same family handle basic edge banding with fewer finishing stations. The shared platform means you can start with a simpler model and add a ZDSF210 later without changing supplier or dealing with integration mismatches.
Q: How is voltage and frequency confirmed before production?
A: During the quotation stage, you provide your facility voltage and frequency. The engineering team configures the motor windings, heating element, and control transformer accordingly. The electrical schematic included with your shipment reflects the as-built configuration, and the pre-shipment test is run on that exact voltage setup.
Q: Is the 6m/min feed speed suitable for a high-volume production line?
A: The 6m/min speed suits small to mid-scale workshops producing custom furniture and cabinet components. For high-volume lines running thousands of identical panels daily, a higher-speed model within the same product family may be recommended during the configuration review based on your throughput targets and upstream cutting capacity.
Q: Can I send my actual board and edge banding samples for a test run?
A: Yes. Sending your production PVC, veneer, and board samples allows the factory to run them through the ZDSF210 and document the results before you place an order. This confirms glue temperature, pressing pressure, and trimming quality on your specific materials rather than relying on generic test stock.
