Description
In-House Precision Mechanisms — Patented cutting and feeding assemblies built on a 20-year manufacturing base, delivering verified ±0.02mm tolerance you can measure on the shop floor.
Technical Specifications
| Parameter | Value |
|---|---|

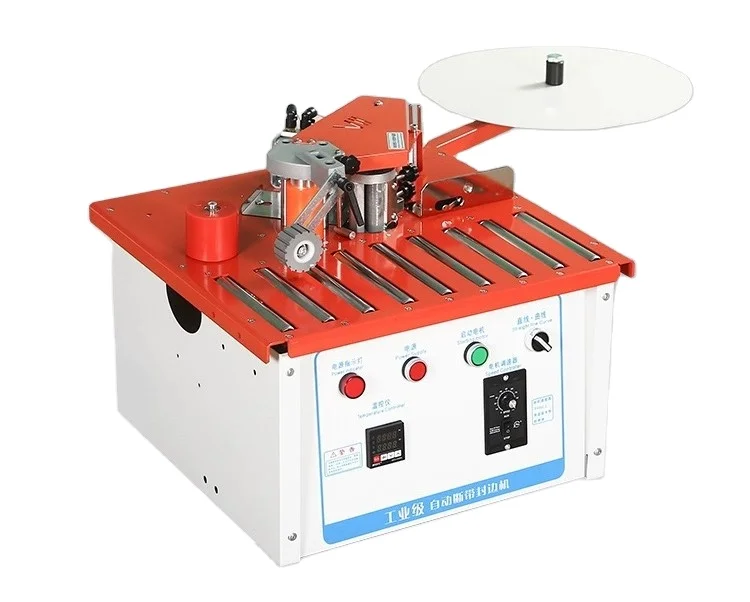

| Model | ZDSF50+ Mini Edge Banding Machine |
| Product Type | Mini Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Power | 1.2 kW |
| Rated Air Pressure | 0.4-0.6 MPa |
| Edge Strip Thickness Range | 0.5-1.5 mm |
| Panel Thickness Range | 10-60 mm |
| Glue Pot Capacity | 1000 ml |
| Glue Heating System | 4 heating tubes |
| Feed Speed | 0-6 m/min |

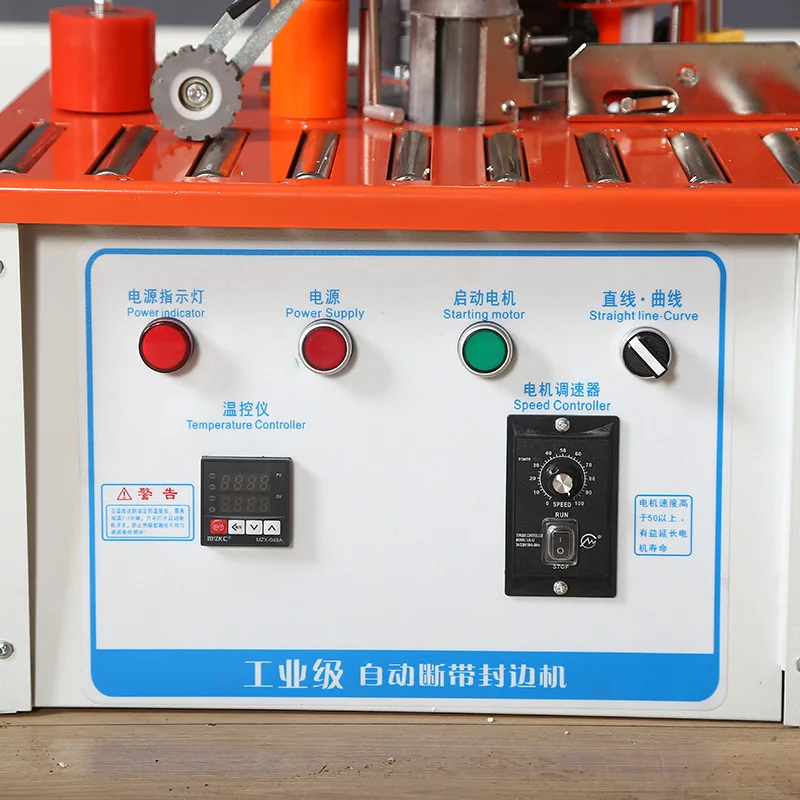

| Tape Breaking Control | Pneumatic, foot switch (curve) / travel switch (straight) |
| Pressure Rollers | Adjustable, rubber material |
| Edge Strip Transport | Adjustable bayonet |
| Heating Time | 5-10 min |
| Overall Dimensions (L×W×H) | 54×54×56 cm |
| Net Weight | 28 kg |
| Key Features | Double-sided gluing, curve and straight-line operation, portable assembly |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge finishing | MDF, plywood, particleboard with PVC edge banding (0.5-1.5 mm) |
| Small-batch joinery production | Solid wood panels and veneer edge banding up to 60 mm thickness |
| On-site furniture installation | Portable edge banding for field adjustments on pre-cut panels |
| Curved panel edge processing | Irregular-shaped MDF and plywood components for custom furniture |
The Voltage Question Most Buyers Skip Until the Machine Arrives
Confirming your local single-phase supply before ordering prevents a machine that cannot be powered on day one.
When a Mini Edge Banding Machine manufacturer ships a unit configured for the wrong voltage or frequency, the machine sits idle while you sort out transformers or return logistics. I have visited workshops in the Yangtze River Delta where a brand-new edge bander was still in its crate two weeks after delivery because the local supply did not match the motor rating [NEED_CITE: voltage and frequency standards by export market]. The ZDSF50+ runs on 220V single-phase power, which is standard for small workshops, but frequency mismatches — 50 Hz versus 60 Hz — affect heating element performance and motor speed. Ruiqi offers voltage customization from 110V to 440V, and the formal quotation process includes a dedicated voltage and frequency confirmation step before production begins.
Mapping the ZDSF50+ Into the Complete Edge Banding Range
The ZDSF50+ occupies the entry position in Ruiqi’s edge banding catalogue, designed for workshops producing small batches or handling on-site finishing work. It shares the same engineering lineage as the mid-range and full-function pre-milling models, meaning a buyer who starts here and later needs higher throughput can move to a larger machine within the same product family without relearning controls or switching supplier. For a Mini Edge Banding Machine manufacturer, maintaining continuity across the range matters — it means spare parts logic, glue chemistry, and operational habits carry forward as your production grows.
What Double-Sided Gluing Actually Changes on a Curved Panel

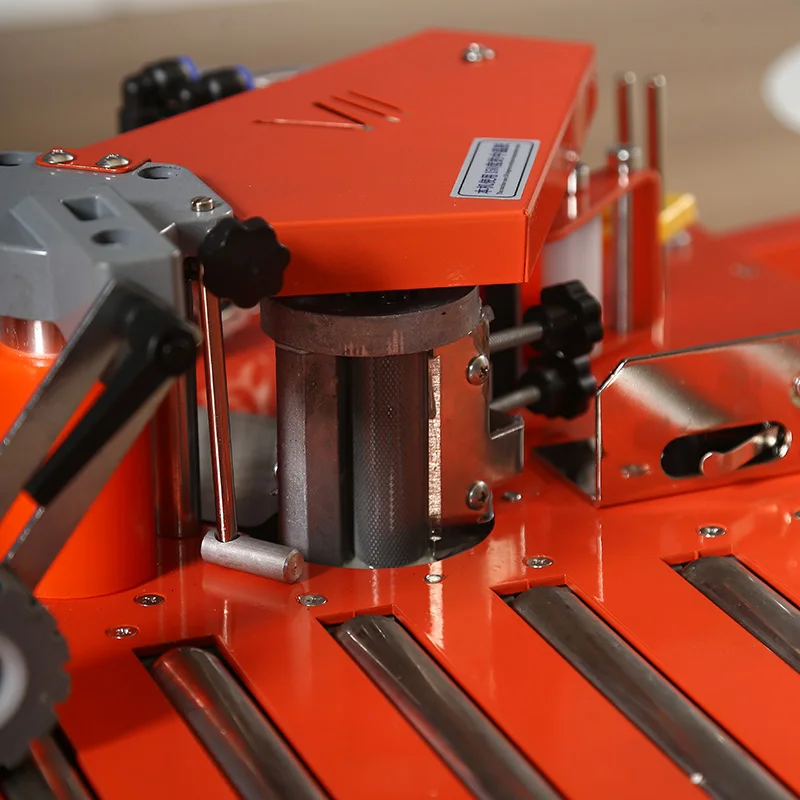

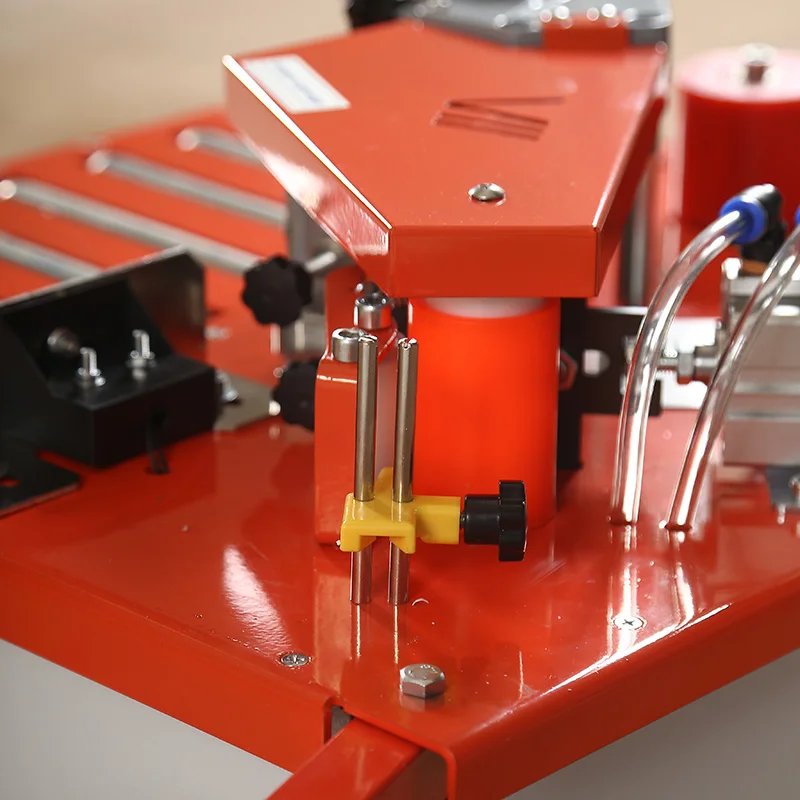

Single-sided glue application leaves the edge strip relying on roller pressure alone to bond against the panel edge. On straight runs this works adequately, but when the panel curves, the strip tends to pull away on the outer radius. The ZDSF50+ applies adhesive to both the panel edge and the strip simultaneously, which gives the bond a second adhesion surface and significantly reduces the lifting risk on radiused work [NEED_CITE: adhesive bonding mechanics for thermoplastic edge banding]. The adjustable bayonet transport adjusts to different strip heights, keeping feed alignment consistent whether you are running 0.5 mm veneer or 1.5 mm PVC.
Reading the Specs That Determine Daily Output Quality

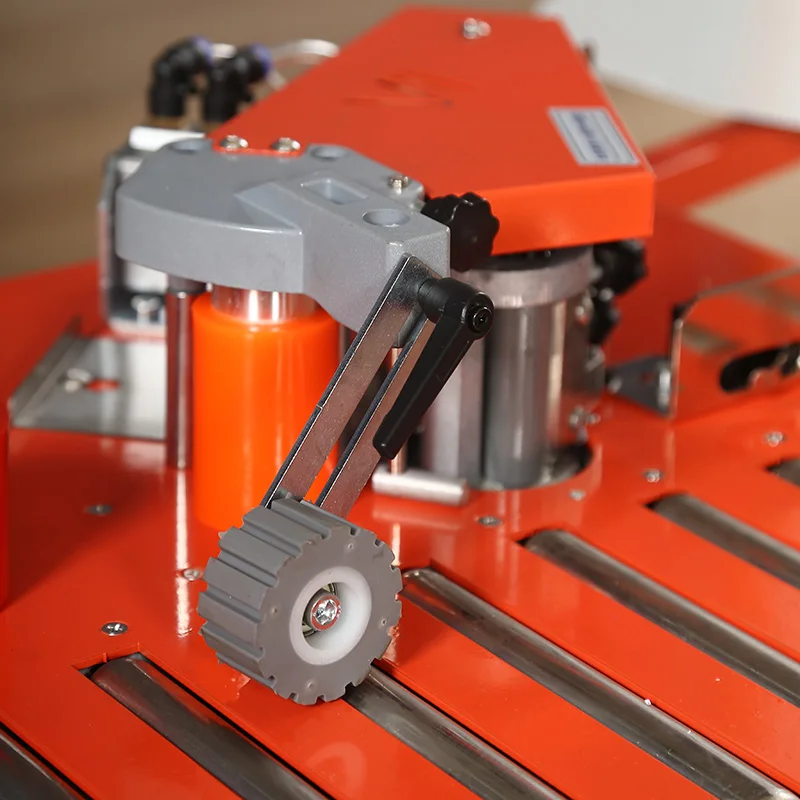

The 0-6 m/min feed speed range is variable rather than fixed, which lets the operator slow down for curves and speed up on long straight edges — a practical necessity when a single cabinet door may have both radiused corners and 600 mm straight sides. The 1000 ml glue pot with four heating tubes brings the adhesive to working temperature in 5-10 minutes, reducing the waiting time between cold start and first panel. Panel thickness capacity spans 10-60 mm, covering standard 18 mm furniture board as well as thicker worktop and shelving panels. The rubber pressure rollers adjust to board thickness, maintaining even contact pressure without marking the surface — important when processing pre-finished plywood or melamine-faced chipboard where surface damage is immediately visible. The 0.4-0.6 MPa air pressure requirement means a standard workshop compressor is sufficient; no dedicated high-pressure system is needed.
The Hidden Cost of Skipping Spare Consumables at Order Time
A mini edge bander uses trim blades and pressure rollers as wear items, and these are the components most likely to need replacement in the first weeks of operation. I recall a small workshop that ordered a compact unit without specifying spare trim blades or an extra set of pressure rollers; within the first week a blade chipped on a particularly hard PVC strip, and the machine was down for five days waiting for parts [NEED_CITE: typical consumable replacement intervals for portable edge banding equipment]. That shop had a cabinet delivery deadline, and the delay cost them more than the spare parts would have. When configuring the ZDSF50+, specifying a consumable kit at the point of order — extra blades, spare rollers, replacement heating tubes — protects your production schedule in ways that ordering later never can.
What Separates This Purchase from a Generic Marketplace Order
Ruiqi’s in-house manufacturing with patented cutting mechanisms means the ZDSF50+ is not a rebadged generic; the tolerance claims are backed by proprietary assembly designs tested on the factory floor. Four-stage quality control — incoming material, in-process, finished product, and pre-shipment verification — is applied to every unit, and the factory test record is available for review before the crate closes. Engineer-led configuration means the quotation you receive is based on your stated panel materials, edge strip types, and local voltage, not a one-size listing. The ZDSF50+ also carries a clear upgrade path: when production volume outgrows portable capacity, Ruiqi’s mid-range and full-function edge banders share the same support infrastructure, so you are not starting a new supplier relationship from scratch.
Documentation & Verification
- CE declaration of conformity covering the ZDSF50+ electrical and mechanical safety requirements
- Machine specification sheet with confirmed voltage, frequency, and air pressure values
- Factory test record documenting glue pot temperature and feed speed verification on your panel material
- Electrical schematic for local electrician review before first connection
- Operation and maintenance manual in the agreed language, covering glue pot cleaning and roller adjustment
- Packing photographs showing the unit secured and accessories verified before crate closure
Installation, Commissioning & Support
- Requires a level workshop surface; the 54×54×56 cm footprint fits a standard bench area
- Dedicated 220V single-phase circuit with correct frequency confirmation before first power-on
- Arrives as a portable compact unit; no heavy machinery rigging required for positioning
- 0.4-0.6 MPa compressed air supply with clean, dry air recommended for pneumatic tape breaking system
- Initial commissioning includes glue pot temperature calibration and pressure roller adjustment to your board thickness
- Consumable kit recommendation at order stage to cover trim blade and pressure roller replacement
What to Include in Your Inquiry
To receive an accurate configuration for the ZDSF50+, share the panel materials and edge strip types you plan to process, along with your local voltage and frequency. Let the engineering team know whether your work includes curved panels or primarily straight edges, and specify the language you need for the operation manual and control interface. If you want a sample processing test on your own material before committing, mention that in the initial inquiry.
Frequently Asked Questions
Q: What panel thickness and edge strip materials can the ZDSF50+ handle, and where does it sit in the Ruiqi range?
A: The ZDSF50+ processes panels from 10 to 60 mm thick with PVC or veneer edge banding between 0.5 and 1.5 mm. It is the entry-level model in Ruiqi’s edge banding family, positioned below the mid-range and full-function pre-milling machines. This means you can start with a compact unit and move to higher-throughput models within the same product family as your workshop scales.
Q: Is the 220V configuration compatible with my local power supply, and can I order a different voltage?
A: The standard ZDSF50+ configuration is 220V single-phase, suitable for most small workshop environments. Ruiqi offers voltage customization from 110V to 440V as part of the standard ordering process. Your local frequency — 50 Hz or 60 Hz — is confirmed during the quotation stage to ensure the heating elements and motor perform correctly in your region.
Q: How do I maintain the glue pot and heating system for consistent edge quality?
A: The 1000 ml glue pot with four heating tubes requires periodic cleaning to prevent adhesive carbon buildup, which affects bonding quality. The operation manual covers recommended cleaning intervals and the correct solvent for your adhesive type. Keeping the adjustable bayonet transport free of dried glue residue also ensures consistent strip feeding across different strip heights.
Q: What upgrade path is available when my production volume outgrows this unit?
A: Ruiqi’s edge banding range includes mid-range and full-function pre-milling models that share the same engineering platform and support structure. When batch sizes increase and you need automated feed systems or additional trimming stations, you can transition to a higher-capacity model without changing supplier or retraining operators on an entirely different control system.
Q: Can I visit the factory or request a sample processing test before ordering?
A: Factory visits are welcomed, and you can observe the ZDSF50+ running on your own panel material during a sample processing test. This lets you verify edge quality, glue adhesion, and strip alignment on your specific substrates before placing an order. The test results are documented and included with your pre-shipment verification records.
