Description
Four-Stage QC — Every ZDSF210 Full Line High Speed Edge Banding Machine undergoes incoming material inspection, in-process checks, finished product verification, and pre-shipment testing to ensure tolerance claims hold up on your shop floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Line High Speed Edge Banding Machine |
| Model | ZDSF210 |
| Edge Banding Speed | 6 m/min |
| Belt Feed Motor | 25 W |
| Board Feed Motor | 120 W |
| Trimming Motor | 800 W × 2 |
| Heating Motor | 800 W |
| Vacuum Fan | 1200 W |
| Glue Pot Capacity | 1000 ml |

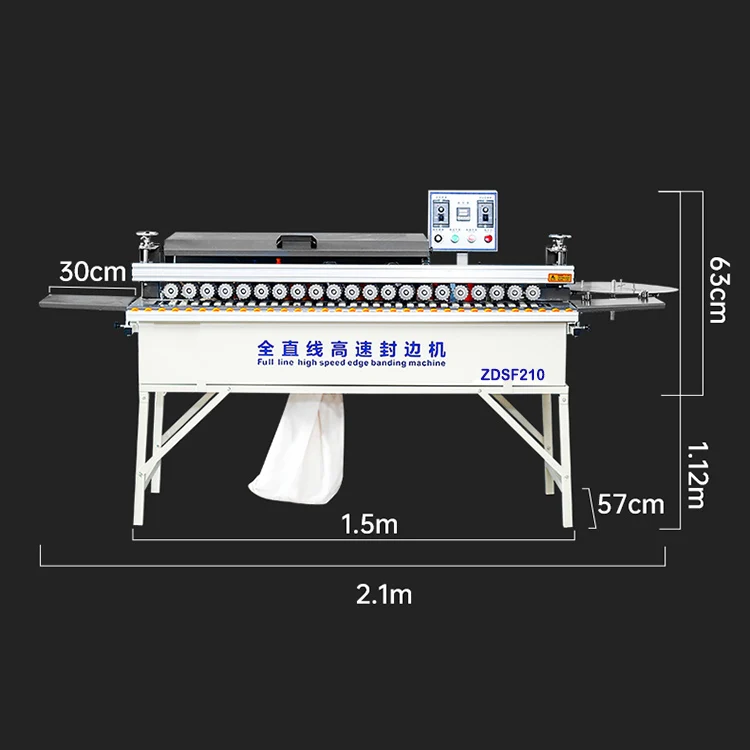

| Overall Dimensions (L×W×H) | 1500 × 570 × 630 mm |
| Net Weight | 155 kg |
| Guide Rail Type | Steel rod guide rail |
| Trimming Function | Up, down, left and right profiling trimming |
| Pressing Mechanism | Elastic device secondary pressing |
| Dust Collection | Airtight dust collection and cleaning |

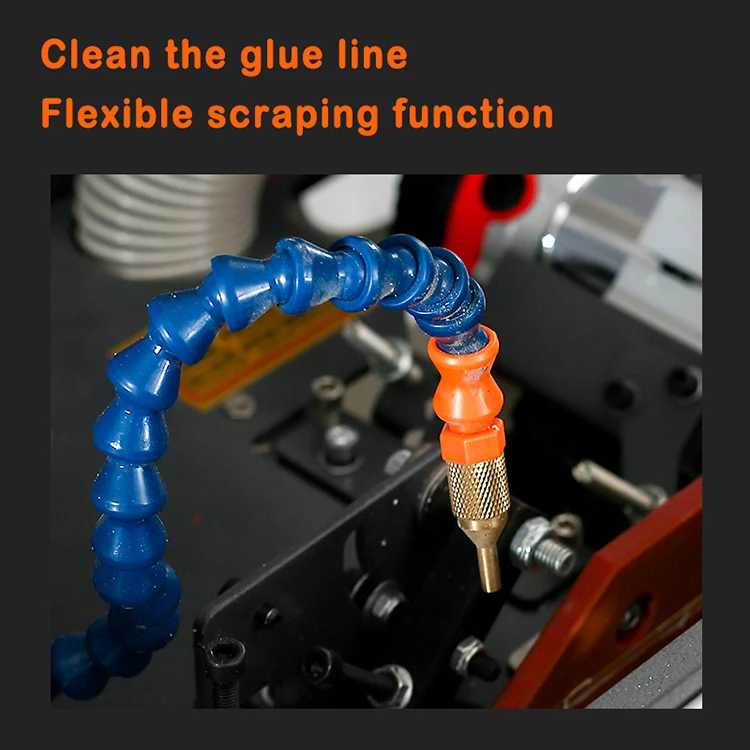

| Additional Stations | Flexible edge scraping, glue line cleaning, cross polishing |

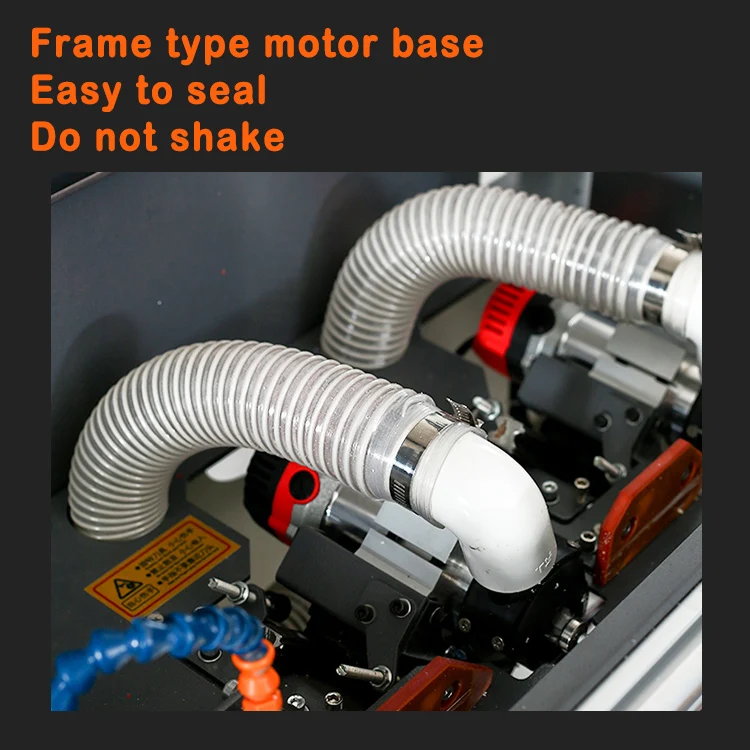

| Motor Base | Frame type motor base |
| Core Components | Motor, Engine |
| Warranty | 1 Year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom MDF furniture panel edging | MDF boards with PVC or melamine edge banding |
| Woodworking door profile banding | Solid wood and composite door frames with PVC profiles |
| Small-to-medium panel processing | Particleboard and plywood sheets requiring clean edge finishing |
| Cabinet and shelving production | Laminated panels with veneer or PVC edge strips |
Why Voltage Confirmation Must Precede the Edge Banding Machine Purchase
An edge bander wired for the wrong supply will destroy its motors within seconds of power-on.
I watched this happen firsthand with a PVC door profile line shipped to a 415 V site. The machine arrived configured for a different standard, and the moment the electrician closed the breaker the main feed motor burned out. Three weeks of downtime followed while replacement windings were sourced and shipped. Since then I have treated voltage and frequency confirmation as a non-negotiable line item on every technical agreement [NEED_CITE: voltage and frequency standards by export market]. The ZDSF210 Full Line High Speed Edge Banding Machine supports configurable voltage settings, but only when the buyer states the local supply before production begins.
How the ZDSF210 Addresses Glue-Line Visibility on Mixed Substrates
Visible glue seams remain one of the most common complaints from furniture factories running MDF and particleboard on the same line. The ZDSF210 Full Line Edge Bander for sale tackles this with an elastic device secondary pressing mechanism that maintains consistent pressure across varying board thicknesses, forcing the adhesive into a thin, uniform film. Downstream, the flexible edge scraping station removes residual squeeze-out before it can harden into a visible ridge. Together these stages reduce the rework that typically follows a panel through final assembly.
Profiling Trimming and Cross Polishing in a Compact Footprint

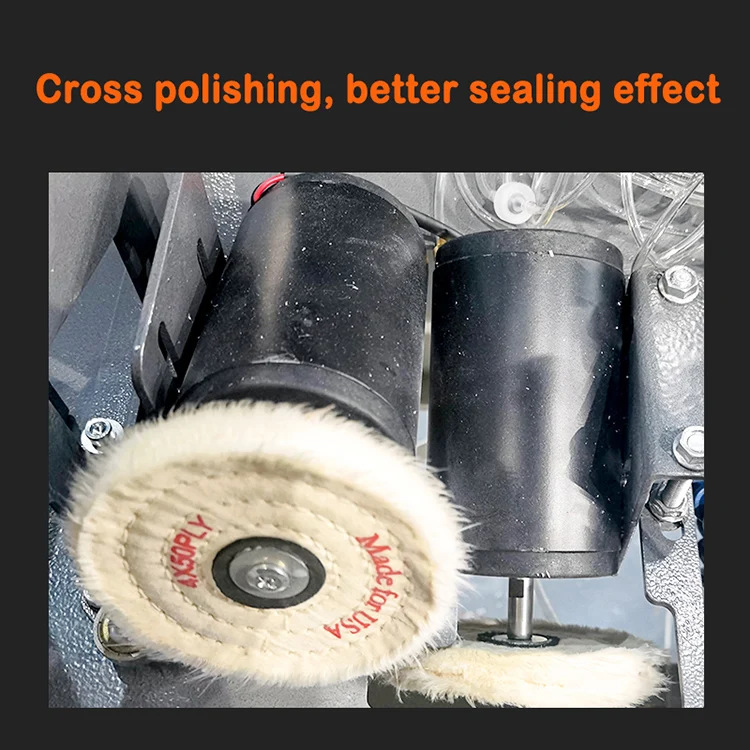

Most workshops moving from manual edge finishing to automated banding face a space constraint. The ZDSF210 packs profiling trimming — with four-axis movement covering up, down, left, and right contour following — alongside cross polishing and glue line cleaning within a 1500 mm frame length [NEED_CITE: CE machinery directive requirements for industrial equipment]. This means a joinery shop can install a complete edge banding cell without reconfiguring the entire floor layout, and still achieve finished edges that pass visual inspection at close range.
Reading the Numbers That Matter for Edge Quality
The 800 W dual trimming motors deliver enough torque to follow contoured PVC profiles without stalling, which is critical when banding shaped door components rather than flat cabinet panels. Feed speed at 6 m/min sits in a range where the glue pot — rated at 800 W heating capacity — can maintain thermal stability across the 1000 ml reservoir, preventing cold spots that lead to poor adhesion on thicker stock. The steel rod guide rail provides smoother linear travel than basic roller systems, reducing micro-vibration that can translate into chatter marks on the trimmed edge. Airtight dust collection pulls trimmings and sanding residue away before they settle on freshly applied glue, a detail that matters when running light-colored PVC on dark MDF substrates.
The Hidden Cost of Skipping Configuration Verification
When an edge bander arrives without confirmed electrical specifications, the buyer faces more than a rewiring bill. Motor replacements on trimming and feed stations can take weeks to source in regions without local distributors, and every day of downtime stalls downstream assembly and delivery schedules [NEED_CITE: typical lead times for replacement industrial motors in emerging markets]. Control panels in an unfamiliar language compound the problem — operators guess at parameter settings, leading to inconsistent feed rates and trimming depth, which surfaces as variable edge quality across production batches. These are not warranty issues; they are configuration oversights that a thorough pre-order technical review would have prevented.
What Manufacturing Depth Means for Your ZDSF210 Order
In-house production of the cutting and trimming mechanisms means replacement parts match the original tolerances, not third-party approximations. The four-stage quality control process — incoming material, in-process, finished product, and pre-shipment verification — catches assembly deviations before the crate leaves the factory floor. Voltage customization is handled as a standard production step rather than a field modification, so the machine arrives wired correctly for your local grid. An engineer reviews your processing requirements and delivers a formal configuration proposal within one working day, reducing the back-and-forth that delays project timelines. Factory visits are welcomed so buyers can witness test runs on their own panel stock before committing to shipment.
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 edge banding machine assembly
- Machine specification sheet confirming motor power breakdown per station
- Electrical schematic with voltage and frequency matching your site supply
- Factory test record showing banding results on your submitted panel samples
- Operation and maintenance manual translated into your operator’s language
- Spare parts list with trimming motor and elastic pressing component references
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage and total connected load across all stations
- Compact 1500 × 570 mm footprint allows placement against a standard workshop wall
- Arrives as a single-unit assembly; minimal on-site reassembly required
- First-run parameter tuning covers feed speed, glue temperature, and trimming depth
- Operator training addresses control panel functions in the agreed language
- Wear items including trimming cutters and pressing springs identified in the spare parts list
What We Need to Configure Your Machine
To prepare an accurate quotation for the ZDSF210, share your primary panel material types and thickness range, the edge banding materials you plan to run such as PVC, veneer, or melamine, and your local voltage and frequency supply. Let us know the language your operators require for the control panel and whether you can send sample boards for a pre-shipment test run.
Frequently Asked Questions
Q: How do I confirm the 6 m/min feed speed suits my panel thickness and edge material?
A: Feed speed interacts with glue open time and trimming motor response. Thicker PVC profiles may require slightly reduced feed rates to allow full adhesive wetting. We recommend sending representative panel and edge samples so we can run a test on the ZDSF210 and document the optimal speed setting for your specific combination before shipment.
Q: What voltage and frequency options are available for the ZDSF210?
A: The machine supports voltage configurations from 110 V to 440 V, with frequency set to match your local grid at 50 Hz or 60 Hz. You must state the exact supply at order confirmation so the motor windings, heating element, and control transformer are built to match. Incorrect voltage is the leading cause of field motor failure.
Q: Can the control panel display be provided in my local language?
A: Yes. Multilingual control panel options are available as part of the standard configuration process. Specify the required language during the technical review stage so the interface is loaded before dispatch, avoiding commissioning delays caused by operators unable to read parameter labels or alarm messages.
Q: Which edge banding materials work with this glue pot and trimming setup?
A: The 1000 ml glue pot and 800 W heating system handle standard PVC, melamine, and thin veneer edge banding. Thicker wood veneer or ABS may require adjusted temperature profiles. The profiling trimming station is designed to follow PVC contours cleanly. Share your material specifications so we can confirm compatibility during the sample test phase.
