Description
Voltage Confirmed Before Production — every ZDSF400 ships only after electrical specifications match the buyer’s local grid, eliminating dead-on-arrival machinery.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF400 |

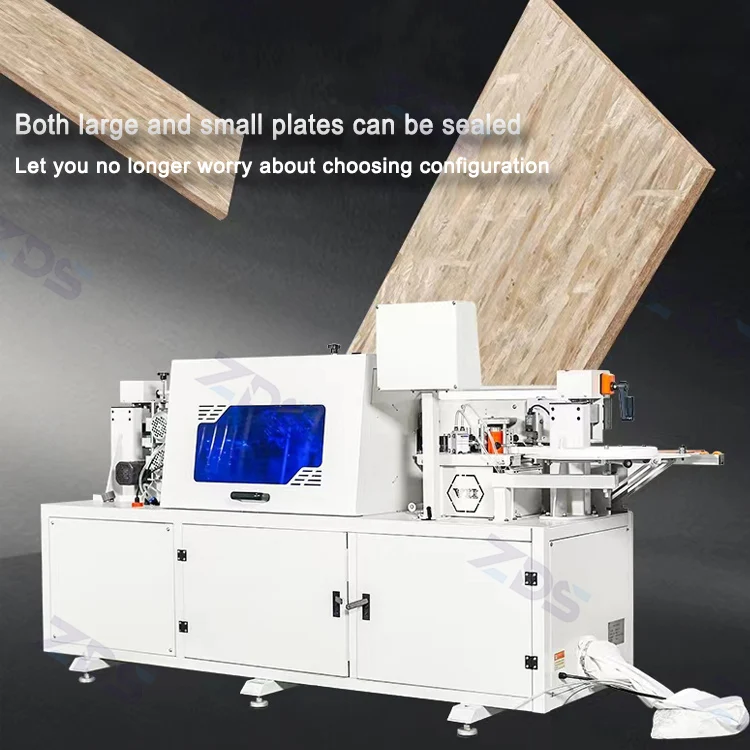

| Product Type | Straight Line Automatic Edge Banding Machine |
| Function Sequence | Gluing, End Cutting, Trimming, Scraping, Polishing, Vacuuming |
| Edge Type | Straight Line |
| Rated Voltage | 220V (configurable from 110V to 440V) |
| Rated Power | 3 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Strip Thickness | 1–3 mm |
| Sheet Thickness | 10–55 mm |
| Feed Speed | 0–14 m/min |
| Conveyor Belt Speed | 0–14 m/min |
| Glue Pot Capacity | 1000 ml |
| Heating Power | 800W (5–10 min heat-up) |
| Trimming Spindle Power | 800W × 2 (24,000 rpm) |
| Polishing Power | 180W × 2 (5,500 rpm) |
| Suction Power | 550W |
| Overall Dimensions (L×W×H) | 240 × 70 × 120 cm |
| Net Weight | 370 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC straight banding |
| Wardrobe panel processing | Plywood panels with veneer edge strips |
| Small-batch furniture production | Solid wood panels up to 55 mm thickness |
| Workshop scaling from manual banding | Automated straight-line edge processing on standard sheet stock |
Why Voltage Confirmation Must Precede Every Quotation
An automatic edge banding machine manufacturer that skips electrical verification is shipping you a problem, not a solution.
I once watched a buyer unpack a machine at a trade show demo only to find the motor wired for 380V three-phase while his facility ran 220V single-phase. The unit sat idle for weeks while transformers were sourced and rewired. With the ZDSF400, rated at 220V standard, Ruiqi confirms local voltage and frequency before production begins — not after the crate arrives [NEED_CITE: voltage and frequency standards by export market]. This single checkpoint prevents the most common commissioning failure in cross-border machinery trade.
Where the ZDSF400 Sits in a Complete Edge Banding Lineup
The ZDSF400 serves as a reliable mid-range option within the full Ruiqi edge banding catalogue. Workshops moving from manual edge banding to automated processing will find its six-function sequence — gluing through vacuuming — covers the essential operations without paying for pre-milling or corner-rounding stations they may not yet need. As production volumes grow, the same supplier offers higher-tier models with additional stations, allowing a furniture factory to scale without learning a new control system or changing service providers.
Matching Feed Speed to Your Daily Panel Volume
Feed speed on this automatic edge banding machine manufacturer model runs from 0 to 14 m/min, which suits light-duty to moderate production schedules. A small cabinet shop running fifty to eighty panels per shift will operate comfortably within this range. Factories planning higher throughput should evaluate whether a faster feed rate or a dual-track conveyor model better matches their daily output targets before committing to a purchase [NEED_CITE: edge banding throughput planning for panel furniture factories].
Reading the Specifications That Actually Affect Edge Quality
The 24,000 rpm trimming spindles are the first spec worth examining. Higher spindle speed produces cleaner cuts on PVC banding, reducing the visible chatter marks that force operators into secondary hand-scraping. The 800W heating element paired with a 1000 ml glue pot maintains stable melt temperature across a full shift — if the glue cools between panels, adhesion fails on the next sheet. Sheet thickness capacity of 10–55 mm covers standard MDF and particleboard as well as thicker solid wood panels used in workbench and shelving production. Strip thickness range of 1–3 mm accommodates both thin veneer and standard PVC, though heavier ABS banding may require a higher-tier model. The 550W suction unit captures trimming debris before it settles on freshly glued surfaces, preventing the contamination that causes edge lift weeks after delivery.
The Cost of Buying a Machine Rated Below Your Actual Material
I have seen edge banders of this class choke when a buyer’s PVC edge banding ran thicker than the stated 3 mm limit. The feed rollers slipped, the trimming blades left ragged edges, and the operator spent hours recalibrating between every batch. Production dropped noticeably, and the machine never recovered its rated feed speed on that material. Buyers who skip verifying strip thickness and sheet thickness against their real stock end up with a machine that technically runs but never delivers consistent output [NEED_CITE: edge banding material specifications versus machine capacity].
Why Procurement Teams Source This Range from One Manufacturer
Ruiqi maintains the ZDSF400 alongside entry-level and full-function pre-milling models, so buyers surveying the complete range can compare stations, feed speeds, and power requirements side by side. In-house manufacturing with patented cutting mechanisms means tolerance claims are verifiable on the factory floor, not just printed on a brochure. Voltage customization from 110V to 440V is treated as standard procedure, not a special request. The four-stage QC process — incoming material, in-process, finished product, and pre-shipment verification — applies to every unit before it leaves Ningjin. An engineer-led configuration recommendation arrives as a formal quotation within 24 hours, giving buyers a documented basis for comparison rather than a verbal estimate.
Documentation & Verification
- CE declaration of conformity covering the ZDSF400 straight-line edge banding configuration
- Machine specification sheet with confirmed voltage, frequency, and electrical schematic for your facility
- Factory test record documenting pre-shipment run on your specified panel thickness and strip material
- Operation and maintenance manual translated into the language your operators will read on the shop floor
- Spare parts list identifying trimming blades, polishing wheels, and glue pot components by part number
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 3 kW total load with appropriate breaker protection
- Overall footprint of 240 × 70 cm needs clearance on both sides for panel feeding and offloading
- Arrives partially assembled with KD-packed small components for straightforward on-site completion
- First commissioning includes setting feed speed, glue temperature, and trimming depth for your material
- 800W heating element reaches operating temperature in 5–10 minutes, allowing same-day production startup
- Routine maintenance focuses on trimming blade inspection, polishing wheel replacement, and glue pot cleaning
What to Share When Requesting a Configuration Proposal
To receive an accurate quotation for the ZDSF400 or a higher-tier model from this automatic edge banding machine manufacturer, share your primary panel material and its thickness range, the edge banding type and strip thickness you run most often, and your local voltage and frequency. If you plan to process both PVC and veneer, note which material dominates your output. Buyers planning a phased line expansion should also mention existing upstream saws or downstream boring equipment so the recommended model integrates with current feed heights and throughput rates.
Frequently Asked Questions
Q: How does the ZDSF400 fit within the full Ruiqi edge banding machine range, and when should I consider a higher-tier model?
A: The ZDSF400 covers six essential functions for straight-line banding on standard panel materials. If your production requires pre-milling for chipboard with rough cut edges, corner rounding for rounded profile furniture, or feed speeds beyond 14 m/min, Ruiqi offers higher-tier models within the same product family so you can scale without changing suppliers or retraining operators.
Q: What voltage and frequency options are available, and how is this confirmed before production?
A: The standard rating is 220V, but configuration from 110V to 440V is available. Ruiqi requests your facility voltage, phase, and frequency before issuing the formal quotation and reconfirms these values on the electrical schematic included in your documentation package, ensuring the machine matches your local supply on arrival.
Q: Which panel materials and edge banding types does the ZDSF400 handle, and what are its thickness limits?
A: This automatic edge banding machine manufacturer model processes MDF, particleboard, plywood, and solid wood panels from 10 to 55 mm thick. It applies PVC and veneer edge strips between 1 and 3 mm. Heavier ABS banding or panels outside this thickness range should be discussed with the engineering team to confirm suitability or identify a better-matched model.
Q: Can I visit the factory to see the ZDSF400 running on my own panel samples?
A: Factory visits are welcomed. You can send your panel samples and preferred edge banding material in advance, and Ruiqi will arrange a production test on the ZDSF400 so you can evaluate edge quality, glue adhesion, and trimming finish before placing an order.
