Description
In-house manufacturing with patented cutting mechanisms — verified tolerance and full voltage customization from a single product family that scales with your workshop.
Technical Specifications
| Parameter | Value |
|---|---|

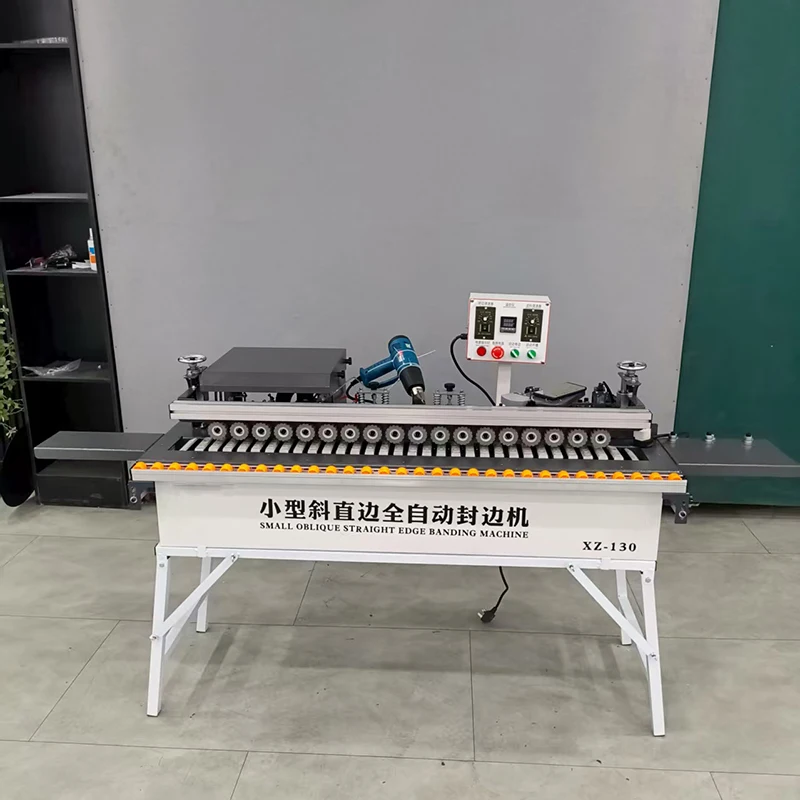

| Product Type | Slanted Straight Edge Banding Machine |
| Overall Dimensions (L×W×H) | 139 cm × 52 cm × 61 cm |
| Panel Thickness Range | 18–25 mm |
| Strip Thickness | 1.2 mm |
| Rated Voltage | 220V (frequency to be confirmed) |
| Glue Pot Capacity | 2000 ml |
| Heating Time | 5–10 minutes |
| Feed Mechanism | Automatic plate feeding |
| Pressure Beam | Aluminum alloy, manually adjustable |
| Trimming System | Elastic profiling trimming |
| Edge Banding Function | Slotting edge banding |
| Heating Method | Hot air heating throughout the process |
| Vacuum Device | Self-contained vacuum unit |
| Glue Type | PUR Hot-Melt Glue |
| Angle Capability | 45 Degree |
| Warranty | One year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood with PVC edge banding |
| Slanted profile edge sealing | Particleboard panels at 45-degree bevels |
| Small-batch furniture component banding | Solid wood panels with PUR hot-melt adhesion |
| Workshop prototyping and sample runs | Various substrate and PVC strip combinations |
Why the Voltage Question Should Come Before the Price
Confirming local voltage and frequency compatibility prevents a machine from arriving dead on the shop floor.
I have seen woodworking shops in the Gulf region take delivery of edge banders wired for 380V three-phase, only to find their facility runs on 220V single-phase. The Slanted Straight Edge Banding Machine for sale in this range is configurable, but the specification must be locked in before production begins. A machine that cannot power up is not a delay — it is a stranded asset sitting in a crate while your cabinet orders pile up [NEED_CITE: voltage and frequency standards by export market].
Where This Model Sits in the Full Catalogue
This unit occupies the compact, multifunction tier of the broader edge banding range. It handles both straight and 45-degree slanted profiles on PVC banding with PUR hot-melt glue, making it a practical starting point for workshops that need profile versatility without committing to a full-function pre-milling line. The Slanted Straight Edge Banding Machine for sale here shares the same product family DNA as higher-throughput models, so upgrading later means staying within one supplier ecosystem rather than requalifying a new vendor.
Scaling Without Switching Suppliers
Workshops often buy a single edge bander, then discover six months later that throughput demands have outpaced the machine’s design envelope. Because this model belongs to a tiered family, the path from entry-level slanted-straight capability to a fully automated line with pre-milling and multi-stage trimming stays within the same engineering platform. Configuration changes — voltage, control panel language, glue system — are addressed at the quotation stage rather than as field retrofits [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specifications That Matter
The 18–25 mm panel thickness range defines which stock this machine can process cleanly. Panels thinner than 18 mm may not seat firmly against the aluminum alloy pressure beam, while boards above 25 mm exceed the manual adjustment travel. The 1.2 mm strip thickness pairs with PVC banding commonly used in cabinet production; thicker wood veneer strips would require a different feed and trimming configuration. Hot air heating throughout the full process keeps the PUR adhesive at bonding temperature from application through profiling, which matters in workshops where ambient temperature fluctuates between morning starts and afternoon runs. The self-contained vacuum device means no separate dust extraction ductwork is needed — a practical advantage for compact shops where floor space limits infrastructure.
The Cost of Skipping the Substrate Check
I once specified an edge bander for a furniture factory based on their stated material list, only to arrive on site and find they were running recycled particleboard with high moisture content. The PUR hot-melt glue would not bond reliably, and edge strips peeled away within days. Machines in this class perform well on stable substrates, but PUR adhesive is sensitive to moisture and surface contamination. Skipping a material compatibility test before ordering means discovering the problem after the machine is installed and production deadlines are already slipping [NEED_CITE: PUR adhesive bonding requirements on engineered wood substrates].
Why Source Through This Catalogue
Every machine in this range is built in-house with patented cutting mechanisms and verified tolerances, not rebranded from a third-party assembler. Voltage customization from 110V to 440V is handled as a standard configuration step, not a special request. The four-stage quality control process covers incoming material inspection through pre-shipment verification, so the unit you receive has been tested under load before crating. Engineer-led configuration recommendations mean the quotation you receive accounts for your actual panel stock, local power supply, and production volume rather than defaulting to a generic build. Factory visits are welcomed for buyers who want to see the assembly floor before committing.
Documentation & Verification
- Machine specification sheet confirming your panel thickness and strip thickness requirements
- Electrical schematic with voltage and frequency matched to your facility supply
- Factory test record on your specific substrate and PVC banding material before dispatch
- Operation and maintenance manual provided in your agreed language
- CE declaration of conformity and ISO 9001 certificate included with shipment
- Spare parts list with part numbers for consumable and wear components
Installation, Commissioning & Support
- Footprint of 139 cm × 52 cm requires a level concrete floor with clearance for panel infeed and outfeed
- 220V power supply on a dedicated circuit; confirm 50 Hz or 60 Hz before wiring
- Machine ships with glue pot and vacuum unit integrated — no separate ductwork installation required
- First-run parameter setup includes adjusting the aluminum alloy pressure beam to your panel thickness
- Operator training covers PUR glue pot temperature management and elastic profiling trimming adjustment
- One-year warranty with spare parts list provided at delivery for ongoing maintenance scheduling
What to Include With Your Inquiry
Send your panel material type, typical board thickness, and the edge banding strip specifications you run most often. Include your facility voltage and frequency so the electrical configuration can be confirmed at the quotation stage. If you need the control panel in a specific language or plan to integrate this unit with existing upstream or downstream equipment, note that in your initial message so the engineering team can address compatibility from the start.
Frequently Asked Questions
Q: How does this model fit within the full edge banding machine range?
A: This unit is positioned as the compact, multifunction entry in a tiered product family. It covers both straight and 45-degree slanted profiles with PUR hot-melt glue. As your production volume grows, higher-tier models in the same family add pre-milling and additional trimming stations without requiring a supplier change.
Q: What panel and strip thickness combinations are supported?
A: The machine handles panels from 18 to 25 mm thick with PVC edge banding up to 1.2 mm strip thickness. Boards outside this range may require a different model in the catalogue. Confirming your actual stock dimensions during the quotation stage ensures the right configuration is specified.
Q: Can the voltage be configured for my local power supply?
A: Yes. Voltage is configurable from 110V to 440V as a standard option. Frequency must also be confirmed — 50 Hz or 60 Hz — before production. The electrical schematic provided with the machine reflects your confirmed supply specifications.
Q: What edge banding materials and profiles work with this machine?
A: This model is designed for PVC edge banding applied with PUR hot-melt glue, supporting both straight and 45-degree slanted edge profiles. If you work with wood veneer or melamine strips, a different glue system or feed configuration may be needed — raise this during the inquiry stage.
Q: How do I arrange a sample test or factory visit?
A: You can send representative panel samples and edge banding strips for a processing test on the actual machine before ordering. Factory visits are also available for buyers who prefer to inspect the assembly line and verify build quality in person.
