Description

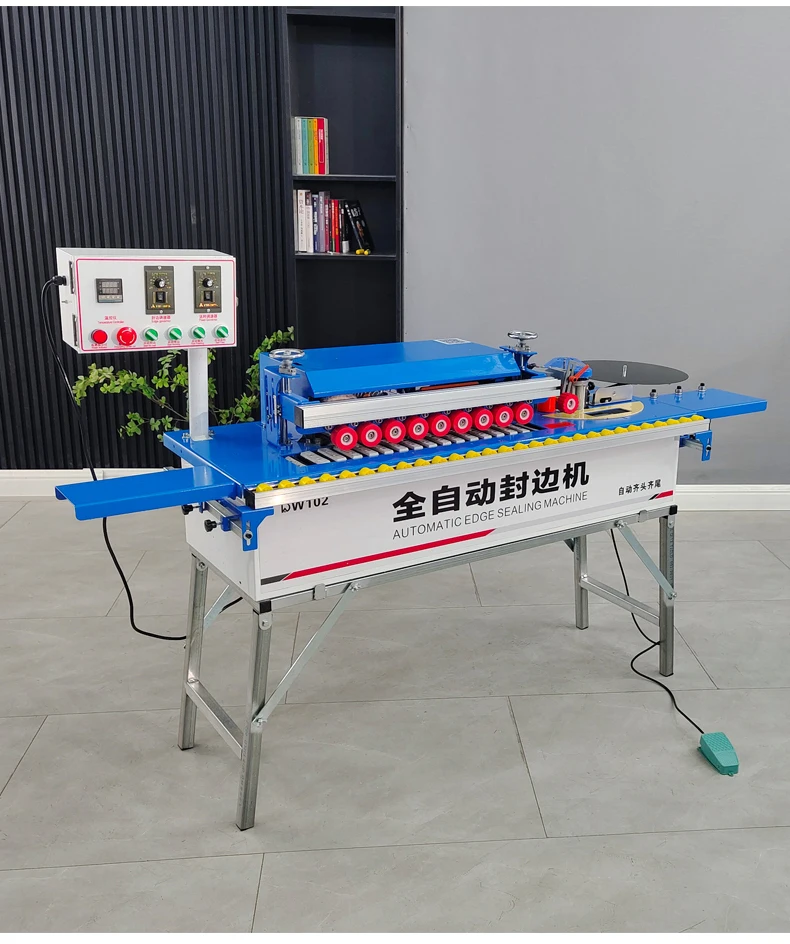

Verified Tolerance Path — Every DW102 portable edge banding machine leaves the factory with a documented test record confirming ±0.02mm precision on your specified panel material before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Portable Edge Banding Machine |
| Total Power | 3800W |
| Voltage Options | 220V / 380V / customization |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Transmission Power | 60W |
| Product Size | 128 × 47 × 69 cm |
| Product Weight | 75 kg |
| Key Features | Curved and straight edge banding, edge trimming, polishing, automatic head-and-tail cutting, vacuum assist, multilingual control panel (Chinese, English, customizable) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and drawer front banding | MDF, particleboard, plywood with PVC or veneer edge banding |
| Custom furniture curved panel finishing | Blockboard and solid wood panels with 0.3–3 mm banding material |
| Small-batch workshop production | Polymer door panels and wood-based substrates requiring both straight and curved profiles |
| On-site or limited-space joinery work | Sheet stock from 25 cm minimum length across standard furniture panel thicknesses |
Why the Voltage Question Must Come Before the Model Selection
Locking down your local supply voltage and frequency before choosing any edge banding machine for sale prevents dead-on-arrival equipment and weeks of line downtime.
I once saw a full-auto edge bander shipped to a cabinet shop in Spain without confirming the electricals. A 400V unit landed in a 480V facility and sat idle for three weeks while they sourced a transformer. That mistake shaped how I approach every configuration conversation now. Whether it is a compact portable unit or a heavy-duty pre-milling station, the DW102 Woodworking Edge Bander manufacturer configuration starts with your voltage and plug type — not the other way around. [NEED_CITE: voltage and frequency standards by export market]
Mapping the DW102 Within a Scalable Machine Range
The DW102 occupies the portable tier in a complete edge banding machine family that extends from this compact unit through to full-function automated lines with pre-milling, corner rounding, and buffing stations. Workshops evaluating their first edge bander or adding curved-edge capability to an existing line can position this model against higher-tier options without switching supplier. The full catalogue on this site shows each tier side by side so buyers can see exactly where portable banding ends and inline automation begins. This clarity matters when a joinery shop plans phased investment — starting with curved and straight portable work now, then stepping up to a through-feed model as volume grows.
Substrate Behaviour and Edge Quality Across the Range
Different panel materials respond differently to glue temperature, feed pressure, and trimming blade geometry. MDF tends to absorb more adhesive than plywood, while particleboard edges can chip if the trimming cutters are not matched to the board density. The DW102 handles banding thickness from 0.3 to 3 mm across these substrates, but the real test is whether the glue line remains invisible after trimming and polishing. [NEED_CITE: CE machinery directive requirements for edge banding equipment safety] When comparing this portable model against larger units in the range, buyers should request sample processing on their actual panel stock — the same material, the same banding tape, the same ambient temperature their workshop operates in. That sample run reveals more than any specification sheet.
Reading the Specs That Actually Affect Your Output

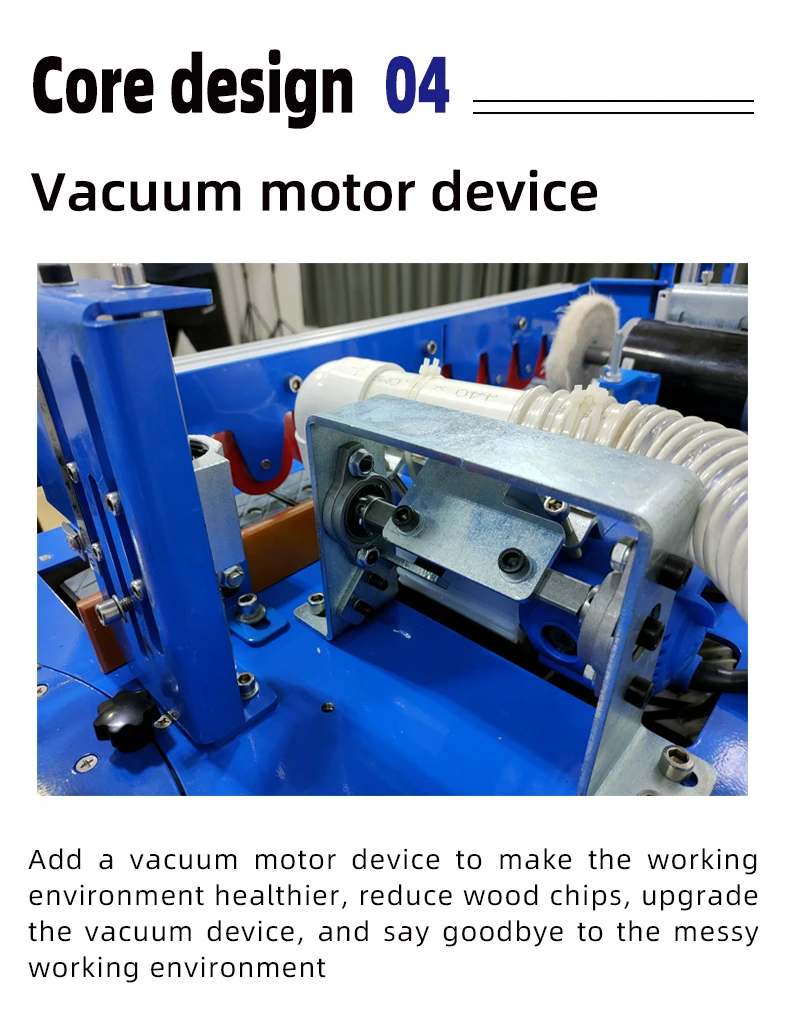

The 3800W total power budget splits across trimming (650W × 2), polishing (180W × 2), vacuum (1200W), and transmission (60W). That 1200W vacuum motor matters for workshops cutting curved profiles — insufficient suction on a curve lets the banding lift before the adhesive sets, leaving visible gaps on the finished edge. The 0.5–0.8 MPa air pressure range drives the automatic head-and-tail cutting mechanism; shops running multiple pneumatic tools on a shared compressor should verify their supply holds steady at the upper end of that range during simultaneous use. The 1000 ml glue pot capacity suits batch work rather than continuous production — operators running long straight runs throughout a full shift will find themselves refilling more often than on a larger machine with a pressurized glue system. Edge banding height from 0 to 50 mm covers standard 18 mm and 25 mm furniture panels with margin for thicker stock.
The Hidden Cost of Buying a Single Machine Without the Range Context
Workshops that source one portable bander in isolation often discover it cannot integrate with the feed height or throughput of their existing panel saw or drilling station. The result is a bottleneck that forces manual handling between machines, negating the productivity gain the bander was supposed to deliver. Others find the control panel language does not match their operators, stalling commissioning while they search for translation. [NEED_CITE: common commissioning delays in exported woodworking machinery] These are not equipment defects — they are configuration oversights that surface only after the crate is opened.
Why Source This Edge Banding Machine for Sale Through the Full Catalogue
The DW102 is manufactured in-house with the same proprietary cutting mechanisms used across the entire edge banding range, so tolerance claims are verifiable on the factory test floor rather than borrowed from a third-party assembler. Voltage, plug type, and control panel language are configured to your specification before production starts — not adjusted after the fact. The four-stage quality control process covers incoming material, in-process assembly, finished product testing, and pre-shipment verification with documented records. Engineer-led configuration means you receive a formal quotation referencing your exact panel sizes, local voltage, and language requirement within 24 hours. Factory visits are welcomed so you can see the DW102 running alongside higher-tier models and compare edge quality on your own material.
Documentation & Verification
- CE declaration of conformity covering the DW102 portable edge banding machine
- Electrical schematic confirming your specified voltage, frequency, and plug type
- Factory test record on your panel thickness range and banding material before dispatch
- Operation and maintenance manual in your agreed language with illustrated troubleshooting
- Spare parts list with part numbers matching the as-built configuration
Installation, Commissioning & Support
- Verify a dedicated 220V or 380V circuit matching the confirmed DW102 voltage before delivery
- Allocate floor space of at least 150 × 70 cm around the 128 × 47 × 69 cm footprint for operator access
- Connect compressed air supply rated to 0.8 MPa minimum with a dedicated regulator for consistent head-and-tail cutting
- Confirm control panel language setting matches operator requirements during initial power-on
- Schedule first-batch test runs with your actual panel stock to verify glue temperature and trimming alignment
Start Your Configuration
To move forward, share your primary panel material and thickness range, the edge banding tape width and material you plan to use, and your workshop voltage and frequency. Let us know your preferred control panel language and plug type. If you are evaluating the DW102 alongside other models in the range, tell us your daily panel volume and whether curved-edge work is a regular requirement or occasional need.
Frequently Asked Questions
Q: Where does the DW102 sit in the full edge banding machine range, and when should I step up to a larger model?
A: The DW102 is the portable tier, ideal for curved and straight banding on batches of varying panel sizes. When your daily volume shifts to long runs of identical panel dimensions with consistent straight edges only, a through-feed automatic edge bander from the same product family delivers higher throughput with multi-station trimming and polishing in a single pass.
Q: How do I confirm voltage, frequency, and plug type match my local supply before ordering?
A: Provide your workshop supply voltage, frequency in Hz, and plug standard during the inquiry stage. An electrical schematic confirming these values ships with your quotation. The DW102 supports 220V and 380V configurations with EU, USA, AU, and UK plug options, plus custom arrangements for other markets.
Q: What control panel language options are available beyond English and Chinese?
A: The standard DW102 panel ships in Chinese or English, with Spanish and other languages available on request. Confirm your operator language at the quotation stage so the control interface, manual, and on-screen prompts all match before the machine leaves the factory.
Q: Can I visit the factory to compare the DW102 against other edge banding models?
A: Factory visits are welcomed. You can run your own panel material and edge banding tape on the DW102 and on larger models side by side, comparing edge quality, glue line visibility, and trimming finish under the same conditions before deciding which tier fits your production plan.
Q: What documentation ships with the machine?
A: Each DW102 ships with a CE declaration, machine specification sheet, electrical schematic matching your confirmed voltage, factory test record, operation manual in your agreed language, spare parts list, packing photographs, and customs documentation support for your destination market.
