Description
Verified Tolerance in Production — the 802 edge bander holds ±0.02mm precision across straight-line runs on MDF and plywood, backed by a four-stage QC record before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|

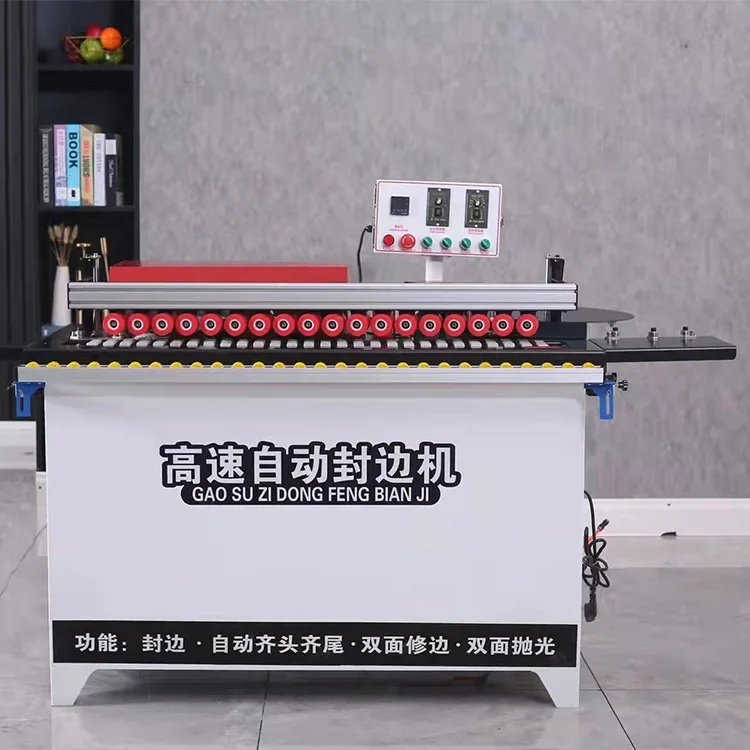

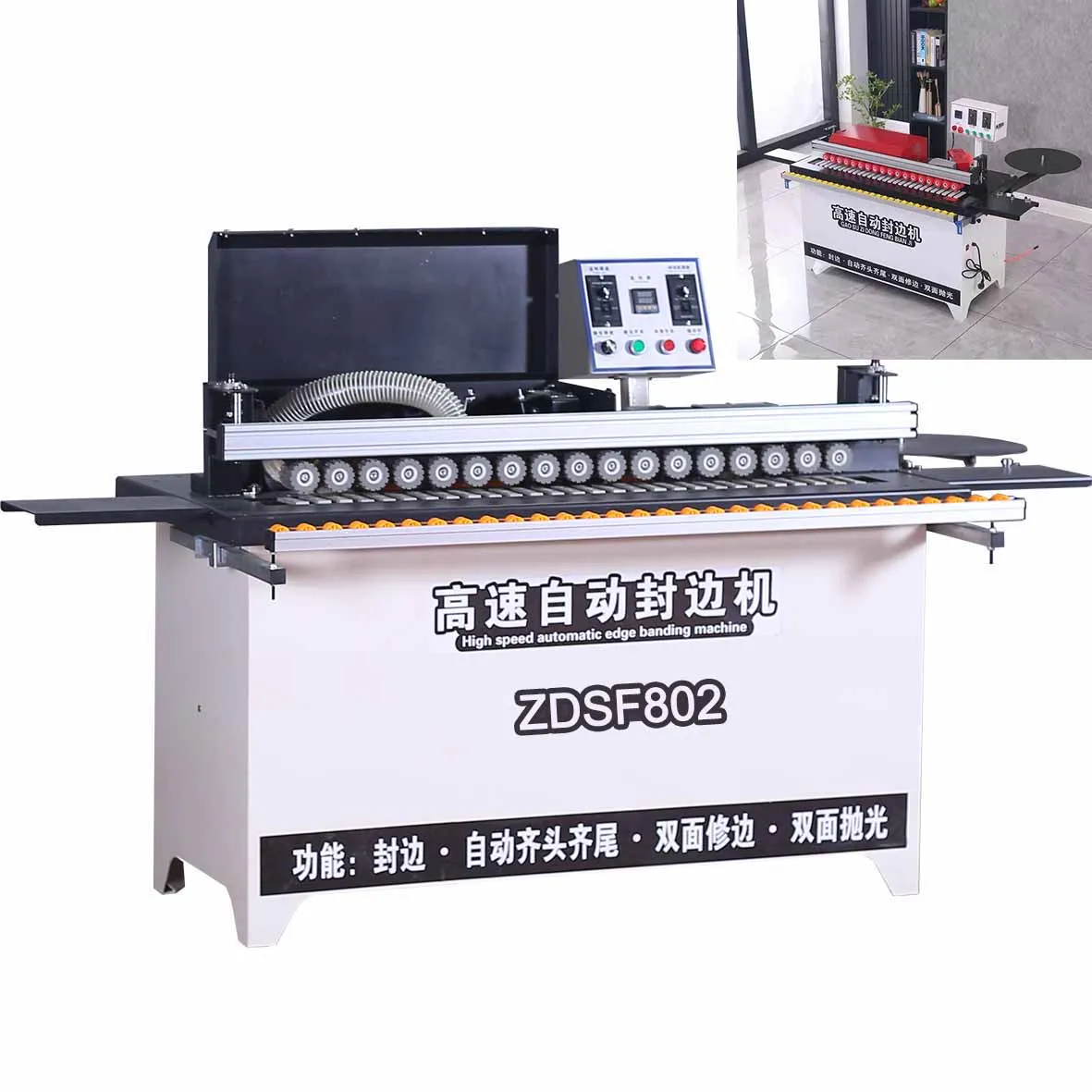

| Model | 802 |
| Product Type | Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, end cutting, upper and lower polishing, head and tail trimming |
| Edge Type | Straight line |
| Rated Voltage | 220V (configurable 110V–440V) |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |

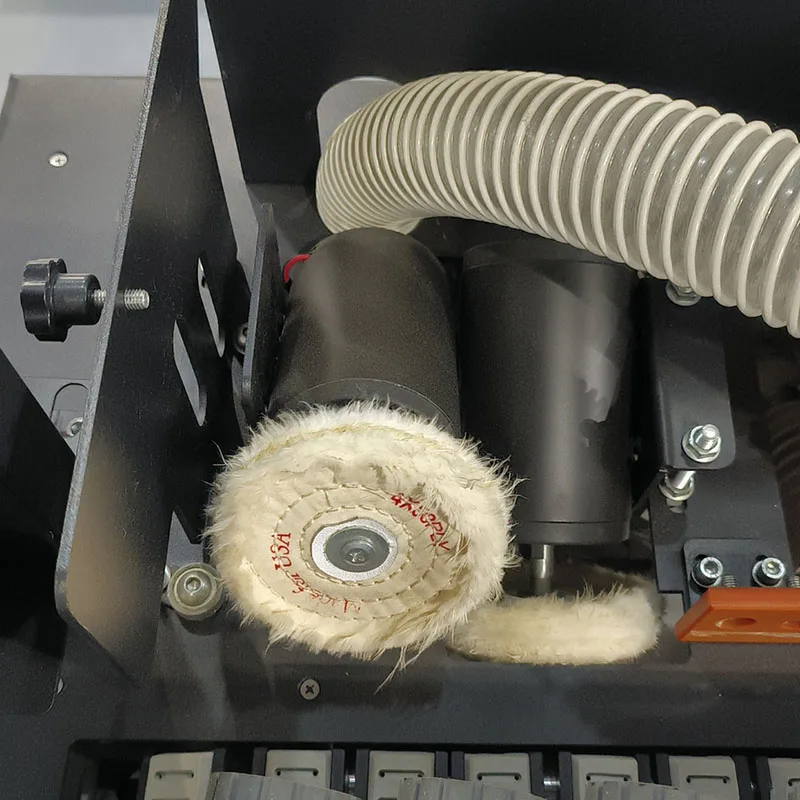

| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W (5–10 min heat-up) |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Pressure Beam | One-piece integrated, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Control Panel | Digital display of glue pot temperature, independent switches |
| Belt Breaking Method | Pneumatically controlled |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Key Features | Built-in dust collector, extendable fluent strips, single-unit order support |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, plywood, particleboard up to 50 mm thickness |
| Cabinet door and carcass production | PVC edge banding 0.5–2.5 mm |
| Joinery workshop straight-line finishing | Veneer edge banding on solid wood panels |
| Small-to-medium batch panel processing | Melamine-faced and laminated substrates |
Why Voltage Confirmation Matters Before You Compare Edge Banding Machine Manufacturers
Local voltage and frequency must be locked in before a formal quotation is issued, not after the machine arrives.
I watched a cabinet maker in Shandong lose two full weeks of production because the edge bander they ordered was wired for 380V three-phase while their workshop only had 220V single-phase available. The motor burned out on first start-up. When sourcing an automatic edge bander for sale from an overseas edge banding machine manufacturer, the rated voltage on the nameplate has to match your facility supply exactly, including frequency. The Model 802 is configurable from 110V to 440V, and Ruiqi confirms your local electrical standard before production begins. [NEED_CITE: voltage and frequency standards by export market]
Where the 802 Sits in the Complete Ruiqi Machine Range
The Model 802 is positioned as a mid-range automatic edge banding machine within the broader Ruiqi catalogue, which spans from compact entry-level units designed for small joinery shops to full-function pre-milling models built for high-volume panel processing plants. This edge banding machine manufacturer structures its product family so a workshop can move from the 802 to a higher-tier machine without changing supplier or relearning a new control interface.
The Upgrade Path Without Switching Suppliers
Workshops that start with the 802 often scale into multi-function edge banders with pre-milling, corner rounding, and buffing stations as their order volume grows. Because Ruiqi keeps the control logic and mechanical architecture consistent across its range, operators trained on the 802 transition to more advanced models with minimal retraining. This product-line continuity is a deliberate design choice by the edge banding machine manufacturer to reduce the friction of scaling a furniture factory. [NEED_CITE: CE machinery directive requirements for industrial woodworking equipment]
How Core Parameters Translate to Daily Output

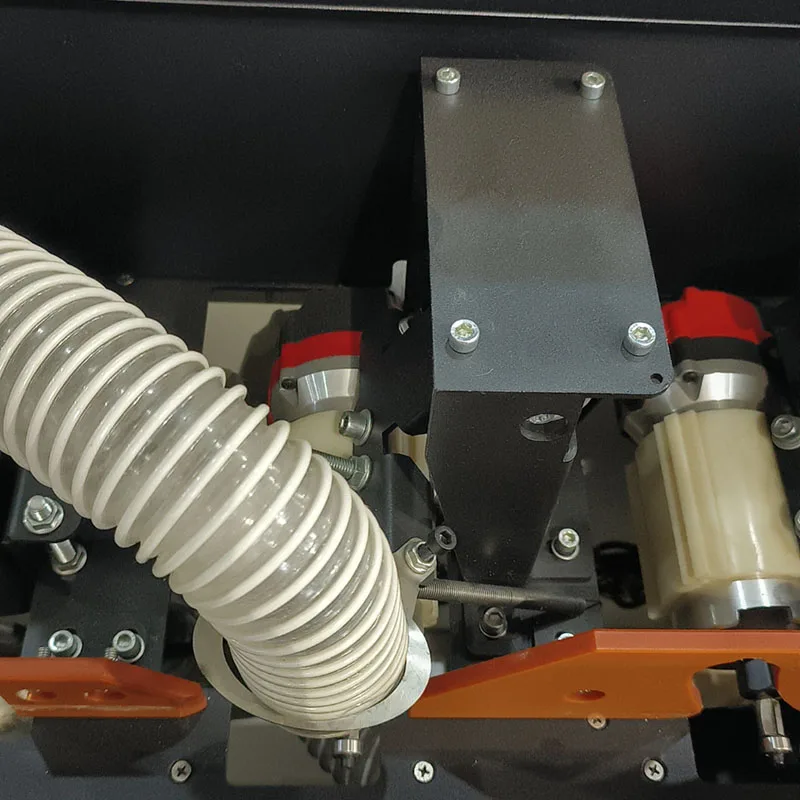

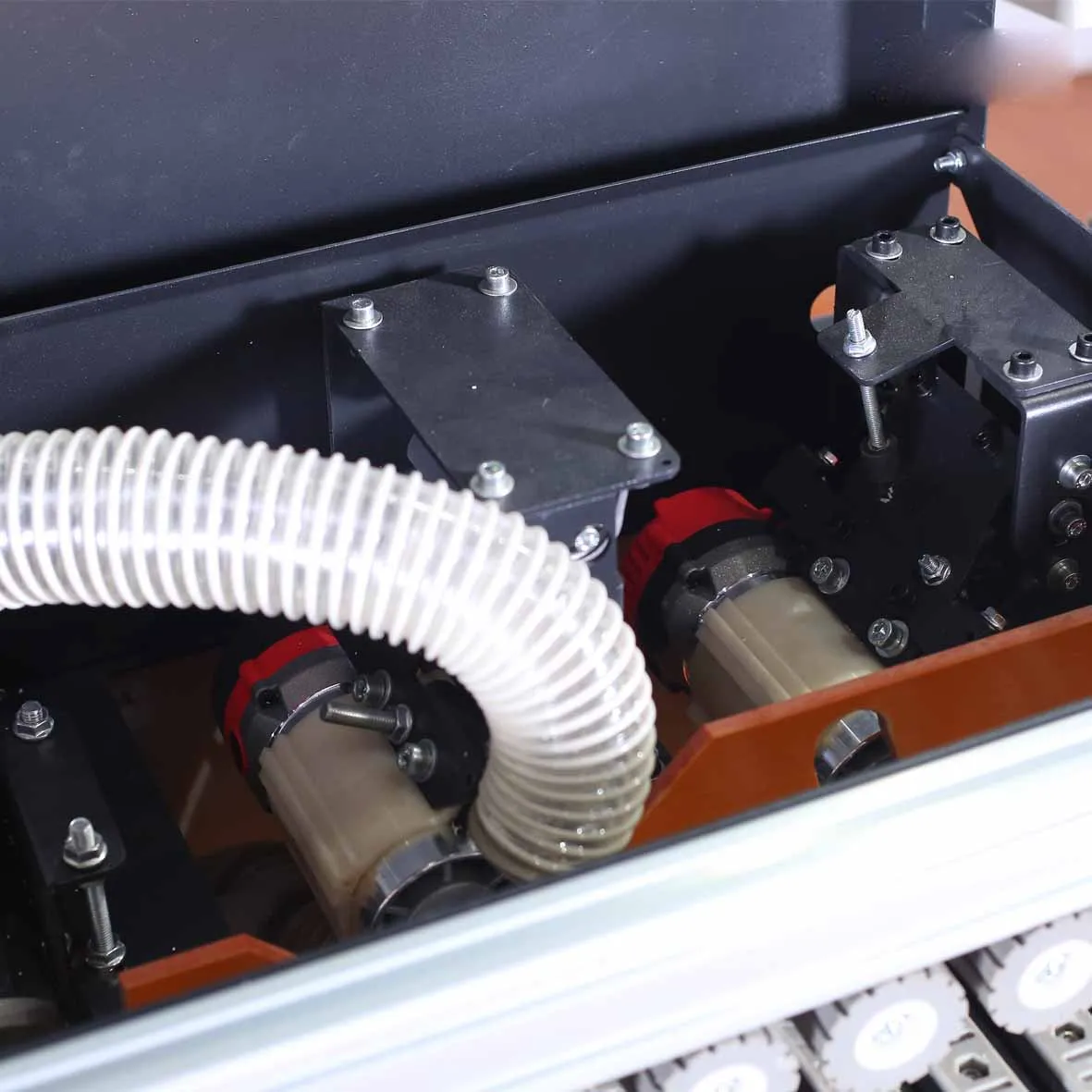

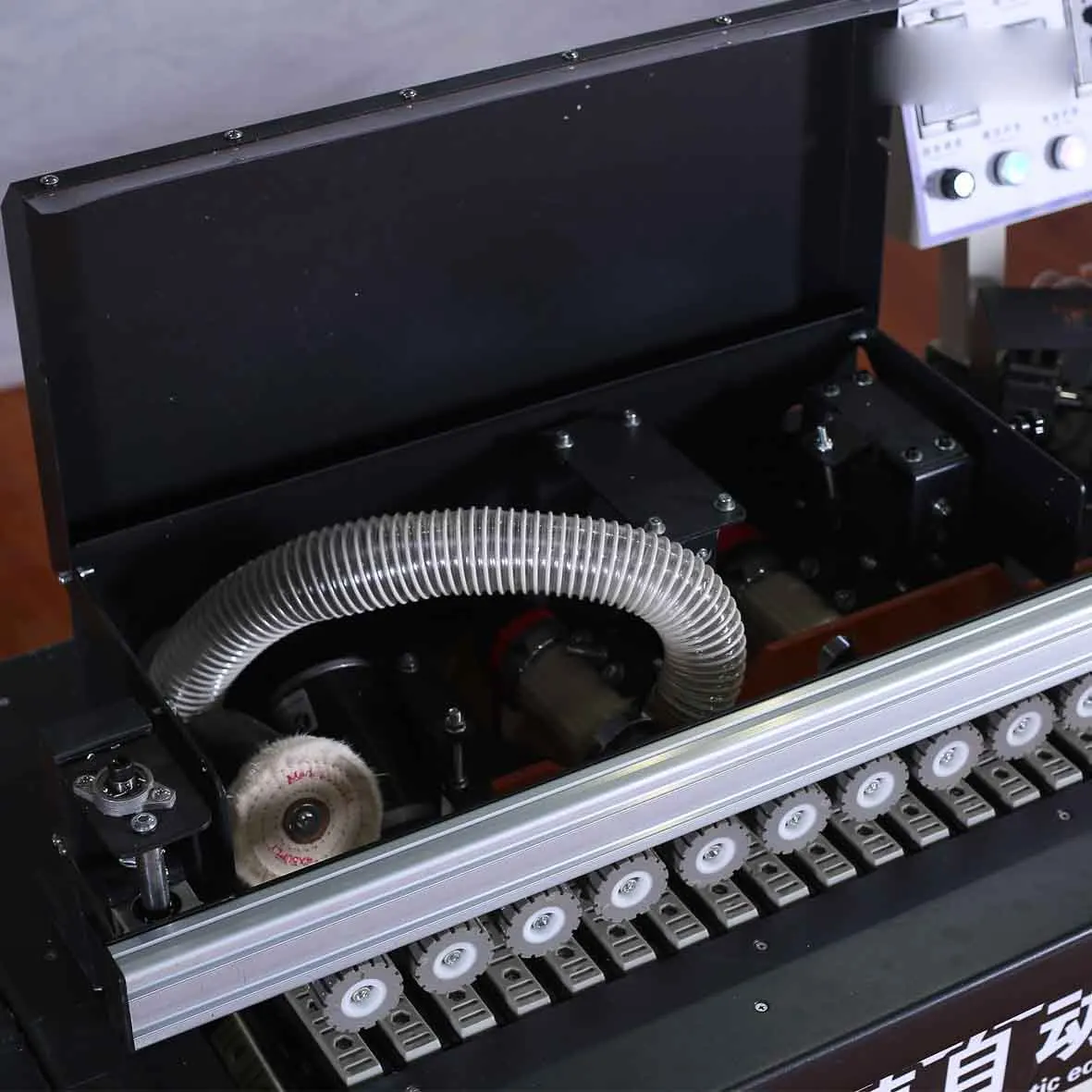

The 10–50 mm sheet thickness range covers most furniture panel stock, from thin 10 mm MDF shelving to 50 mm solid wood worktops. The 4000 ml glue pot capacity means fewer refill stops during a production run — operators can edge-band a full batch of cabinet carcasses before needing to top up. The dual 800W trimming motors handle both PVC and veneer strip materials within the 0.5–2.5 mm range, producing a clean cut without the chipping that lower-powered trimmers leave on melamine-faced boards. The silicone conveyor belt and one-piece pressure beam with double rows of pressure wheels keep panels flat against the fence, which is what prevents the visible glue lines that show up on lighter-colored substrates after trimming.
What Happens When You Skip the Configuration Step
Buying an edge bander without confirming panel material, strip type, and daily volume leads to machines that run at half their expected throughput. A workshop cutting high-density MDF will find that feed speeds optimized for lighter particleboard produce inconsistent glue adhesion and ragged trim lines. Pneumatic systems rated for 0.4–0.6 MPa air pressure will underperform if the shop compressor cannot sustain that range continuously. These mismatches do not show up in a showroom demo — they surface two weeks into production when reject rates climb and operators start blaming the machine. [NEED_CITE: common causes of edge banding adhesion failure on high-density substrates]
Why Procurement Teams Choose This Manufacturer
Ruiqi builds the Model 802 in-house with proprietary cutting mechanisms that hold ±0.02mm tolerance, verified on a factory test record before the machine ships. The four-stage QC process — incoming material inspection, in-process checks, finished product verification, and pre-shipment testing — is documented and available for review. Voltage, control panel language, and specification customization are offered as standard, not as premium add-ons. Engineer-led configuration recommendations are delivered within 24 hours of an inquiry, and factory visits for sample processing tests are welcomed at the Ningjin, Shandong facility. Every unit ships with full OEM and private-label support for distributors who need their own branding.
Documentation & Verification
- CE declaration of conformity matched to the Model 802 configuration you ordered
- ISO 9001 certificate covering the manufacturing process of this edge banding machine manufacturer
- Factory test record run on your specified panel thickness and strip material before dispatch
- Electrical schematic confirming your local voltage and frequency wiring
- Operation and maintenance manual provided in your agreed language
- Spare parts list with part numbers for trimming blades, polishing wheels, and pressure rollers
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4 kW total power draw of the 802
- Overall footprint of 130 × 65 cm fits standard workshop bays; allow clearance for extendable fluent strips on large panels
- Pneumatic supply must sustain 0.4–0.6 MPa continuously to support the belt-breaking and trimming functions
- Digital glue pot display and independent switches simplify first-day parameter setting for operators
- Built-in 1200W dust collector connects to your existing extraction system or runs standalone
- Silicone conveyor belt and pressure wheel set included as initial spare parts in the shipment
Before You Request a Quotation
To configure the Model 802 correctly, share the panel materials you process most often — MDF, plywood, particleboard, or solid wood — along with the edge banding strip type and thickness you run. Confirm your workshop’s available voltage and frequency so the machine is wired correctly at the factory. If you are integrating the 802 into an existing line, let us know your upstream saw and downstream boring equipment so feed height and throughput stay compatible across stations.
Frequently Asked Questions
Q: How does the Model 802 fit within the full Ruiqi edge banding machine range?
A: The 802 is a mid-range automatic edge bander in a product family that extends from entry-level workshop machines to full-function pre-milling models. This lets a furniture factory start with the 802 and move to a higher-spec Ruiqi machine as volume grows, without changing supplier or retraining operators on a different control platform.
Q: What voltage options are available, and how is compatibility confirmed?
A: The 802 is configurable from 110V to 440V to match your local electrical supply. Before production begins, the edge banding machine manufacturer confirms your exact voltage and frequency requirement. The electrical schematic and wiring are verified during the pre-shipment QC stage so the machine runs correctly on arrival.
Q: Which panel and edge banding materials does the 802 support?
A: The machine handles MDF, plywood, particleboard, and solid wood panels from 10 to 50 mm thick. It processes PVC and veneer edge banding strips in the 0.5–2.5 mm thickness range. For materials outside these ranges, a higher-tier model in the Ruiqi catalogue may be a better fit.
Q: Can I visit the factory to see the 802 running a sample test?
A: Factory visits are welcomed at the Ningjin, Shandong facility. You can bring your own panel stock and edge banding material for a live sample processing test on the 802, so you can verify trim quality, glue-line appearance, and feed stability before committing to an order.
Q: What documentation ships with the machine?
A: Every Model 802 ships with a CE declaration of conformity, ISO 9001 manufacturing certificate, factory test record, electrical schematic confirming your voltage, operation manual in your agreed language, and a spare parts list. All documents are prepared before dispatch and travel with the machine.
