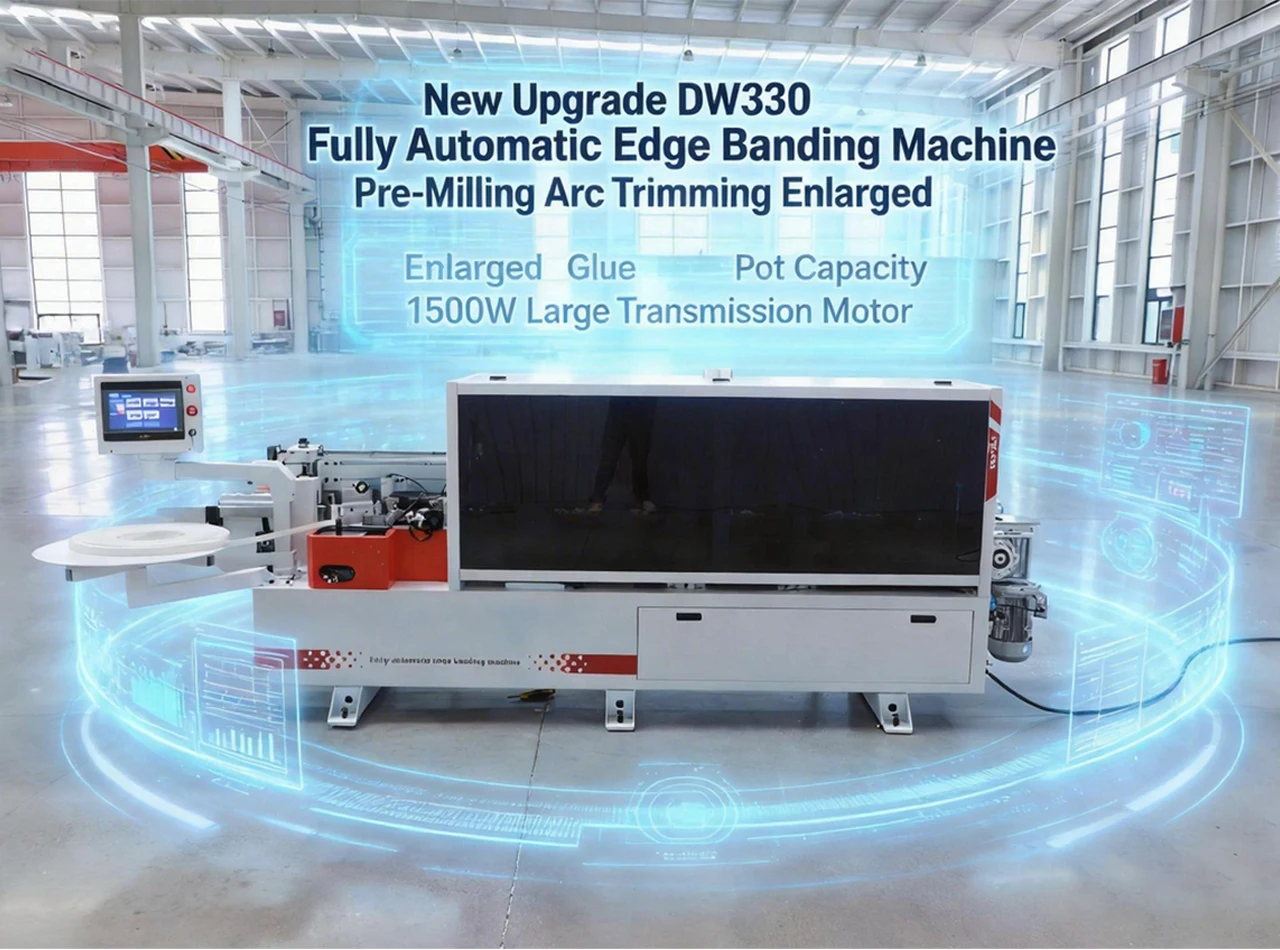

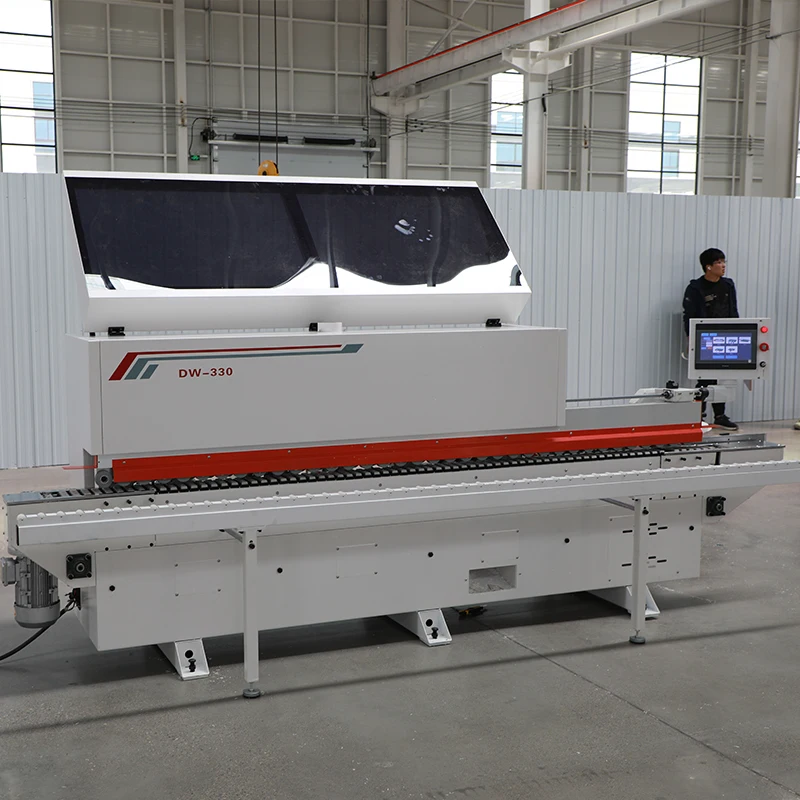

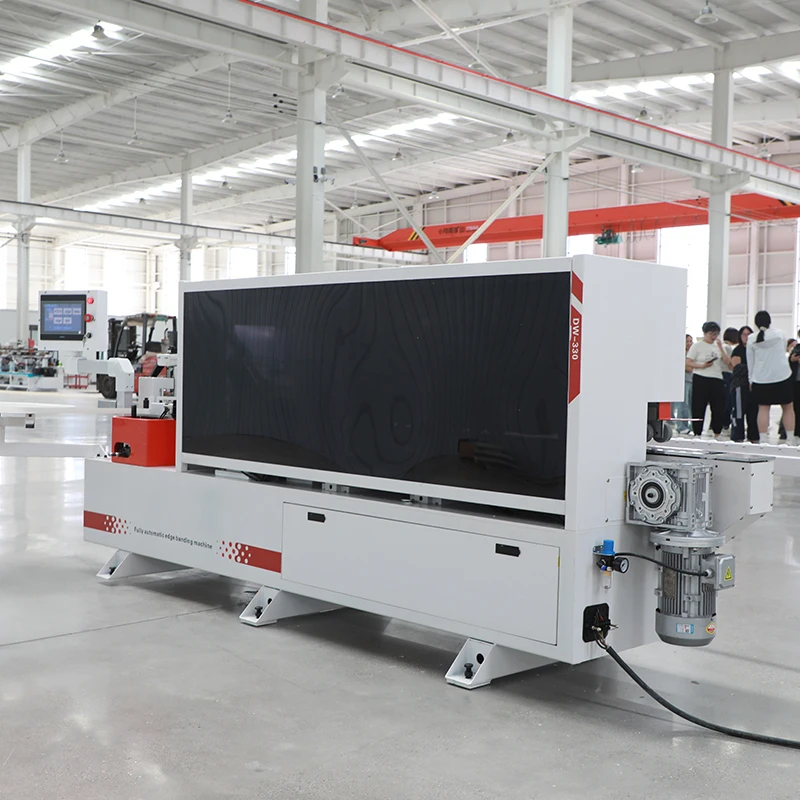

Description
Verified Tolerance — Every DW-330 unit carries a pre-shipment test record proving ±0.02mm precision on your actual panel stock.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-330 |
| Product Type | Automatic Edge Banding Machine |
| Conveying Motor | 1.5 kW |
| Trimming Motor | 0.55 kW × 2 |
| Glue Feeding Motor | 0.37 kW × 2 |
| End-to-end Motor | 0.37 kW × 2 |
| Polishing Motor | 0.37 kW × 2 |
| Heating Rod | 380 V, 300 W × 4 |
| Feed Speed | 18 m/min |
| Narrowest Sealing Plate Width | 120 mm (source value — verify against manufacturer catalog) |
| Minimum Machining Size | 200 mm (L) × 100 mm (W) × 9 mm (T) |
| Maximum Plate Thickness | 50 mm |
| Outline Dimension | 350 × 71 × 122 cm |
| Net Weight | 750 kg |
| Control System | 7-inch PLC control panel |
| Language Options | Multiple languages compatible |
| Transmission Motor | 1500 W, 1:40 speed ratio |
| Pressure System | Double-row pressure rollers, aluminum profile pressure beams |
| Edge Banding Thickness Capacity | Up to 3 mm |
| Glue Pot | Enlarged capacity |
| Gluing Shaft | Large shaft, single-sided gluing |
| Voltage Range | Configurable from 110 V to 440 V |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Wardrobe panel edge sealing | Plywood and melamine-faced boards |
| Small-batch furniture production | Solid wood panels with veneer edge banding |
| Shelving and partition board processing | Chipboard and blockboard substrates |
| Entry-level automated workshop setup | Mixed panel types in custom furniture operations |
What "18 Meters Per Minute" Leaves Out About Edge Quality
Feed speed only matters when the glue pot and pressure system can keep up.
I once worked with a cabinet maker who bought an automatic edge banding machine from another supplier based purely on the advertised feed rate. When his operators ran high-moisture particleboard in a humid Shandong summer, the glue could not cure fast enough at full speed. The edge tape peeled off within hours. The DW-330 addresses this with an enlarged glue pot and dual 0.37 kW glue feeding motors that maintain stable thermal mass during continuous runs. But even with this configuration, the real throughput depends on your panel moisture content, ambient temperature, and the thickness of the edge banding material you are applying [NEED_CITE: adhesive curing behaviour on wood-based panels under varying humidity].
Matching the DW-330 to Your Production Stage
This automatic edge banding machine manufacturer designs the DW-330 for workshops transitioning from manual edge banding to mechanized output. The 7-inch PLC control panel with multilingual support means your operators do not need weeks of training to reach consistent quality. The double-row pressure rollers paired with aluminum profile pressure beams hold narrow boards down to 120 mm width without drift, which is the typical bottleneck when shops start processing cabinet side panels and drawer components at volume.
How the DW-330 Fits Within a Growing Workshop
What separates this machine from entry-level banders is the gap between its minimum and maximum plate thickness range. With a working envelope from 9 mm to 50 mm, a joinery shop can handle everything from thin MDF drawer bottoms to thick blockboard shelving without reconfiguring the pressure beam between batches. The 1500 W transmission motor with a 1:40 speed ratio delivers steady feed force across that range, preventing the hesitation marks that appear when underpowered conveyors stall on heavier stock [NEED_CITE: feed motor sizing for panel edge banding equipment].
Plate Thickness, Feed Speed, and the Tolerance Question

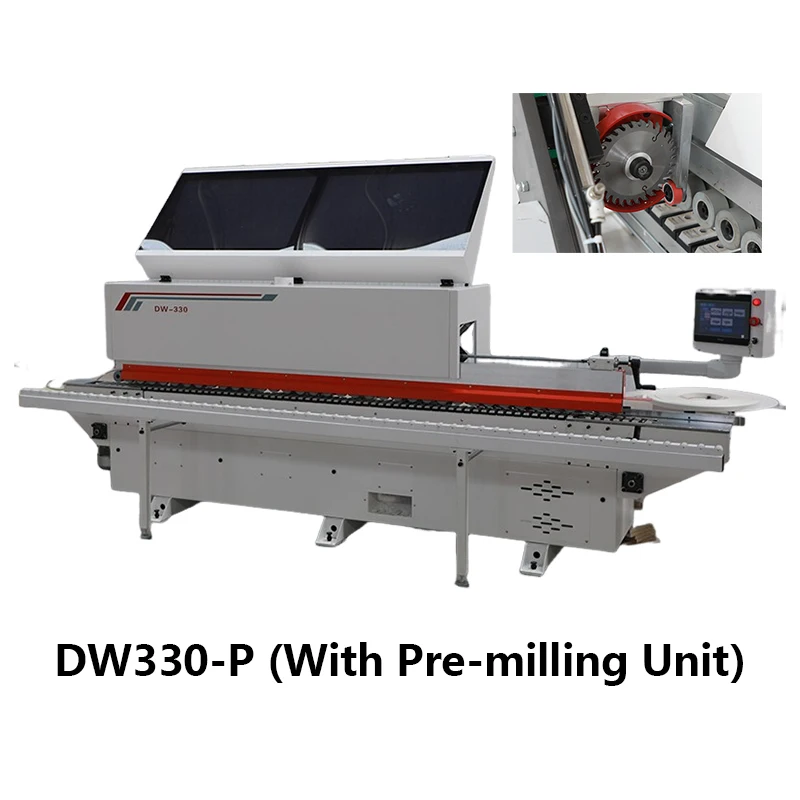

The relationship between plate thickness and feed speed determines whether you achieve the ±0.02 mm tolerance this machine family is built around. At 18 m/min, a 9 mm MDF panel passes through the trimming stations quickly enough that the 0.55 kW trimming motors produce a clean cut without tear-out. When you shift to 50 mm blockboard, the same motors maintain cutting accuracy because the enlarged gluing shaft applies consistent adhesive coverage regardless of panel height. The four heating rods at 300 W each keep the glue pot at a stable working temperature, which is essential when switching between PVC and veneer edge banding materials that demand different thermal profiles. The pre-milling stage — available on higher-tier models in this product family — removes saw marks from the panel edge before gluing, directly improving the bond quality that downstream assembly depends on.
The Hidden Cost of Skipping Voltage Confirmation
Every year, workshops receive edge banding machines that were quoted without anyone confirming the local electrical supply. The heating rods on the DW-330 are rated at 380 V; running them on a different supply without reconfiguration causes either underperformance or element burnout. The voltage on this automatic edge banding machine manufacturer’s equipment is configurable from 110 V to 440 V, but only if the correct specification is communicated before production begins [NEED_CITE: voltage and frequency standards by export market]. A machine arriving with the wrong voltage configuration sits idle while replacement components are shipped, costing the workshop days of lost production.
Why Buyers Return to This Supplier for Their Next Machine
The DW-330 sits within a complete product family, so a workshop that outgrows this model can move to a higher-tier automatic edge banding machine without learning a new control system or changing spare parts inventory. Every unit ships with a factory test record run on the buyer’s specified panel thickness range, not a generic certificate. The four-stage QC process covers incoming material inspection through pre-shipment verification, meaning the tolerance you see documented is the tolerance the machine actually delivers. Configuration recommendations come from engineers who ask about your panel types and workshop humidity before quoting, rather than pushing the highest-spec model regardless of fit.
Documentation & Verification
- CE declaration of conformity matched to the DW-330 machine category
- ISO 9001 certificate covering the manufacturing and assembly process
- Machine specification sheet with confirmed voltage for your facility
- Factory test record run on your specified panel material and thickness
- Operation and maintenance manual produced in the agreed operator language
Installation, Commissioning & Support
- Requires a level concrete floor rated for the 750 kg net weight and 350 cm footprint
- Dedicated electrical circuit matching confirmed voltage from 110 V to 440 V configuration
- Arrives partially disassembled; pressure beam and glue pot require on-site alignment
- First-run commissioning includes feed speed calibration at 18 m/min on your panel stock
- Operator training covers 7-inch PLC control panel navigation in the selected language
- Spare parts list identifies trimming blades and pressure roller covers for routine replacement
Preparing Your Inquiry for Accurate Configuration
To get a configuration that matches your actual production conditions, share the panel materials you run most often, the typical thickness range, and your workshop’s average temperature and humidity levels. Confirming your local voltage and frequency early prevents delays after the order is placed. If you are evaluating where this machine fits in a broader line, note any upstream saws or downstream boring machines already in your shop.
Frequently Asked Questions
Q: How can I verify the ±0.02mm tolerance before committing to an order?
A: Request a factory test record run on your specific panel material and thickness. The DW-330 undergoes pre-shipment testing where edge banding alignment is measured and documented. You can also arrange a sample processing test at the facility, sending your own panel stock to see the actual edge quality the machine produces on your substrates.
Q: What voltage options are available for my regional market?
A: The DW-330 is configurable from 110 V to 440 V to match different regional electrical standards. Voltage and frequency must be confirmed before production begins, as the heating rods and motors are wound to your specified supply. The machine specification sheet documents the confirmed configuration for your records and local inspection requirements.
Q: How do I know if the DW-330 is the right tier for my production volume?
A: The selection depends on your daily panel throughput, the range of board thicknesses you process, and whether you need pre-milling capability. This automatic edge banding machine manufacturer offers models from entry-level to full-function within the same product family, so the recommendation is based on your actual material mix and output targets rather than a generic catalog pick.
Q: Can I visit the factory or request a sample processing test?
A: Factory visits are available so you can inspect the assembly line and QC process in person. If travel is not practical, you can ship sample panels to the facility and receive a processing test report with photos showing edge quality, glue line consistency, and trimming accuracy on your specific materials before placing an order.
