Description
Integrated Configuration Strategy — Every DW902 configuration is locked to your local voltage and frequency before production starts, eliminating the shop-floor power mismatch that stalls commissioning on export equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW902 |

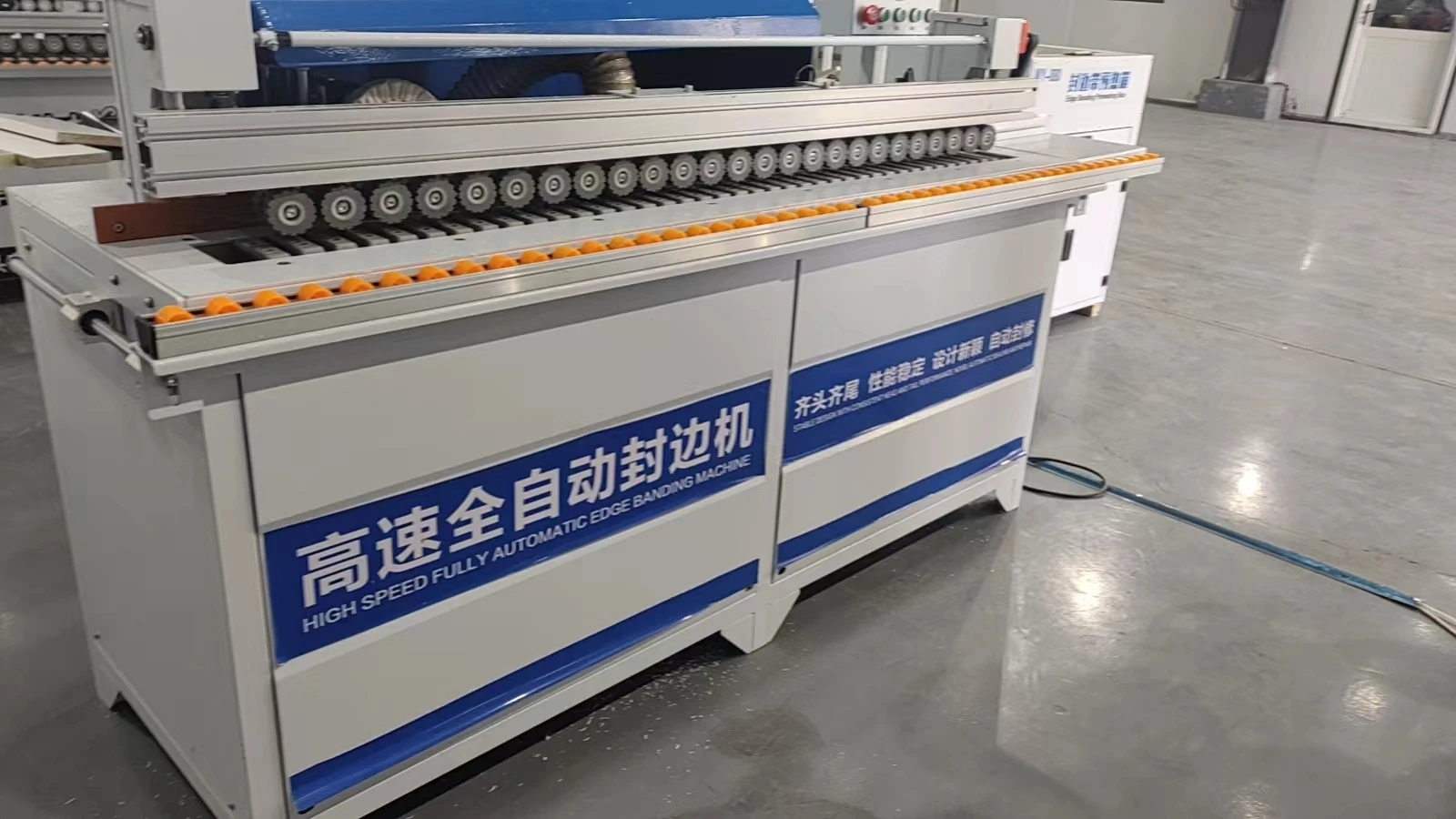

| Product Type | High-speed Fully Automatic Edge Banding Machine |
| Function Stations | Gluing, Trimming, End cutting, Scraping, Polishing |
| Voltage | 220V (frequency 50Hz/60Hz to be confirmed at order) |
| Total Power | 3300W |
| Board Thickness Range | 0–50mm |
| Strip Thickness Range | 0.5–3mm |
| Glue Pot Capacity | 4000ml |
| Overall Dimensions (L×W×H) | 175×60×112cm |
| Net Weight | 240kg |

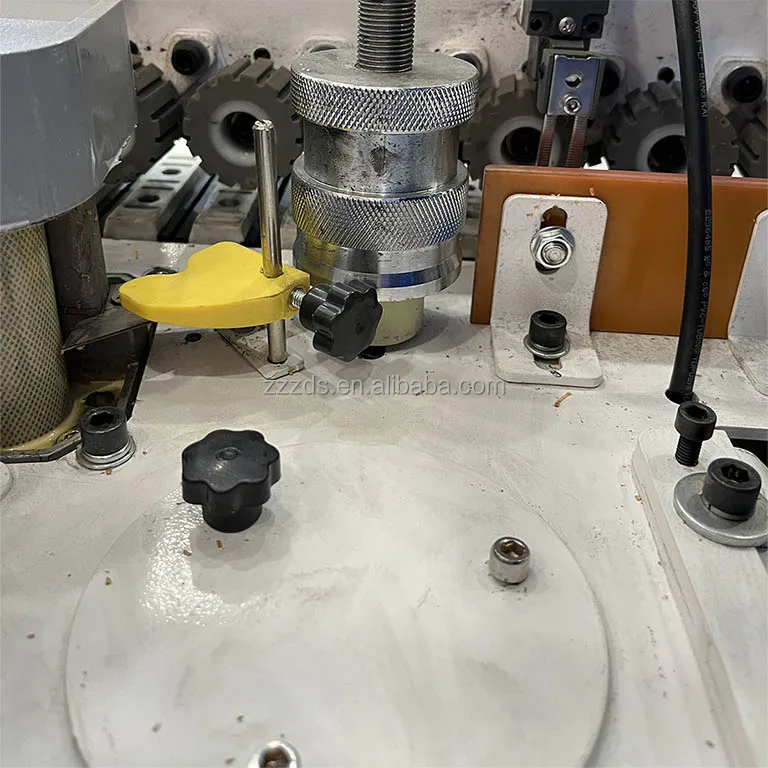

| Pressure Beam | Integrated pressure beam with adjustable handle for board height |

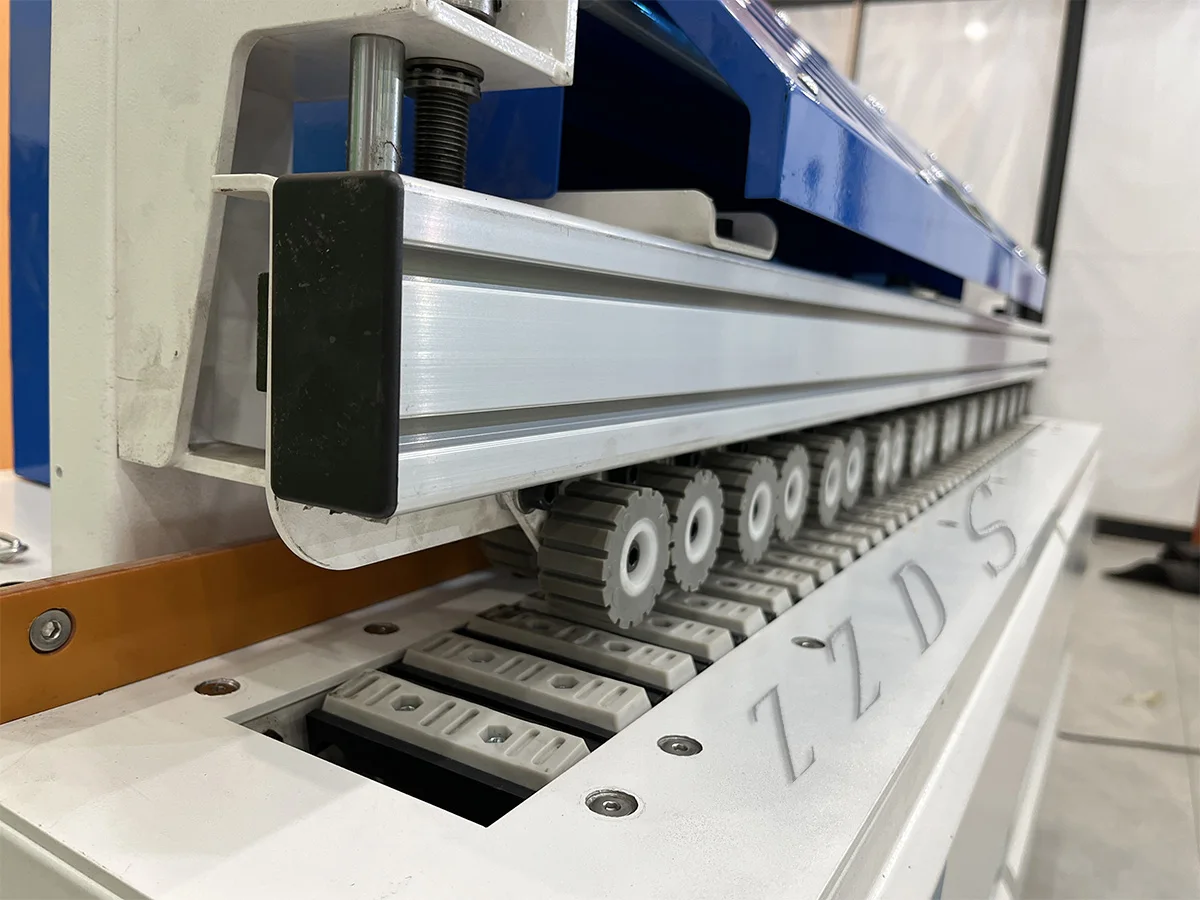

| Pressure Wheels | Double rows of pressure wheels |
| Conveyor Belt Material | Silicone |

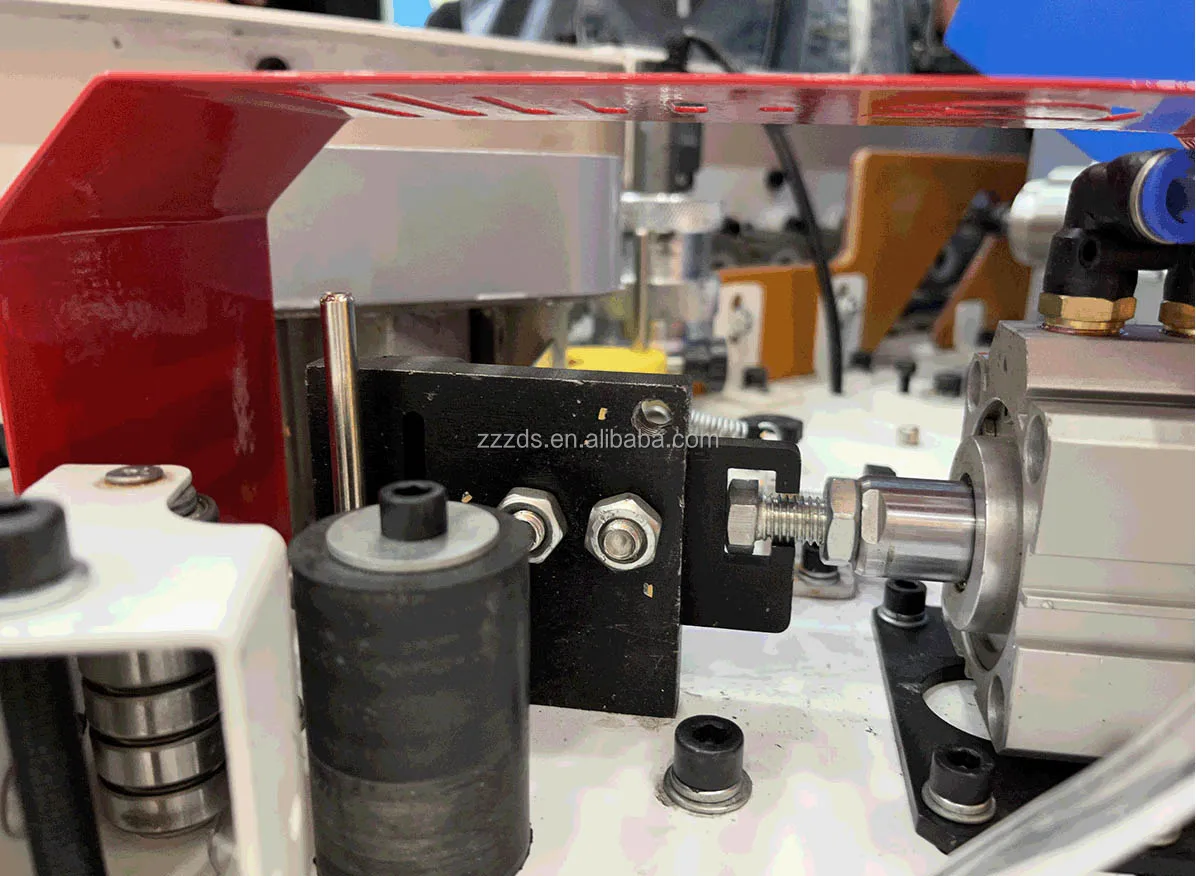

| Edge Strip Cutting | Pneumatically controlled |

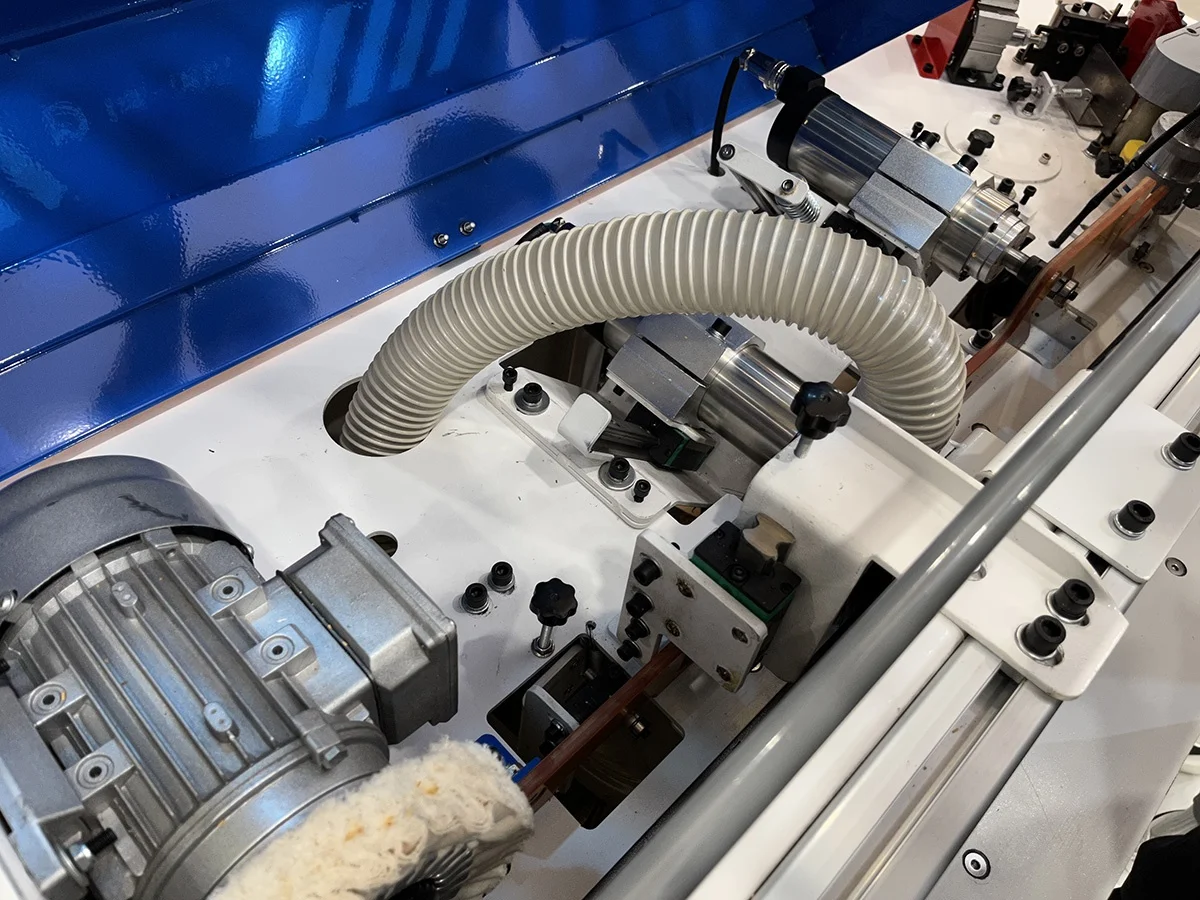

| Polishing Motors | Up and down two polishing motors |
| Trimming Motors | Double high-speed trimming motors (trimming up and down) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge banding | MDF and particleboard with 0.5–3mm PVC edge strips |
| Wardrobe and shelving panel finishing | Melamine-faced chipboard with matching PVC banding |
| Small-batch plywood furniture edging | Plywood panels with veneer or thin PVC strips |
| Joinery workshop semi-automated production | Solid wood panels with veneer edge banding up to 3mm |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine Manufacturer Quotation
A machine that cannot match your local power supply is dead weight on the shop floor, regardless of how competitive the price looked.
I have watched a 60Hz market receive a 50Hz-configured edge bander and spend weeks waiting for a transformer solution while the production schedule collapsed around it. Frequency mismatches do not show up in brochures — they show up when the trimming motors run hot, the glue pot overshoots temperature, and the conveyor belt stutters under load [NEED_CITE: voltage and frequency standards by export market]. The DW902 quotation process requires written confirmation of your local voltage and frequency before any component is sourced, so the motors, heaters, and control electronics arrive matched to your actual grid conditions.
The Complete Function Range at One Source
The DW902 packs five function stations — gluing, trimming, end cutting, scraping, and polishing — into a single compact frame. This means a workshop moving from manual edge application can achieve a finished edge without adding separate trimming or polishing stations downstream. As your volume grows and panel specifications diversify, the same automatic edge banding machine manufacturer that built this unit also produces full-function pre-milling models, keeping your supplier relationship and spare parts ecosystem under one roof.
Scaling Without Changing Supplier
A joinery workshop today may be running 50 boards a day through the DW902; tomorrow it may need double that throughput with heavier pre-milling capability. Because this model sits within a broader product family sharing common control logic and spare parts architecture, upgrading to a higher-tier machine from the same manufacturer does not mean retraining operators or rewiring the shop floor [NEED_CITE: woodworking machinery scaling strategies for small manufacturers]. The DW902 becomes the first step on a line that can extend to full panel processing without introducing a second vendor’s documentation, voltage conventions, or spare part lead times.
What the Specification Sheet Tells You About Edge Quality
The 0–50mm board thickness range, combined with the adjustable pressure beam and double-row pressure wheels, keeps panels stable through each station regardless of whether you are running 9mm MDF shelf stock or 40mm solid wood worktops. Stability at the feed point directly affects trimming accuracy — a panel that shifts even fractionally under the trimming motors leaves a visible step on the edge that scraping alone cannot fully correct. The double high-speed trimming motors work the top and bottom edges in a single pass, while the up-and-down polishing motors remove residual adhesive haze before the panel exits the machine. The 4000ml glue pot capacity supports extended production runs without frequent refill pauses, which matters when batch consistency across a cabinet run depends on maintaining steady glue temperature and feed pressure throughout.
What Happens When the Feed Path Is Mismatched
Panels that exceed the rated thickness range or edge strips outside the 0.5–3mm window create problems that do not appear until assembly. Oversized edge banding produces trimming burrs that catch on adjacent panels during stacking. Undersized strips leave gaps at the panel face that absorb moisture and swell over time [NEED_CITE: common edge banding defects in furniture assembly]. The DW902 specification boundaries exist because the pneumatic cutting mechanism and trimming motor geometry are tuned to that range — running material outside it does not just produce poor edges, it accelerates wear on consumable cutters and polishing pads.
Why Procurement Teams Choose This Manufacturer
The DW902 is built in-house with proprietary cutting mechanisms, so specification changes during the order process do not depend on a third-party supplier’s lead time. Voltage, control panel language, and machine configuration are confirmed by an engineer before the quotation is issued, not guessed at by a sales template. The four-stage quality control process includes a pre-shipment factory test on your actual panel material, with test records provided before the crate leaves Shandong. This automatic edge banding machine manufacturer supports both single-unit orders and larger production runs within the same facility, so a distributor stocking multiple models does not need to manage separate factories for different product tiers.
Documentation & Verification
- CE declaration of conformity matched to the DW902 configuration as shipped
- Factory test record on your specified panel thickness and edge strip material before dispatch
- Electrical schematic confirming voltage and frequency as built for your market
- Operation and maintenance manual in the language agreed at order confirmation
- Spare parts list with part numbers matching the as-built machine configuration
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated above 3300W total power draw with correct frequency
- Machine footprint of 175×60cm needs clear access on both sides for panel feeding and edge strip loading
- Adjustable pressure beam must be calibrated to your thinnest and thickest panel stock on day one
- Pneumatic edge strip cutting requires a clean compressed air supply at the specified pressure
- Double-row silicone conveyor belt needs tension and alignment check after initial transport settling
What to Include in Your Inquiry
Send your primary panel material and thickness range, the edge strip type and thickness you plan to run, and your local voltage and frequency specification. If you have existing upstream saws or downstream boring machines, note their feed height and throughput so the DW902 can be configured to match your line. Let us know your preferred control panel language and whether you want to send panel samples for a factory test run before committing to the order.
Frequently Asked Questions
Q: How do I know the DW902 fits my panel materials and edge banding thickness?
A: The DW902 handles boards from 0 to 50mm thick and edge strips from 0.5 to 3mm, covering MDF, particleboard, plywood, and solid wood with PVC or veneer banding. If your material falls near either boundary, send samples for a factory test run so we can verify edge finish quality and trimming accuracy on your exact substrate before the order enters production.
Q: What voltage and frequency options are available for my country’s power supply?
A: The DW902 is configured to your confirmed local voltage and frequency before production begins — not after. During the quotation stage, our engineer verifies your grid specification in writing and matches all motors, heaters, and control electronics accordingly, so the machine arrives ready to connect without on-site electrical modification.
Q: Where does this model sit in the full edge banding range, and what is the upgrade path?
A: The DW902 covers five function stations in a compact format suited to small and medium workshops. As your volume or panel complexity grows, the same manufacturer offers full-function pre-milling models within the same product family, sharing common spare parts and control conventions so your operators and maintenance routines transfer without starting over.
Q: Can I visit the factory or send panel samples for a test run before ordering?
A: Both options are available. Factory visits let you see the DW902 assembly process and four-stage quality control firsthand. If travel is not practical, send your actual panel material and preferred edge strip, and we run a sample processing test, providing finished samples and a factory test record before you commit to the order.
Q: What documentation and certifications ship with the machine?
A: Every DW902 ships with a CE declaration of conformity, a machine specification sheet matching the as-built configuration, an electrical schematic confirming your voltage and frequency, an operation manual in your agreed language, and a complete spare parts list with matching part numbers for future reorders.
